GCD5-100 five torch straight gas cutting machine
US $150.00-$200.00

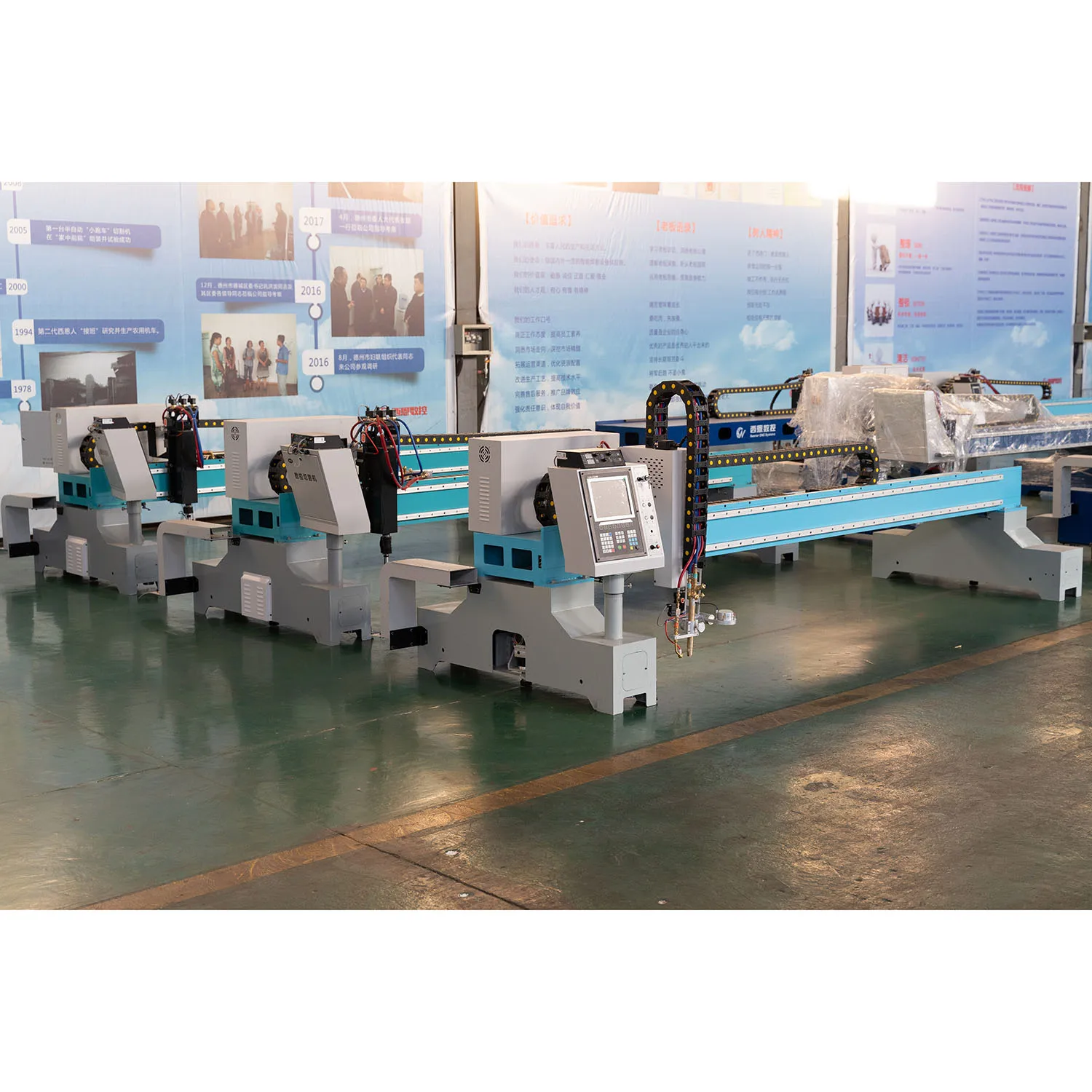

Низкая цена, готовое к отправке оборудование для плазменной и плазменной резки типа CNC
- Category: Gas Cutting Machine >>>
- Supplier: Dezhou Sean CNC Equipment Co. Ltd.
Share on (60776008104):
Product Overview
Description
Product Description

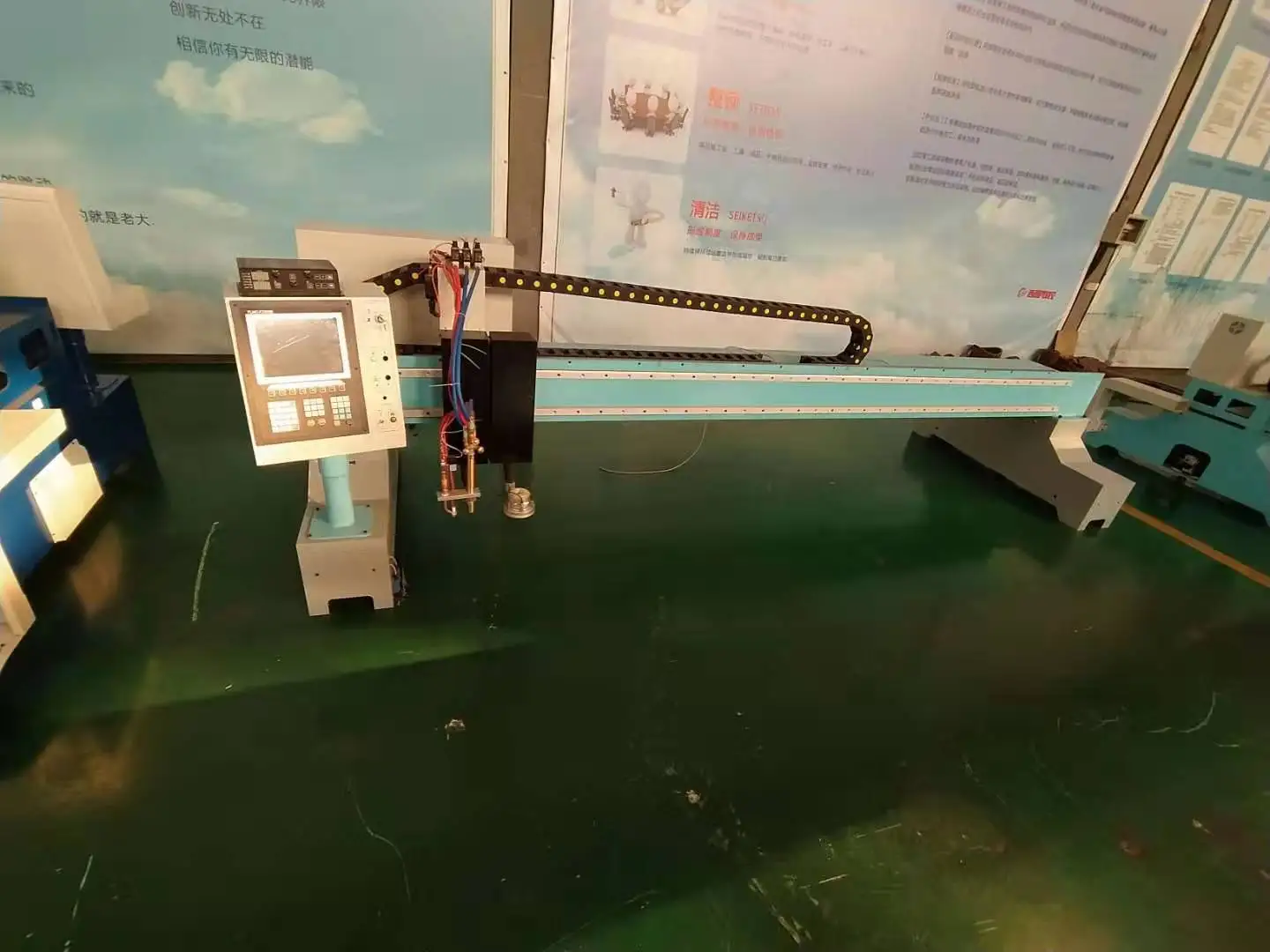

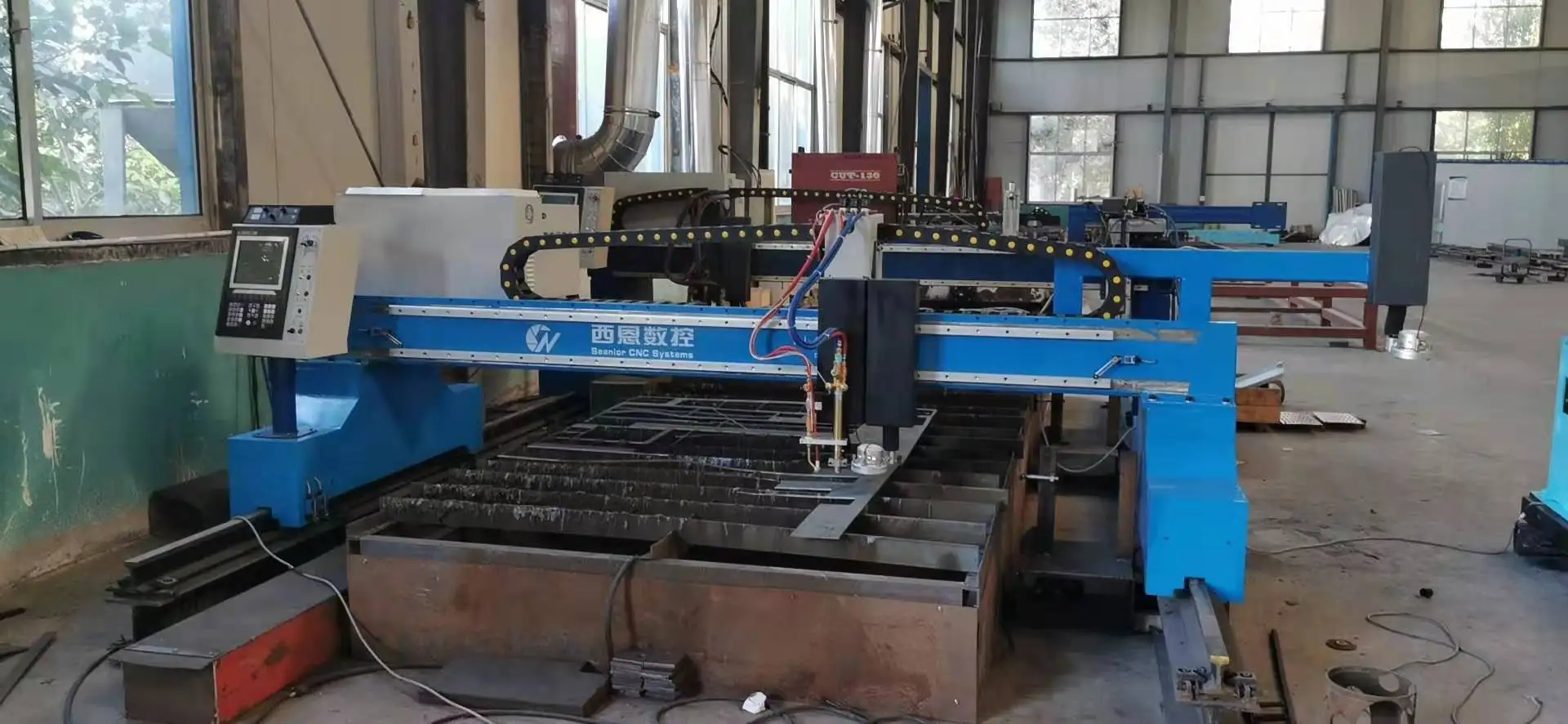

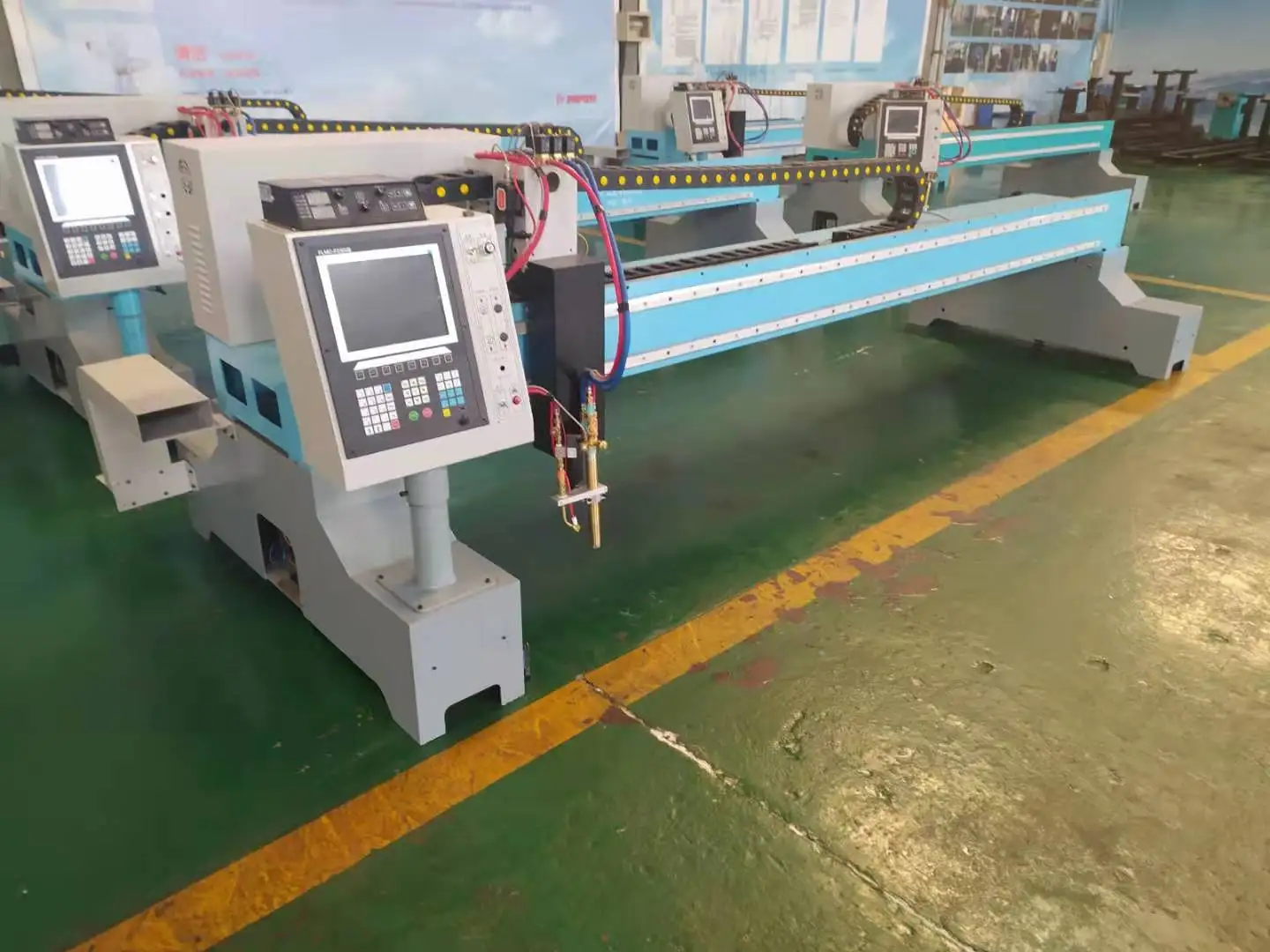

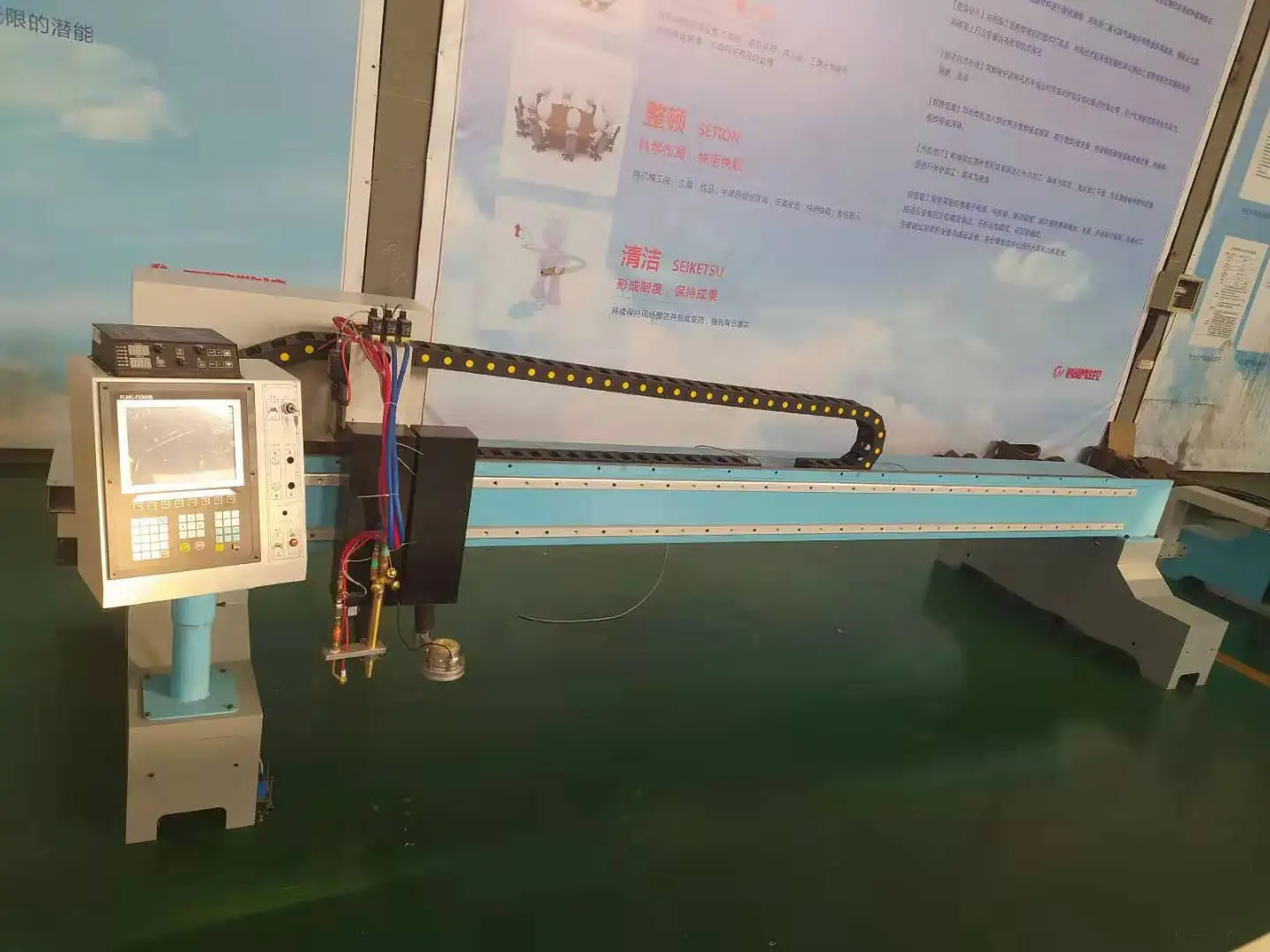

Gantry Type Double Driven CNC Plasma Flame
Cutting Machine
(CNC Gantry Cutting Machine CutMaster4012)
Watch more video on youtube:
https://www.youtube.com/channel/UCRFnUo1ERj6U2njBgMv5bRQ?view_as=subscriber
Do you want to cut something great and improve your efficiency with CNC cutting machine?
Are you looking for the high quality plasma/flame metal cutting machine to cut your sheet metal or pipe and tube at best price?
Are you finding German or American suppliers' offer SO HIGH?
How about a person helps you to solve all the problems and leave you to sit back and relax?
Product Feature
Gantry Type Double Driven CNC Plasma Flame
Cutting Machine
(CNC Gantry Cutting Machine CutMaster)
Main Features

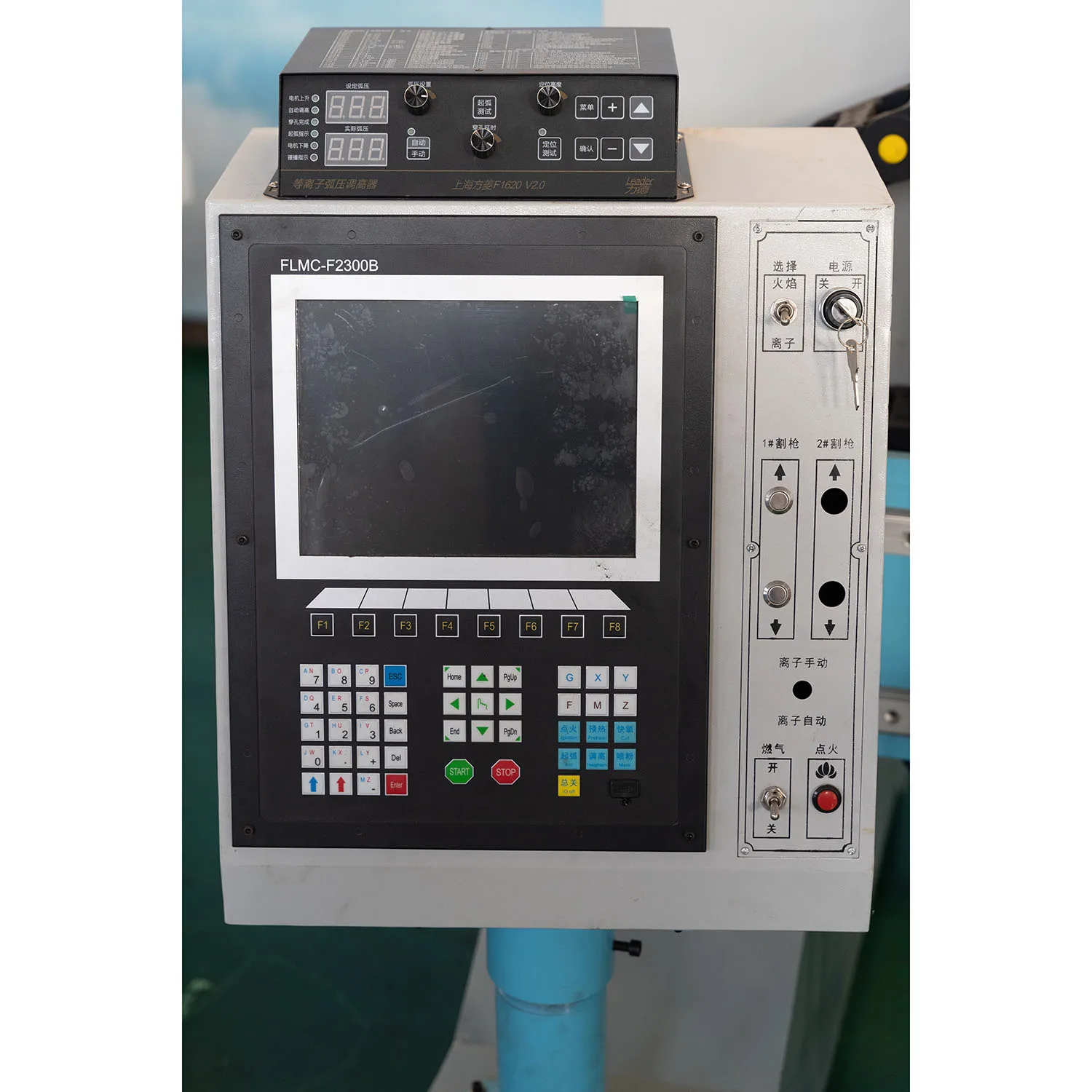

1) Heavy-duty CNC gantry cutting machine with easy-to-use F2300B CNC control system.
2) High compliance digital drives provide a smooth cut edge with zero maintenance.
3) Large diameter drive wheels combined with high precision guiding systems offer you superior drive motion.
4) Rugged cross box beam with milled steel plate for high precision guiding system delivery lasting strength, durability and precision.

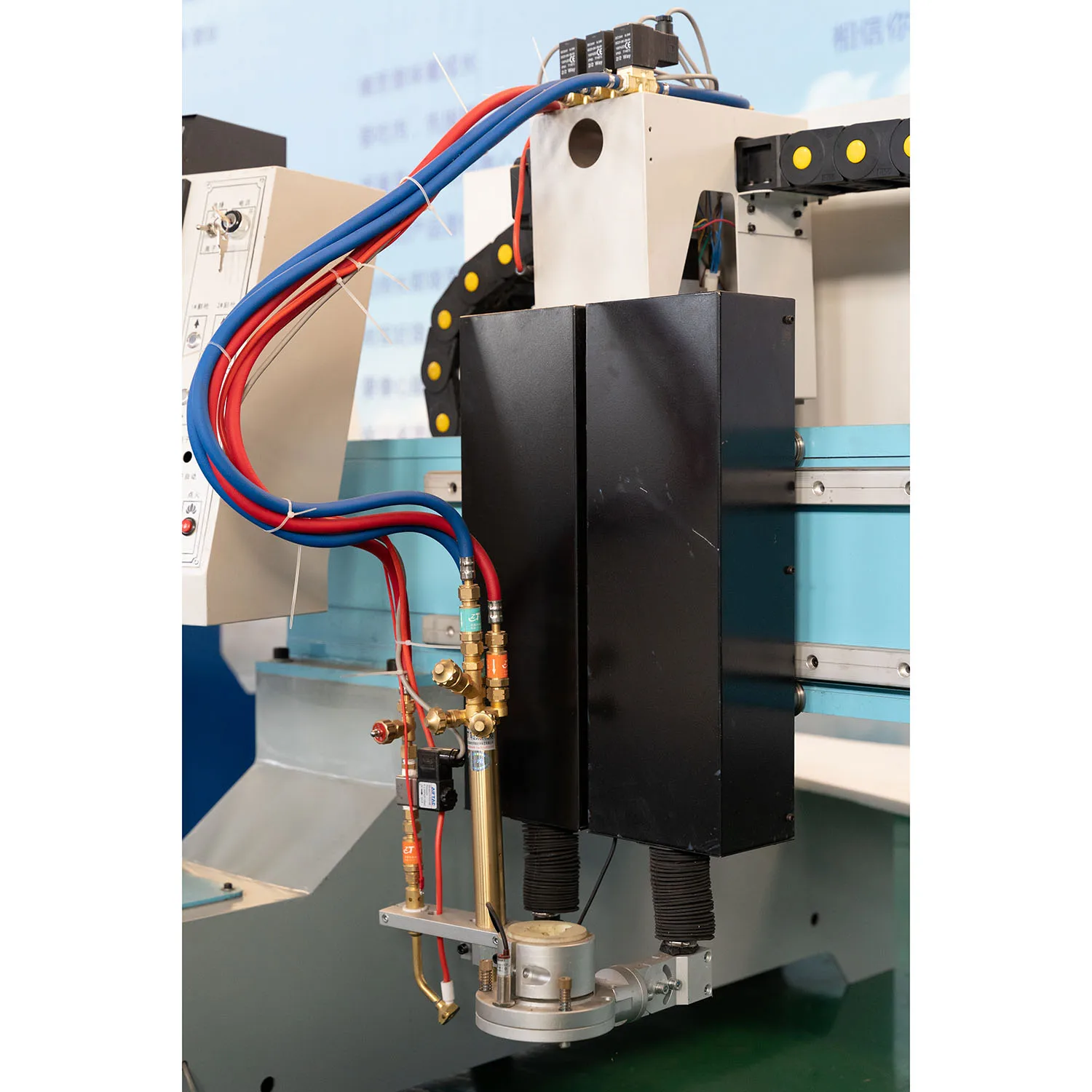

5) Fast flame cutting torch with height sensing lifer and auto-ignition device let you spend more time cutting and less time in setup.
6) Up to 800 amp plasma depending on your choice.
7) Apply to metal cutting in ship building, construction tower, mechanical engineering, steel service and other heavy industries. View More>>>
Product Parameter
Technical item | Technical parameters |
Effective cutting width | 2000mm - 5500mm |
Effective cutting length | 4000mm - 20000mm |
Tailor-made dimension | Accept tailor-made order |
Flame piercing thickness | 6mm -80mm |
Edge cutting thickness | 6mm -200mm for flame cutting |
Plasma cutting thickness | 1-45mm for plasma cutting |
Torch lifter vertical traveling distance | ≤150mm |
Cutting precision | ±0.5mm |
Cutting speed | 100-12000mm/min for plasma cutting 50-600mm/min for flame cutting process |
Number of lifter | Double (standard), accept tailor-made order |
Cutting process | Plasma cutting and flame cutting |
Torch lifting device | flame capacitance adjustment / plasma arc pressure adjustment |
duty cycle | 24h |
processing material | Mild steel , stainless steel and aluminum |
Optional Configuration
Product Details

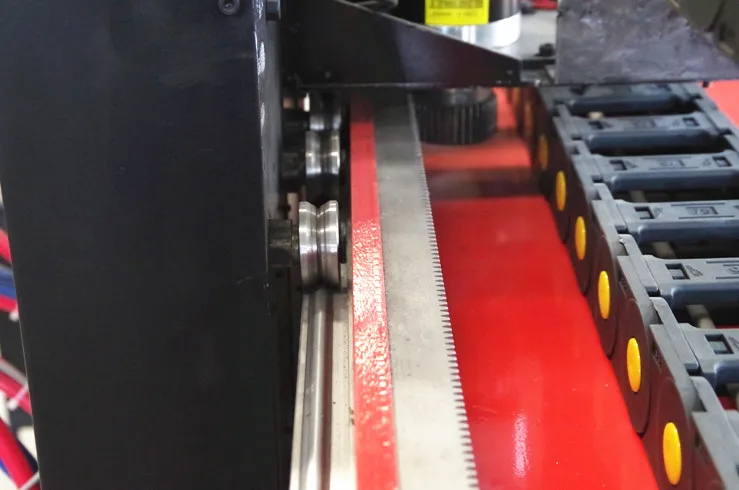

Gear rack
The rack and pinion combined with double cylinder axis guide rail deliver you high precision motion and high quality cutting edge, which will enhance your competitive power in your market place.

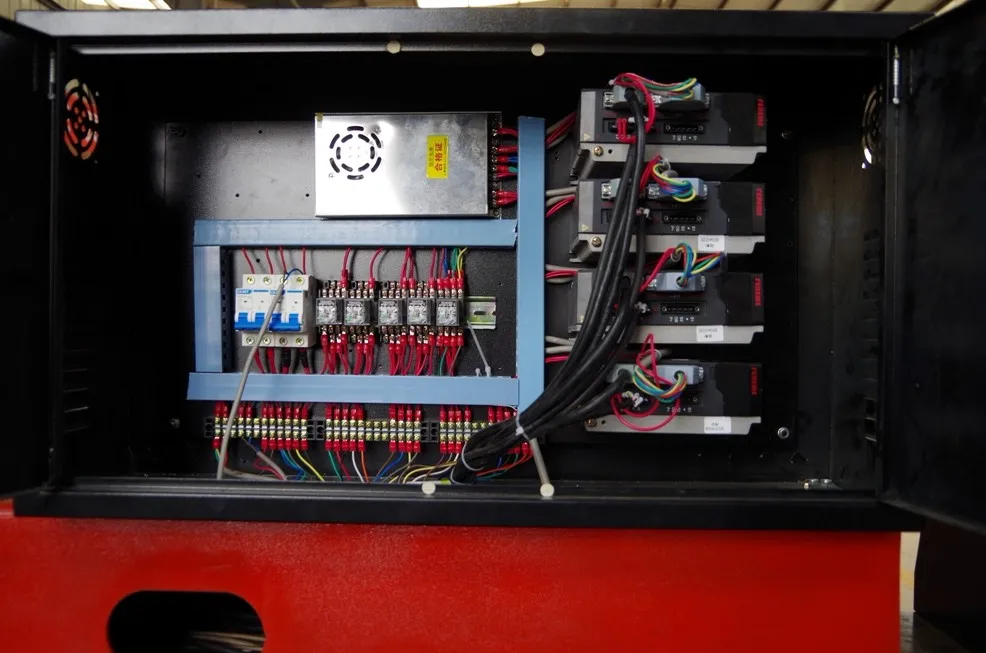

Electric cabinet
The enclosed control cabinet is easily accessible. The digital drives, low-cost replacement I/O modules and more reduce and limit your repaire and maintenance costs.

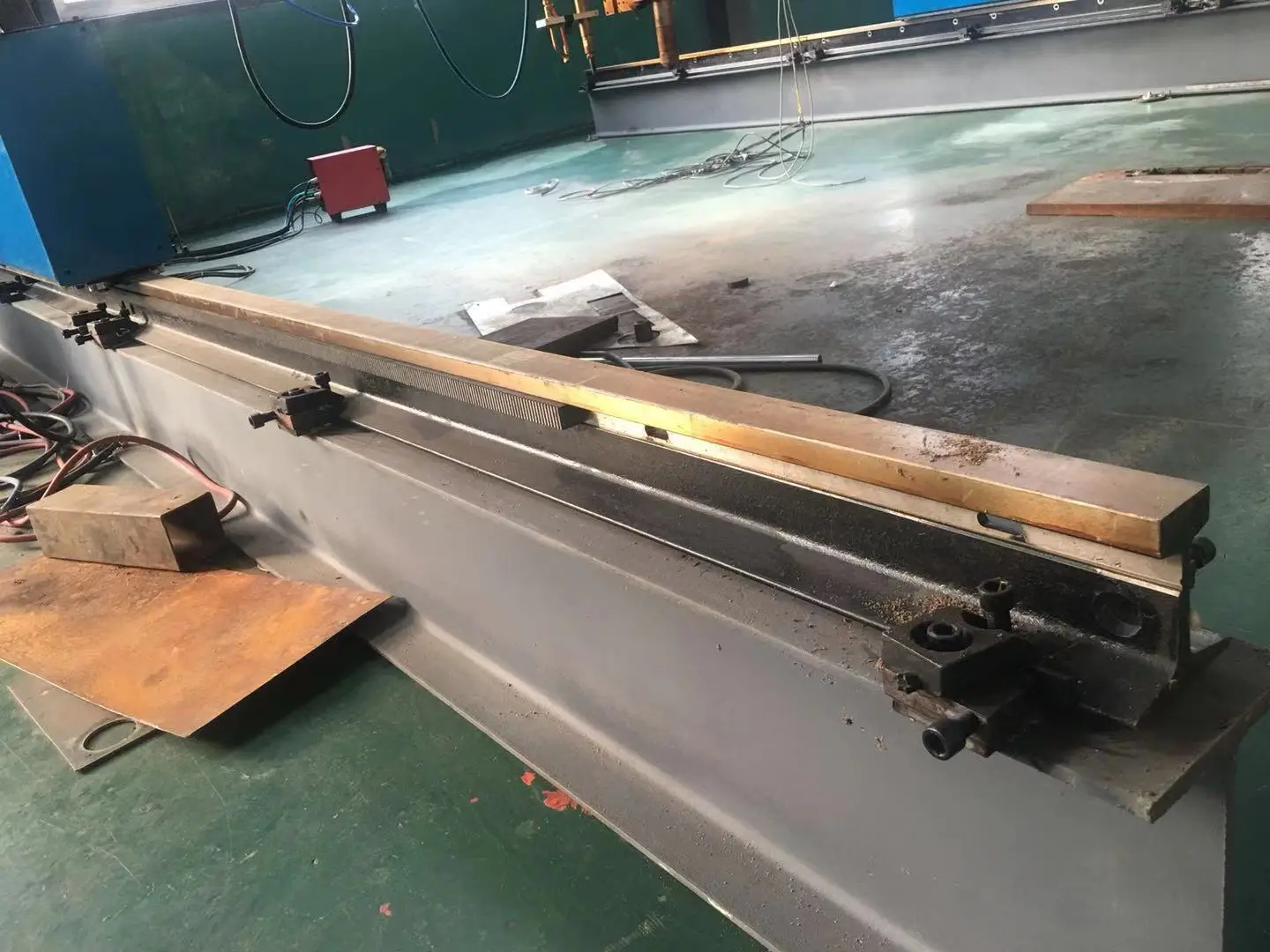

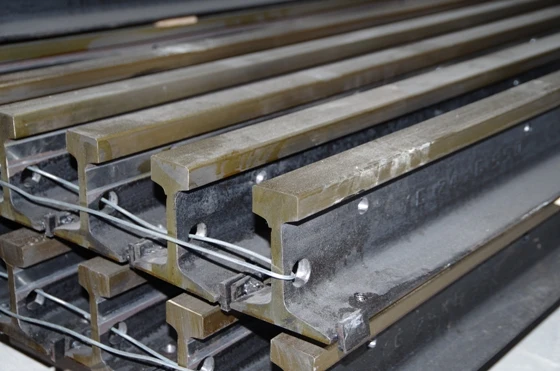

Floor mounted rails
Rugged floor mounted rails machined from 24kg/m crane rail for smooth motion required by today's high performance plasma and flame torches.
Heavy-duty end trucks
The heavy-duty end trucks can support the steel dual cross beam and offer you rugged gantry structure ready to carry the cutting processes while offering you excellent part quality.
Cutting Samples

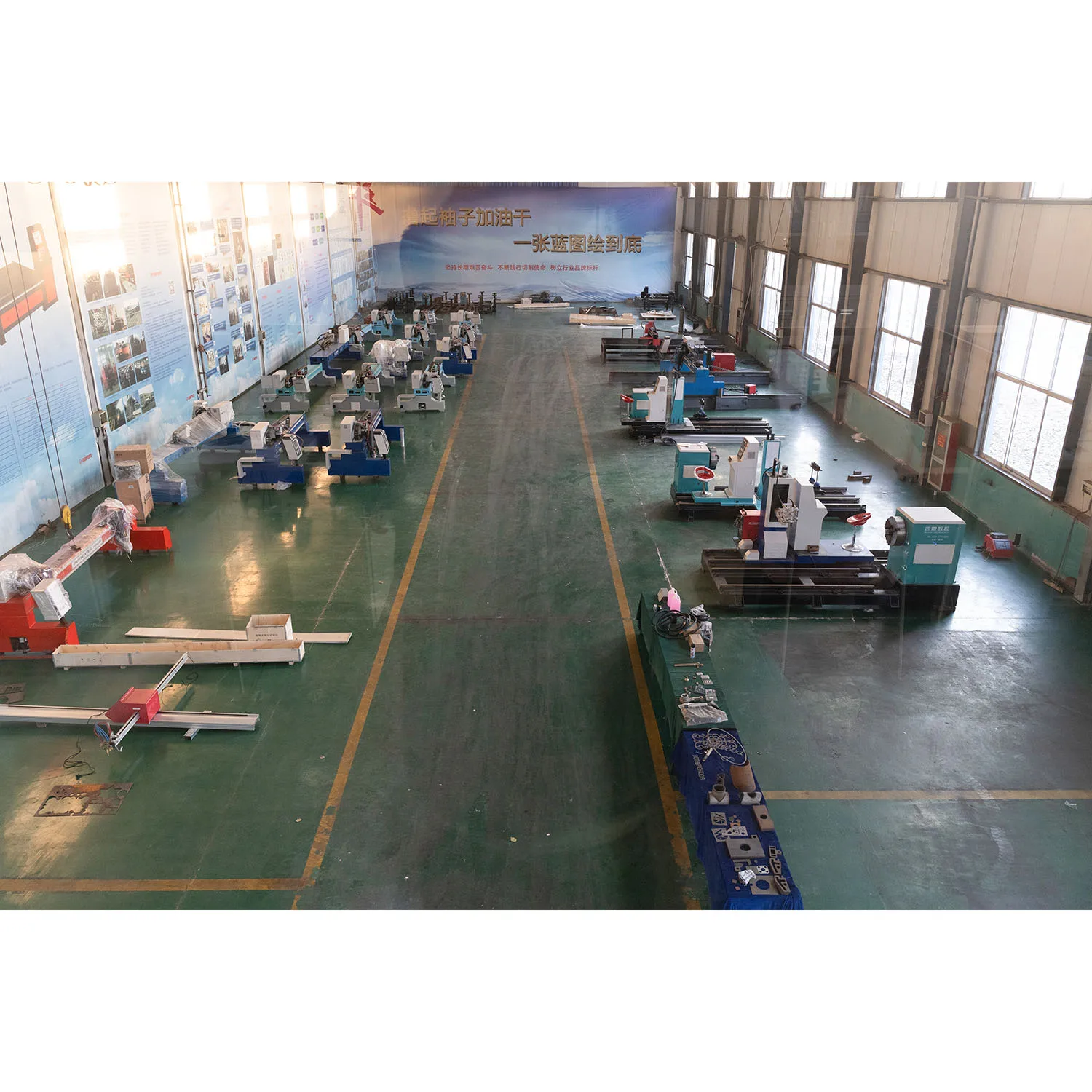

Seanior CNC Systems
Seanior CNC Systems manufactures and sells cutting machines, provide services for the metal-working industry, offering complete solutions and focus on customer-driven innovation.
Why you Choose Seanior CNC Systems?
Our technical team is your excellent cutting performance guarantee and our perfect service plan solve all your problems.
1. 12 months warranty for the whole machine.
2. Technical support by phone, email 24/7
3. English version manual and operation tutorial video
4. Engineer available to service machinery overseas.
Trade Show
Packing & Delivery
