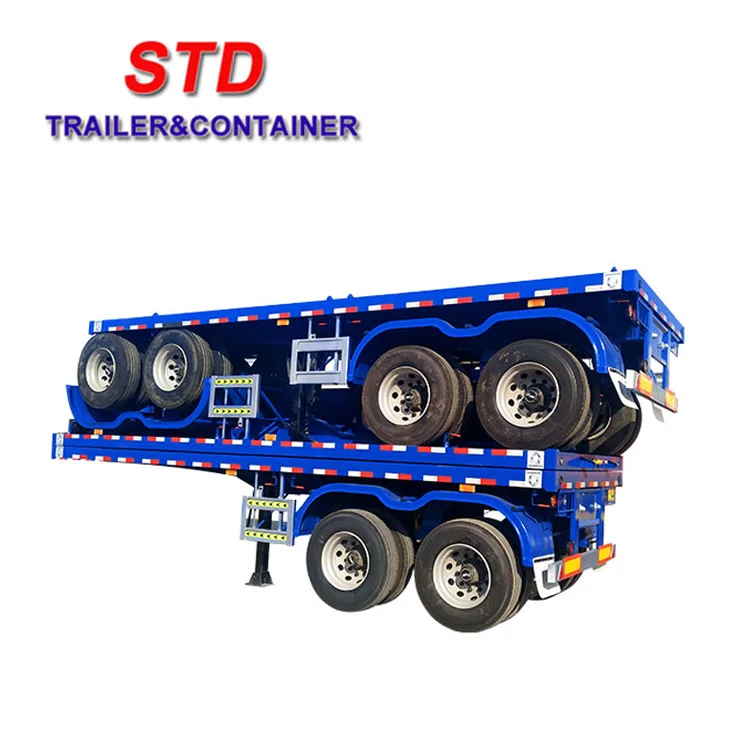

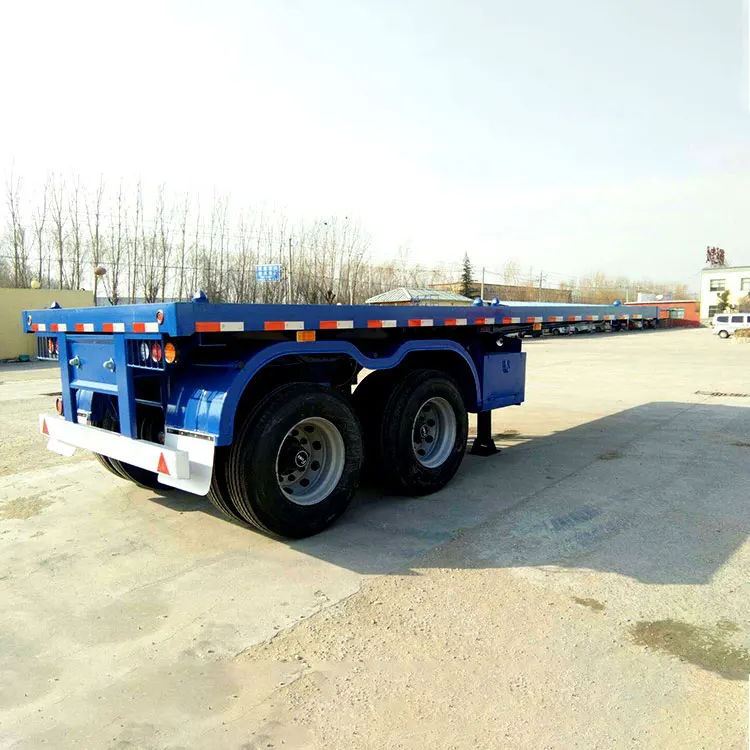

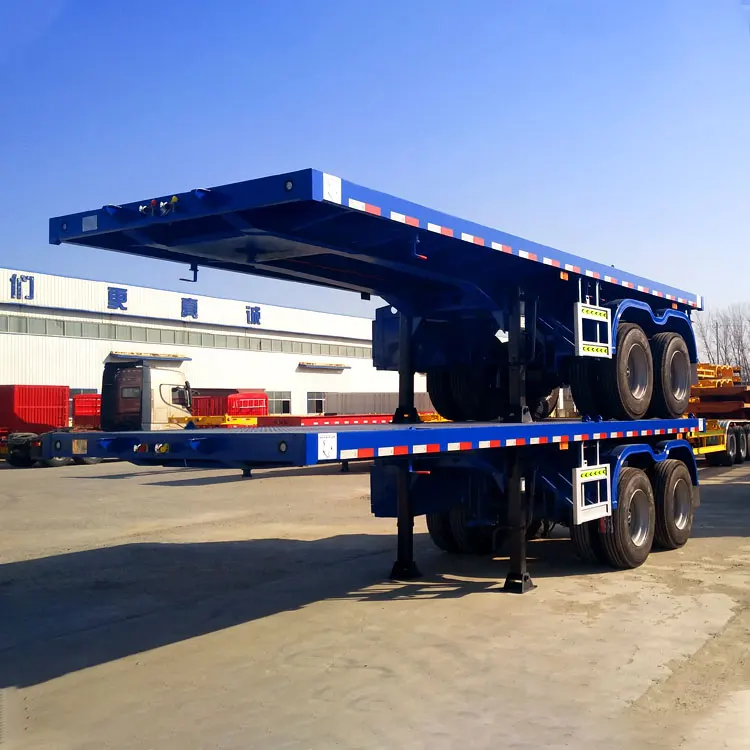

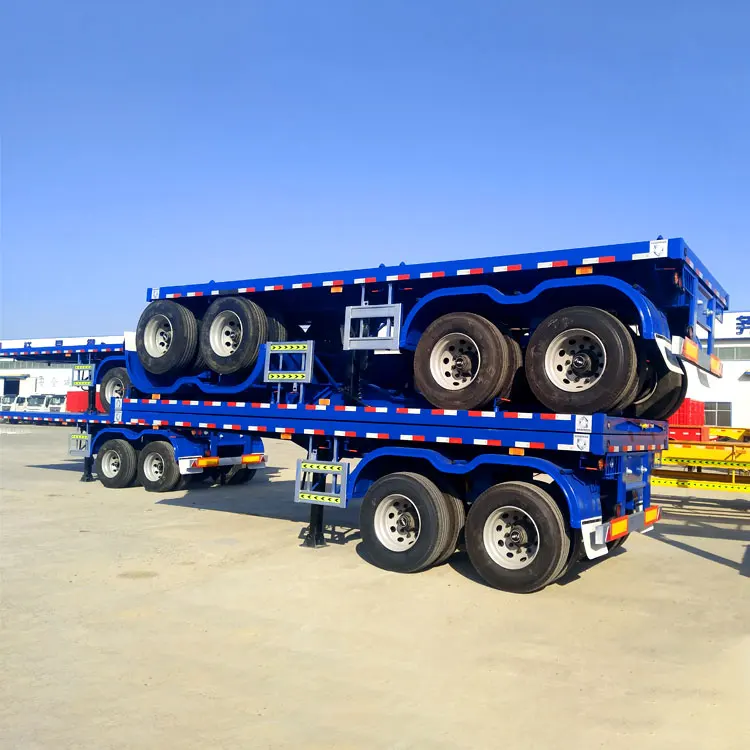

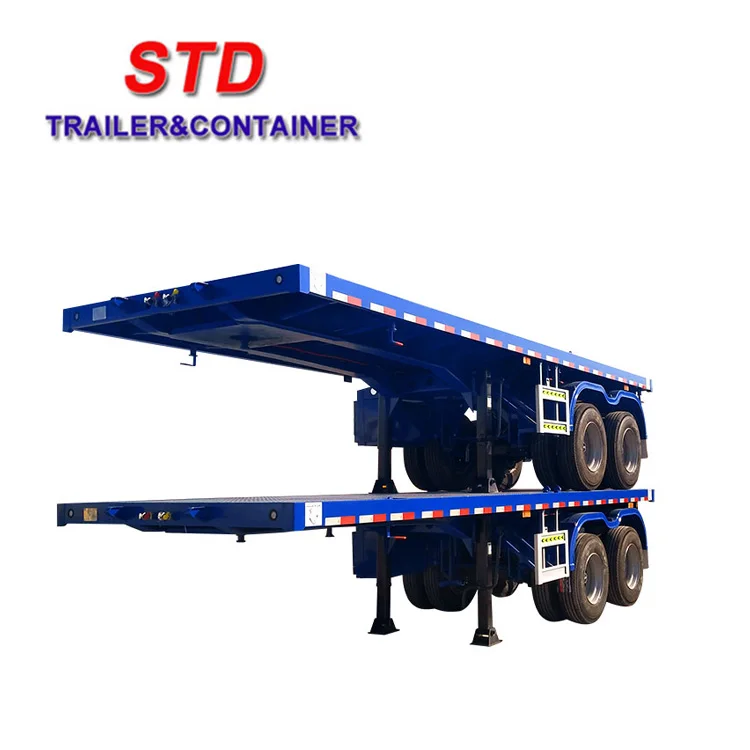

China 20 feet 2 axles flatbed semi trailer 20 feet flatbed trailer

Name: China 20 feet 2 axles flatbed semi trailer 20 feet flatbed trailer
SKU: 60776031719
Availability: InStock

Price:

Quantity:

SPECIFICATION

Specification
1. Dimension	7200 x 2490 x 1620 mm
2. Tare weight	4300 kg
3. Payload	30 tons
4. Function	Load 1x20' container
Standard Configuration
1. Axle	13 ton Fuwa brand, 150x150, 2/3 units
2. Suspension	Mechanical suspension
3. King pin	2", bolt on type
4. Landing gear	28 ton, two speeds
5. Tire	11R22.5, 8/12 units
6. Rim	8.25-22.5, 8/12 units
_{7. Braking system}	Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles
8. Electrical system	Dual circuit, 7-way split pin receptacle plug, LED light
9. ABS	None
_{10. Painting}	Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer
11. Mudguard	Plastic or steel
12. Others	1 tool box, 1 wheel carrier, excluding spare wheel
Optional Configurations
1. Air suspension	Firestone, Goodyear or Chinese brand
2. Lift axle system	Lift axle system
3. ABS system	Wabco or Chinese brand
4. Axle	BPW 12 ton
5. Add front wall or side wall		Add front wall or side wall
