ELP Manual Focus Zoom 4x Varifocal IMX179 CMOS 8MP Video Conference Cam Web HD Surveillance Webcam UVC For Video Teaching
- Category: Webcam >>>
- Supplier: Shenzhen Ailipu Technology Co. Ltd
Share on (60776206964):
Product Overview
Description
ELP Manual Focus Zoom 4x Varifocal IMX179 CMOS 8MP Video Conference Cam ,Video Teaching, HD Surveillance Webcam UVC
Model:ELP-USB8MP02G-MFV(2.8-12) is 8.0megapixel 3264(H)X2448(V) High resolution USB2.0 cameras with 2.8-12mm varifocal Lens,manual focus for Linux Android Windows etc. OS system.
Features
1. 1/3.2 inch Sony IMX179 Color Image Sensor USB webcam
2. 8 megapixel high resolution Mjpeg USB camera,
3. UVC usb camera, Support windows, linux, Mac with UVC, also for android system.
Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.

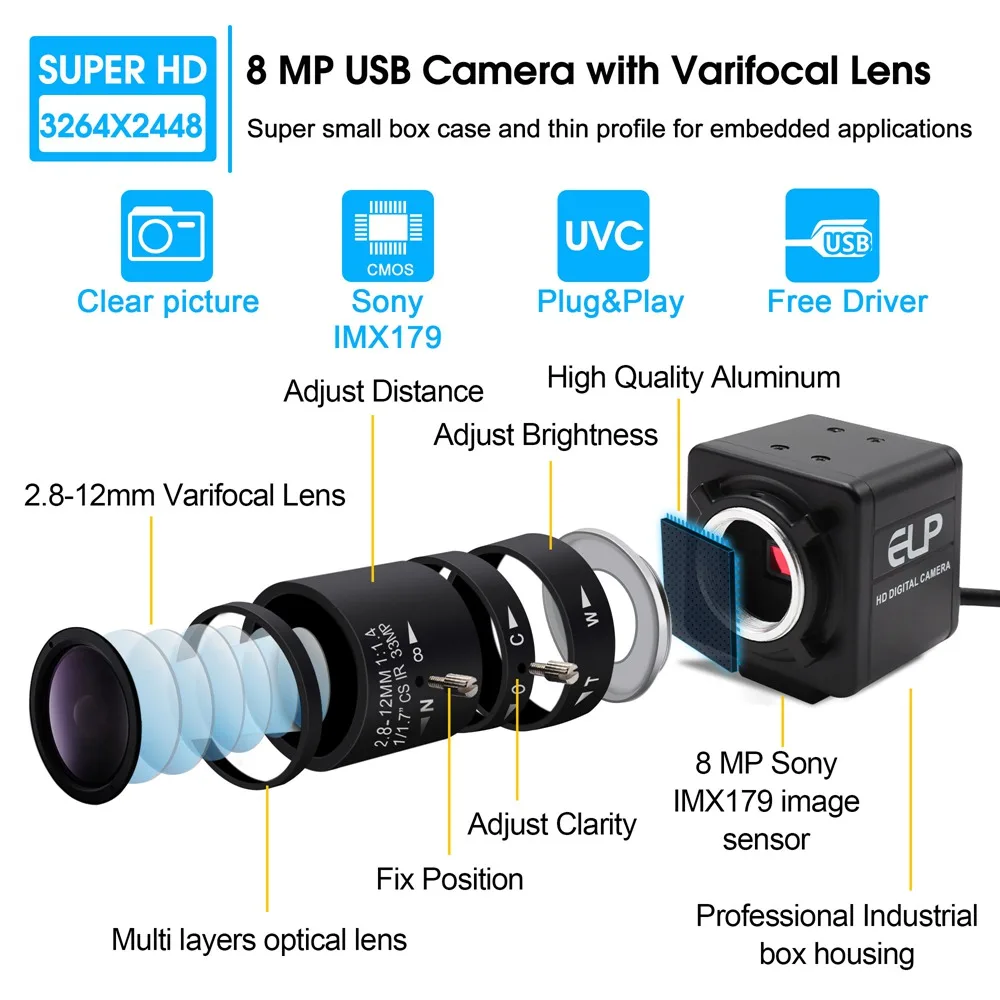

4. High quality 2.8-12mm varifocal lens, help get clear image .

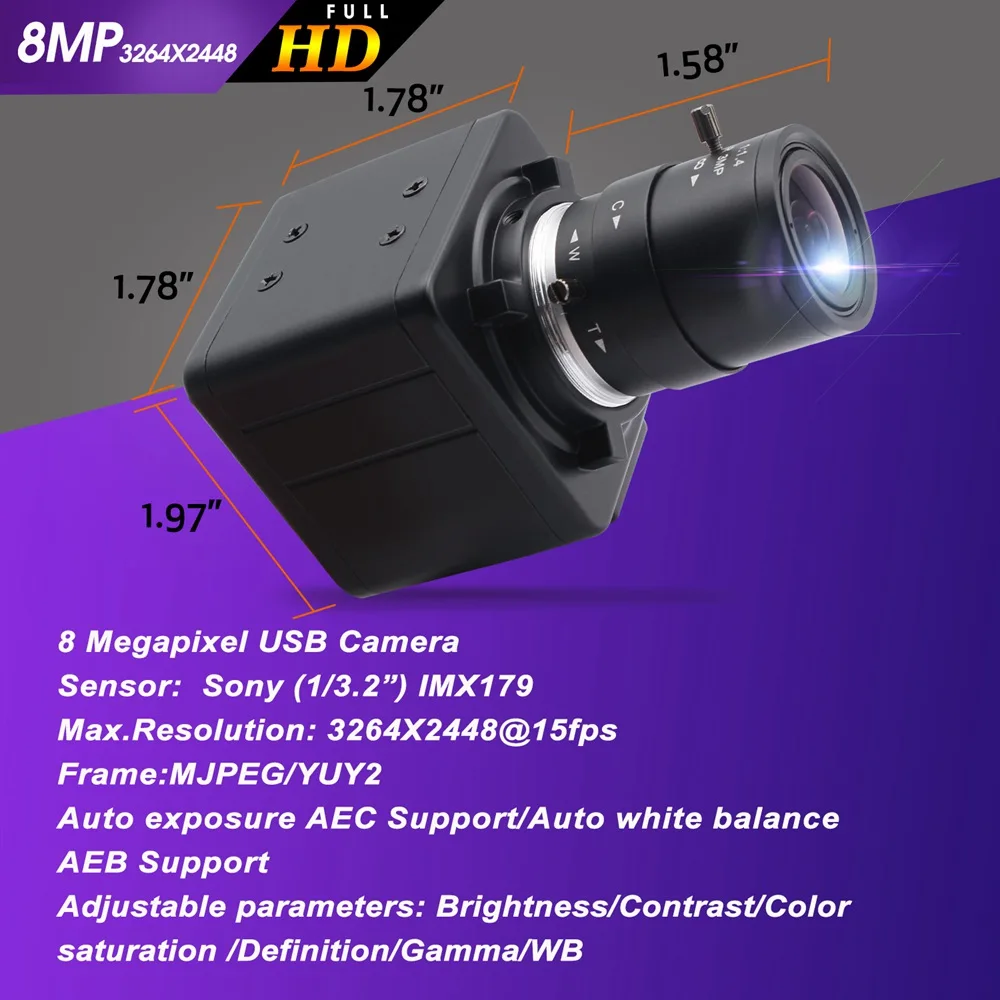

5. 41*41 mm mini micro usb board camera
6. USB webcam, well used in many machines, atm machine, medical machine, automatic vending machine, industry machine..
7. USB camera module Parameters changable (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)
Specification
| Model: ELP-USB8MP02G-MFV(2.8-12) | |||
| Resolution & frame | 3264X2448 @ 15fps / 2592X1944@ 20fps 2048X1536 @ 20fps / 1600X1200@ 20fps 1280X960 @ 20fps / 1024X768@ 30fps 800X600 @ 30fps / 640X480@ 30fps | ||
| Sensor | SONY IMX179 | Compression format | MJPEG / YUV2(YUYV) |
| Lens Size | 1/3.2inch | Lens Parameter | 2.8-12mm varifocal lens,CS MOUNT |
| Pixel Size | 1.4um | Board size/Weight | 41*41mm,about 0.3kg |
| image area | 6.18mm x 5.85mm | Connecting Port type | USB2.0 High Speed |
| Max. Resolution | 3264(H) X 2448(V) 8Megapixel | Free Drive Protocol | USB Video Class(UVC) |
| S/N Ratio | 34dB | OTG protocol | USB2.0 OTG |
| Dynamic Range | 72.5dB | Shutter Type | Rolling shutter / Frame exposure |
| Sensitivity | 0.65V/lux-sec@550nm | AEC,AEB,AGC | Support |
| Mini illumination | 0.5lux | Button Camera | Support |
| Operating Voltage | DC5V | Working temperature | -10~70 degree |
| Working current | 150mA~240mA | Storage temperature | -20~85 degree |
Adjustable parameter | Brightness, Contrast, Saturation, Sharpness, Gamma, Gain, White balance, Hue, Backlight Contrast, Exposure | LED board control interface | Support 2P-1.25mm socket |
| LED board power connector | Support 2P-2.0mm socket | ||
| Support OS | WinXP/Vista/WIN7/WIN8 / Linux with UVC Mac-OS X 10.4.8 or later Wince with UVC, Android 4.0 or above | ||
Products Display
Applications
Company Information
FAQ
*Can you OEM camera module?
Yes, we can offer OEM camera modules according to customer's different requirement.
*Can you provide SDK for secondary development?
Yes, We can offer Linux, Windows, Android SDK.
*What's your usb cameras' production cycle?
We can supply the camera module for a long time. as long as customers need it.
*Are you manufacturer?
Yes, we are designer and manufacturer for usb camera module
*What lens optional you have?
We have normal M12 2.1/2.8/3.6/6/8/12mm lens, M7 mini lens and also wide angle fisheye lens and varifocal lens. Autofocus, manual focus also offered.
*What operating system your cameras support?
Our USB cameras support Android, Windows and Linux System
*What certificate your products have?
All our USB Camera Module have CE, FCC certificates, partial have RoHS and UL
*Does the camera support Raspberry Pi? If support Linux Ubuntun system?
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
Yes, all our usb cameras support Raspberry Pi system and Linux Ubuntun system.
*Does the camera support OTG?
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
Most of our usb cameras support OTG function, except 0.3MP USB30W02M series and 5MP OV5640 USB cameras.
*Which software your usb camera module support?
Blue Iris, ContaCam, Yawcam, Ispy, Motion Eye OS,AMCAP Wecam Viewer, IP Camera Viewer, ZoneMinder,V4L2 video for Linux, Camerafi, VLC Player
