GCD5-100 five torch straight gas cutting machine
US $150.00-$200.00
Станок с ЧПУ для плазменной и пламенной резки для токарного станка для резки стальных пластин для производственной линии стальных конструкций
- Category: Gas Cutting Machine >>>
- Supplier: Wincoo Engineering Co. Ltd.
Share on (60776370795):
Product Overview
Description
Product Description

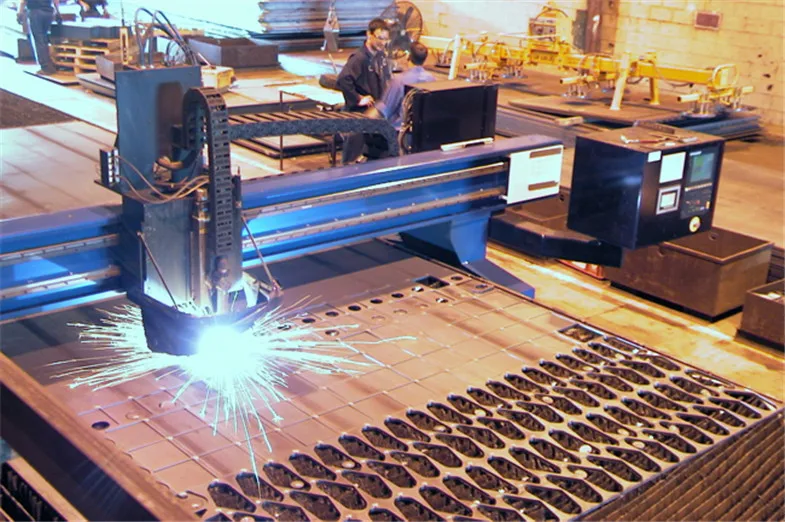

Table type CNC plasma cutting machine is a kind of high speed and precision cutting machine, which adopts integrated modular structure.Especially, it's suitable for cutting of medium and thin MS, SS and/or aluminum plate. It has convenient and fast installation, small inertia and stable running. For the friendly environmental requirements, it can be designed as underwater type cutting or smog exhauster type. We also provide user-friendly broad choices and options that allow you to configure your CNC cutting system with the capacities,speed and accuracy of your needs.
Direction for main feature
1.Robust all steel fabrication with stable structure and good rigidity, and no deformation after long time using;
2.Micro-step SH-2200AH CNC system;
3.Arc-voltage height controller American Hypertherm Sensor-PHC (only electron part);
4.Australia FASTCAM auto programming and nesting software;
5.Both longitudinal and transverse drives adopt Japan Panasonic high precision A.C. servo motor, Germany NEGUART high precision gear reducer and high precision gear and rack.
2.Micro-step SH-2200AH CNC system;
3.Arc-voltage height controller American Hypertherm Sensor-PHC (only electron part);
4.Australia FASTCAM auto programming and nesting software;
5.Both longitudinal and transverse drives adopt Japan Panasonic high precision A.C. servo motor, Germany NEGUART high precision gear reducer and high precision gear and rack.
Description of main feature
1.The brushless AC servo motor has high torque, high resolution and high inertia.
2.Advanced PC-Based CNC controller with faster processing speed & greater accuracy improves productivity. This CNC controller features a Windows operating system and colored LCD screen.
3.Germany IGUS transverse drag chain;
4.Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
5.High intensive heat-resisting gas supply pipe;
2.Advanced PC-Based CNC controller with faster processing speed & greater accuracy improves productivity. This CNC controller features a Windows operating system and colored LCD screen.
3.Germany IGUS transverse drag chain;
4.Heat treatment to main welding parts after welding; sand blasting treatment to main welding parts before painting;
5.High intensive heat-resisting gas supply pipe;
6.All motion parts have lubrication system;
7.Main electric elements are ABB/Siemens brands;
7.Main electric elements are ABB/Siemens brands;
Detailed Images

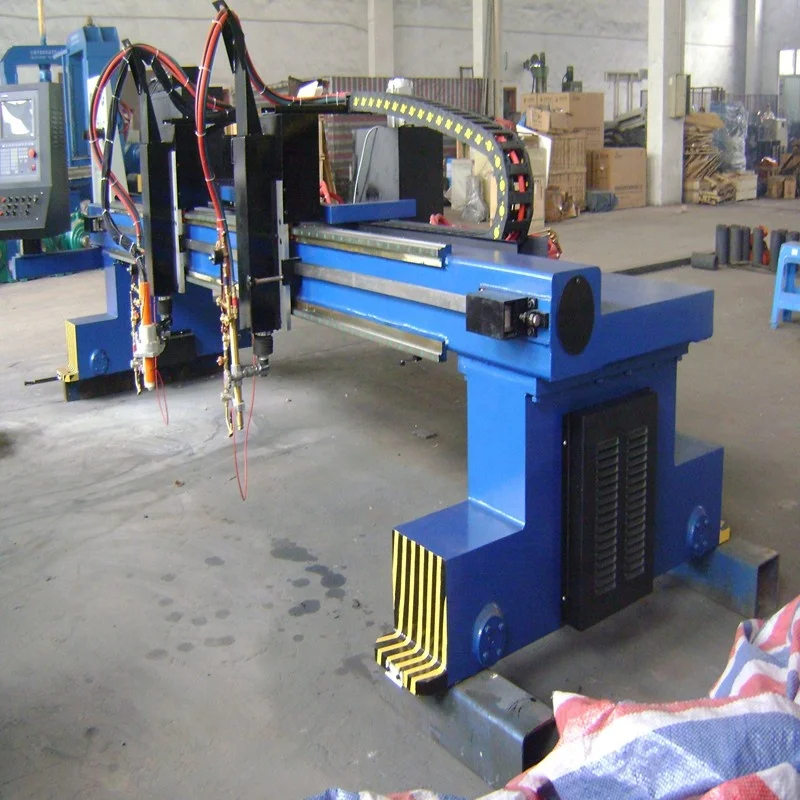

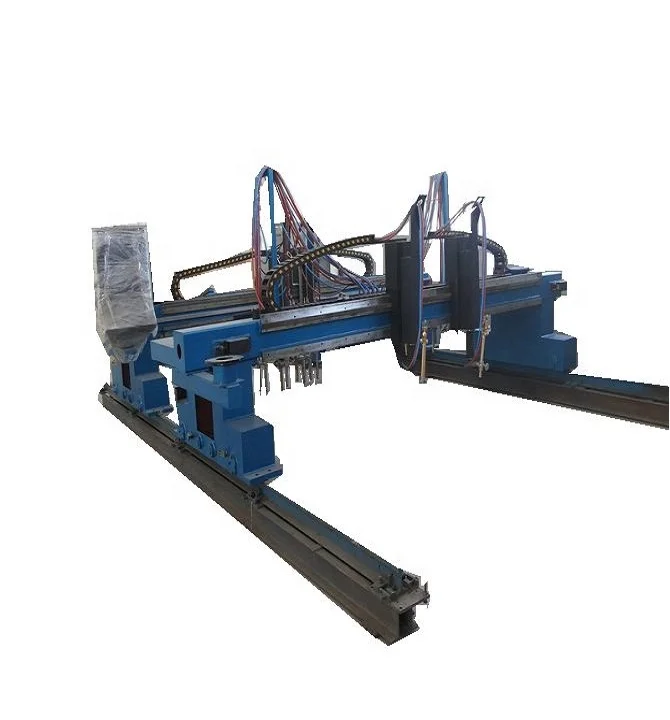

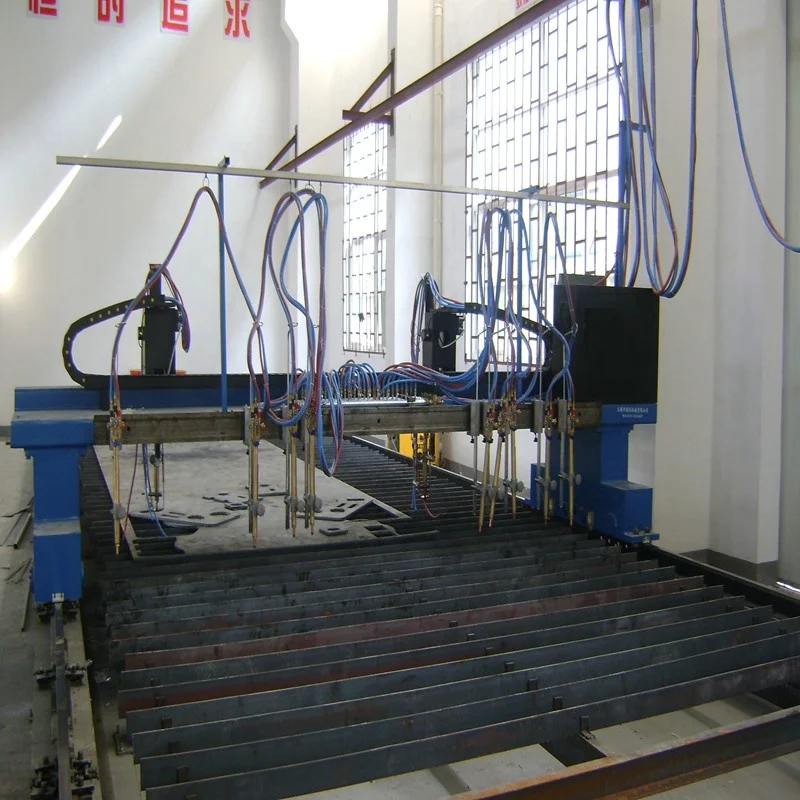

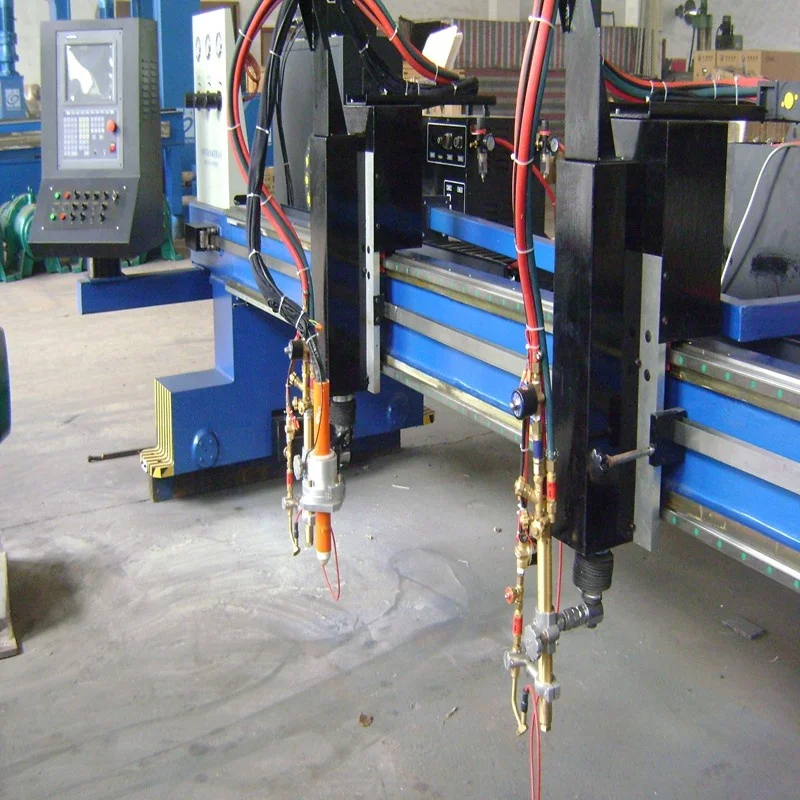

CNC-CG series is our standard cutting machine which not only can cut different profiles/shapes but also can cut strip/straight plate.
Size Information
Parameter for machine
Valid cutting width mm | 1000-3000 | |
Valid cutting length mm | 1000-6000 | |
Plasma cutting thickness | Depend on plasma power source | |
Cutting speed mm/min | Max1200, VFD | |
Positioning accuracy mm/m | ±0.5 | |
Repeating accuracy mm | ±0.5 | |
Cutting quality and size error mm | ±0.3 | |
Machine precision | Conform to the requirements in JB/T140045.3-1999 and JB/T140045.4-1999 | |
Plasma cutting material | MS, Aluminum, SS | |
Machine dimension mm | L: valid L+1000; W: valid W+500; H: about 800 | |
Power supply | AC380V 50HZ 3P or tailor made | |
Above are our standard models and parameters, and it can be designed and manufactured on request. | ||
Packing&Shipping
Export packing and sea transportation, or other means of transportation
After Sales Service
Quality assurance date
We will provide one-year warranty and support online and offline technical support.If you need, we will send engineers to help
you.
you.
