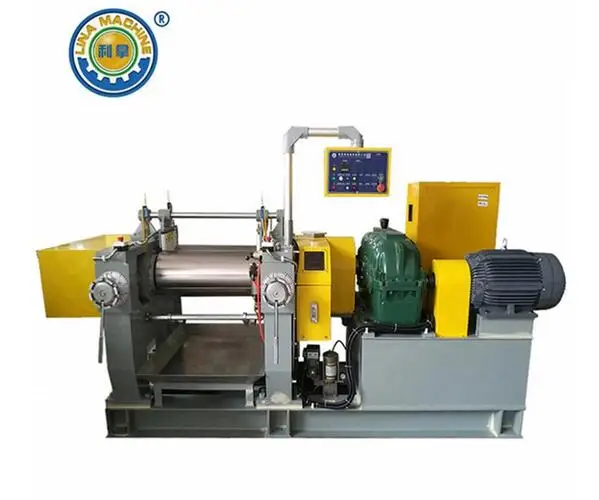

Top Quality Tire Making Machine Two Roll Open Mixing Mill with PP PE TPR EVA

Top Quality Tire Making Machine Two Roll Open Mixing Mill with PP PE TPR EVA

Category: Rubber Two-Roll Mills >>>
Supplier: Guangdong Lina Industrial Co. Ltd.

Price:RUB 2,646,936.69

Quantity:

Product Overview

Description

Basic Info

Model No.: XK-360-14 Warranty: 1 Year

Control Type: PLC Automatic Grade: Automatic

Power Source: Electric Type: Open Mixing Mill

Main Motor: TECO Motor/TATUNG Motor Gear Reducer: Hard-tooth Surface Gear Reducer

Low-voltage Apparatus: Omron/Schneider Bearing: Sweden Imports

Frequency Converter: Shihlin/ Delta PLC Soft Control: Mitsubishi

Safety Devices: The Roller Adopts 360 Degrees Emergency And Reverse braking device.

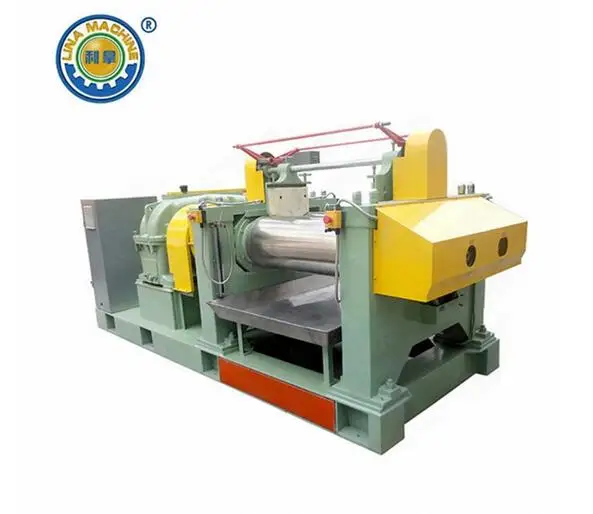

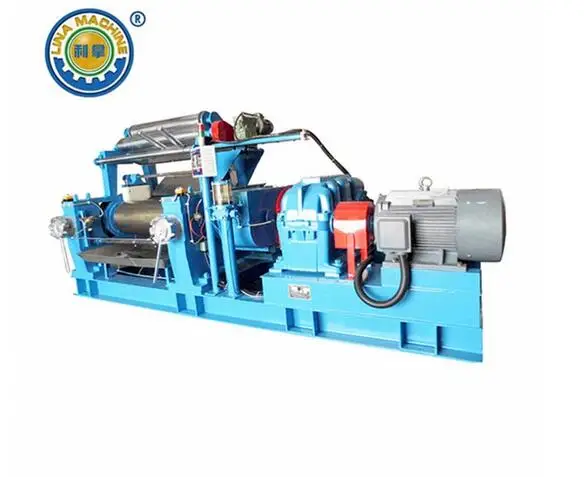

Top Quality Tire Making Machine Two Roll Open Mixing Mill with PP PE TPR EVA

LINA Top Quality Open Mixing Mill/two Roll Mixing Mill is used in many kinds of materials just like NBR, SBR, PP, EVA. The automatic blender can save the labor of operation.The Two Roll Mill is the most dangerous machine in the rubber industry, LINA keep developing and improving the safety system for Open Mixing Mill. The main parts of LINA Rubber Open Mill are imported from Germany, Japan and Taiwan. The design of LINATwo Roll Open Mill takes the lead in China's rubber and plastic machinery industry. High precision and high safety are LINA's Rubber Two Roll Milling Machine's main advantages. Besides, user friendly, higher safety, higher control precision, higher durability and excellent temperature control are LINA Rubber Open Mill's advantages that make LINA outstanding in the industry. Moreover, in the market of China's Factory Production Open Mills, about 47% domestic science and research institution and universities are using LINA Small Type Two Roll mills.

Characteristics of Top Quality Tire Making Machine Two Roll Open Mixing Mill

2. Higher safety

3. Higher precision

4. Higher durability

5. Excellent temperature control

Specifications of LINA Top Quality Tire Making Machine Two Roll Open Mixing Mill

Item	Specification	Remarks
Type	XK-360-14
Roller Diameter	550 mm
Roller Width	1500 mm
Linear Velocity of Front Roller	9r/min
Speed Ratio of Rollers (Front/Rear)	1:1.35
Maximum Roller Distance	16 mm
Production Yield	50-70 KG per time	Electric/oil/steam heating and circulating water cooling.
Motor Powder	90/110 KW
Weight	About 22000 KG
Dimensions	About 665027402100

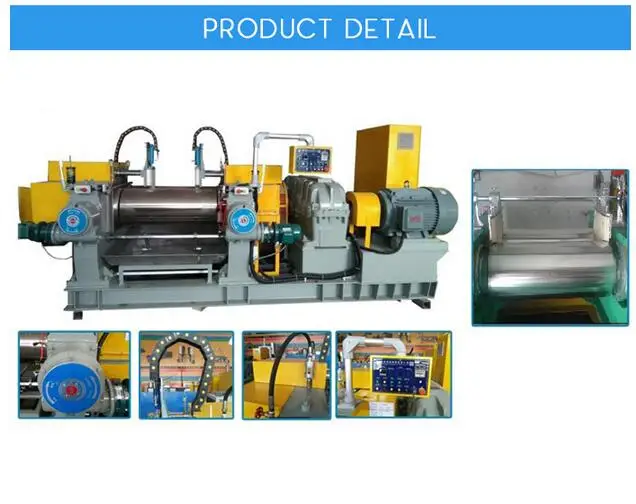

Details of Top Quality Tire Making Machine Two Roll Open Mixing Mill with 360 degrees emergency Stop Device

LINA Safety System of Top Quality Tire Making Machine Two Roll Open Mixing Mill

1. Infrared Sensor: A infrared sensor device for braking is installed to keep the operator's body and the running Two Roll Open Mill in a safe distance. Many unexpected accidents on the Open Milling Machine are caused by causal and incorrect operations, this infrared sensor is designed to rule the operator's basic actions and protect the user from the roof of the danger.

2. 360 Degrees Emergency Braking Button: Based on human engineering, this safety device is designed to protect the user when an emergency happened. This technology has applied China's National Patent. When touching the button, the rollers will stop immediately and reverse 1/4 round to maximize the protection.

3. Knee-Hitting Safety Device: According to human engineering, this device is installed to brake the rollers when an unexpected emergency occurred.

4. Hand-Pressing Safety Device: This is the basic safety device installed on all types of Rubber and Plastic Two Roll Mill. Once press the button, the rollers will stop immediately and reverse about 1/4 round.

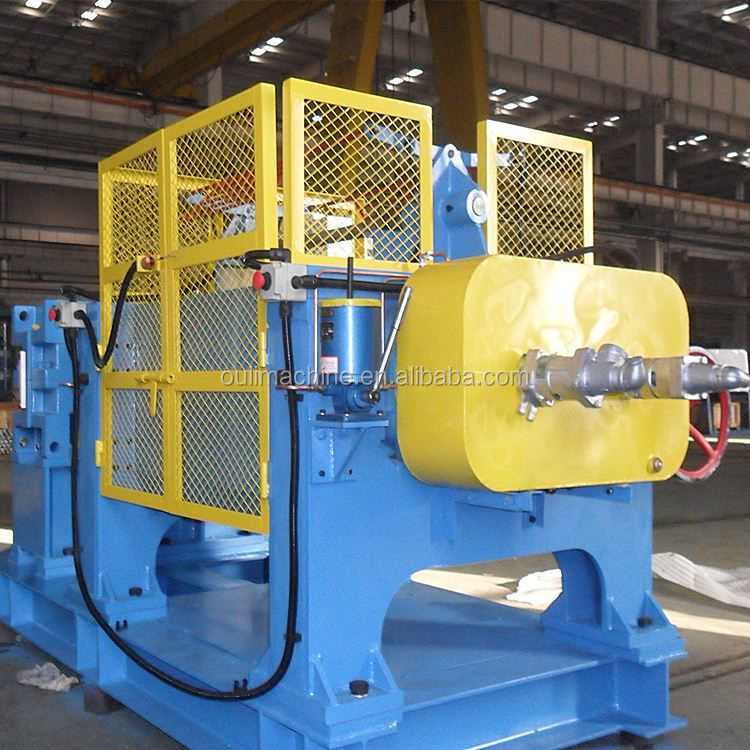

5. Safety Cover: This safety cover is installed on the top of the rolls, to ensure the user's safety when adding other solid, powder or liquid additives into the mixing materials.
