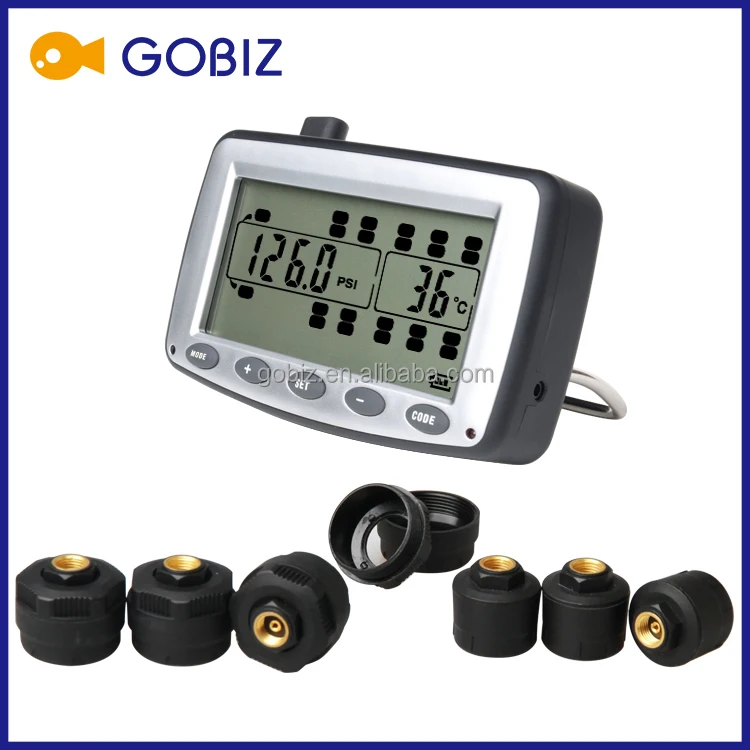

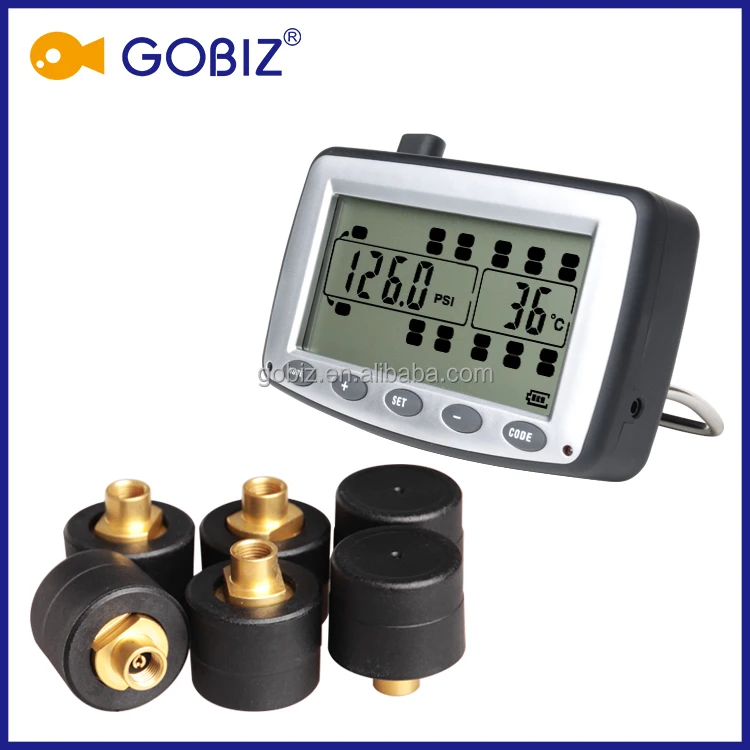

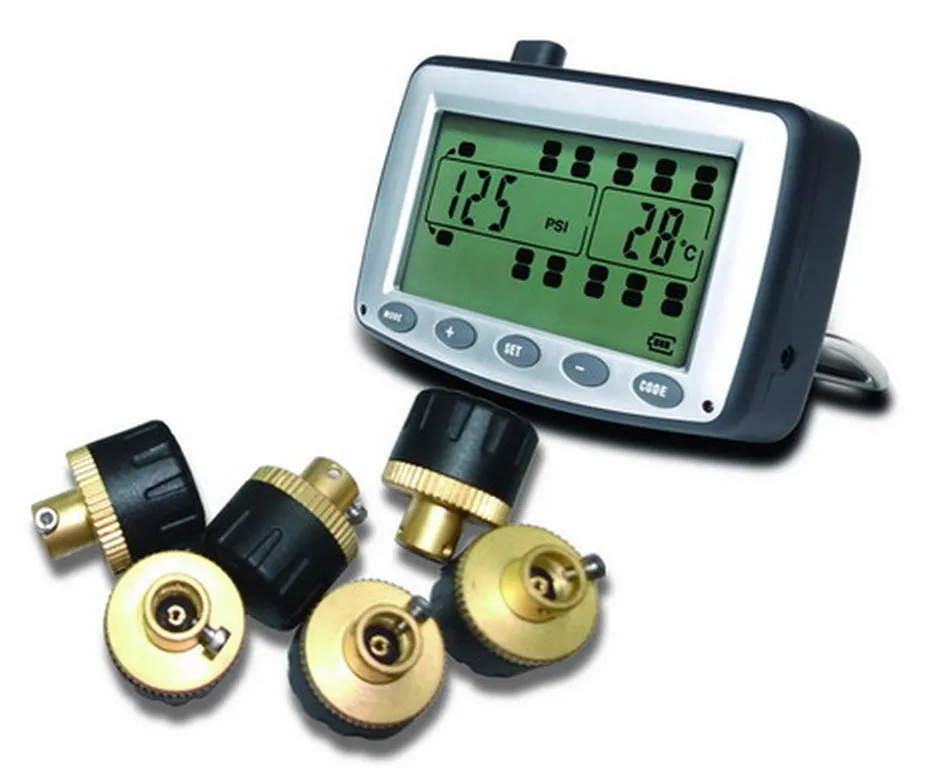

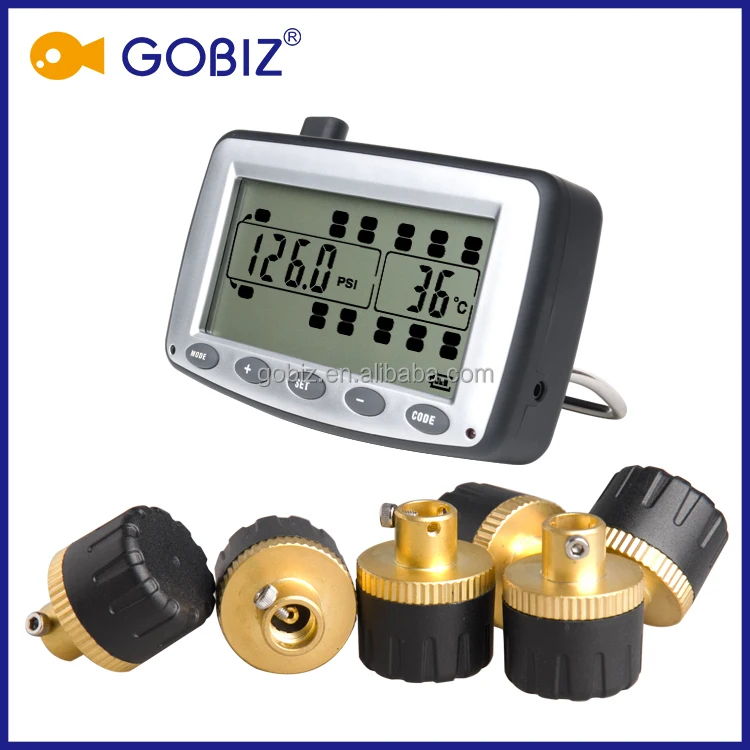

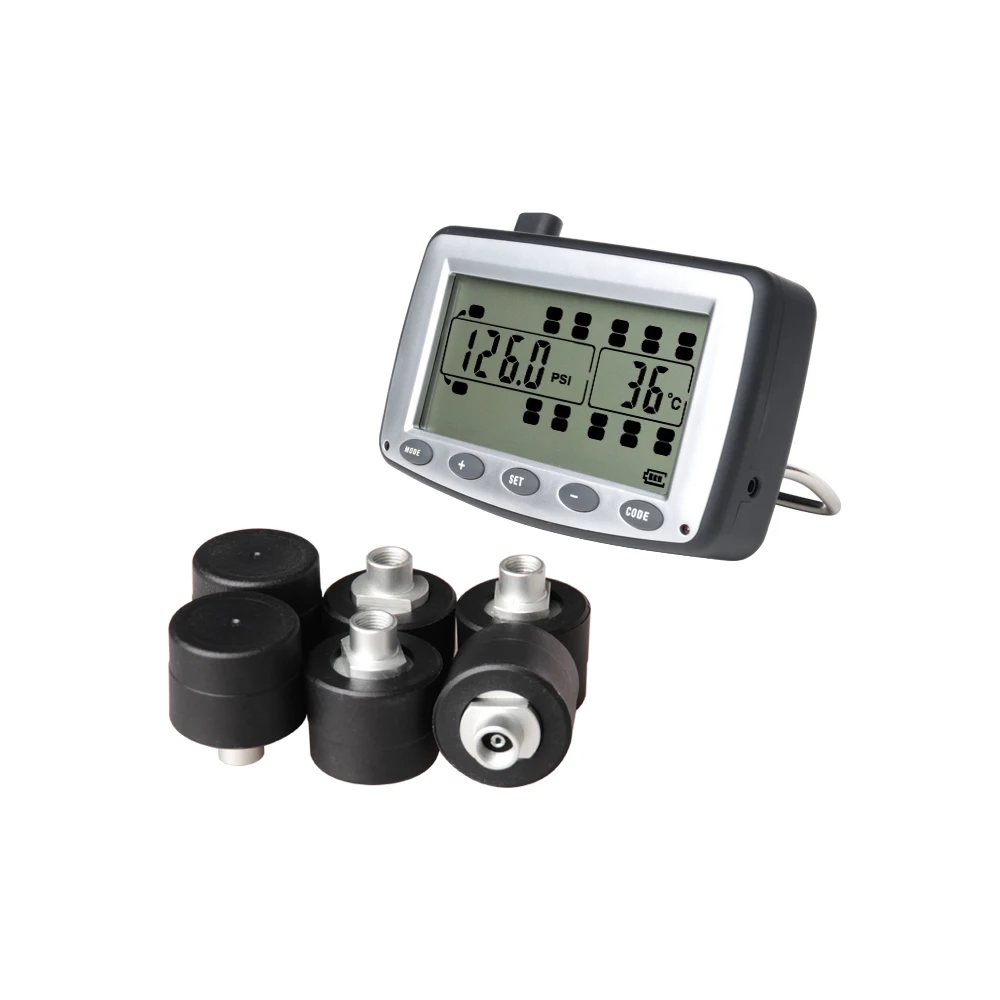

22 wheel tires truck tire pressure monitoring external digital truck bus tyre monitor pressure sensor tpms

Product Overview

Description

22 wheel tires truck tire pressure monitoring external digital truck bus tyre monitor pressure sensor tpms







1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires



2. Features:



Monitor Features:



1,Reliable and easy to install.

2,Large LCD screen.

3,Built-in rechargeable lithium battery.

4,Vibration awakening.

5,Automatical backlight.

6,Configurable high/low pressure warnings.

7,Configurable high temperature warnings.

8,Visible and audible alerts.

9,Selectable pressure units ( BAR, PSI ).

10,Temperature unit selectable (℃, ℉)

11,Monitors up to 22 tires maximum.

12,Long range between monitor and sensors.

13,Individual configuration of axle high/low pressure warnings.

14,Awake sensor to program ID code.



Sensor Features:

Reliable cap sensors, easy to install.
Water resistant.
Replaceable sensor batteries.
Sensors transmit pressure and temperature data every 5 minutes.
Fast leakage alert.
Individually coded sensors.
Anti-theft design .





3. Specifications:



Monitor specifications:



Operational Temperature	-20 to +80° C
Storage Temperature	-30 to +85° C
Charge Input Voltage	DC 8 to 30 V
Frequency	433.92MHz
Size	116(L) x68 (W) x 25(H) mm
Weight	138 g





External Sensor Specifications:



Pressure range:	0 to 13 bar, 0 to 188 psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission frequency:	433.92MHz
Battery life:	2 years
Operating temperature:	-40 to +85° C
Weight:	28 grams
Size:	Diameter:24 mm, Height: 29 mm



4. Our Facilities:





5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent





6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime

Looking Forward to Cooperating with You!
