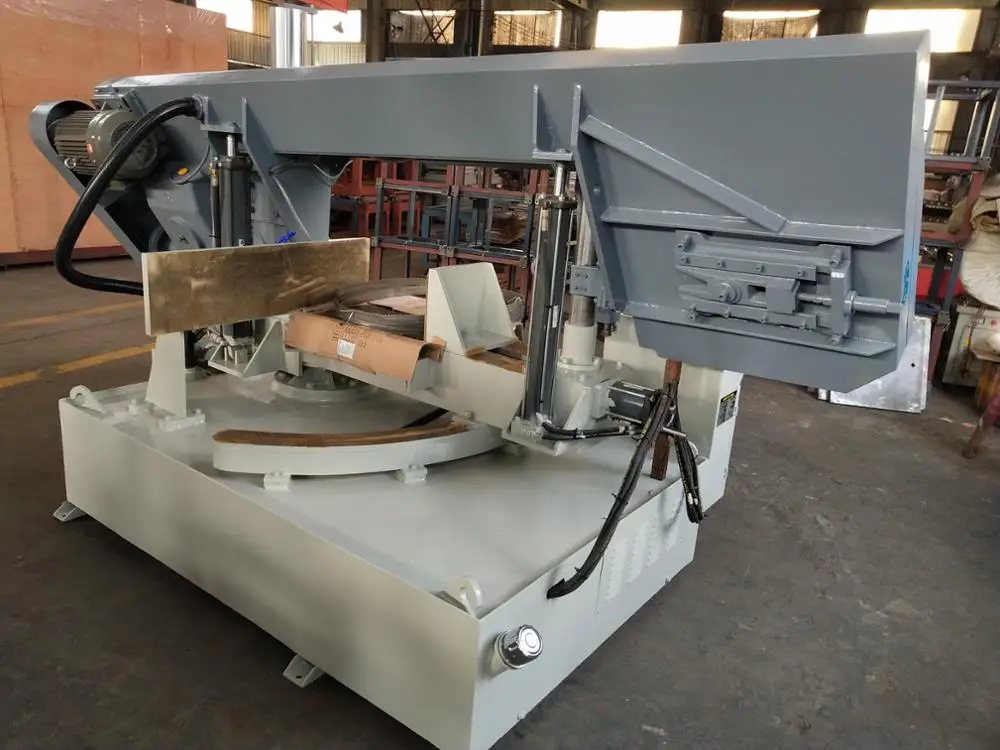

45 degree Miter Cut band saw machine

Product Overview

Description



Cutting Machine Parameter

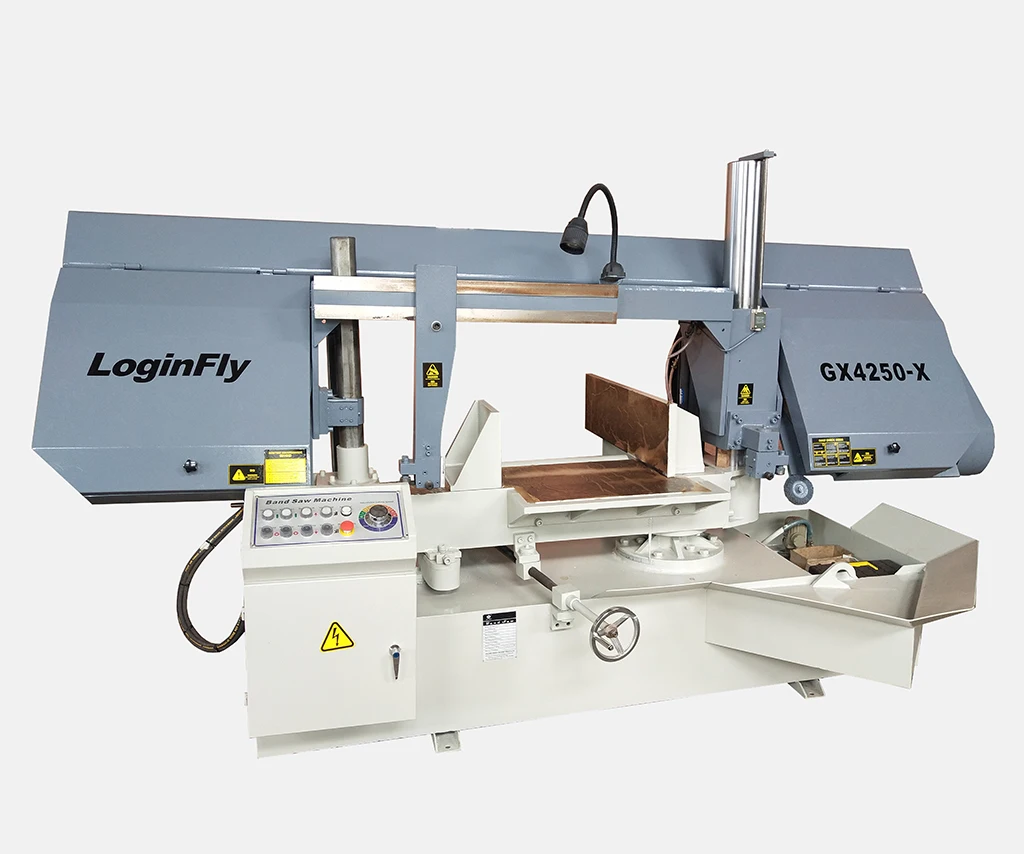

Model No.	New	GX4250X Miter Cut band saw machine
Max Diameter	Round	500mm                        45°  :500mm
	Square	500×700mm                        :500*500mm
Blade	Speed	22/35/50/75 m/min
	Size	1.3 × 41×6920 mm
	Motor power	Blade	5kw (4P)
Hydraulic		1.5kw
Coolant		0.04kw
Material feed		Manual Band Sawing Cutting Machine
Workpiece Clamp		Hydraulic
Machine weight		2280kg
Machine size(L×W×H)		3050×1850×1900  mm

Automatic band saw cutting video

Semi Automatic band saw cutting video
-60 ~0 ~60 degree machine cutting video
LoginFly Company:https://www.youtube.com/watch?v=dFjaEAO5iA4
Automatic Band Saw CH-330HA:https://www.youtube.com/watch?v=qG6CVwSqojg

High Quality 45 Degree Angle Metal Pipe Cutting Machine





Automatic Band Saw with programmable cutting angle

- Cutting angle settings 0° - 45°
- Robust touch screen control panel
- automatic workpiece feed
- torsion-resistant dual-column construction
- hydraulic saw frame feed via chrome-plated column guide
- slightly inclined saw frame improves cutting performance and increases the service-life
- dual hydraulic workpiece clamping
- infinitely variable cutting speed

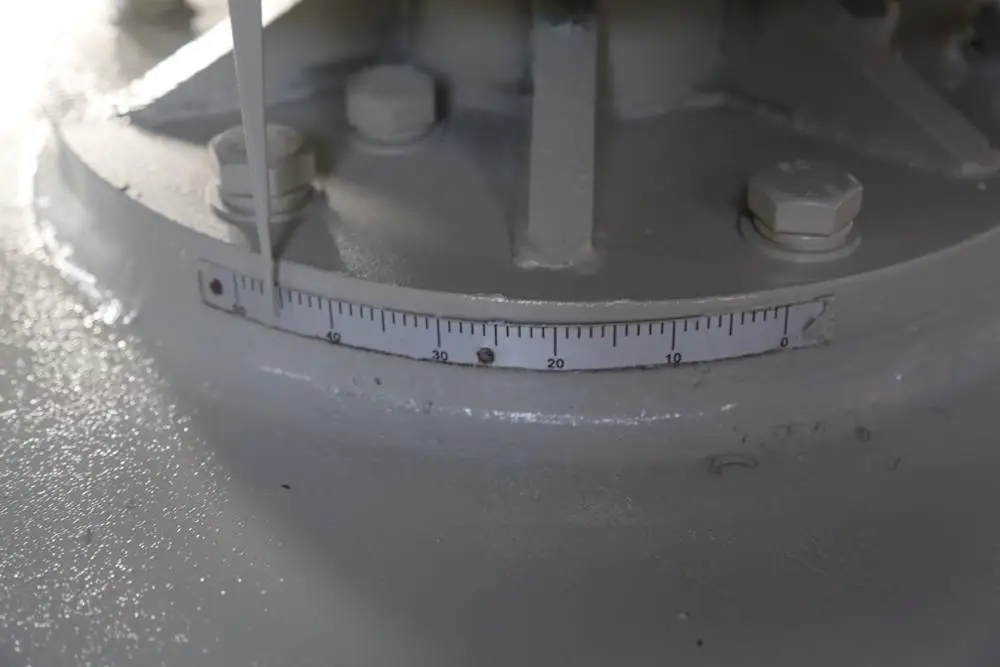

- automatic angle positioning in 1° increments from 0° to 45°
- hydraulic bundle vise for both vises included with standard equipment
- precise and stable saw band guides ensure high angular accuracy
- automatic band breakage control
- Band speed indicator on the display
