Woodworking combined surface planer/thicknesser/multifunctional saw

Product Overview

Description

 Woodworking combined surface planer/thicknesser/multifunctional saw



 1.This surface planer combined with the functions of thicknessing, sawing and drilling, usage range is wide.
2.Woodworking combined thicknesser is widely used in the integrated wood processing, furniture industry, construction industry, wood model industry.
3. Woodworking multifunctional saw is the best way to save factory space.

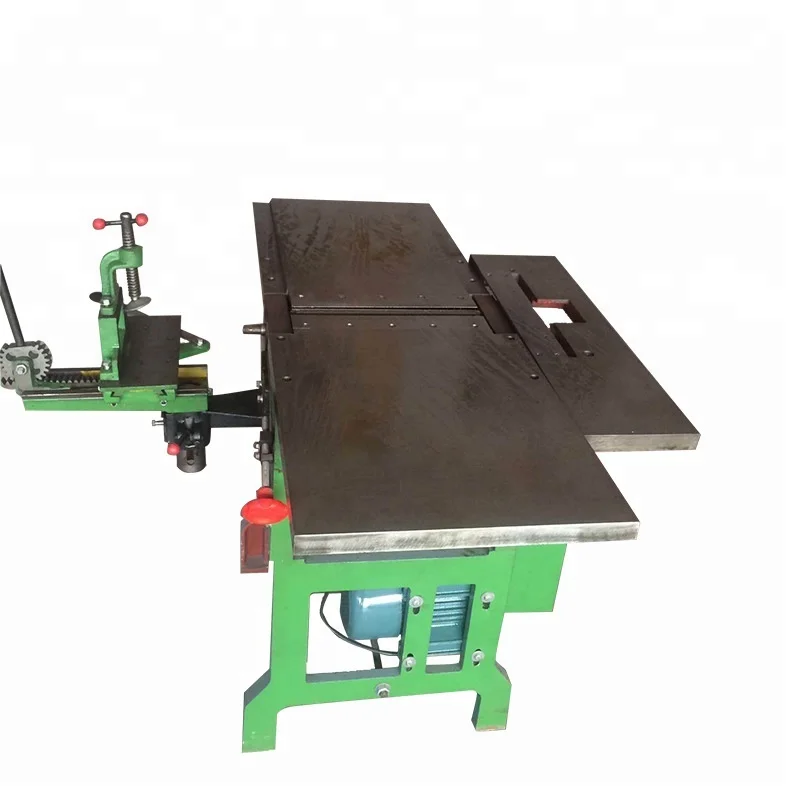

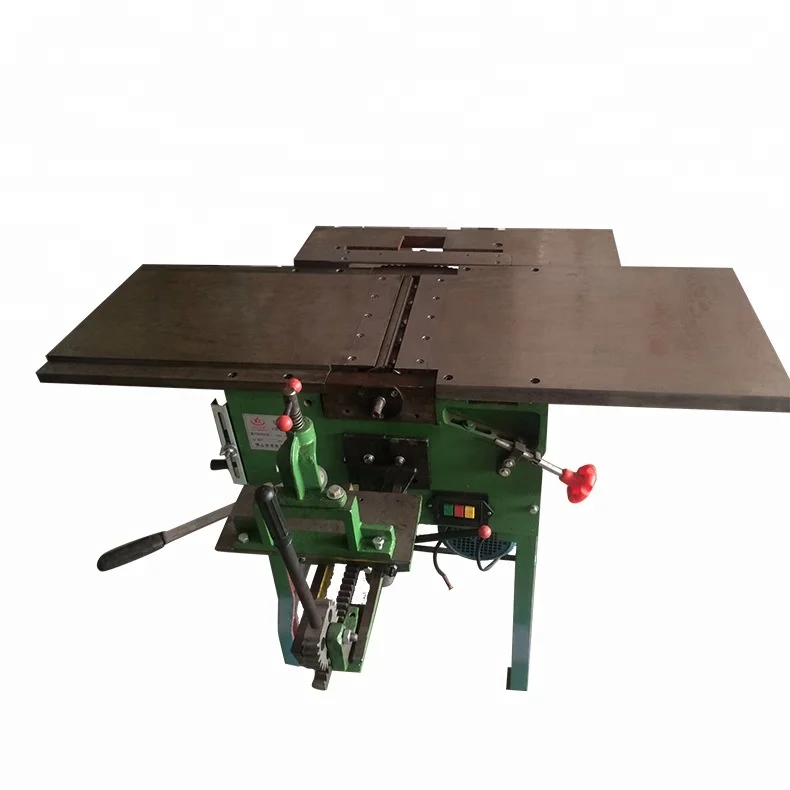

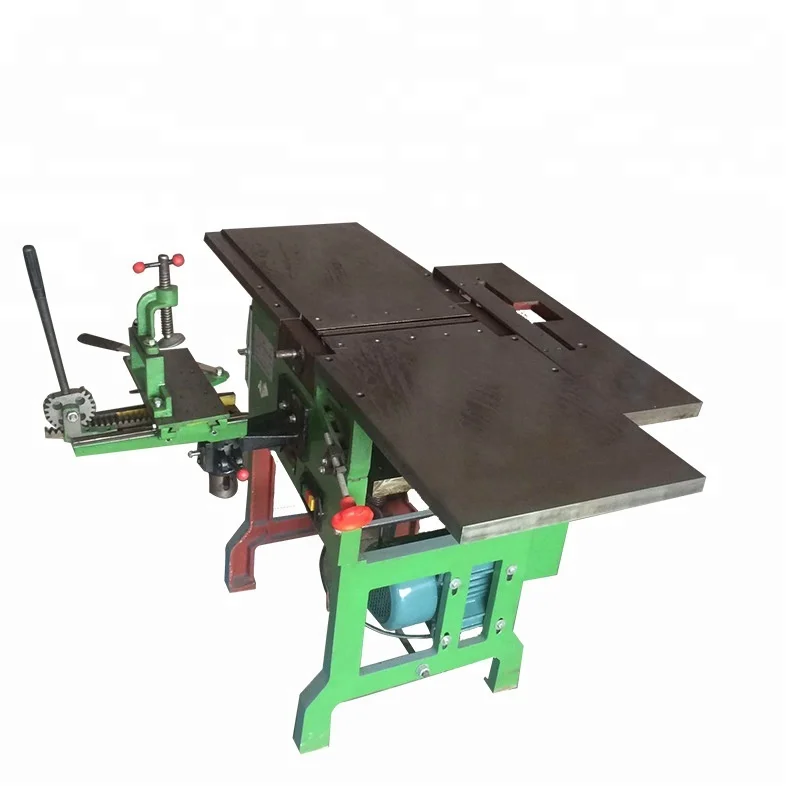

Machine photos:











Technical Parameters:



Max. planing width	260mm
Thicknesser working thickness	6-120mm
Thicknesser min. working length	150mm
Thicknesser max. planing depth	3mm
Max. sawing thickness	60mm
Max. cutting depth	10mm
Max. mortising size	16*16mm
Planer knife spindle	72mm
Thicknesser feeding speed	6.5m/min
Saw blade diameter	250mm
Spindle speed	3700r/min
Motor power	220v/380v 2.2kw
Planer workbench size	1200*350mm
Overall size	1200*900*800mm
Weight	160kg





Related product:

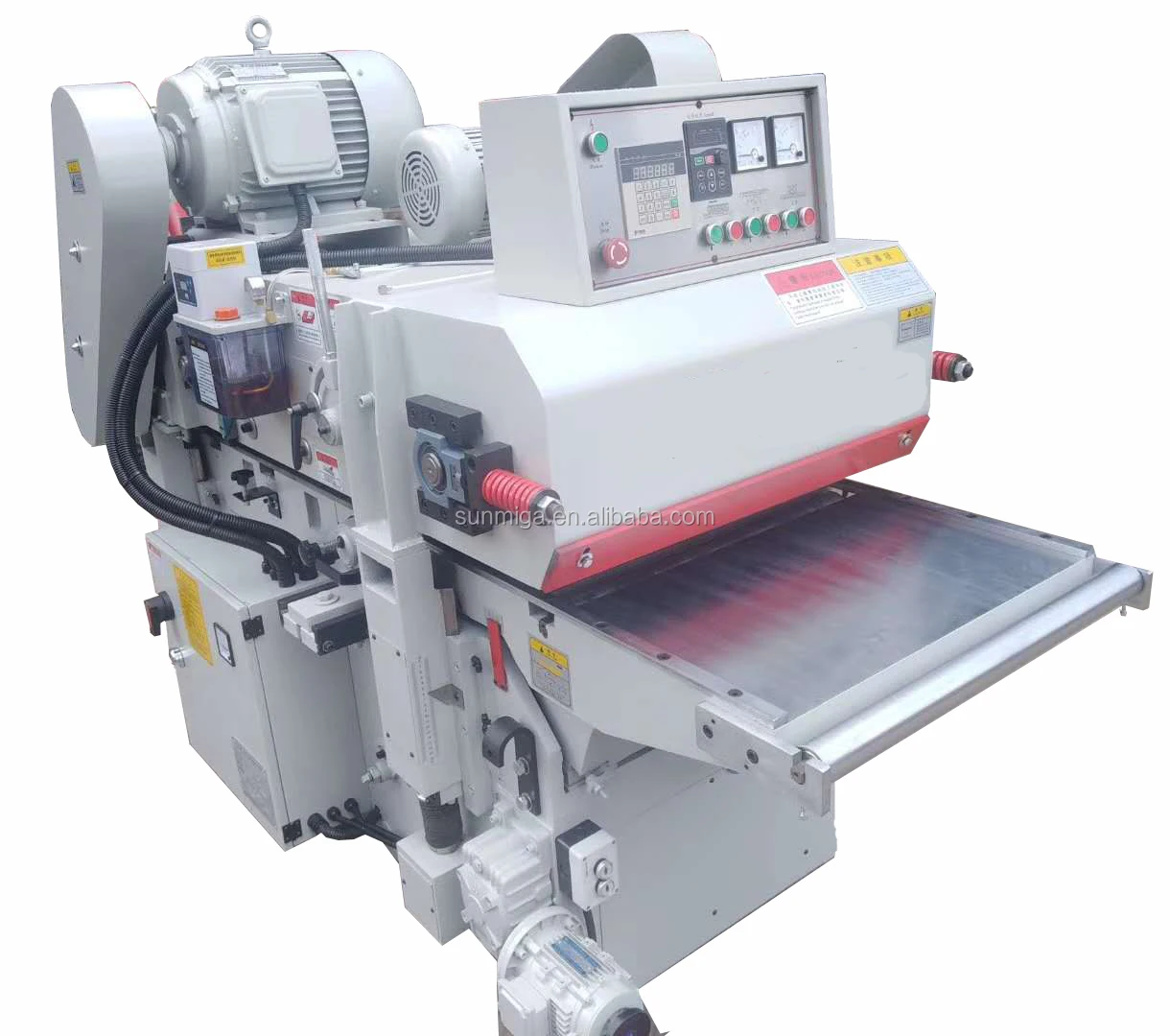

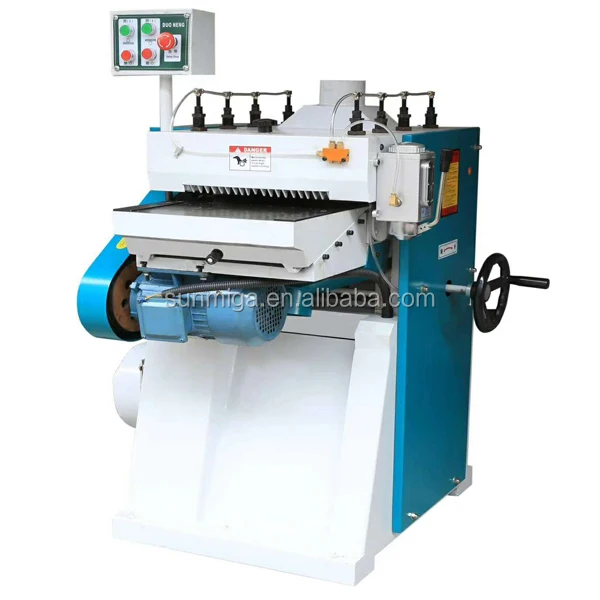

  Light duty double side planer                                           Heavy duty double side planer

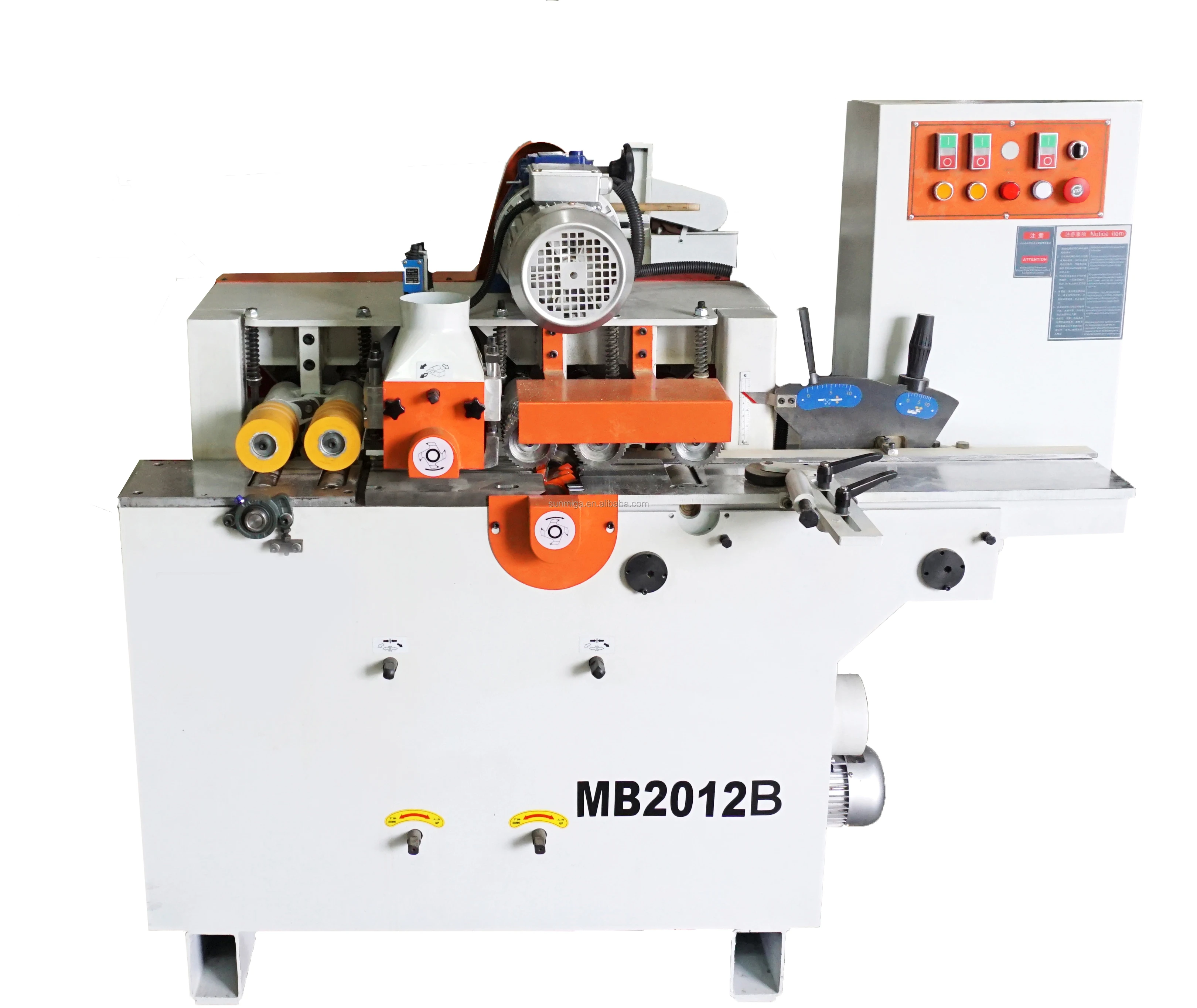

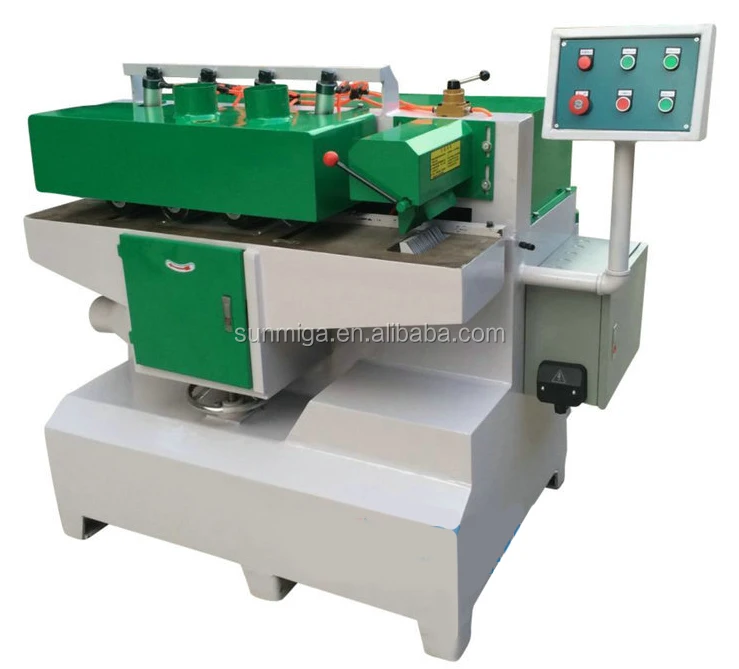

High speed round rod machine                                           Timber multi blade saw
