Product Overview

Description

Product Description

Product Application

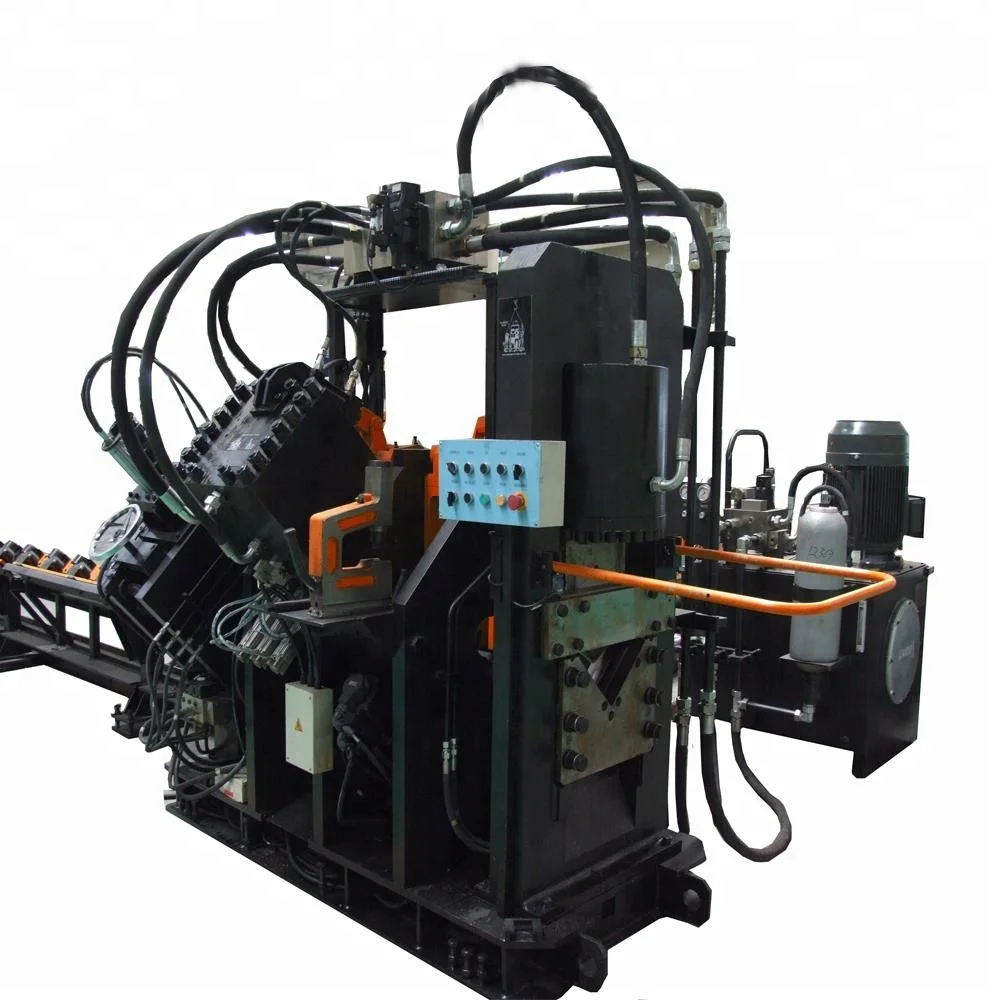

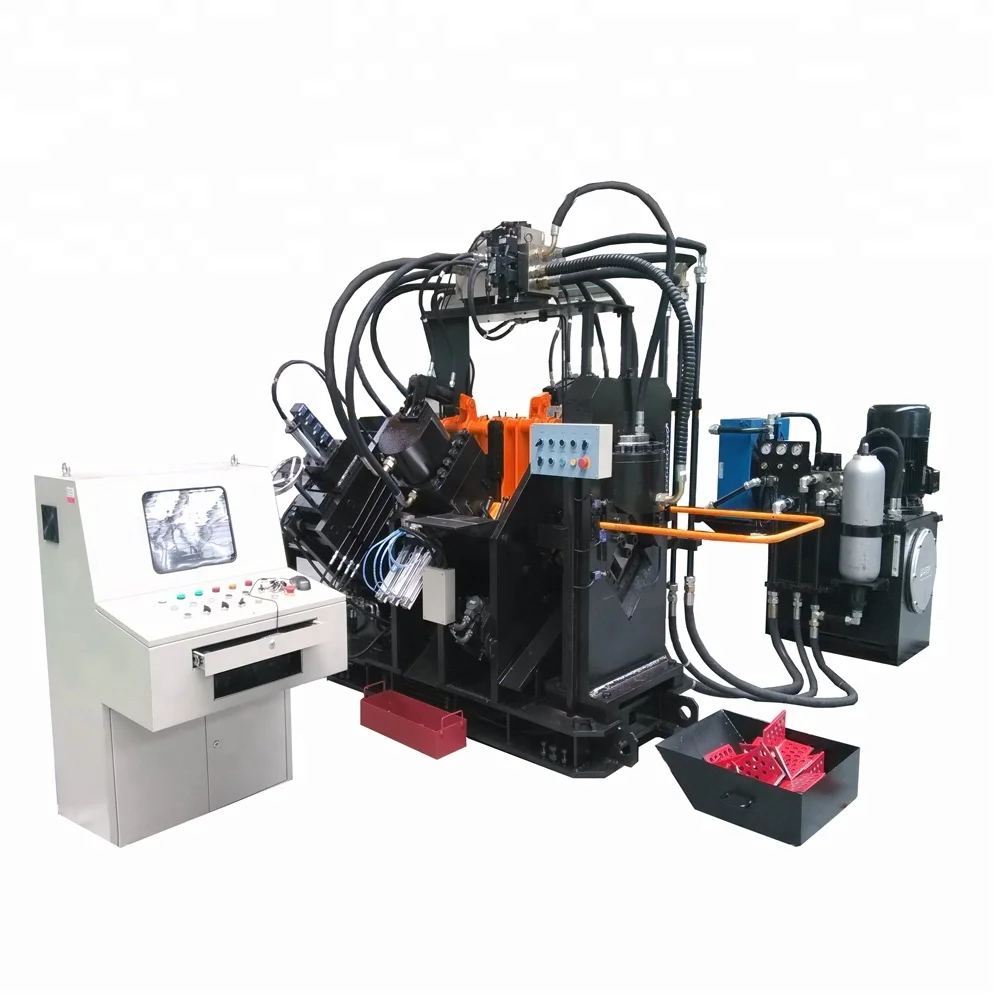

The APM series Angle Machine is a complete Processor Profiles for punching , marking and cutting Angle Profiles bars controlled by PLC and PC Programmable. The positioning, feeding of the machine are all driven by servo motors. It adopts Rack and Gear driving feeding by CNC carriage, high efficiency, and high precision; and it is wildly used in Steel Construction & Tower Industries.

SPECIFICATIONS OF CNC PUNCHING, MARKING & CUTTING MACHINE FOR ANGLES MODEL BL1412C

Angle
Angle size range
mm
∠40×3 ~ ∠140×12
Max hole diameter
mm
φ25.5mm
Max length
mm
12000(Optional)

Hydraulic system
Nominal punching force
kN
540
Norminal marking force
kN
540
Nominal cutting force
kN
750 (Double blade)
CNC system
CNC axes
no.
3
Infeeding speed
m/min
40
Program files
.***
DSTV, CAM, NC, DXF

Main Features

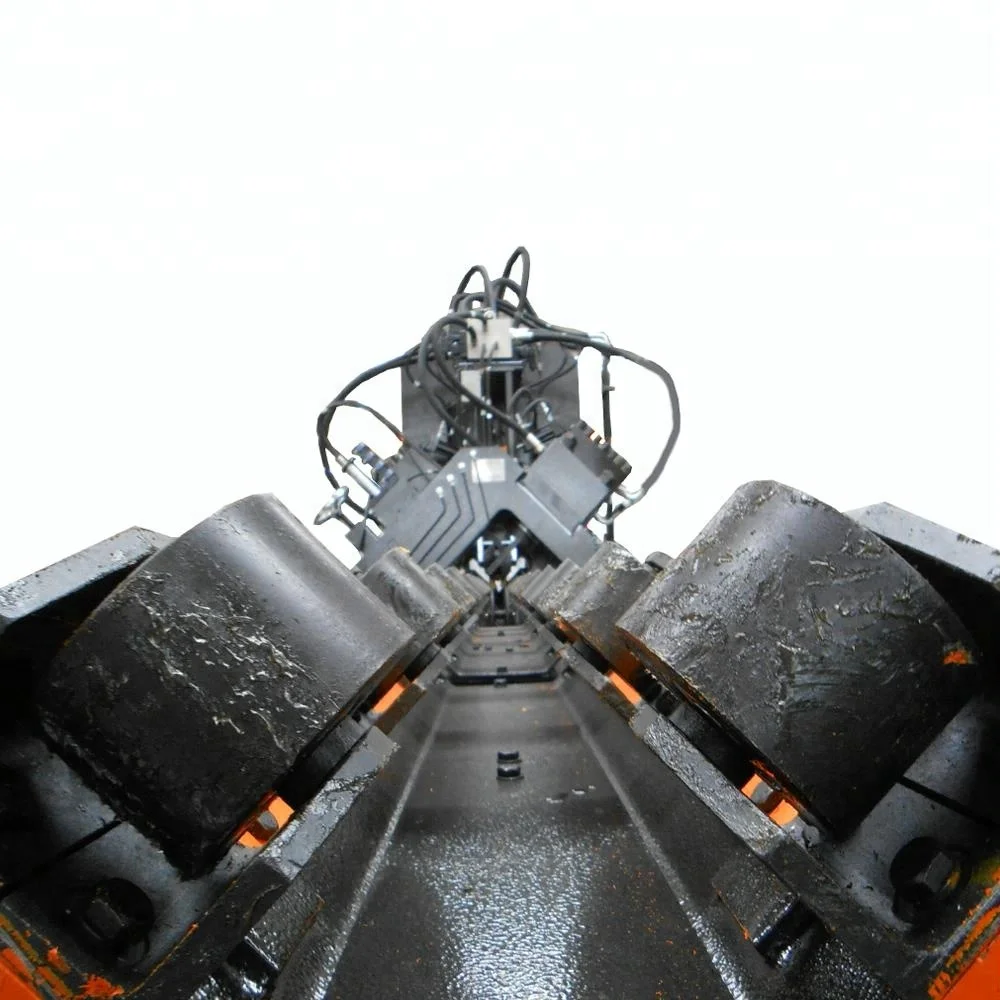

1-Infeed conveyor & Feeding carriage-Fast, Reliable & Precision
2-Transverse conveyor & Auto Loading System-High Efficiency
3-Marking Unit-Four Group Marking Characters Boxes Auto Chosen
4-Punching Unit-Fast Punching Speed & 2 Different Diameters Auto Chosen
5-Cutting Unit-Single Cutting, High Accuracy & No Material Wasted
6-Outfeed conveyor & Unloading System-Auto Unloading Workpiece
7-Electric System- Easy Programming & Operate, Read NC1, DXF DSTV CAM Files
8-Hydraulic Unit & Cooling System-Powerful Pressure & Air Cooling System

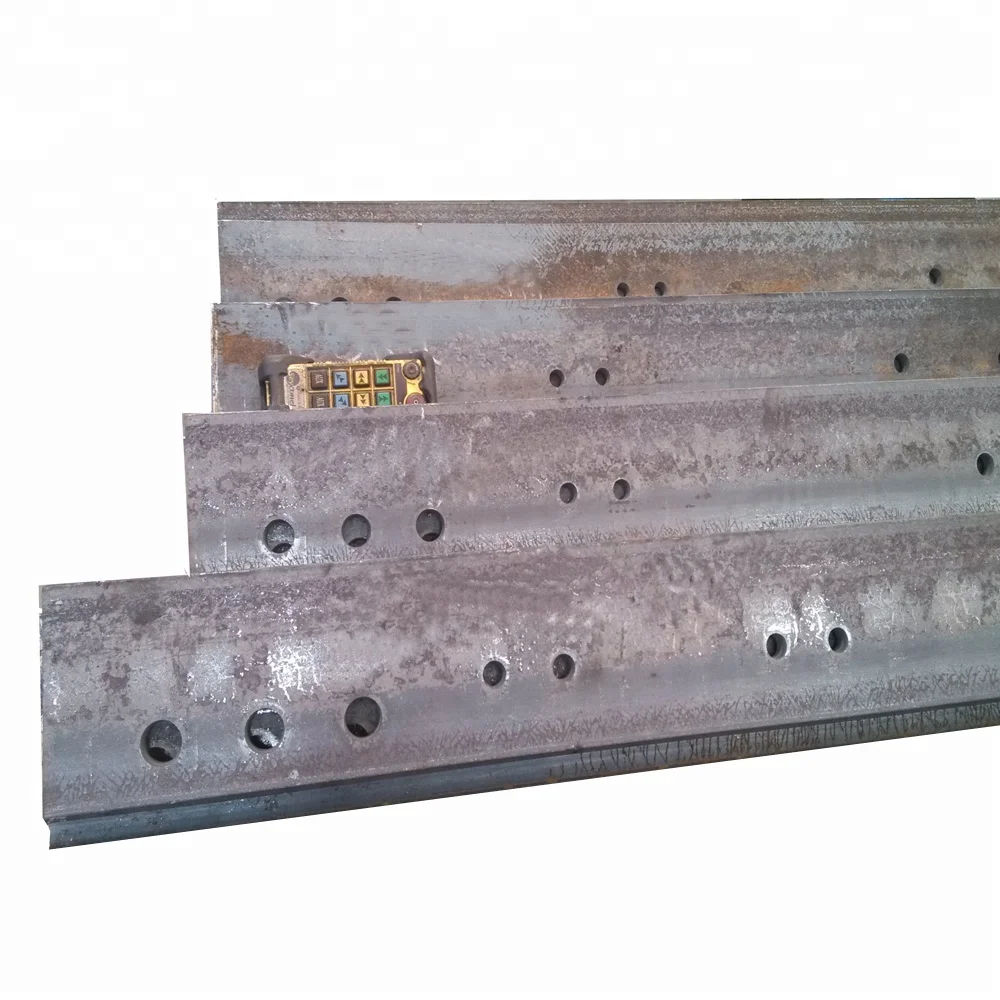

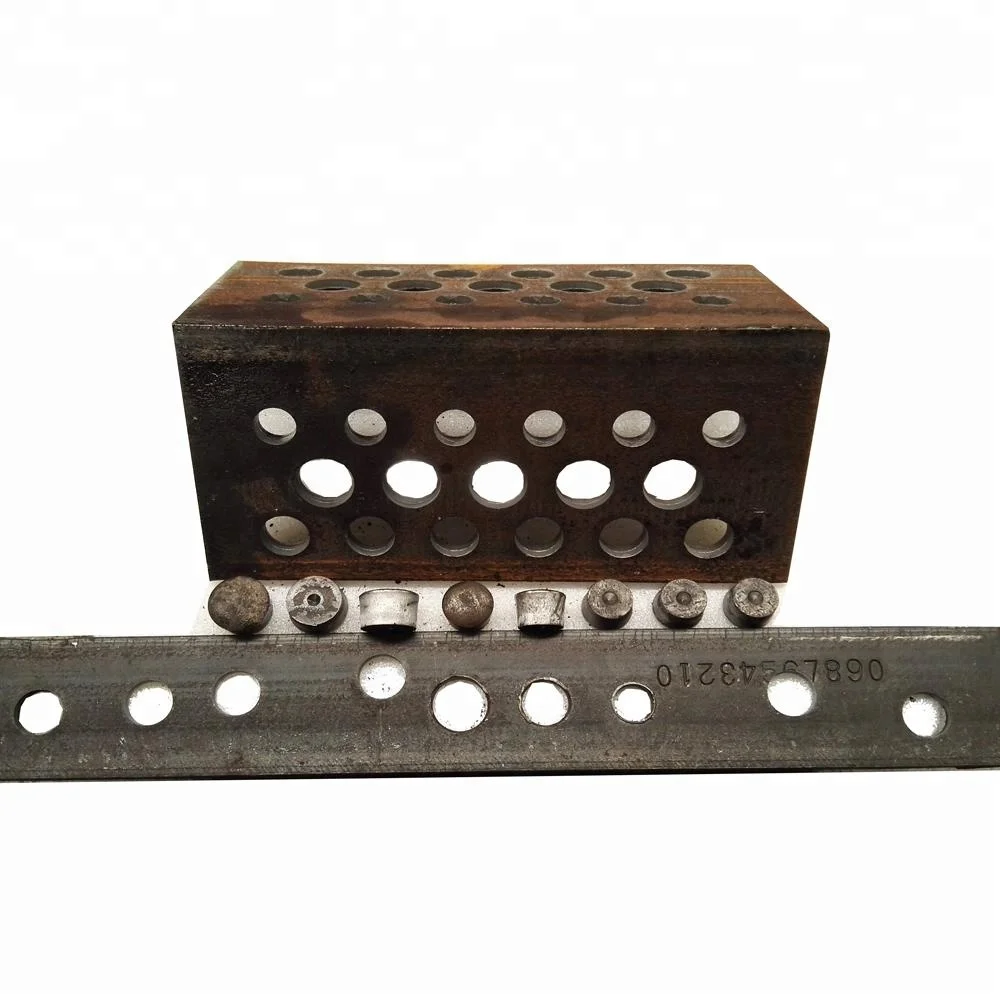

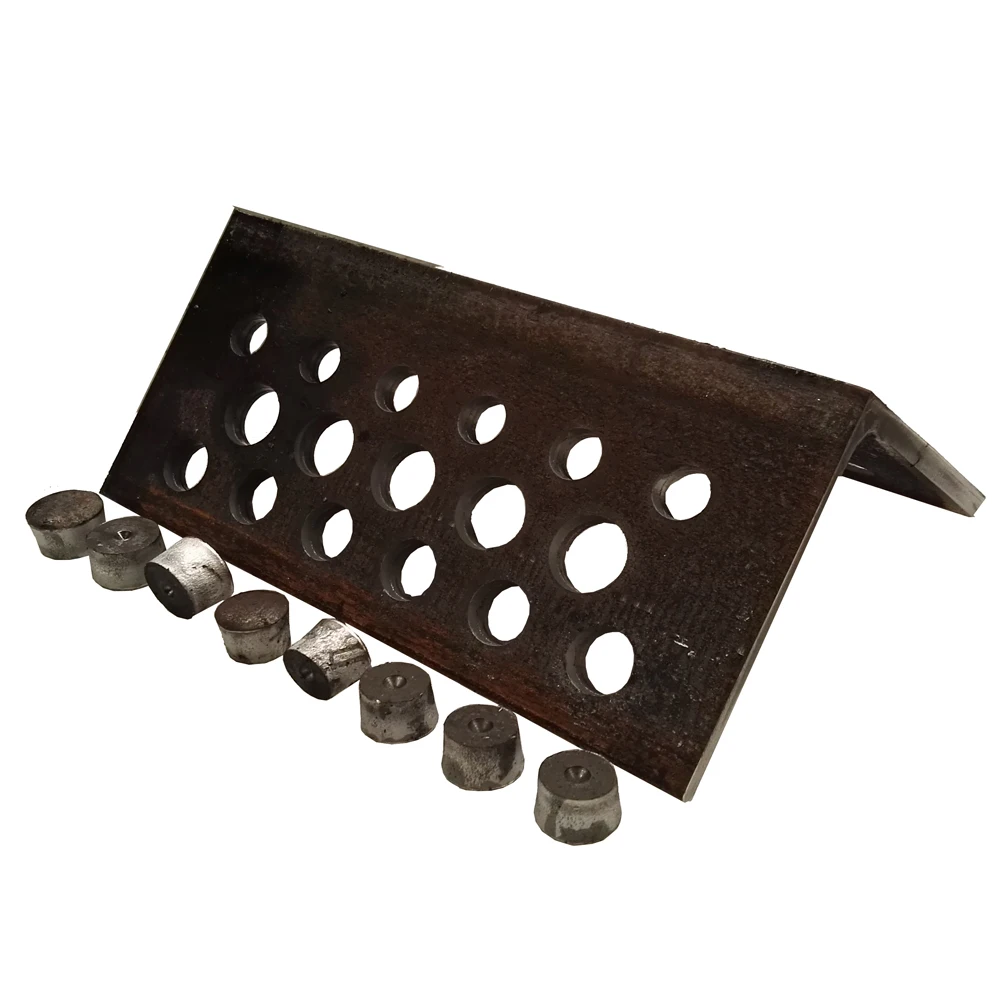

Finished Workpiece
Detailed Images

Punching Unit

Punching Head & Dies

With 2 different hole diamaters

Auto choose die & punch



Marking Unit

With 4 marking boxes

Auto choose

Good marking quality


Cutting Unit

Double blade cutting

Good cutting quality

Loading & Unloading Unit

Auto loading & unloading angles

Easy operate
