YD 1A Tablet Hardness Tester

Product Overview

Description

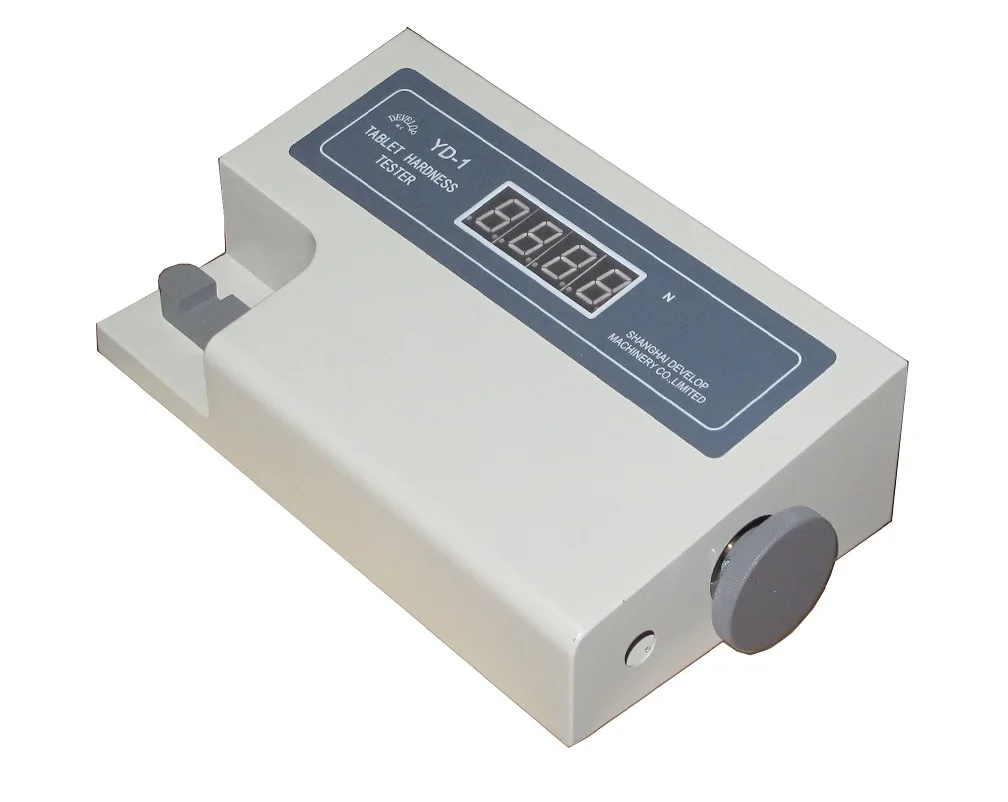

YD-1 Tablet Hardness Tester



Tablet hardness testers are the instruments for detecting breaking hardness of tablet .



Main Introduction:



Corporate standard (Tablet hardness tester)Q/12XQ0186-2005

Features

1.     The tablet is loaded artificially and pressed automatically.

2. There is high accuracy press sensor and hardness data is displayed in LED

3.It tests tablet hardness continuously. The biggest number is 100piece of a gang.

4.Time of testing will be saved by directly measuring the diameter.

5. Test data is displayed and locked automatically .so can test be reset and cycled .

6. It can deal with and memorize such data as :hardness of each tablet .the maximum value ,the minimal value .the average value ,the number of tablets .

7. The parameters can be preset at any time .Eight preset or real data is displayed on the LED.

8.Automation :auto-test .auto-diagnose.auto-alarm



Specifications:



1. Test range                           (2-199.9)N

 2. Test accuracy                        Max.( ±0. 5%)

 3. Moving distance of probe                20mm

 4. Test period                          over 20S/P

5.Power                                 220V/110V, 1 phase /10W or 110V/60HZ/10W

6.Dimension                               320*200*100mm

7.Weight                                  5KG
