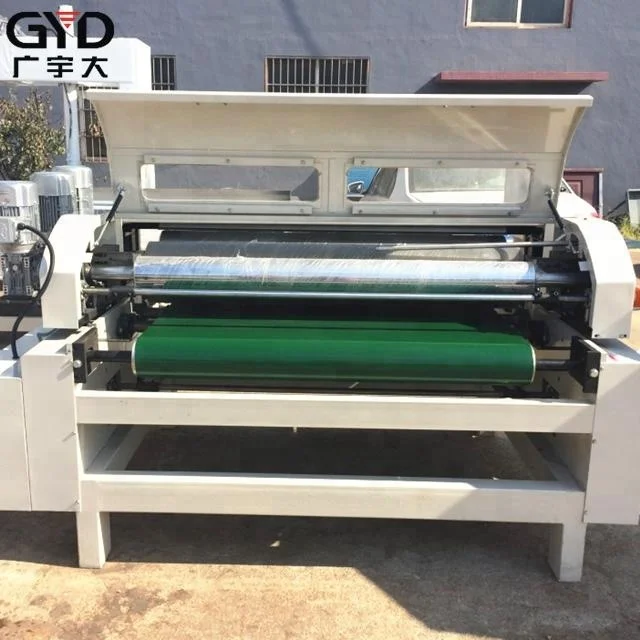

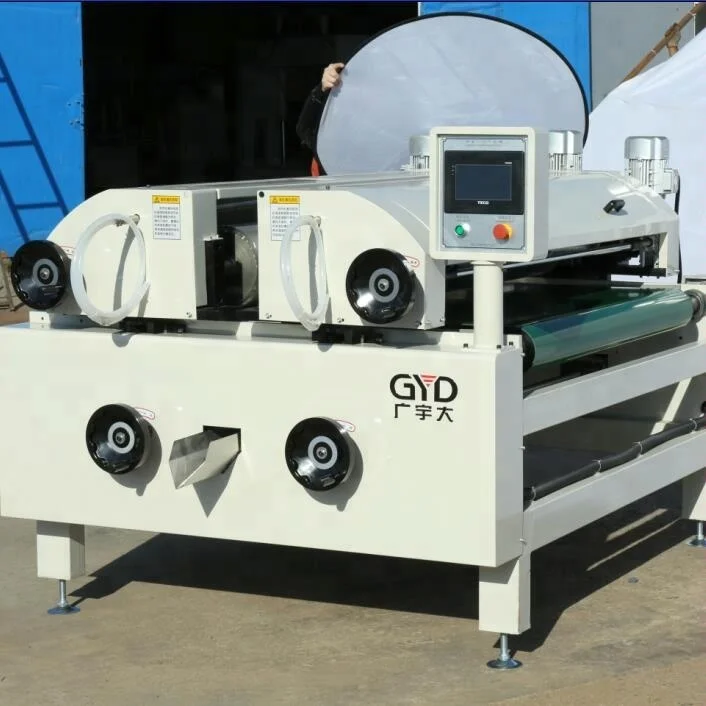

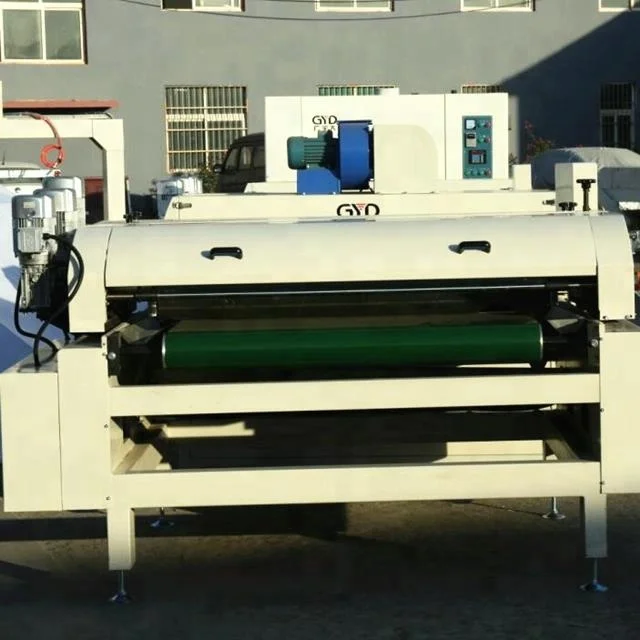

double roller silicone coating machine for sale (60778000321)

Share on (60778000321):


Price:$9,000.00 - $9,500.00
Price in USD:Details

Quantity:


Product Overview

Description


1

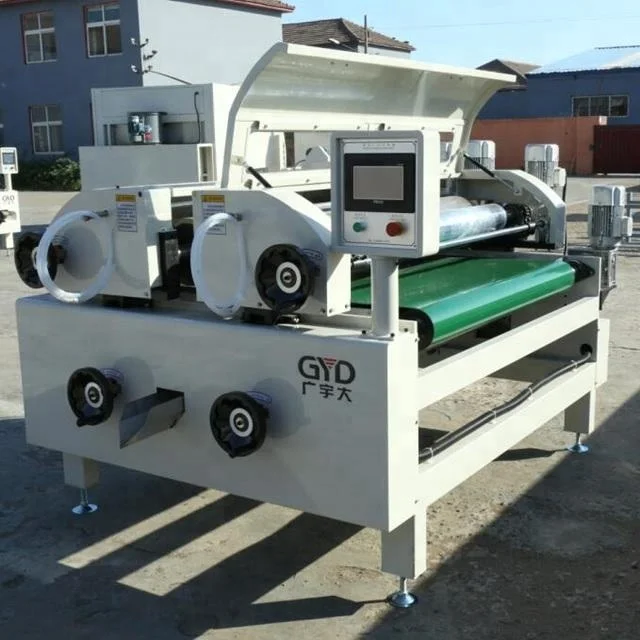

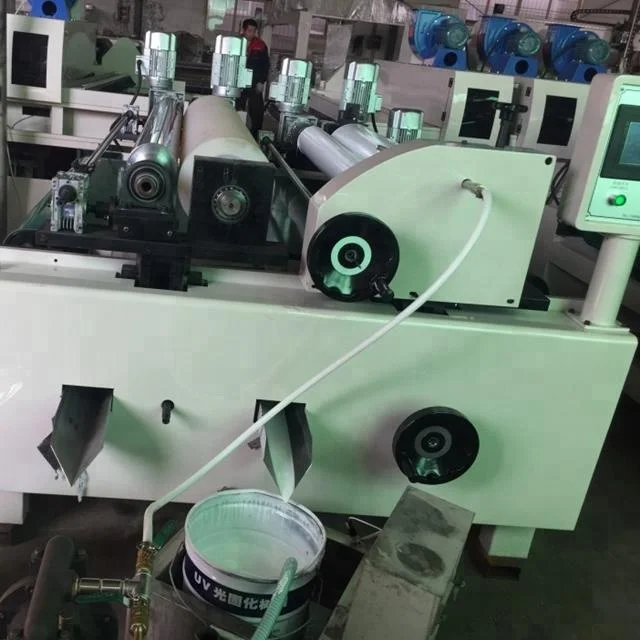

High Precision silicone coating machine

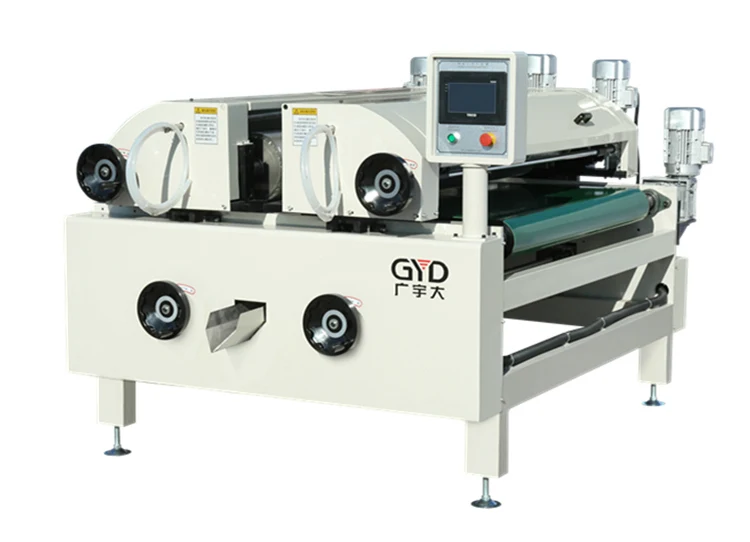

roller coating machine.jpg





Full-precision double roller UV coating equipment GYGT1300


Features:


A. This machine is designed for flat surface board such as building insulation decorative plate, floor, Shutters, furniture, cabinet board, PVC buckle board, Countertop to paint or specially second primer, the finished production is very smooth,Full of good, before and after no heap paint.


B. Conveyor belt and coating wheel, electro-optical wheel are controlled by the import of motor, inverter speed, so that paint smoothness, more precise film thickness.


C. Coating wheels can be disassembly quikly, easy to change and install, accurate positioning,the height is contol by Digital displacer .


D. Electro-optical wheel, scraper can be selected according to different conditions of different work, so that the operation more flexible.


E. Equipped with 5 frequency converters, each group can be used alone, processing more accurate.








Techincal Data

































































ModelGYGT600GYGT1000GYGT1300
Coating Width600mm1000mm1300mm
Feeding speed5-30 m/min5-30 m/min5-30 m/min
Feeding power0.75kw0.75kw1.5kw
Coating roller power0.75kw x 20.75kw x 21.5kw x 2
Smooth roller power0.37kw x 20.37kw x 20.75kw x 2
Heating power3 kw3 kw3 kw
Total motor power6 kw6 kw9 kw
Overall dimensions1600x1350x1300mm1600x1750x1300mm1600x2150x1300mm
Weight1100kg1400kg2500kg

_08_09


_10


_11


_12


_13


_02_04_03IMG_3351_07


FAQ





Whats our warranty?





One year for main body, and three months for the electrical parts.





Why choose GYD?





1.We have more than 10 years’ experience in producing the automatic spray painting line and coating line.


2.Excellent after-sales service


3.Fast delivery time
