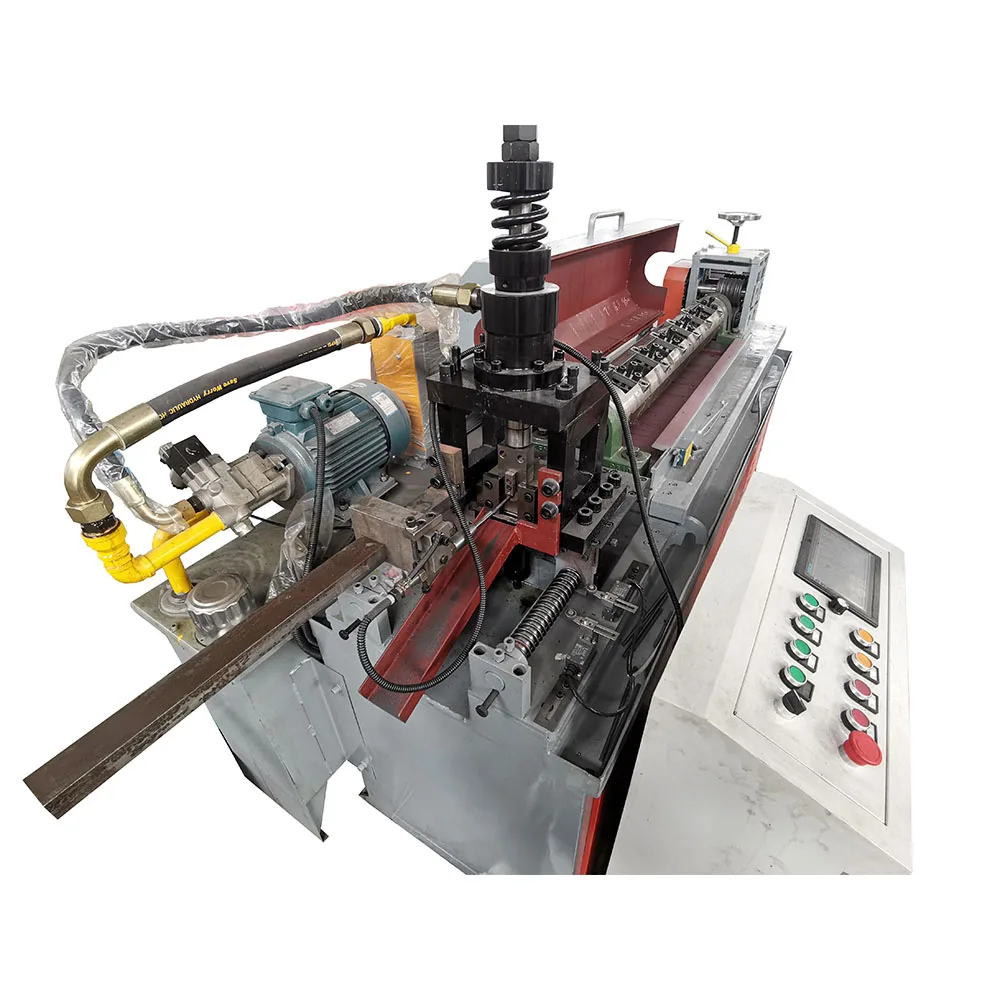

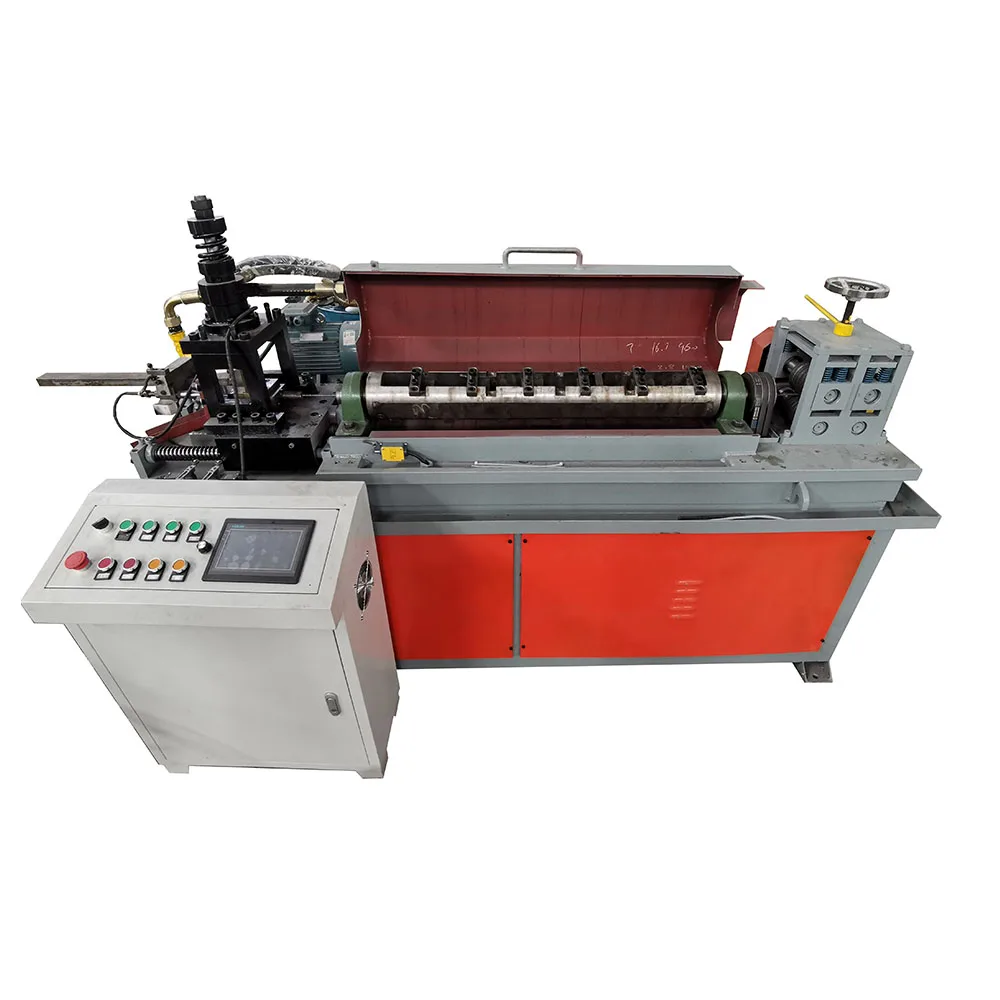

Automatic mechanical steel wire straightening and cutting machine
US $115.00-$385.00
steel bar straightening and cutting machine
- Category: Metal Straightening Machinery >>>
- Supplier: Shijiazhuang Aisen Machinery Co. Ltd.
Share on (60778361668):
Product Overview
Description
Product Description
Model | W-200 | WY-400 | WY-600 | WY-800 |
Diameter of bar | 0.8-2.0mm | 2.0-3.5mm | 3.5-6.5mm | 6.0-10mm |
Cutting range | 3-200mm | 6-1500mm | 15-4000mm | 30-4000mm |
Speed of straightening | 15m/min | 15m/min | 15-18m/min | 15-18m/min |
Error of cutting length | ±0.05mm/m | ±0.05mm/m | ±0.08mm/m | ±0.1mm/m |
Straightness | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 |
Main motor | 0.75kw | 3.0kw | 5.5kw | 7.5kw |
Total motor | 1.1kw | 4.0kw | 9.0kw | 13kw |
Model | WY-1200 | WY-1500 | WY-2000 | WY-2500 |
Diameter of bar | 9.0-14mm | 10-16mm | 14-20mm | 16-25mm |
Cutting range | 30-6000mm | 35-6000mm | 35-6000mm | 40-6000mm |
Speed of straightening | 16-20m/min | 16-20m/min | 16-20m/min | 16-20m/min |
Error of cutting length | ±0.15mm/m | ±0.15mm/m | ±0.2mm/m | ±0.2mm/m |
Straightness | ≤0.02 | ≤0.02 | ≤0.02 | ≤0.02 |
Main motor | 22kw | 30kw | 45kw | 55kw |
Total motor | 27kw | 37kw | 52kw | 64kw |
Company Information
Shijiazhuang Aisen Machinery Co., Ltd. Is a professional company for metal processing machinery,
Our main products include various types of roll forming machine, pipe processing machine, wire drawing machine, lathe and other related machines, etc.
Our company regards “reasonable prices, high quality and good after-sales” as our tenet.
Got great feedback and honor from all the clients.
Our products were sold to more than 20 countries already.
We hope to cooperate with more customers for mutual development and benefits. You are welcome to contact us
