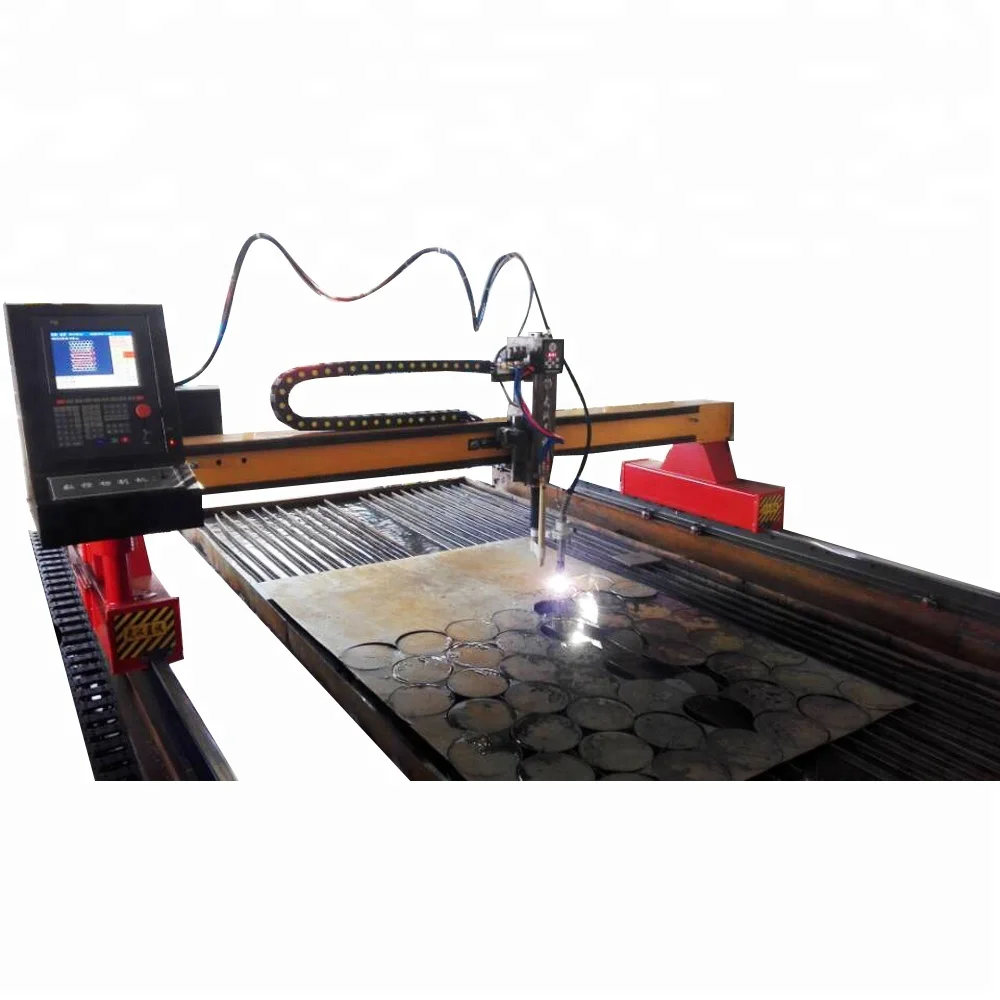

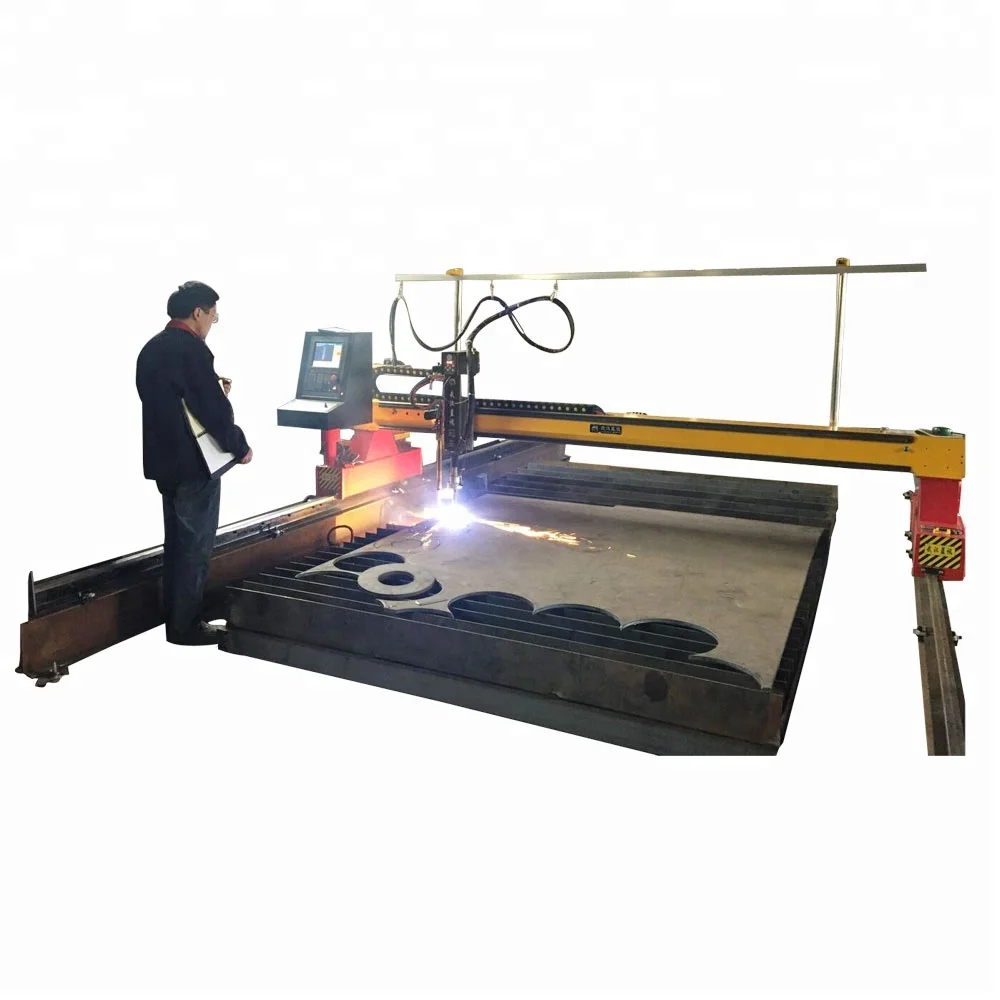

Стальной плазменный резак с ЧПУ, станок для плазменной резки железа, автоматическая машина для резки пластин

Стальной плазменный резак с ЧПУ, станок для плазменной резки железа, автоматическая машина для резки пластин

Category: Gas Cutting Machine >>>
Supplier: Wuhan Lansun Technology Co. Ltd.

Price:

Quantity:

Product Overview

Description

Our Company

Wuhan Lansun CNC cutting machine, your reliable business partner!

Company Profile

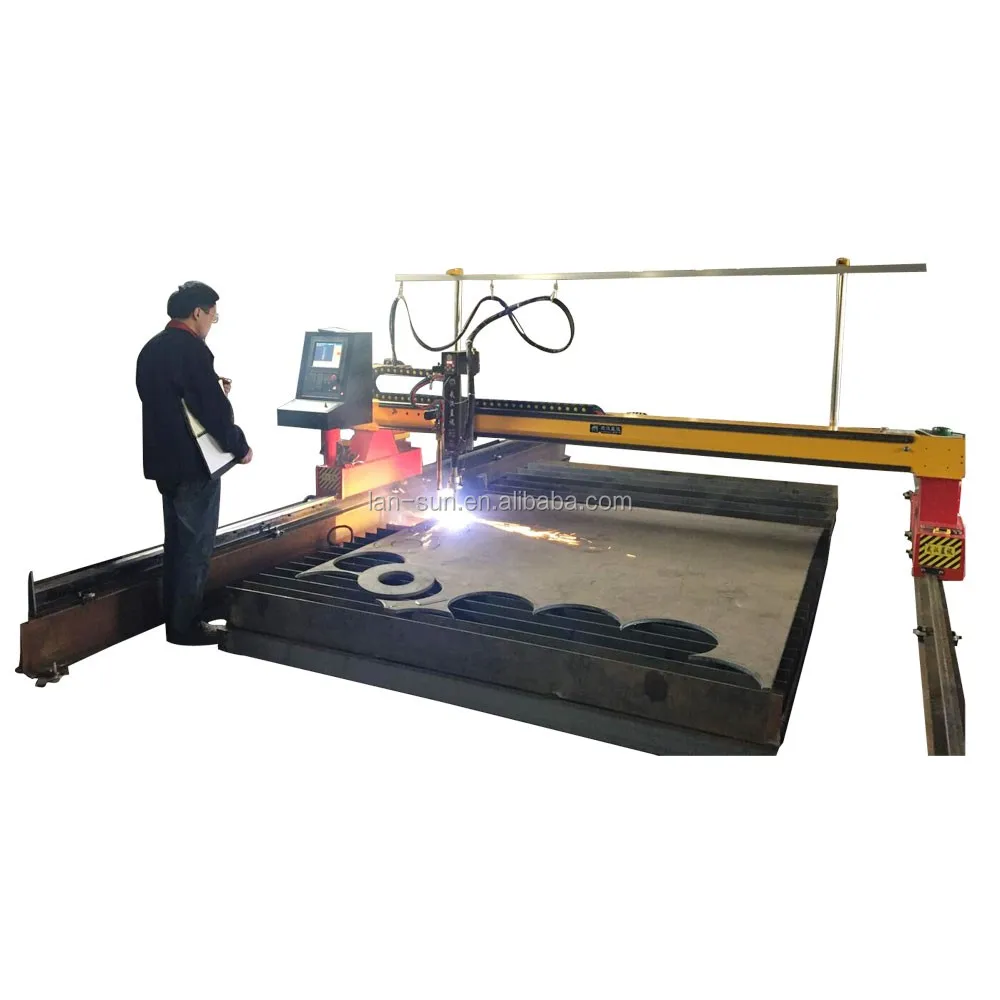

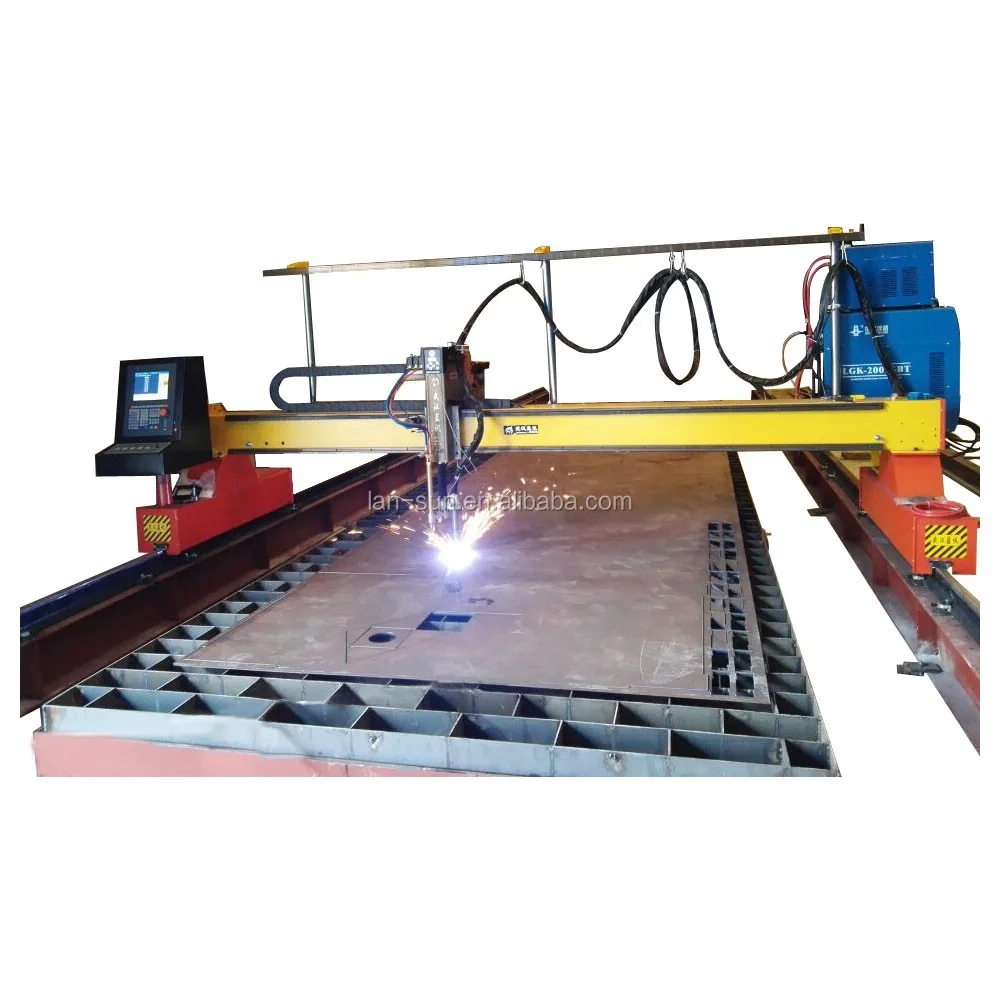

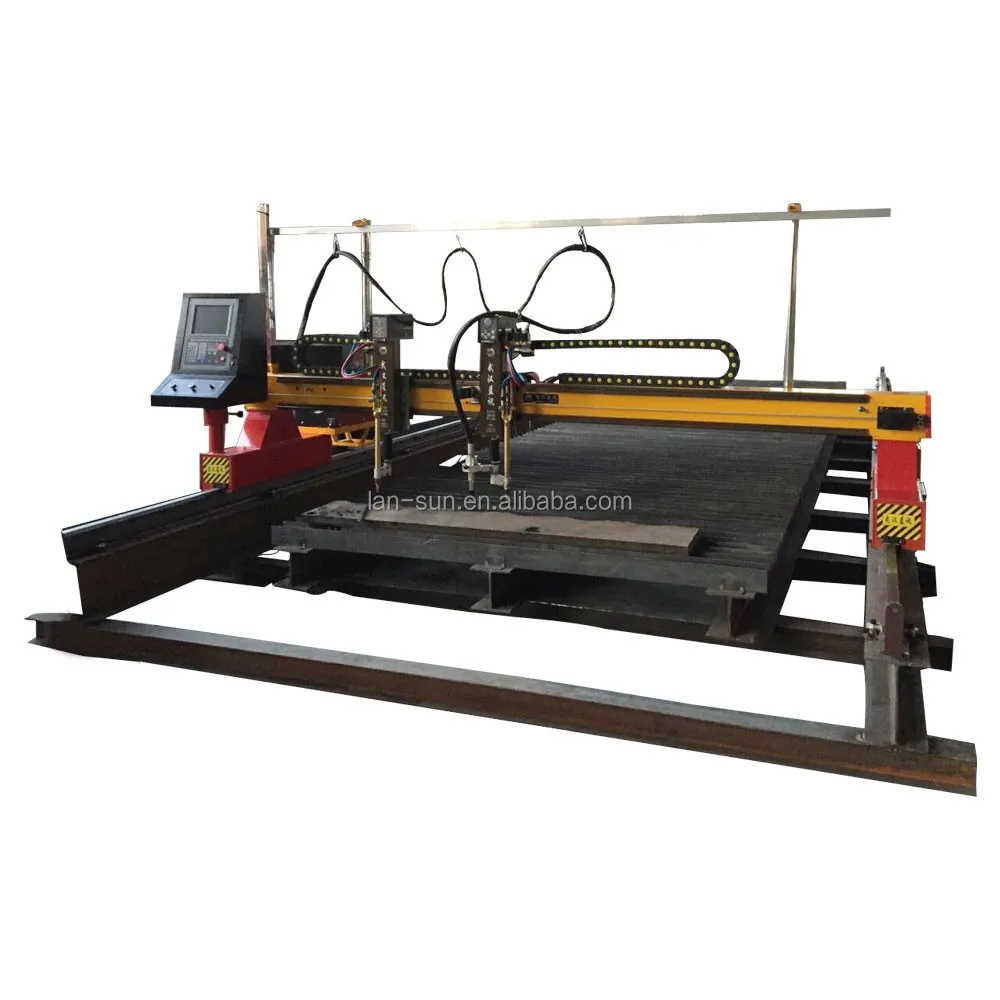

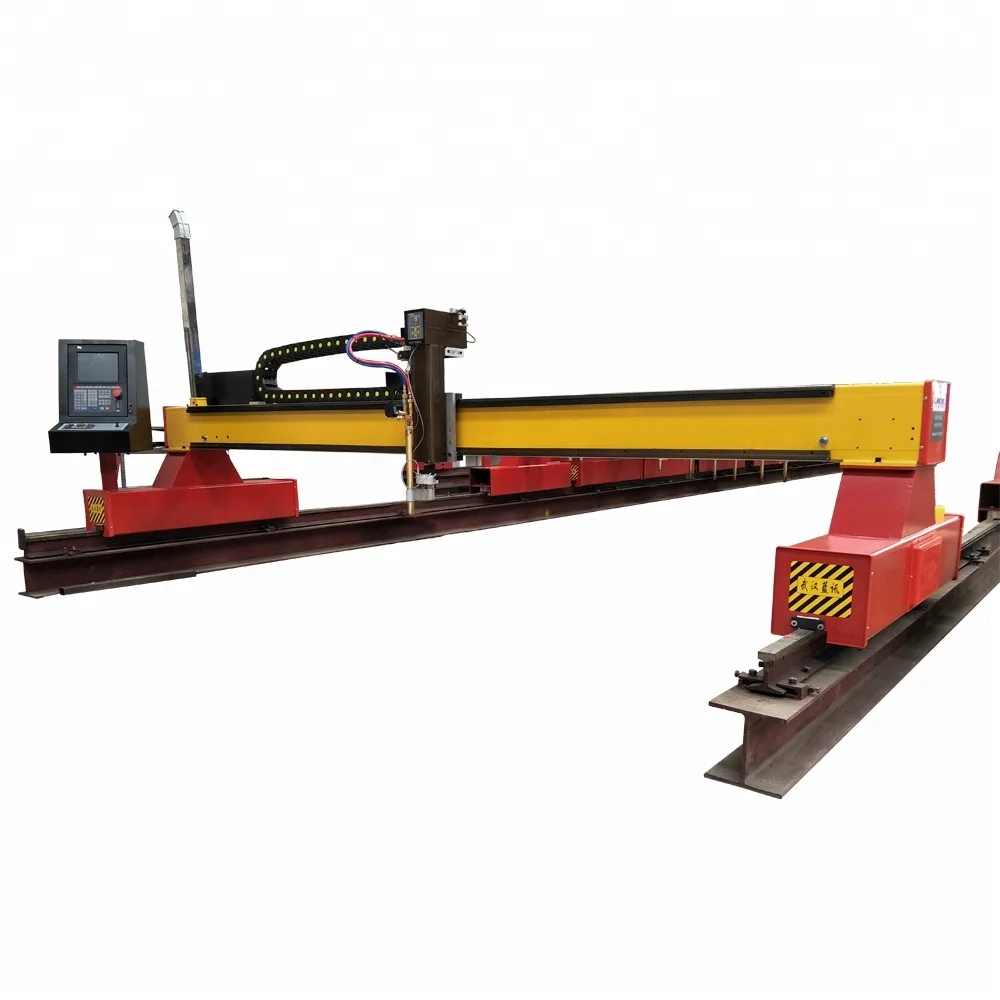

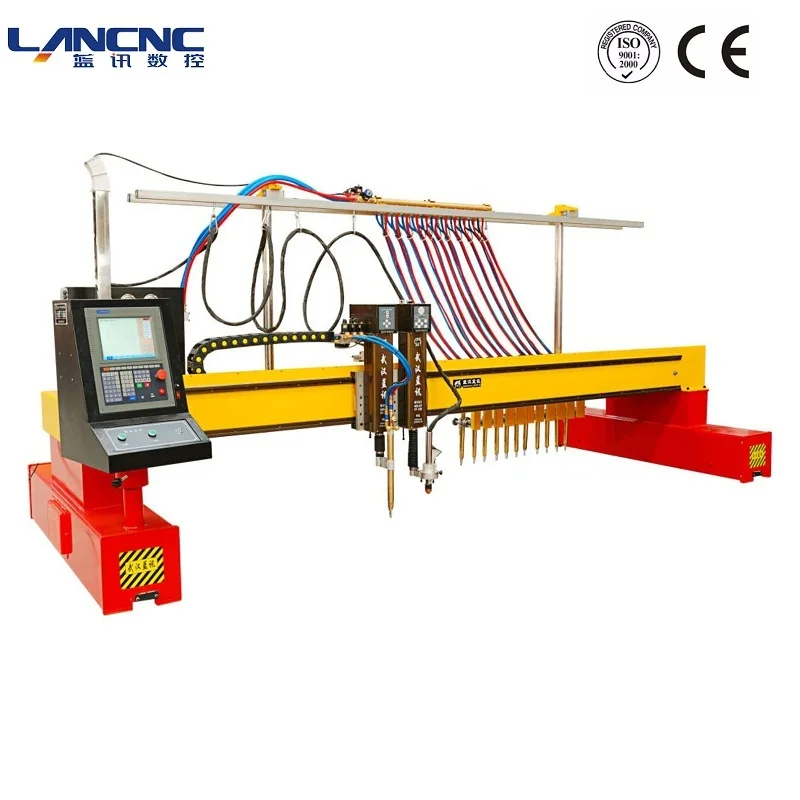

4m or 4.5-7m Gantry CNC flame plasma cutting machine

--The best choice of 2.5-5.5m width steel plate cutting

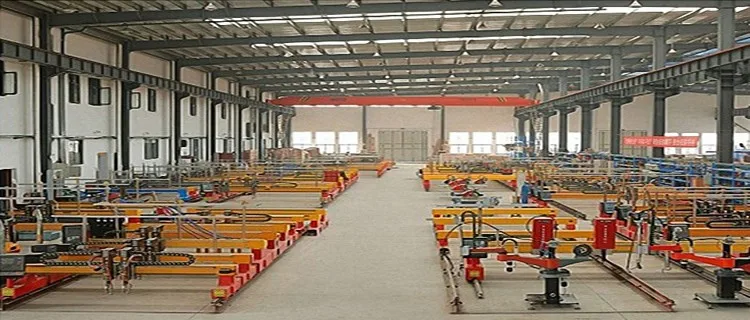

Our Workshop

20 years CNC cutting machine manufacturing;

5000 + customers Choice;
Our own R & D team, customized according to your needs;
Chinese famous brand, fast delivery,cheap price;
Total quality management system.

Product Description

Cutting method Guide:

Flame cutting: Suitable for cutting carbon steel larger than 20mm.

Plasma cutting: Plasma cutting cost is 1/3~1/2 of flame cutting;So the Plasma is suitable for cutting carbon steel within 20mm.Stainless steel, aluminum or galvanized sheet etc materials suitable for plasma cutting.

\t Model		\t ZLQ-4A1
\t Cutting Mode		\t Flame Plasma Flame and Plasma
\t Driving Mode		\t Servo motor or stepper motor, Dual-side
\t Cross beam Width(m)		\t 3m or 3.5m
\t effective Working Width(m)		\t 1m less than track width
\t Guide rail Length (m)		\t According to your cutting demands
\t effective working length (m)		\t 2m less than guide rail length
\t Flame Cutting thickness(mm)		\t 5-200 (specific type up to 300)
\t Plasma Cutting thickness(mm)		\t According to the plasma generator, common 1-30mm
\t Number of Cutting Torch		\t At customer requests
\t Cutting Speed (mm/min)		\t 50-8800
\t Running speed (mm/min)		\t 12000
\t NC Controller		\t LANSUN or other China or import System you want
\t Plasma Power		\t 100A ,120A , 200A ,300A ect . China , USA brand
\t Programming software		\t China or Australia professional nesting software
\t Operation language		\t English or Chinese or Russian
\t Other data
\t Working temperature		\t - 10C - +45C
\t Humidity		\t < 90%, no condensation
\t Surroundings		\t Ventilation, no big shake
\t Power voltage		\t 3*380V(p/m 10%) or up by user local condition

Detailed Images

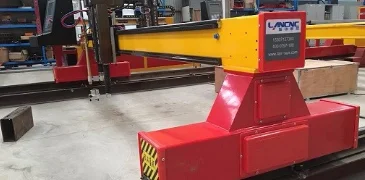

Machine body structure

1.Steel hollow beam design ensures good heat dissipation without deformation;

2. Box weldment structure process tempering ensures excellent rigidity and intensity;

3. Double drive adopts symmetrical structure.

Transmission

1. The gear-rack driving motions without engagement gap ensure the machine running smooth at high speed;

2. Gear box: SEW, high output torsion low noise

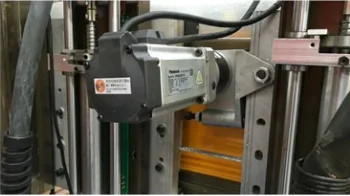

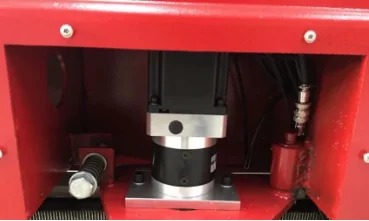

Drive Model

1.Japan AC servo motor or Stepper motor Bi-side Driving.

2.Japan shimpo reducer or German technology planetary reducer.

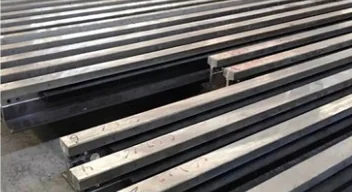

GUIDE RAIL

Process mode: High precision grinder;

Longitudinal rack accuracy: 7 grade;

Unit length: 1.0M or 2.0M.

HEIGHT CONTROLLER

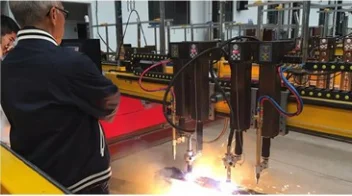

Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.

Flame:Electric height adjusting system.

Plasma:Arc voltage height controller.

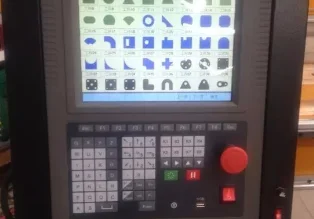

CNC System

1. 10.4 inch LCD display;
2. USB port support, figures display;
3. Indicator lights showing working condition;
4. Operation menu displayed instantly on monitor;
5. Easy figures programmed directly.

Beijing or Shanghai or American Brand CNC system is optional

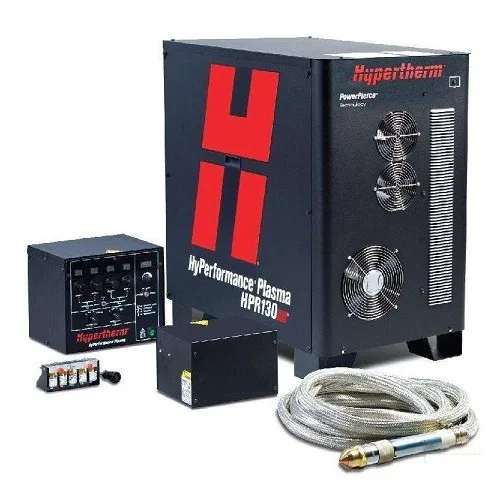

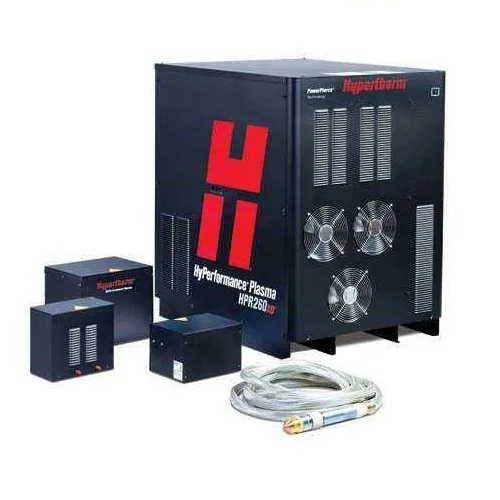

Plasma Source Option

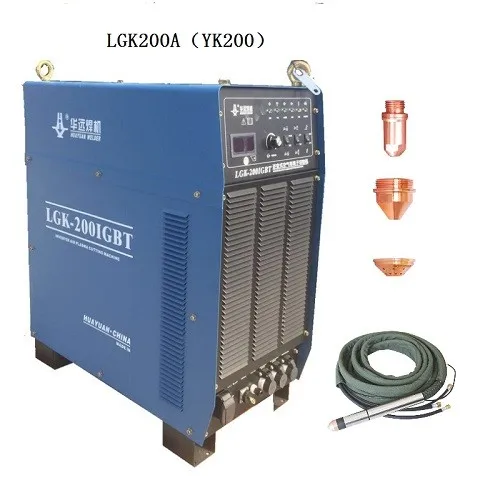

\t	\t LGK series plasma power main feature	\t
\t Parameters	\t LGK-120IGBT	\t LGK-200IGBT
\t Rated input voltage	\t 3 phases 220v/380v/415v/ 50/60 HZ or customize	\t 3 phases 220v/380v/415v/ 50/60 HZ or customize
\t Rated input capability	\t 22.4KW	\t 38.8KW
\t Open circuit voltage	\t 285V	\t 315V
\t Rated cutting current	\t 120A	\t 200A
\t Rated duty cycle	\t 100%	\t 100%
\t Current adjusting range	\t 30A-120A	\t 40A-200A
\t Insulation level	\t F	\t F
\t Protection grade	\t IP21S	\t IP21S
\t Manual quality cutting thickness	\t 0.3-25MM	\t 0.3-32MM
\t Machine quality cutting thickness	\t 15MM	\t 25MM
\t Applying plasma air	\t Compressed air	\t Compressed air
\t Work plasma gas pressure	\t 0.4-0.6MPA	\t 0.4-0.6MPA
\t Dimension(LWH)	\t 675320605	\t 800380810
\t Weight(KG)	\t 47	\t 82

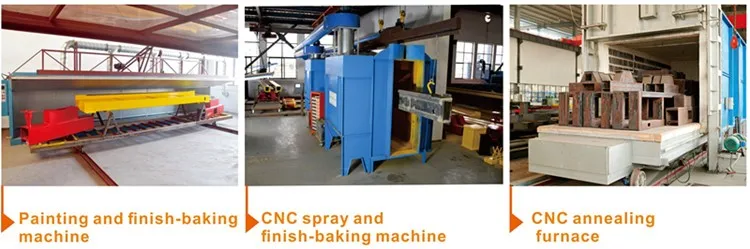

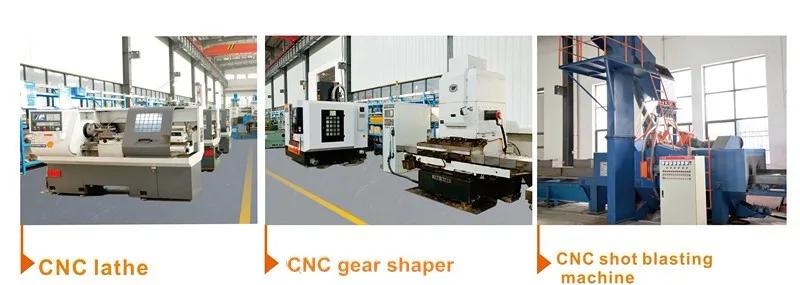

Processing Equipment

Our Technical Team

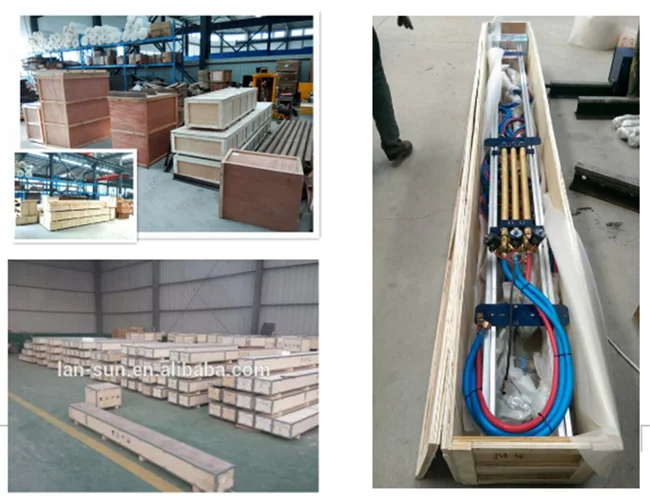

Packing & Delivery

Advantage of our company.

"Research on key Technology of NC cutting and Development of Series products" of Wuhan Lancnc in 2010 won the second Prize of Scientific and technological Progress of Hubei Province.

In 2011, Lancnc was awarded the top ten innovation demonstration enterprises in Hubei province. For many years, it has been appraised as "the enterprise of keeping promise under contract".

The products of Wuhan Lancnc have many independent intellectual property rights, many technology patents and software copyrights. The products have been certified by the European Union "CE" and exported to Mexico, Russia, Myanmar, Thailand, Indonesia, Qatar, Dubai, Singapore, India, Brazil, Australia and other countries, because of the economic and practical products, convenient and reliable operation and won the praise of users at home and abroad, now has more than 3000 domestic and foreign users; the company will be innovative, enterprising, lean, Service practice spirit and behavior concept, as always for all kinds of processing industry, manufacturing industry to provide economic and practical, efficient and convenient solution.

Company address:29 the 4th Gaoxin Road East-lake high tech development district,Wuhan City,Hubei province,China.
Website:www.lansuncnc.com, www.lan-sun.en.alibaba.com
Tel:0086-27-87511821,

fax:0086-27-87913313

QQ:879256234

Contact person: jack liu (whatsapp/handphone:0086 13396043860)
