Commercial and industry moveable electric fan heater/warm air blower

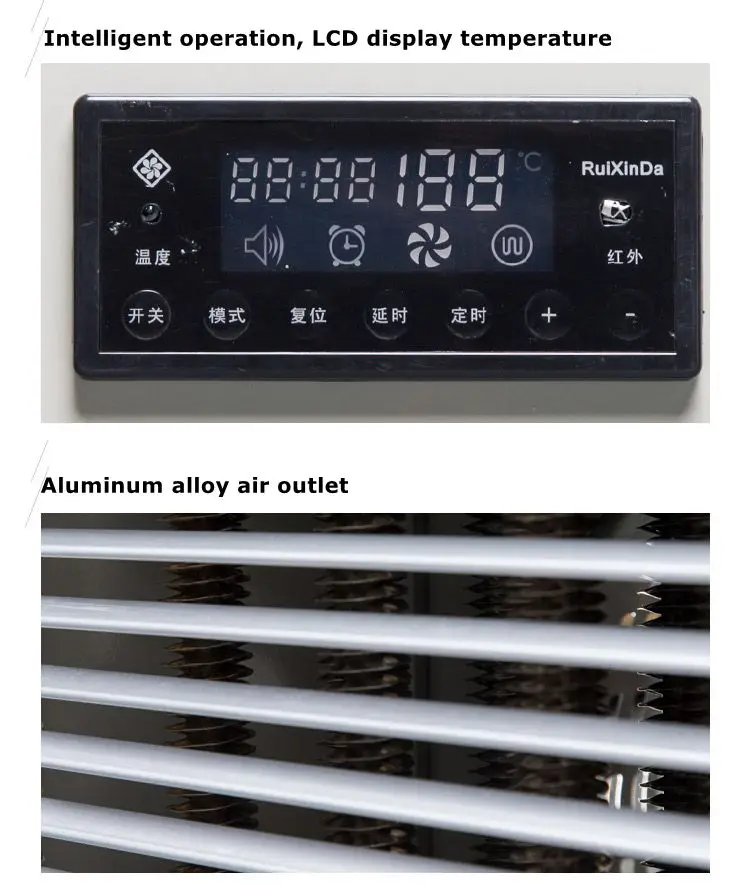

The special blower for electric heating heater is a touch digital display intelligent instrument. It adopts microcomputer control technology, with good reliability, strong anti-interference ability, large screen display and convenient installation. With the comparison effect of indoor temperature and set temperature, the start and stop of the heater is controlled by the microcomputer to achieve the purpose of indoor constant temperature and energy saving.
Features:
Temperature setting temperature measurement and display
Heating display fan operation display
Timing shutdown function Fan failure alarm function
Power-down memory function Far-infrared remote control function.
Product Parameter:
Model | Electric Heater Power(KW) | Air Capacity (M3/H) | Motor Power(W) | Voltage(V) | Dimension (MM) | Matched Line (M2) |
TR-XD-3 | 3 | 550 | 30 | 220 | 260*270*510 | 4 |
TR-XD-4 | 4 | 550 | 30 | 220 | 260*270*510 | 4 |
TR-XD-5 | 5 | 1300 | 50 | 380 | 350*385*600 | 4 |
TR-XD-6 | 6 | 1300 | 50 | 380 | 350*385*600 | 4 |
TR-XD-8 | 8 | 1900 | 80 | 380 | 420*385*650 | 6 |
TR-XD-9 | 9 | 1900 | 80 | 380 | 420*385*650 | 6 |
TR-XD-10 | 10 | 1900 | 80 | 380 | 420*385*650 | 6 |
TR-XT-12 | 12 | 2300 | 120 | 380 | 490*400*750 | 6 |
TR-XD-15 | 15 | 2300 | 120 | 380 | 490*400*750 | 6 |
TR-XD-18 | 18 | 2800 | 150 | 380 | 530*420*800 | 10 |
TR-XD-22 | 22 | 2800 | 150 | 380 | 530*420*800 | 10 |
TR-XD-25 | 25 | 4000 | 250 | 380 | 600*420*900 | 10 |
TR-XD-30 | 30 | 4000 | 250 | 380 | 600*420*900 | 10 |
TR-XD-35 | 35 | 5700 | 350 | 380 | 650*470*950 | 16 |
TR-XD-40 | 40 | 5700 | 350 | 380 | 650*470*950 | 16 |
TR-XD-45 | 45 | 5700 | 350 | 380 | 650*470*950 | 16 |
TR-XD-55 | 55 | 7000 | 600 | 380 | 750*560*1420 | 16 |
TR-XD-60 | 60 | 7000 | 600 | 380 | 750*560*1420 | 16-25 |
TR-XD-65 | 65 | 7000 | 600 | 380 | 750*560*1420 | 25 |
Product details:
1).Selection method: Normal heating is calculated at 10 square meters per kilowatt. For example, 4 kilowatts normal height 3 to 4 meters can be used to warm 40 square meters, 5 kilowatts 50 square meters and so on. If the height is too high, please contact customer service.
2).Power consumption: The machine has an automatic constant temperature function, and the power consumption is half of the power. For example, the normal temperature of 4 kW is about 2 kWh per hour, 6 kW is about 3 kWh, and so on.
3).Voltage selection: Only 3 kW and 4 kW are 220V, the rest are all 380V industrial power, choose 4 kW or more power machine, please check whether the practical environment has 380V.
4).Wiring instructions: 380V machines need to be wired, there is a wiring head behind, ABC is connected to the fire line, N is connected to the zero line, the zero line must be connected, the ground line does not have to be connected, 20 kilowatts use the line of 6 square meters, 20 to 30 kilowatts use 10 Squared line, use 16 square meters above 30 kW. For your safety, mind using copper wire!
Usage:

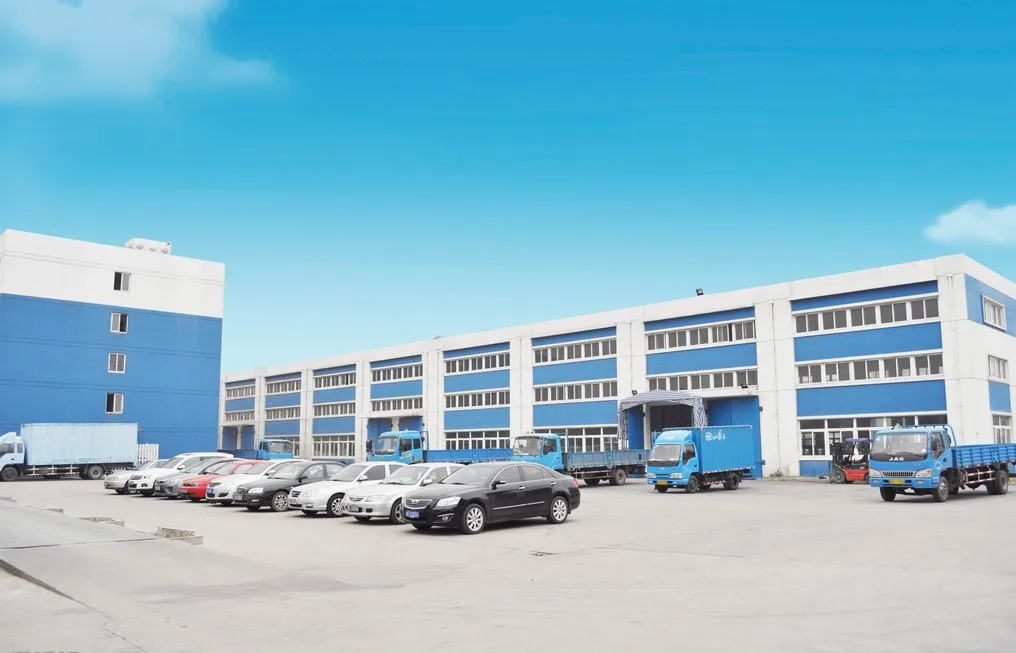

Reserch &Development department and factory view:
