China landscape drainage board 20mm dimple plastic drain board/dimple for garage projet and roof project

Product Overview

Description

China landscape drainage board 20mm dimple plastic drain board/dimple for garage projet and roof project

Product Description:

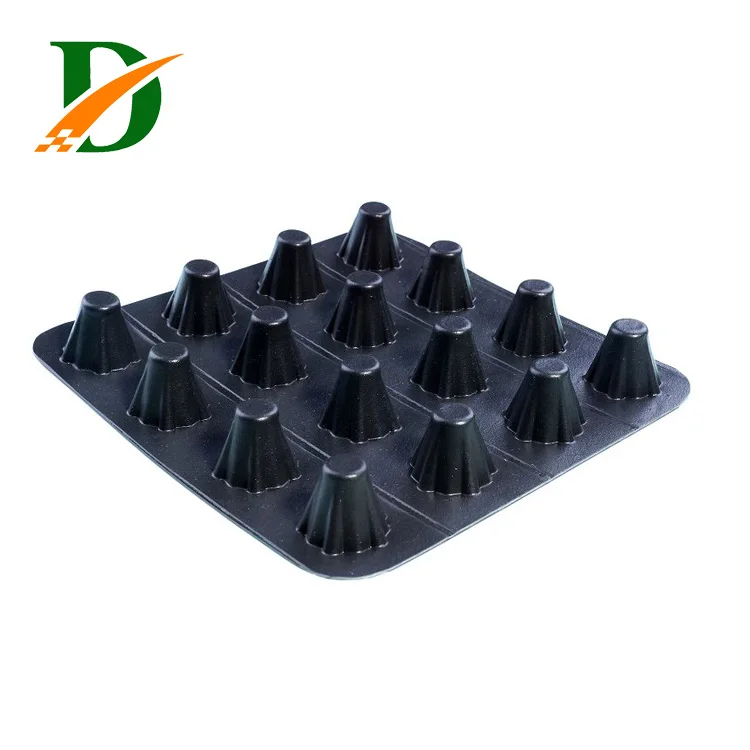

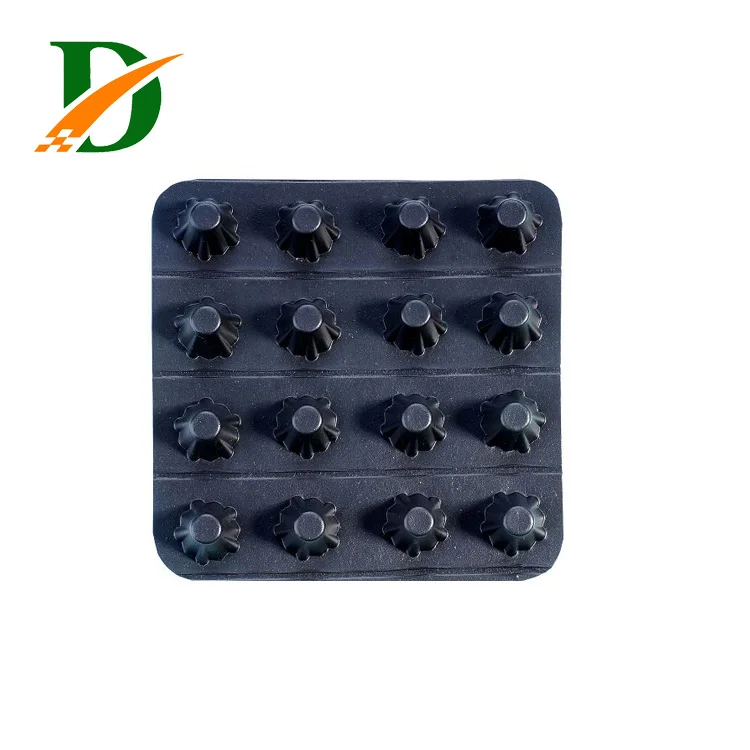

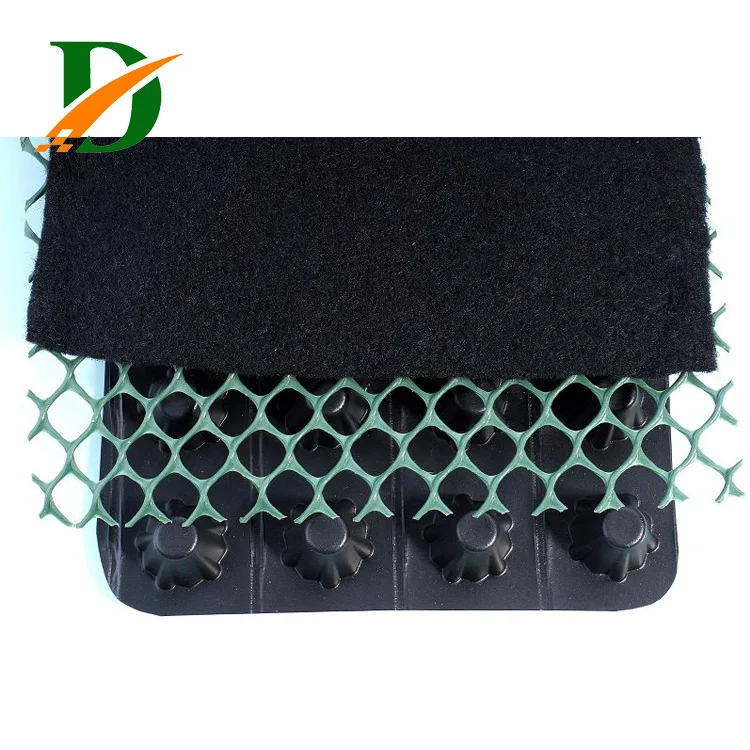

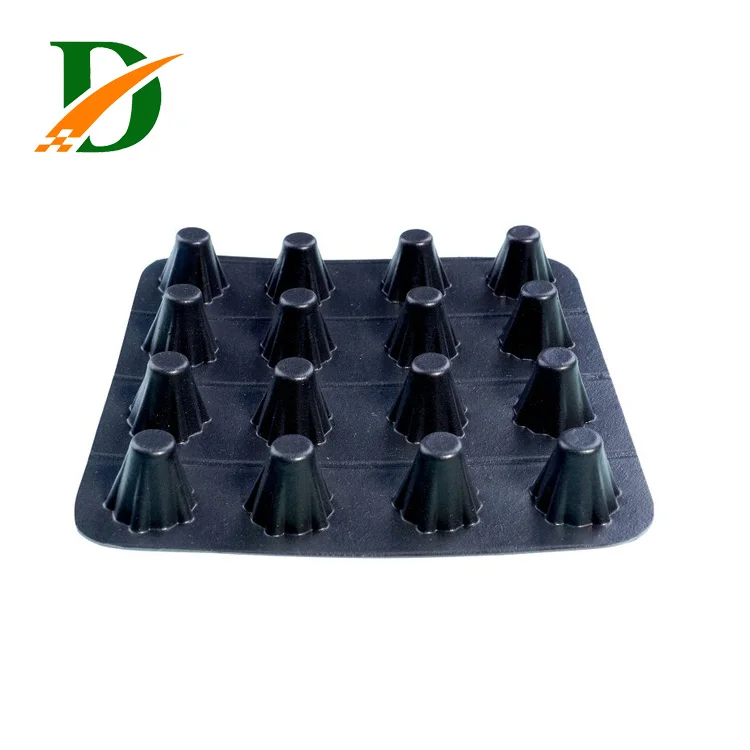

The dimple drainage board is made from high density polyethylene plastic and it is a kind of geomembrane with dimples on the surface. The dimples can be in cylinder and semi cone shape. It could also be coated by non woven geotextile. The liquid and gas can go through freely between dimples.

Dimple Height : 08mm/10mm/12mm/16mm/18mm/20mm/25mm/30mm/40mm Membrane Thickness: 0.4mm -------1.6mm Material: Virgin HDPE;Recycled HDPE Package Size: Width:0.5m----3m Length:10m-20m/roll

Usage Method:

Main Feature: (1)Waterproofing and drainage : from a channel,which water and gas can go through; (2)Sound insulation and vibration isolation; (3)Chemincal resistance,resist to plants' root; (4)Easy to construction; (5)Long life time.

Characteristic Contrast:

1)Dimple Height Contrast

Type Code:DX-PDB-0801 Dimple height:08mm Dimple shape: round table	Type Code:DX-PDB-1001 Dimple height:10mm Dimple shape: round table	Type Code:DX-PDB-1201 Dimple height:12mm Dimple shape: round table	Type Code:DX-PDB-1202 Dimple height:12mm Dimple shape: cylindrical	Type Code:DX-PDB-1601 Dimple height:16mm Dimple shape: round table
Type Code:DX-PDB-1801 Dimple height:16mm Dimple shape: cylindrical	Type Code:DX-PDB-2001 Dimple height:20mm Dimple shape: round table	Type Code:DX-PDB-2501 Dimple height:25mm Dimple shape: round table	Type Code:DX-PDB-3001 Dimple height:30mm Dimple shape: round table	Type Code:DX-PDB-4001 Dimple height:40mm Dimple shape: round table





2)Material and Color Contrast

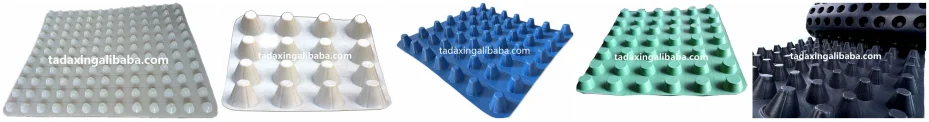

Color Show
Material	Virgin HDPE	Recycled HDPE	Recycled HDPE	Recycled HDPE	Recycled HDPE
Material Code	DX-MV	DX-MW	DX-MB	DX-MG	DX-MD
Available Color	All	Milk White	Blue	Green	Black

Product Usage:

1. Environmental protection, sanitation (such as solid waste landfills, sewage treatment plants, power plants Chi-conditioning, industrial, hospital solid waste, etc.) .

2. Water (such as rivers, lakes and reservoirs of the anti-dam, plugging, reinforcement of the canal seepage, the vertical wall of the heart, slope protection, etc.).

3. Municipal Engineering (subway, on the ground floor of the building, planted roof, the roof garden of anti-seepage, sewage pipes lining, etc.).

4 .Landscape (man-made lake, river, reservoir, golf courses reservoirs of the substrate, slope protection, green lawn of the waterproof moisture, etc.).

5. Petrochemical (chemical plants, oil refineries, gas storage tanks of the anti-chemical reaction tanks, sedimentation tanks of the lining, etc.).

6.Mining (washing and pool heap leaching, the ash-field, dissolved, precipitation, the yard, the tailings seepage substrates, etc.) .

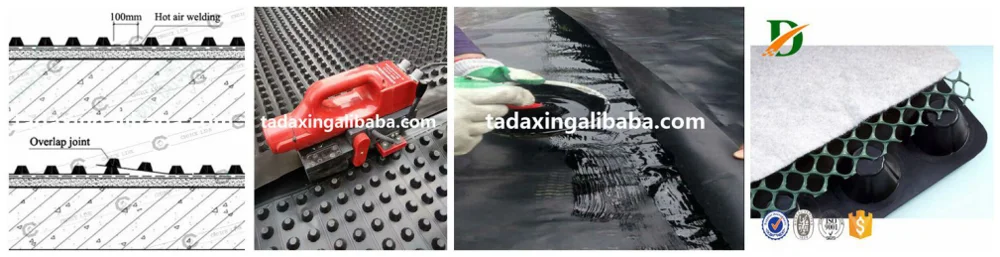

Product construction method

1) Fastening	2)Welding	3)Splicing	Collocation

FAQ

Q1. Can you do OEM?
A1. Yes.of course.We can produce the products as per your request.
If you can offer samples to us,it will be more convenient.
Q2. If I want to order a small quantity goods,can you do it?
A2. If the product you need we have stock available,that would be great,you can choose the instock goods. But if not, don’t worry, we can take your order with our other clients’ order to be produced together.But it needs to wait some time .
Q3. Can I get a sample from your company?Should I pay for the express fee?
A3. If you can accept our available sample,we can offer free sample to you.
If you want a customized sample,we can renegotiate the cost.
About the express fee,please offer a freight collected account and pay for the express fee by your side.
After confirming your order, the sample’s freight cost will be deducted from your order’s total cost.
Q4. How will you follow my order?
A4. When the goods are started to produce,we will take photos for the goods and send it to you.
If you find any production deficiencies,please contact us to correct it.
We will keep in touch with you in the whole production by e-mail or instant messaging, like Skype/Viber/WhatsApp, you can get the latest news about your order.
After the goods are finish,we will take photos for the goods and packing to you before shipping
Q5. What is your exporting countries?
A5. We have good sales performance and win good international reputation in more than 15 Countries and
regions,such as Japan, America, Australia,Russia, Canada,Middle East and so on.
Especially in the Middle East and Australia market.
