wireless tire pressure monitoring system tpms with external sensors, 4 wheels TPMS

Product Overview

Description

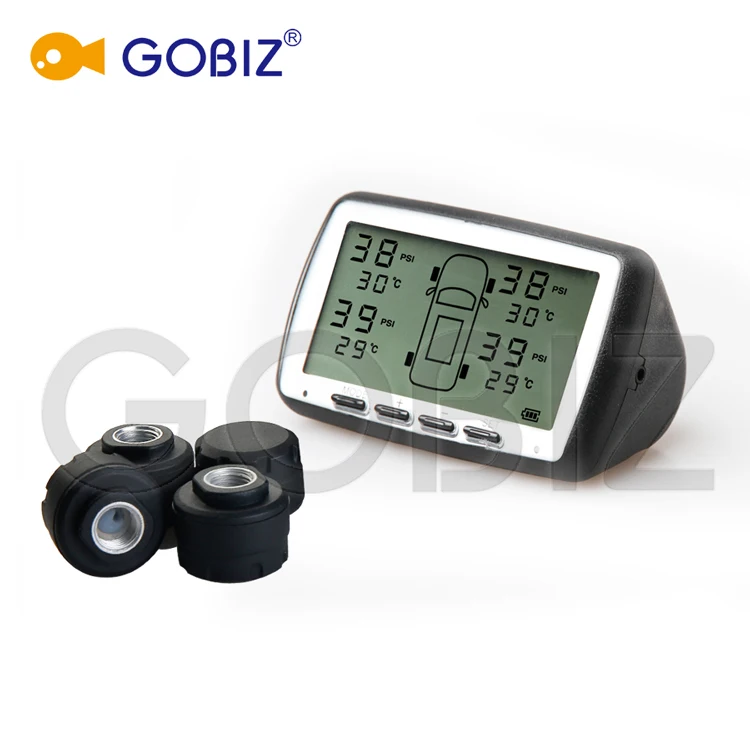

wireless tire pressure monitoring system tpms with external sensors, 4 wheels TPMS





1. What are the advantages of TPMS ?



Reduce Driving Risks



Improve Fuel Economy



Prolong lifetime of the tires







2. Features:

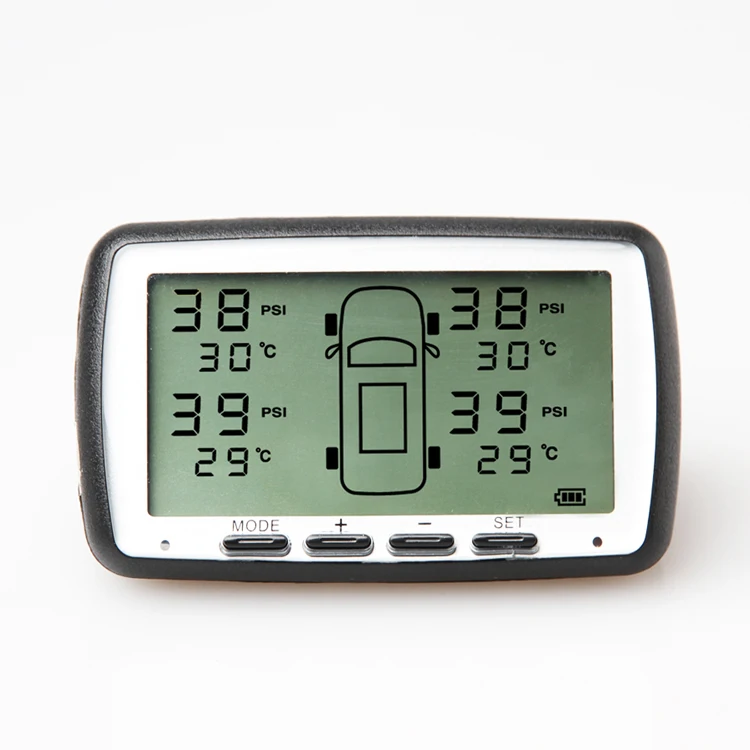

Monitor Features

Reliable and easy to install.
Built-in rechargeable lithium battery.
Automatic backlight.
Automatically wakes when vehicle starts moving.
Configurable high/low pressure warnings.
Configurable high temperature warnings.
Visible and audible alerts.

Selectable pressure units: PSI ,BAR, Kgf/CM2.
Monitors up to 8 tires maximum.
Displays pressure and temperature of 4 tires simultaneously.



Sensor Features

Reliable cap sensors, easy to install.
Water resistant.
Replaceable sensor batteries.
Sensors transmit pressure and temperature data every 5 minutes.
Fast leakage alert.
Individually coded sensors.
Anti-theft design .







3. Specifications:



Monitor specifications:



Operating voltage:	12 to 24 V
Frequency	433.92MHz
Operating temperature	-40 to +85° C
Size	85(L) x 40(W) x 51(H) mm
Weight	130 g





External  Sensor Specifications:



Pressure range:	0 to 8 bar, 0 to 116 psi
Pressure sensitivity:	± 0.1 bar or 1.5psi
Temperature sensitivity:	± 3℃
Transmission power:	< 10dBm
Transmission frequency:	433.92MHz
Battery life:	5 years
Operating temperature:	-40 to +80° C
Weight:	34 grams
Size:	54(L)*80(W)*19(H) mm



4. Our Facilities:





5. Our Certificates (CE, E-mark, FCC, RoHS, ISO9001) & Patent





6. Cooperate with us, you will gain:



0EM or ODM service



Professional Research & Development Engineer



Competitive Price & Professional sales team



2-4 weeks leadtime

Looking Forward to Cooperating with You!
