PP Woven Bag Making Machine Supplier

Product Overview

Description

PP Woven Bag Making Machine Supplier:

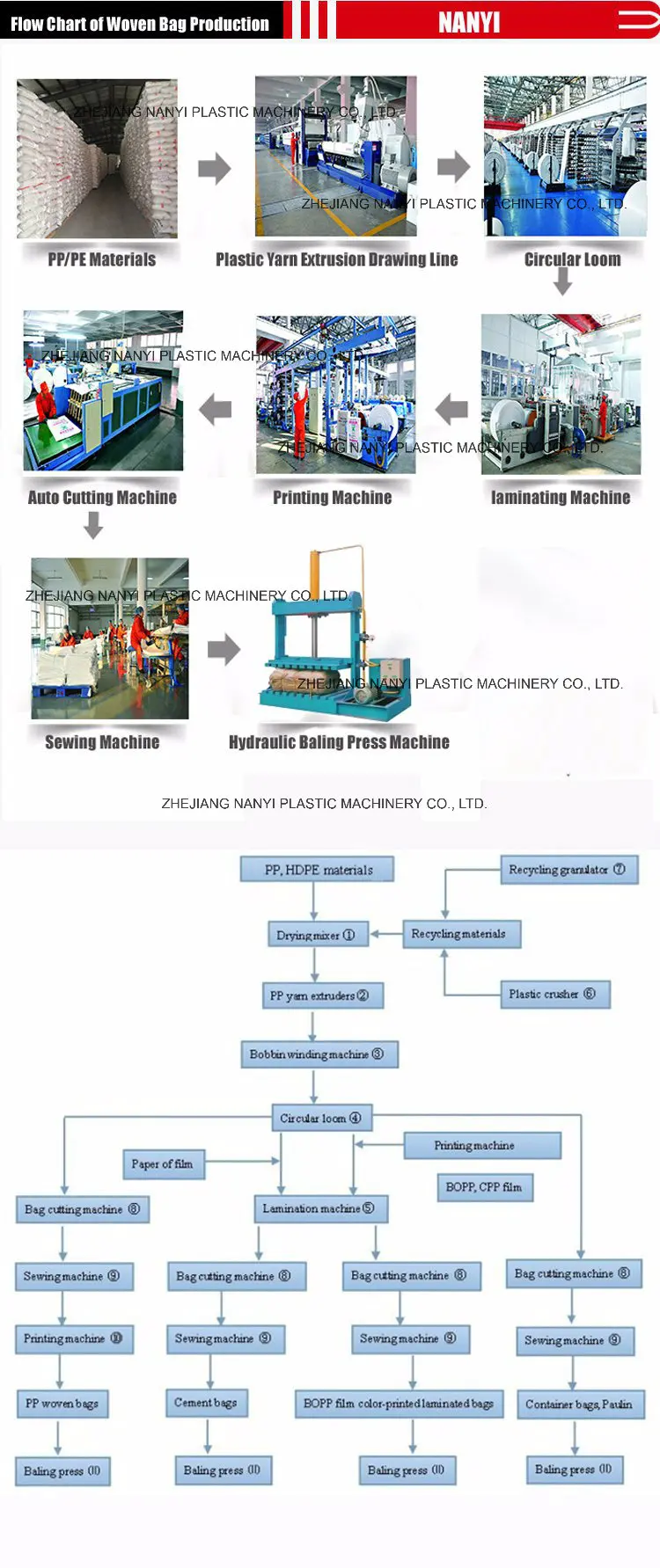

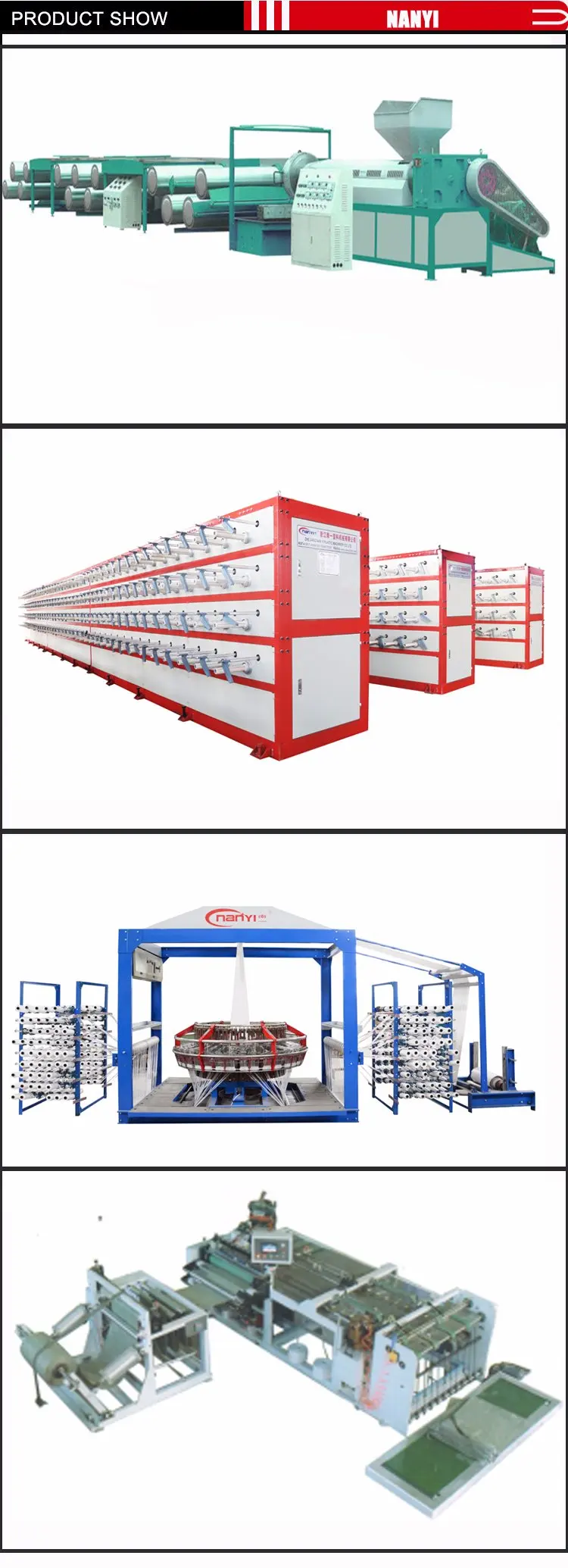

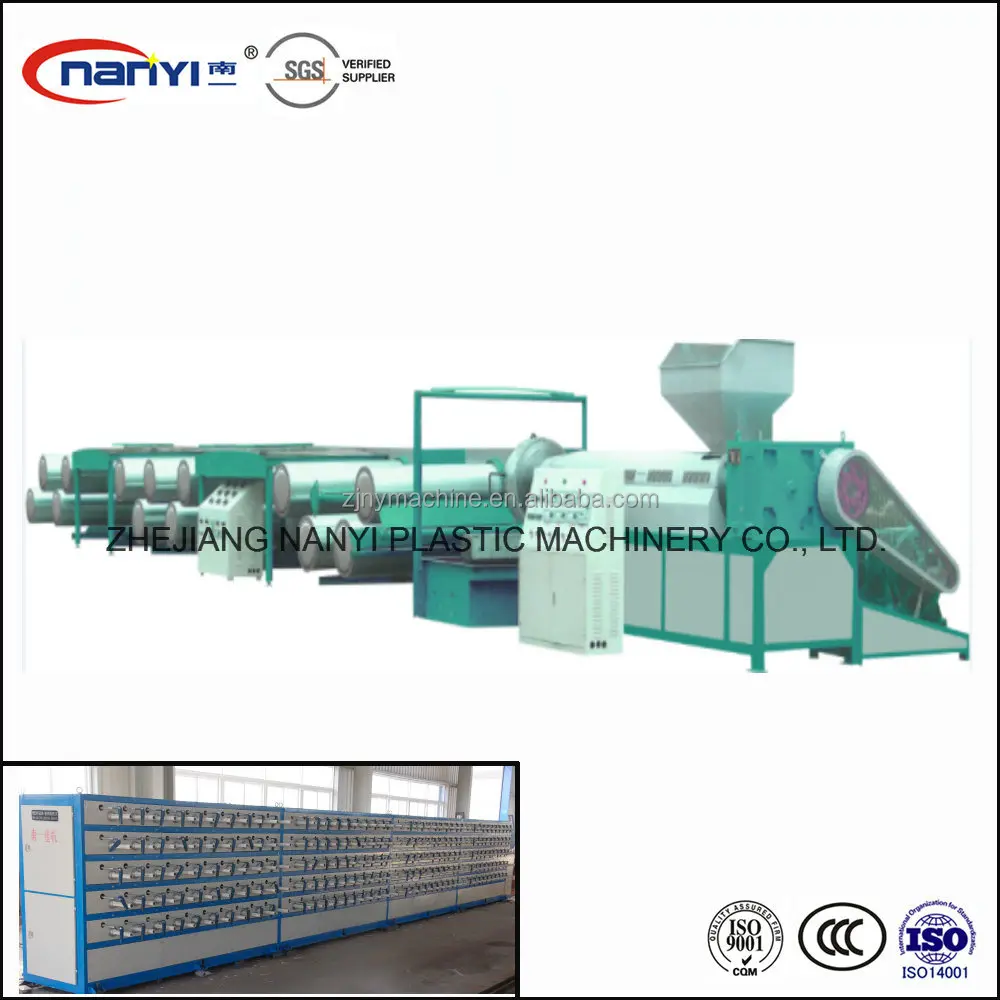

Extruding plastic tape drawing line:
The machine using materials of Polypropylene(PP) or high density Polyethylene(HDPE),through heating, extruding, splitting the film into tapes, stretching and forming flat tapes. Then winding on the bobbins by winder, finally put the bobbins with tapes on circular loom for weaving.

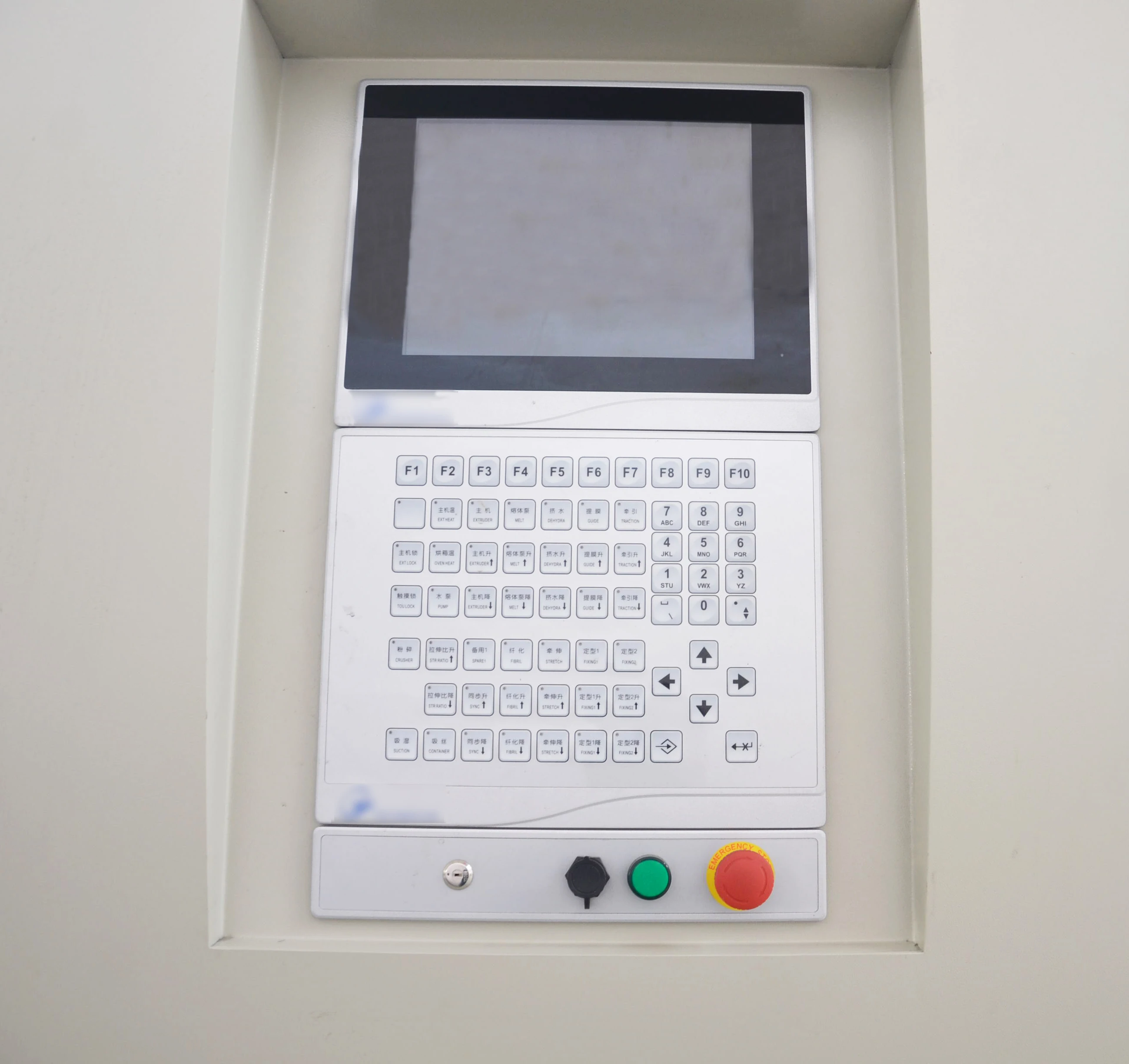

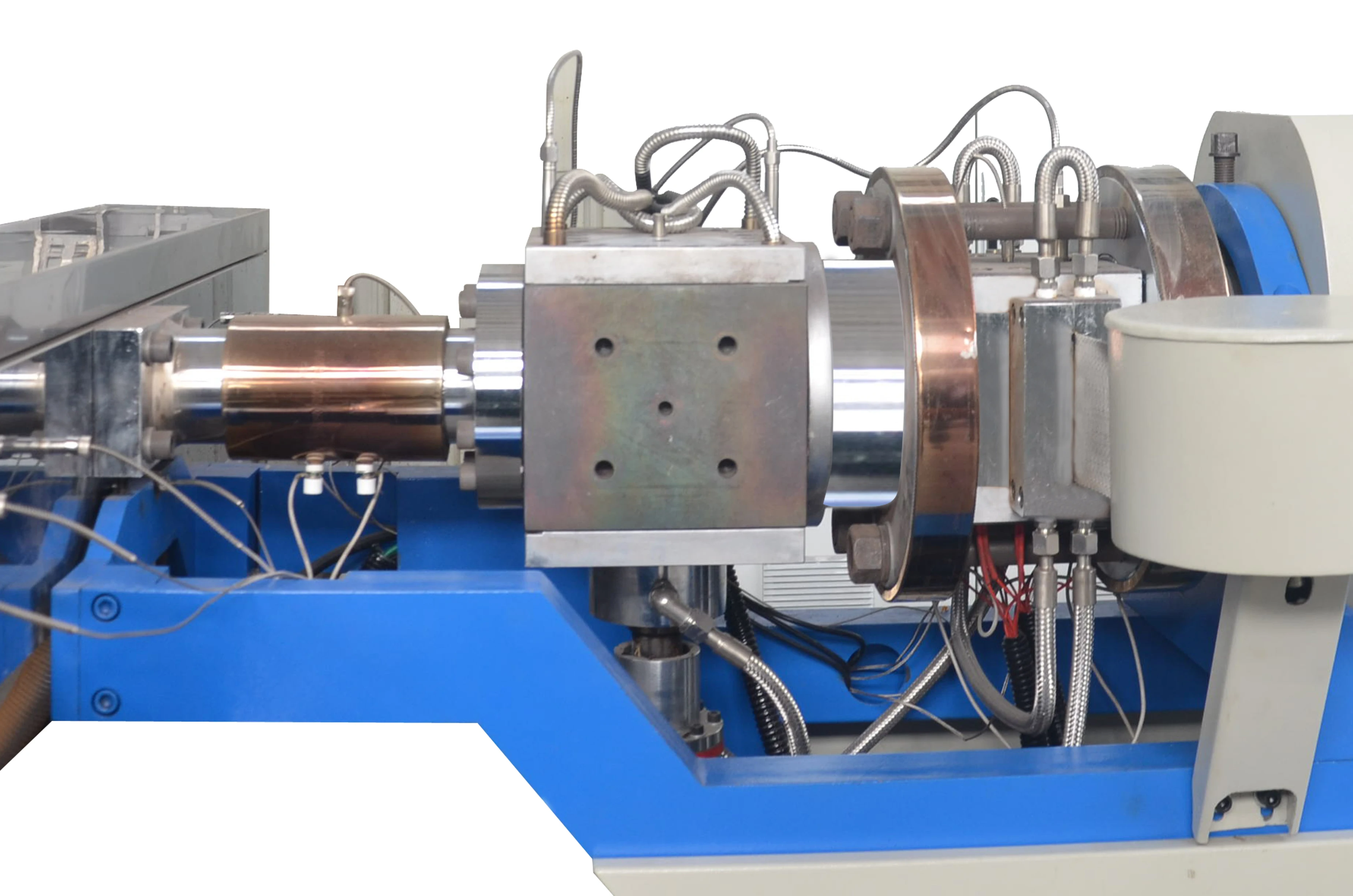

After improving many times, the machine can use 100%recycling material, powder and granule material to produce tapes. The screw and cylinder of extruder are made of 38CrMoA1A alloy steel, the hardness is over HV950 after nitriding treatment. Helical gear reducer made of 20CrMnTi alloy steel is applied to the extruder. The traction devices adopts touch screen to change speed which enable stable drawing.

Item	Diameter  Of Screw (mm)	Rotation  Speed Of  Screw(mm)	Width Of  Die (mm)	Thickness  of tape  yarn (mm)	Motor Power  Of Extruder (kw)	Heating  Power   Of Extruder (kw)	Power Of  Driving  Motor (kw)	Heating  Power  Of Oven (kw)	Drawing  Rate	Production  Capacity (kg/h)	Drawing  Speed (m/min)	Install  Dimension (L×W×H) cm	Weight (kg)
Type
SJ-FS-120/B800	120	25-75	800	0.03-0.08	37	36	7.5	15	4-8	50-100	50-150	1130*150*130	6500
SJ-FS-120/B1000	120	23-70	1000	0.03-0.08	37	43	7.5	20	4-8	60-120	50-150	1470*175*130	8000
SJ-FS-120/B1200	120	23-70	1200	0.03-0.08	37	47	7.5	24	4-8	70-140	50-150	1650*205*130	10000
SJ-FS-135/B1600	135	22-65	1600	0.03-0.08	45	77	7.5	30	4-8	90-180	50-150	2000*260*220	16000
SJ-FS-140/B1800	140	22-65	1800	0.03-0.08	45	80	7.5	30	4-8	100-200	50-150	2000*295*220	17000
SJ-FS-145/B2000	145	20-60	2000	0.03-0.08	45	86	11	30	4-8	110-240	50-150	2100*340*220	20000
SJ-FS-150/B2200	150	20-60	2200	0.03-0.08	55	86	11	30	4-8	120-260	50-150	2200*370*220	21500
SJ-FS-150/B2400	150	20-60	2400	0.03-0.08	55	92	15	32	4-8	140-280	50-150	2200*400*220	23000
SJ-FS-160/B2600	160	20-60	2600	0.03-0.08	75	96	15	32	4-8	140-300	50-150	2300*440*250	24500
SJ-FS-160/B2800	160	20-60	2800	0.03-0.08	75	106	15	34	4-8	160-320	50-150	2300*460*250	25000
SJ-FS-160/B3000	160	20-60	3000	0.03-0.08	90	106	15	34	4-8	160-340	50-150	2400*480*250	26500
SJ-FS-170/B3200	170	20-60	3200	0.03-0.08	90	112	18	36	4-8	180-350	50-150	2500*500*250	27500
SJ-FS-170/B3500	170	20-60	3500	0.03-0.08	110	118	18	36	4-8	200-360	50-150	2500*520*250	29000
SJ-FS-180/B3800	180	20-60	3800	0.03-0.08	110	118	18	45	4-8	200-380	50-150	2500*550*2500	32000
SJ-FS-180/B4000	180	20-60	4000	0.03-0.08	132	145	22	50	4-8	350-450	50-150	2500*600*250	35000
SJ-FS-200/B5000	200	20-60	5000	0.03-0.08	160	155	30	60	4-8	500-600	50-150	2600*620*250	40000
SJ-FS-210/B5800	210	20-60	5800	0.03-0.08	185	165	30	70	4-8	500-700	50-150	2600*620*250	45000

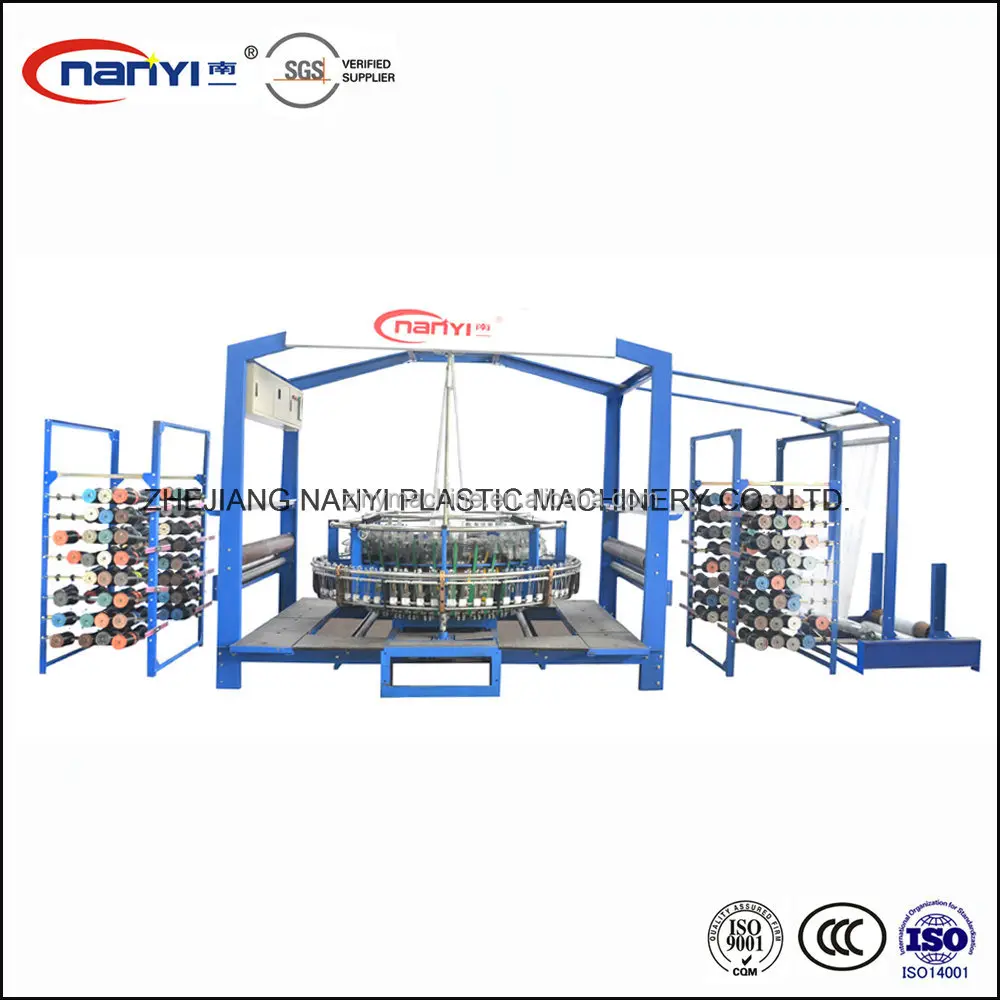

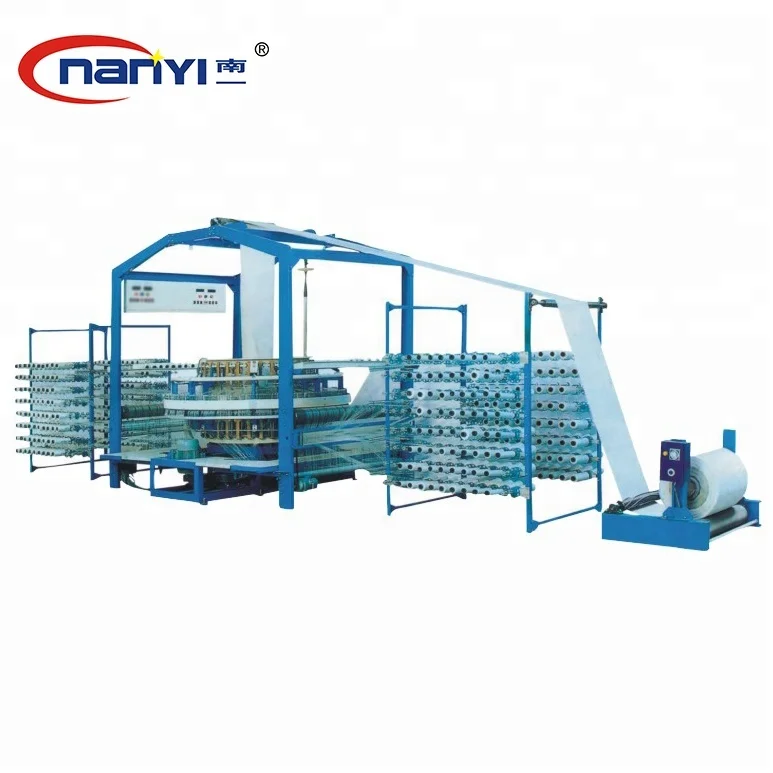

Circular Loom:
    This series of plastic weaving machine is used for weaving flat plastic yarn to tube cloth, it had developed from our long time research and manufacture experience with adopting advanced technology from domestic and abroad. It can weave different quality flat yarn even complete recycled material. Reasonable design, proper structure, easy operation, convenient maintenance, low power consumption and high efficiency etc.

1. New surface cam driving structure;
2. rimless wheel shuttle style, less friction, more steady running;
3. Latest weft & warp detecting system, lower waste, higher efficiency;
4.New weft automatic feeding system, reducing waster;
5.Automatic synchronization controller to guarantee smooth cloth;

Model No.	NY-YZJ-750J/4	NY-YZJ-1100J/4	NY-YZJ-1400J/4	NY-XT-850J/6	NY-XT-1550J/6	NY-XT-1700J/6
Shuttle quantity	4	4	4	6	6	6
Folded width	300-750	550-1100	700-1400	300-850	950-1500	1100-1700
Max. number warp  (pcs)	768	896	1120	720	840/1680	960/1920
Rotational speed  of main motor(r/min)	140-180	120-160	90-125	120-180	90-120	70-110
Production Capacity (m/h)  (40warps/100mm)	65-100	72-96	54-76	108-162	78-108	84-102
noise(A)	< 85	< 65	< 65	< 65	< 65	< 65
Total power of motor (kw)	2.2	2.7	3.5	2.7/3.5	4.5/6	4.5/6
Installing dimensions (L*W*H) cm	850*220*273	890*235*296	980*250*296	910*230*273	1200*280*320	1200*300*360
Weight(kg)	1600	2000	2000	2100	3800	4200

Bag cutting and sewing machine:

It automatically accomplishes the heat cutting and bottom hemming at fixed length for color-printed or plain woven cloth roll, which saves labor forces.
It adopts touch screen for setting, PLC for controlling and servo motor for driving in order to control the length of sack precisely.
The mouth of bag is easy to open and won't be conglutinated after heat cutting.
With automatic counting, the finished sacks can be delivered in batches.
With pneumatic rolling-up, it's convenient to operate.

Item	Maximun Roll  Diameter(mm)	Max.Cutting  Width(mm)	Cutting Length      (mm)	Cutting Precision (mm)	Folding Width (mm)	Production Capacity  (pcs/min)
Type
NY-QFJ-850	1200	800	500-1250	±2	16-22	20-40
NY-QFJ-1000	1200	1000	500-1600	±2	16-22	20-35
NY-QFJ-1200	1200	1200	500-1800	±2	16-22	20-30
NY-QFJ-1500	1200	1500	500-2000	±2	16-22	15-25
