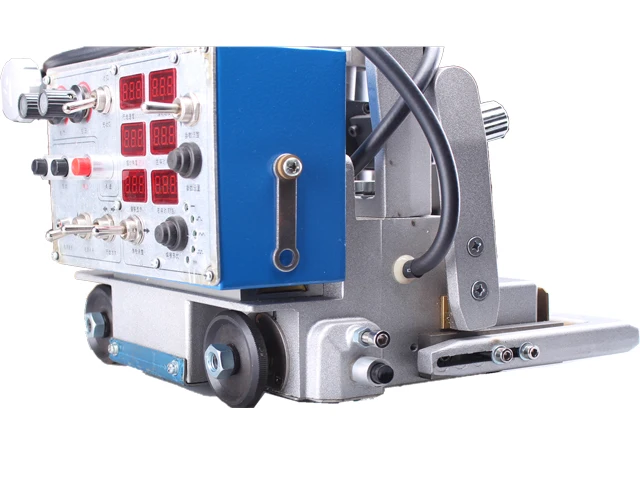

Magnetic Swing type Vertical Welding Automatic Tractor

Introduction of swing type welding tractor

HK-8SS-W magnetic swing type vertical welding automatic tractor is small in size and light in weight, making it easy to move and install.Adopting built-in dustproof and anti-magnetization transamission system,simple structure,and long service life.

Features of the HK-8SS-W auto magnetic vertical welding carriage

* HK-8SS-W auto magnetic vertical welding carriage is small, light weight, easy to move and install;

* Car with dust, anti-magnetization of the drive system placed in the internal, simple structure, long service life;
* Four wheel at the same time drive, rubber tire material is good, high temperature, welding walking smooth;
* Strong permanent magnet with the guide so that the car is always close to the weld, welding accurate;
* The use of gear transmission, to avoid the traditional chain drive a loose gap, walking with the phenomenon of interaction;
* HK-8SS-W swing type welding tractor can perform vertical welding and horizontal welding.

The main technical parameters

(HK-8SS-W swing type welding tractor)

Welding technical parameters

(HK-8SS-W swing type welding tractor)

HK-8SS-W Magnetic Swing type Vertical Welding Automatic Tractor as follows

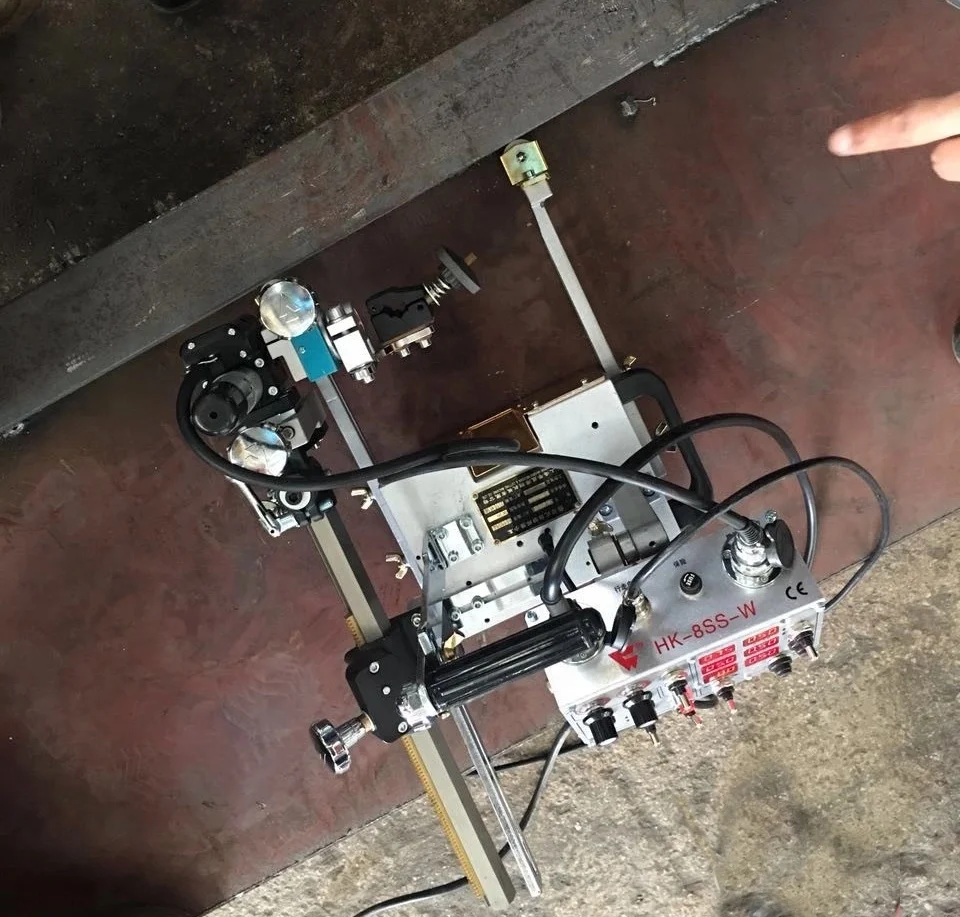

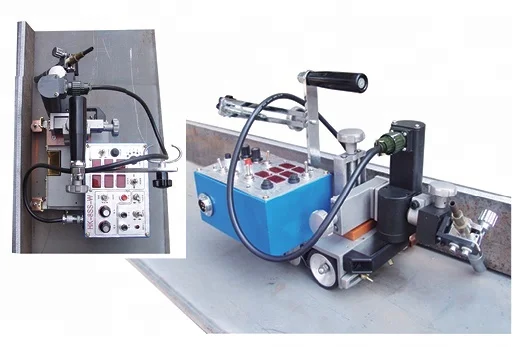

Effect display of the HK-8SS-W auto magnetic welding carriage

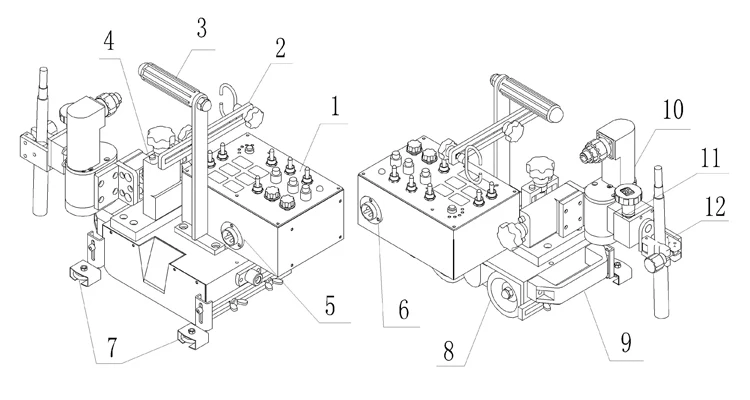

Structure diagram of the swing type auto welding tractor

HK-8SS-W is made up of carriage body, guide wheel, torch handle, X-Y slide, torch wiggler and control box.

carriage body:It is the frame of machine and carrier of others.

1. Control panel: It can adjust all actions of carriage. Please refer to “explanation of control panel”.

2. Cable bracket: It can hold the cable on tail and power cable.

3. hand grips:Please hold this hand grip when you carry the machine.

4. X-Y moving slide:Use it to adjust the position of torch. In the process of welding, you can tune the torch up and down.

5.Wiggler connection socket

6. Control box power inlet socket

7. Guide wheel assembly: It rolls along the base metal surface and align the torch to the welding part.

8.Driving wheel

9. Plastic auxiliary handle: Before moving machine, you should pick the handle up and make the machine separate from steel panel. Then, hold the handle and move machine.

10. Wiggler: Control it to finish various welding mode

11.Fine-tuning device of torch:  It is easily to use it to align the torch to weld.

12. Welding torch gripper: It is used to fix the torch. You can take down torch by it, when you want to repair or adjust the torch.

BRIEF INTRODUTION:

We are devoted to offering high efficient machines for your metal work and trading business.

Nanning ChuanJun Welding Hardware Co., Ltd. , founded in 2004, focus on welding equipment and accessory for more than 10 years. Our products are MMA, TIG welder, MAG/MIG welding machine, SAW welding machines, cutting machine, welding accessories, and welding materials.

BUSINESS SCOPE:

On Welding: TIG, MIG, MAG, MMA arc welding machine and the welding accessories, automatic welding carriage, welding consumables,etc;

On Cutting: gas cutting machines, oxy-fuel cutting machine for plate and pipe, air inverter plasma cutting machine cnc plasma and flame cutting machine, gas cutting accessories, pipe cutting and beveling machine;

Others: welding mask, welding helmets, welding gloves, etc.

WHY CHOOSE US?

1.We are factory in CHINA,have a good price and quality.

2.We have professional staff members and good service.

3.We have a excellent forwarder partner supply timely delivery.

4.We will check the goods one by one ,make sure the good quality.

5.We have good team cooperation ability,supply nice service.

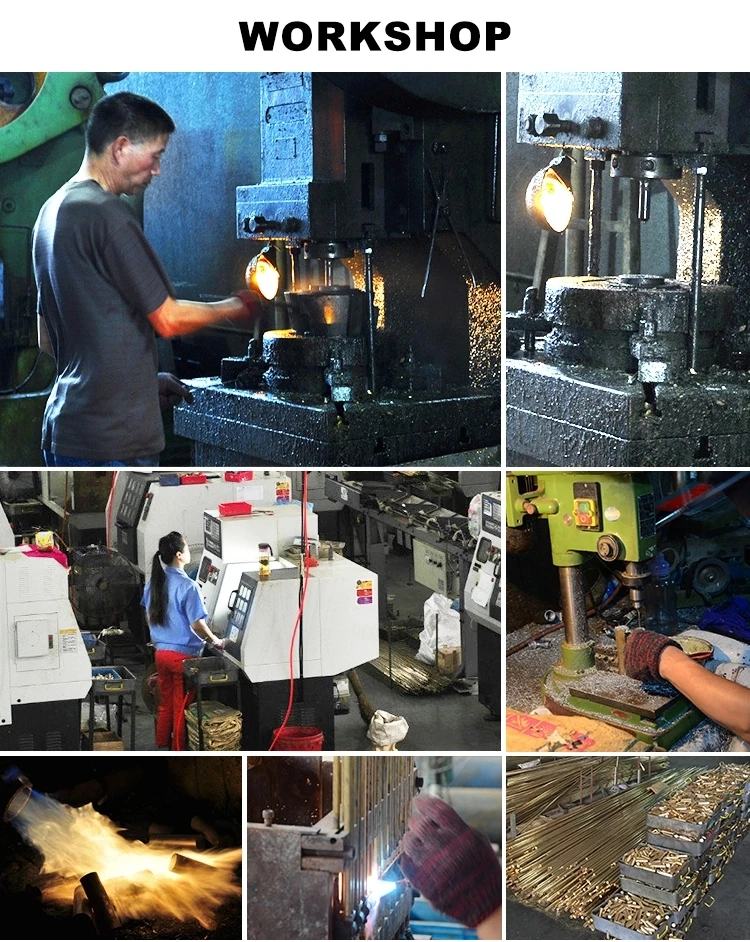

Quality Control

Warehouse

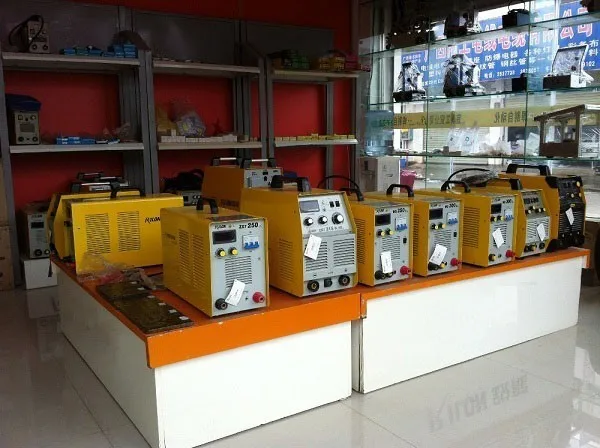

 Offline shop

Packing List

1. About Packaging
(1) Outer package: sturdy plywood cases accessible to pallet.
(2) Inner package: wavering HK-8SS-W auto magnetic vertical welding carriage covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed by corrugated cartons.
(3) Container loading: 50 sets for 20GP, and 100 sets for 40GP.
(4) The package can be designed according to clients' requirements.

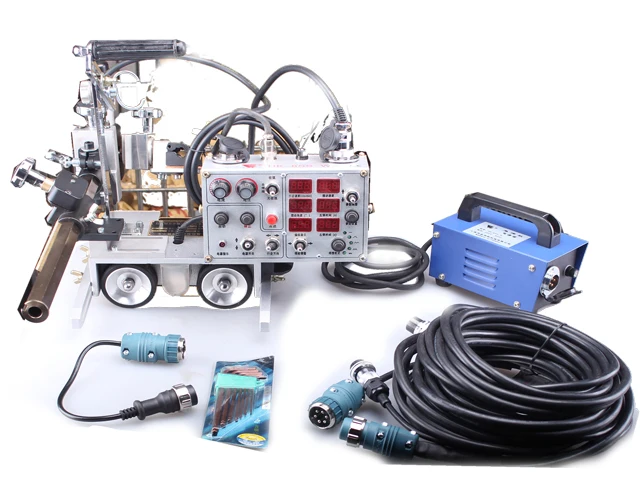

Contents of package

Carefully take the machine out of its case.

The contents of the standard package are shown below. Check them carefully before assembling the machine.

2. About Shipping

(1) Loading Port: Shanghai, China
(2) Delivery terms: CIF, FOB C&F etc. based on Incoterms 2010.
(3) Delivery time: 2 working days for the stock, 10 working days for the new, from the receipt of down payment and the actual delivery time depend on your order.
(4) Other shipping terms can be negotiated.

1. Quallty:According to ISO9001international Quality System,our company has established one set of complete and efficient quality insurance system.


2. Testing and packing:YILANG does strict test to every product ,and make them endure customers picking with each HK-8SS-W auto magnetic vertical welding carriage is packed into carton box.


3. Shipping:Shanghai port and Nanning port


4. Dlivery: 7~15 working days. We can arrange the shipping by Courier (DHL, UPS, Fedex, TNT etc.) by air or by sea for you.


5. (1) Free Operation Instructions
   Detailed operation and maintenance manual are offered. Free telephone, online, video conference are available to you.
   (2) Guarantee
   The seller guarantee the machine is new (or unused) and the guarantee period will be given 365 days from shipment date. During this period, the seller will provide free maintenance and free spare parts that caused by the machine’s quality, but the buyer shall pay the courier cost. Parts damaged because of mishandling and consumable parts are not covered by any warranty.
   (3) Overseas Adjusting and Training Service
   The seller will send the technician to buyer for installing and adjusting the machine and training the workers if the buyer invited. And the installing and adjusting cost is 50USD per day. The buyer should pay round tickets and accommodation expenses for seller’s technicians.
