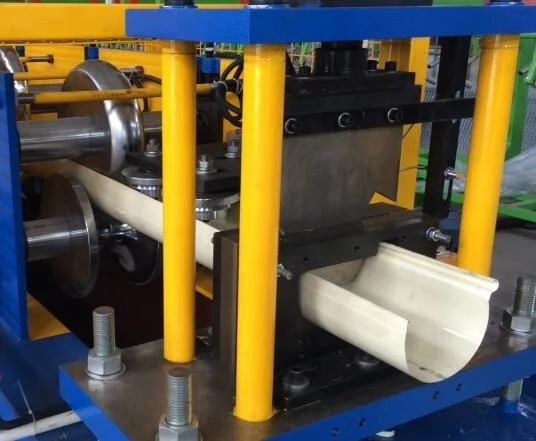

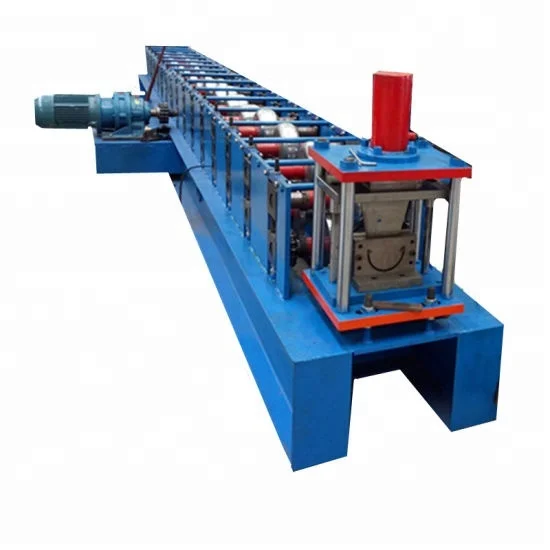

Water Gutter forming machine Square Type Downpipe Forming Machine
- Category: Steel Frame & Purlin Machines >>>
- Supplier: Xiamen Ruiyu Machinery Co. Ltd.
Share on (60779498173):
Product Overview
Description
Product Description
rain water gutter cold roll forming machine is the special equipment for continuous rolling and cold-forming on steel sheet.
Technical Parameters
|
No |
Item |
Parameter |
Remark |
|
|
1 |
Suitable
Material |
Type |
Color Steel |
|
|
Width(mm) |
300 |
According to customer's requirement |
||
|
Thickness(mm) |
0.4-0.5 |
According to customer's requirement |
||
|
Yield Strength(Mpa) |
230-300 |
According to customer's requirement |
||
|
2 |
Forming Speed(m/min) |
15 |
Including Punching |
|
|
3 |
Roller Material |
No.45 steel |
with hard chromized |
|
|
4 |
Cutting Model |
Hydraulic Cutting |
According to customer's requirement |
|
|
5 |
Power source |
Type |
380V/3PH/50HZ |
According to customer's requirement |
Components of the machine
|
No |
Name |
Quantity |
Remarks |
|
|
1 |
Decoiler |
|
1set |
Up to customer |
|
2 |
Main Machine |
Pre-cutting Device |
1set |
Up to customer |
|
Feeding Device |
1set |
|
||
|
Roll Forming |
1set |
|
||
|
Punching Die and Post-cutting |
1set |
|
||
|
Hydraulic System |
1set |
|
||
|
3 |
Electric Control System |
1set |
|
|
|
4 |
Supporter/Automatic Stacker |
1set |
Up to customer |
|
design

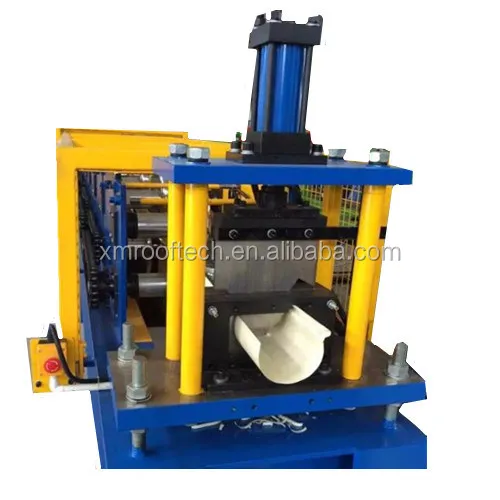

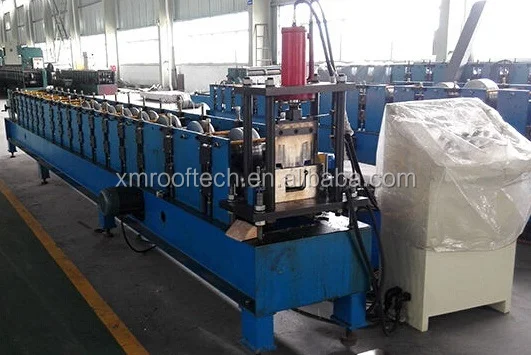

Product Show
