CHINA good price 140m3 JH 5280 38 China concrete pump truck price of concrete pump

CHINA good price 140m3 JH 5280 38 China concrete pump truck price of concrete pump

Category: >>>
Supplier: Qingdao Jiuhe Heavy Industry Machinery Co. Ltd.

Price:

Quantity:

Product Overview

Description

Product

Qingdao Jiuhe Heavy Industry Machinery Co., Ltd

JIUHE is specialized in researching, manufacturing, and selling concrete machines such as concrete mixing machine, concrete pumping machine, concrete placing machine and other Heavy Industry machinery. We are New High-Tech Enterprise with more than 20 Patents. Choose us, you can absolutely feel free on after-sale service. Customer Satisfaction is our pursuit, Long-term cooperation is our goal, Mutual benefit and win-win result is our principle. Any products interest you, Kindly contact us, Quality machine together with Warm and attentive service are waiting for you!

Concrete mixing truck is mainly 4m3 and 6m3, while concrete mixing plant is HZS50 and HZS75 to meet the needs of small concrete mixing projects.
JH concrete pumping machine also offer you various choices, our machine has various series to meet different pumping needs of different size concrete.
Concrete placing machine has hydraulic and manual type, hydraulic has mobile, stationary and self-climbing three kinds.

CONTACT US NOW TO COLLECT MORE DETAILS FOR CHINA good price 60m3 JH-5280-38 concrete pump mixer truck.

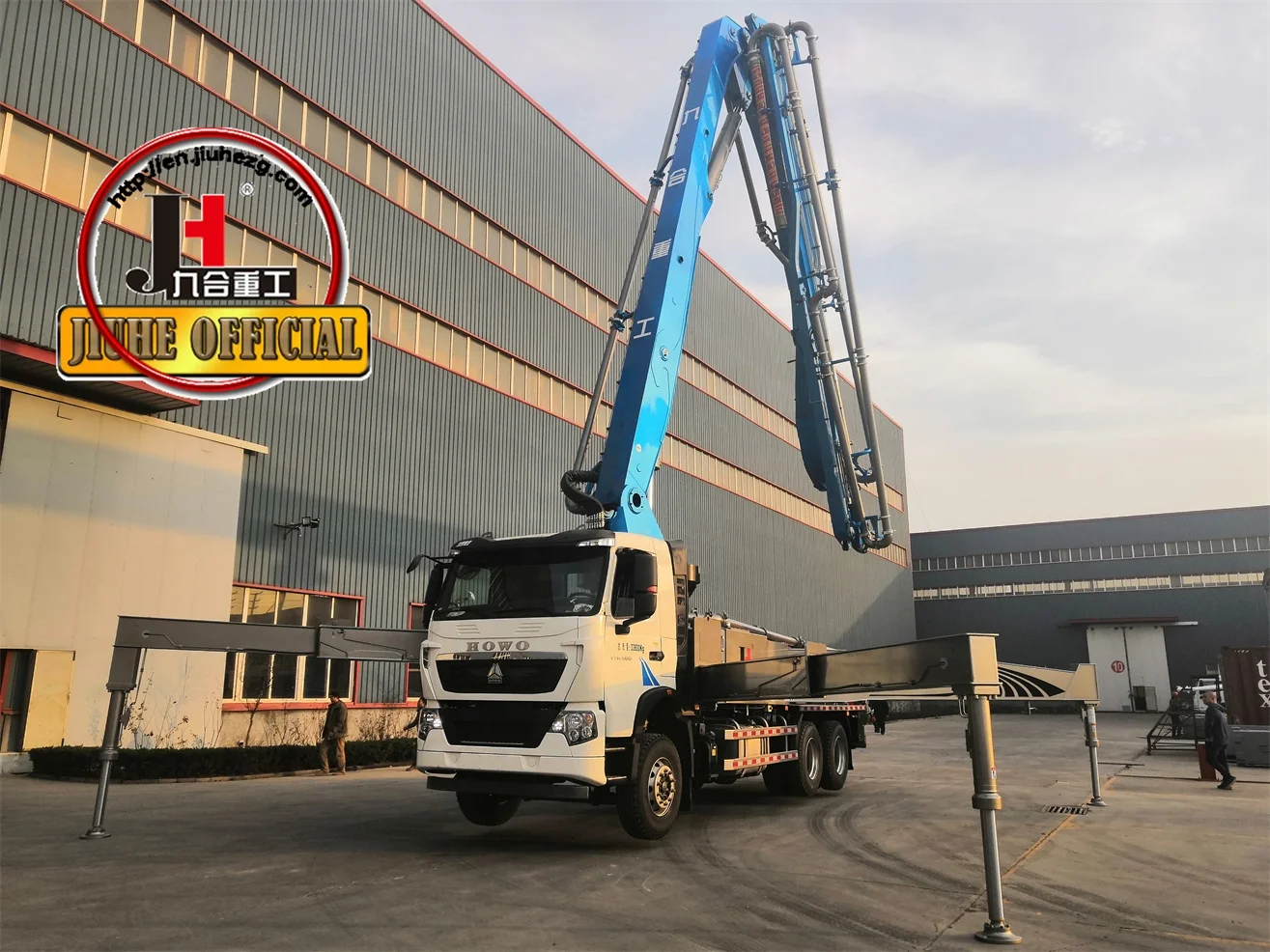

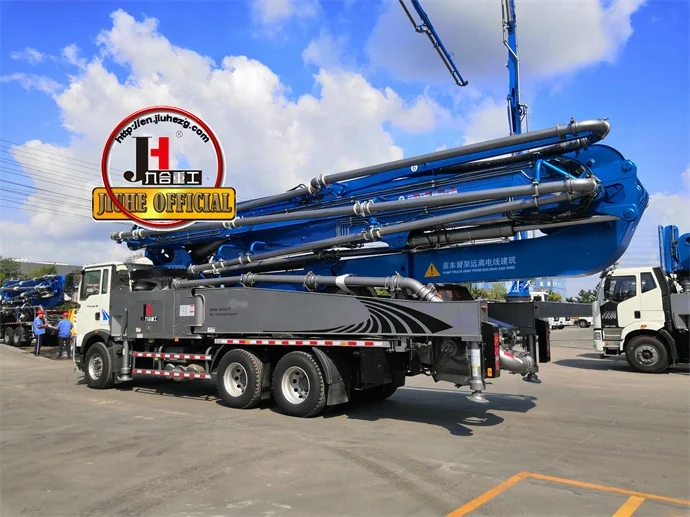

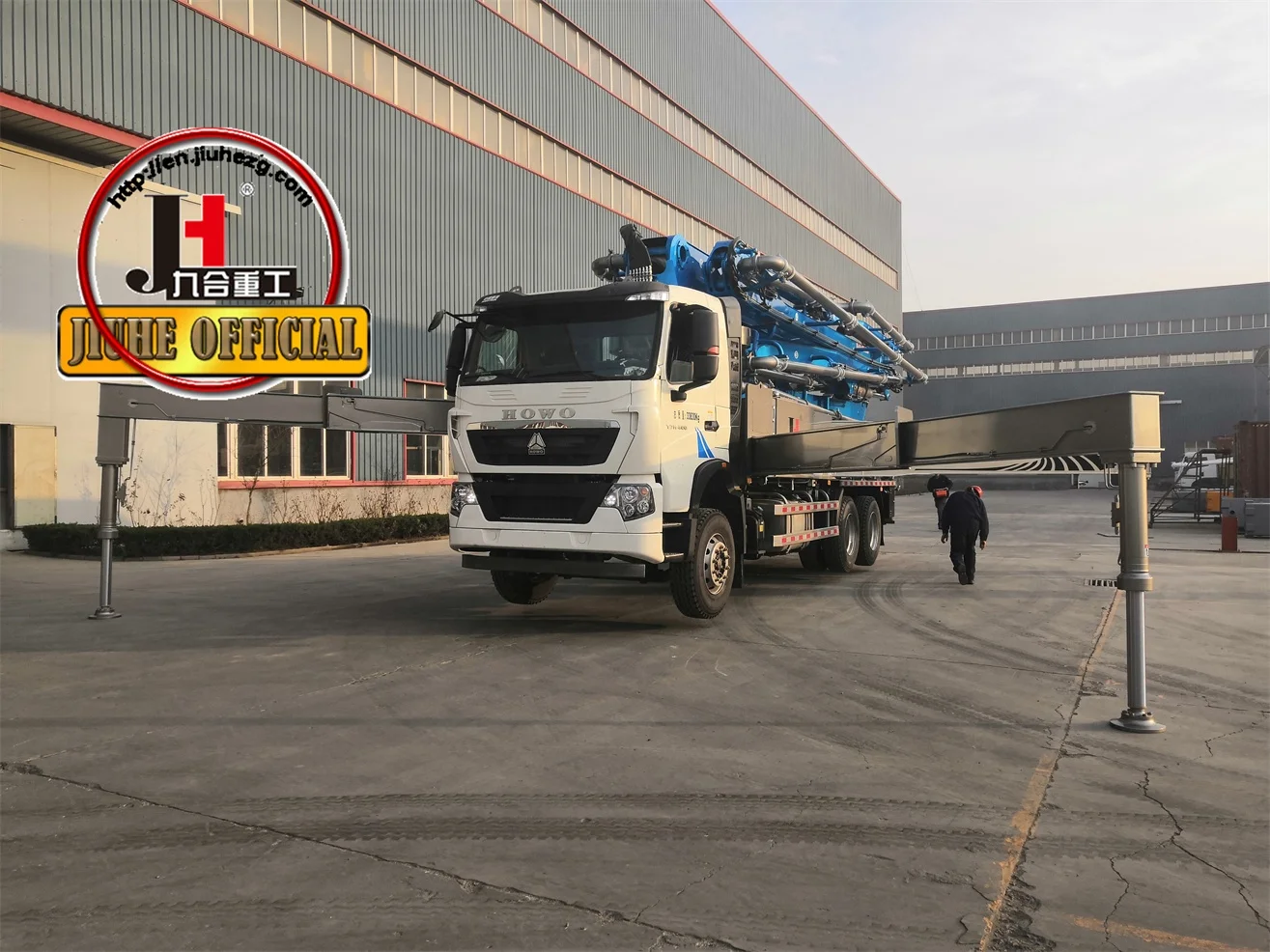

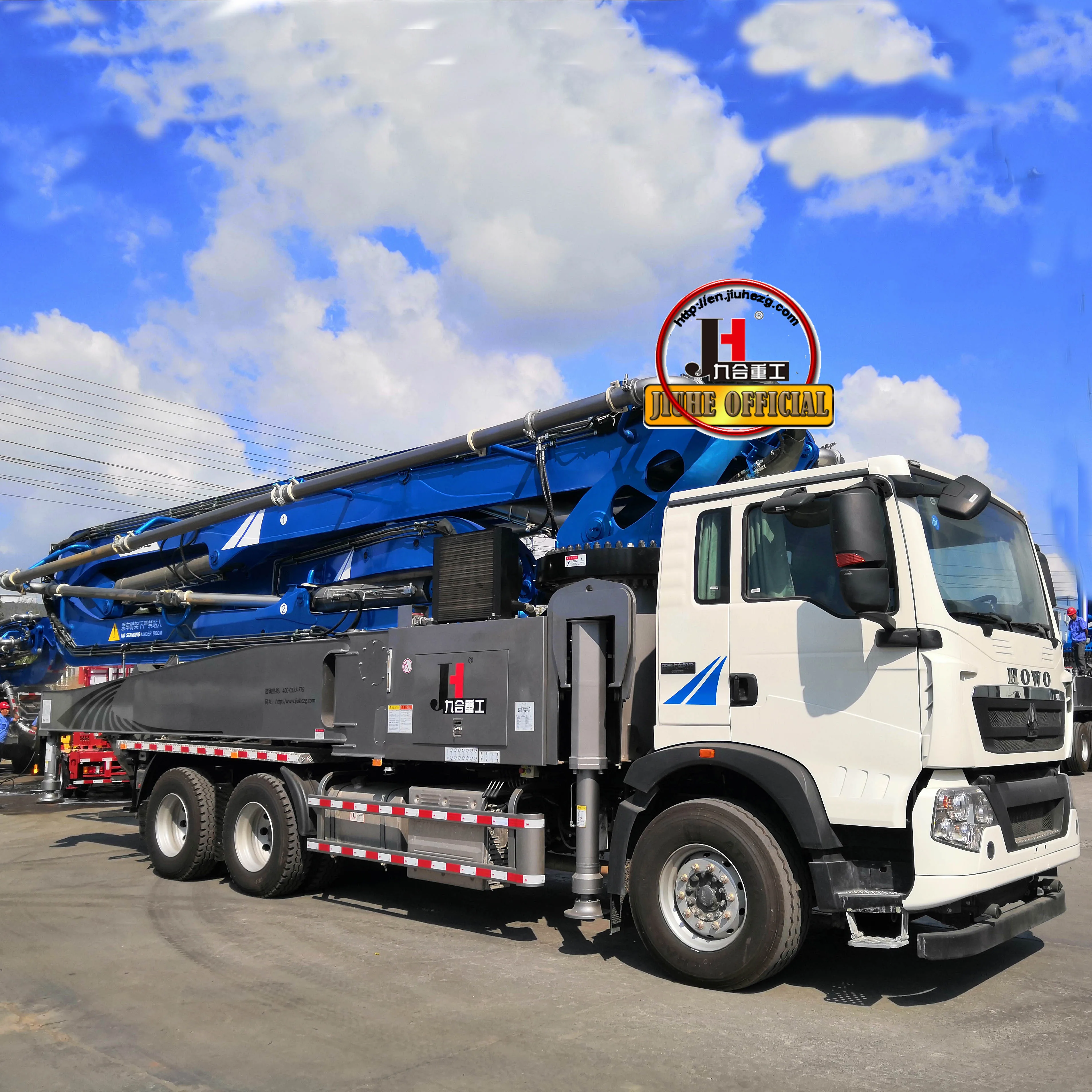

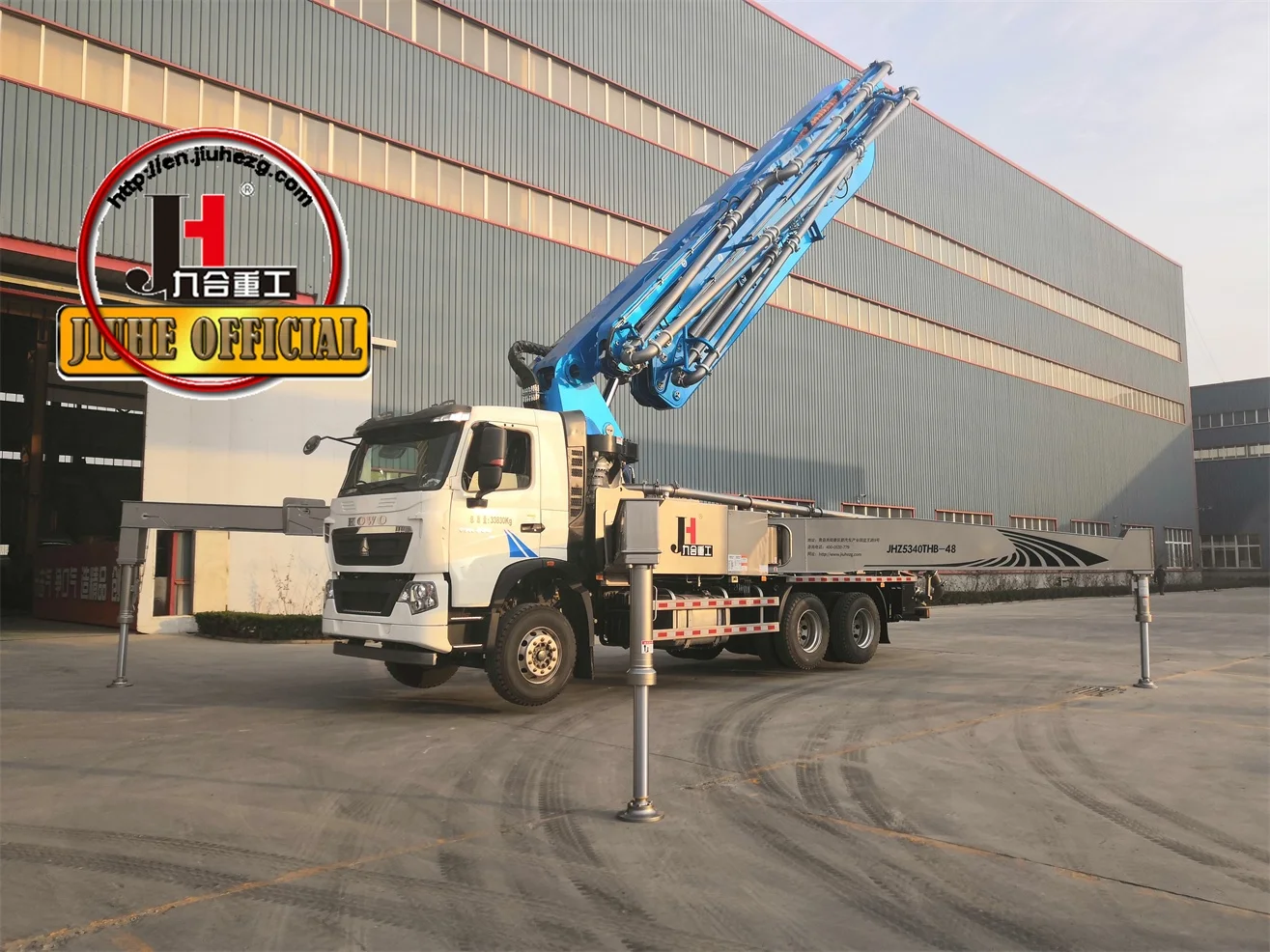

CHINA good price 60m3 JH-5280-38 concrete pump truck
ITEM	UNIT	JH5016THB-25	JH5016THB-28	JH5190THB-30	JH5230THB-34	JH5280THB-38
MAX.OUTPUT	M3/H	50	80	80	100	140
MAX.OUTLET PRESSURE	MPA	10.5	10.5	10.5	10.5	12
WORKING PRESSURE	MPA	32	32	32	32	32
PUMPING FEQUENCY	MIN	24	24	24	24	24
X STROKE	MM	200*1450	200*145	200*145	200*145(1650)	230*1900

JIB STRUCTURE

JIB STRUCTURE

25XH-4M

28XH-4M

30XH-4M

34XH-5RZ

38XR-5RZ

MAX CONCRETE PLACING

25/20.6/13.8

28/23.8/17.2

30/25.6/18.3

34/29.3/21

38/34/24

ROTATION ANGLE

390

CHASSIS
CHASSIS BRAND	-	SINOTRUK/FOTON/FAW/DONGFENG
WHEELBASE	-	4700-5200	4700-5200	4700-5200	4700-5200	4500-1350
MAX.POWER	-	180HP	180-340HP	180-340HP	180-340HP	375HP
EMISSIONS STANDARD	-	NATIONAL STANDARDS IV

Qingdao Jiuhe Heavy Industry Machinery Co., Ltd. has a high quality after-sales service tem with knowledge and experience, and well equipped, readying to provide service for your equipment, anytime and anywhere.
Providing you with high quality pre-sales, sale and after sales service, one-stop total solution and the efficient save system, guaranteeing your equipment running well without worries and maximum save your costs.

WHAT DO WE USE

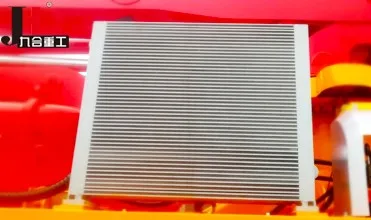

RADIATOR

The radiator is air-cooled type,enabling the machine to work under the allowable highest temperature.

LARGE DIAMETER CONCRETE DELIVERY CYLINDER

Concrete delivery cylinder diameters are enlarged to 230mm,reduced upward and backward wearing times of concrete pistons,lengthened the service life of concrete pistons.Adoption of large diameter concrete delivery cylinders together with optimized hopper device improves actual efficiency of concrete pumping to largest extent.

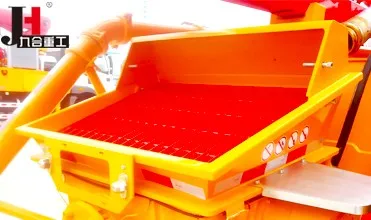

THE HIGH MATERIAL ABSORPTION TECHNOLOGY

Optimized hopper wall,smooth Stube pipe and precise blade angle ensure concrete maximum inhalation into concrete cylinder,improving the suction efficiency above 90%.

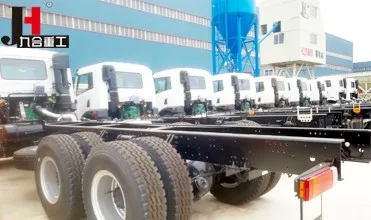

CHASSIS

Chassis adopts FAW, FOTON, DONG FENG chassis, strong carrying capacity, good dynamic performance and low fuel consumption. Clients can choose the separate power or chassis power.

Best choice to use on ENGINEERING VEHICLE.

WHAT DO WE PRODUCE

Advantages

● Designed for new rural middle and small buildings construction.
● Short arms specially designed for high-speed rail construction.
● National IV emission standard,more energy-saving and environmental protection.
● Pumping system hydraulic controlled automatic reverse, make the maintenance easier.
● 25-56 meters jib structures are conform to the high-speed rail project laws.
●"X"type support leg ensure the operation more safe and stable.
●Cost-effective Performance help the construction side create benefit.

WHY WE ARE GOOD
