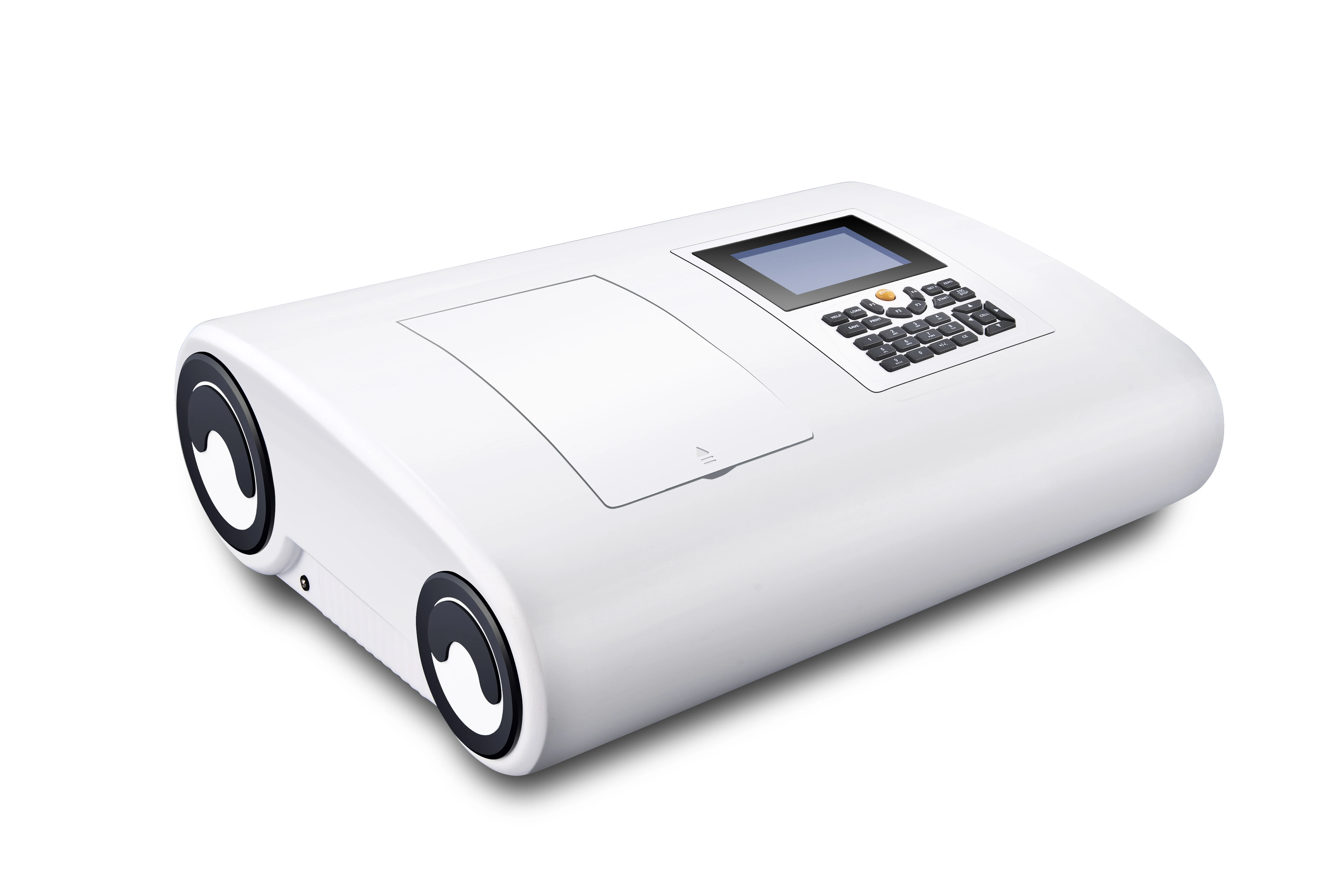

UV 9000 Stand Alone Double Beam UV Vis Spectrophotometer
- Category: Spectrometers >>>
- Supplier: Shanghai Metash Instruments Co. Ltd.
Share on (60779760165):
Product Overview
Description
Products Description
Product Paramenters
[Features]
1. Dual Beam Light Path Design
UV-9000 series adopt double light path design, it greatly reduces circuit fluctuation and stray light and ensures high stability of the instrument.
2. Powerful Stand-alone Operation System
UV-9000 series are euqipped with stand-alone operation system. Functions like spectrum scanning, standard curve, kinetics, multi wavelength scanning, DNA/Protein test, etc. can be directly completed on device without connecting PC software.
3. Long Light Path Design
The unique 520mm long light path design is adopted to improve the wavelength resolution and make the bandwidth of UV-9000S can be switched to 0.5nm.
4. UV Analyst PC Software
PC software is provided to connect device with PC for easy data output and analysis, the functions include wavelength scanning, standard curve, kinetics, multi wavelength scanning, DNA/Ptotein test, etc.
5. 16mm Rigid Aluminim Optical Base
A rigid 16mm thick die-cast aluminim base is used ass the optical mount to ensure high stability and reliability.
6. One-button Automatic Calibration System
The baseline, wavelength, dark current can be calibrated automatically to keep device in good running conditions.
7. 6 inches Large LCD display
Equipped with a 6 inches large LCD display to show results and curves directly on the screen.
8. Easy Data Output and Printing
Equipped with USB port to connect with PC, easy to export and print data and analysis report.
1. Dual Beam Light Path Design
UV-9000 series adopt double light path design, it greatly reduces circuit fluctuation and stray light and ensures high stability of the instrument.
2. Powerful Stand-alone Operation System
UV-9000 series are euqipped with stand-alone operation system. Functions like spectrum scanning, standard curve, kinetics, multi wavelength scanning, DNA/Protein test, etc. can be directly completed on device without connecting PC software.
3. Long Light Path Design
The unique 520mm long light path design is adopted to improve the wavelength resolution and make the bandwidth of UV-9000S can be switched to 0.5nm.
4. UV Analyst PC Software
PC software is provided to connect device with PC for easy data output and analysis, the functions include wavelength scanning, standard curve, kinetics, multi wavelength scanning, DNA/Ptotein test, etc.
5. 16mm Rigid Aluminim Optical Base
A rigid 16mm thick die-cast aluminim base is used ass the optical mount to ensure high stability and reliability.
6. One-button Automatic Calibration System
The baseline, wavelength, dark current can be calibrated automatically to keep device in good running conditions.
7. 6 inches Large LCD display
Equipped with a 6 inches large LCD display to show results and curves directly on the screen.
8. Easy Data Output and Printing
Equipped with USB port to connect with PC, easy to export and print data and analysis report.
Model | UV-9000 | UV-9000A | UV-9000S | ||
Optical System | Double Beam (1200 Lines/mm Grating) | ||||
Wavelength Range | 190-1100nm | ||||
Bandwidth | 1.8nm | 1.0nm | 0.5, 1.0, 2.0, 4.0 nm | ||
Wavelength Accuracy | ±0.1nm (D2 656.1nm), ±0.3nm @all | ||||
Wavelength Repeatability | 0.2nm | ||||
Photometric Accuracy | ±0.2%T(0-100%T) | ||||
Photometric Repeatability | ≤0.1%T(0-100%T) | ||||
Photometric Range | -0.3-3A, 0-200%T, 0-9999C | ||||
Stability | ≤0.0005A/h@250nm, 500nm | ||||
Baseline Flatness | ± 0.001A/h | ||||
Stray Light | ≤0.03%T @ 220nm, 360nm | ||||
Output | USB port & Parallel Port | ||||
Display | 320*240 Dots LCD | ||||
Lamps | Tungsten Lamp & Deuterium Lamp | ||||
Detector | Silicon Photodiode | ||||
Power Requirements | AC 220V/50Hz or AC 110V/60Hz | ||||
Dimension | 625*430*206mm | ||||
Weight | 32/32/34kg | ||||
Recommend Products
Our Advantages
Company Profile
Certifications
Product packaging
FAQ
Who are we?
Shanghai Metash Instruments is a professional manufacturer of science laboratory instruments, with over 12 years manufacturing and exporting experience. What product do we have?
We manufacture full range of Spectrophotometers, TOC analyzer and Microwave digestion system and related accessories.
What certificate do we have?
All our products are CE, ISO, RoHS certified and have been exported to over 90 countries, over 80,000 Metash devices are serving for environmental, food, cosmetics, pharmaceutical, life science and chemical fields, etc.
What is the MOQ?
The MOQ is 1unit.
Do we accept OEM order?
Yes. We welcome OEM cooperation and will try our best to meet your special OEM requests.
