CHANGHE Din rail enclosure din rail housing din rail plastic housing 14 50
- Category: Electronic & Instrument Enclosures >>>
- Supplier: Ningbo Dayang Enclosures Co. Ltd.
Share on (60779814300):
Product Overview
Description
Product Specs

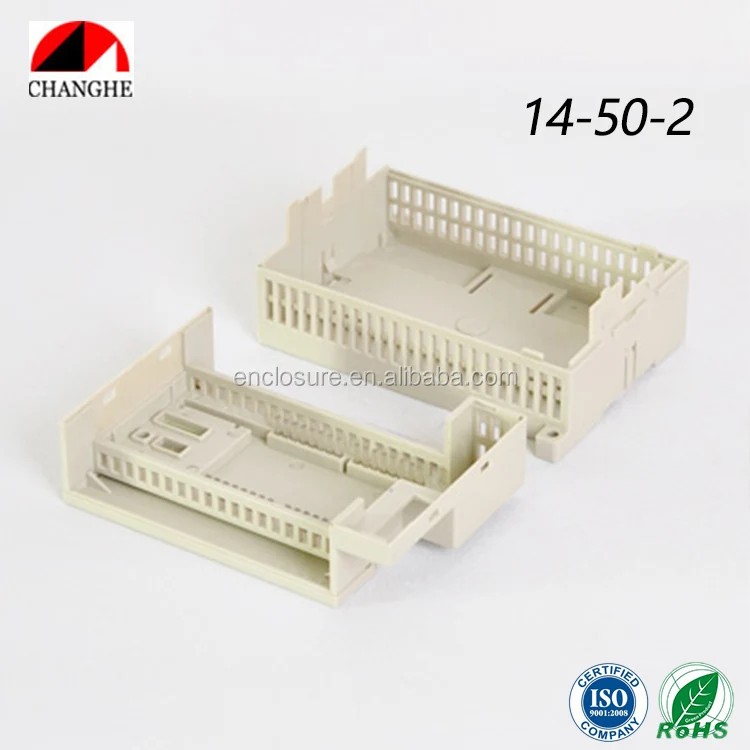

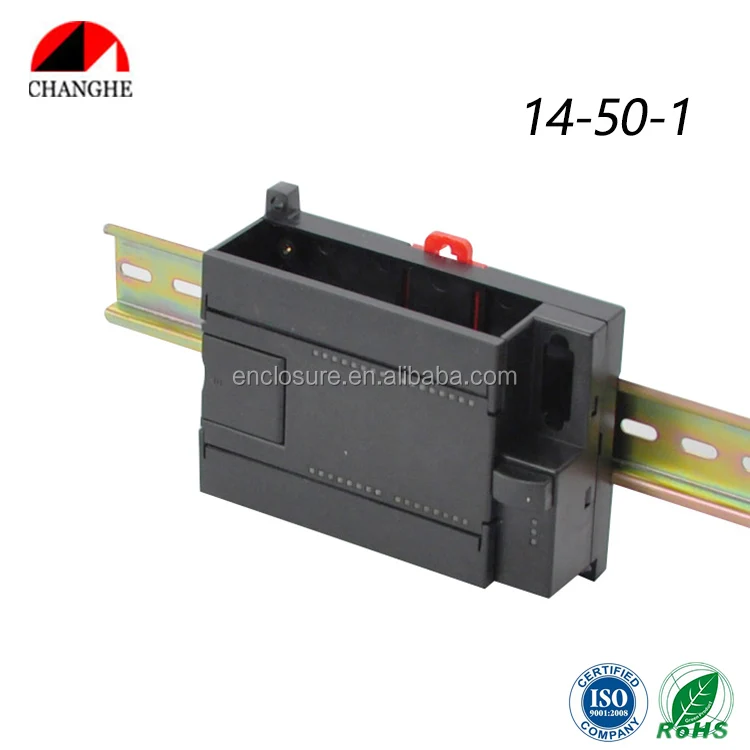

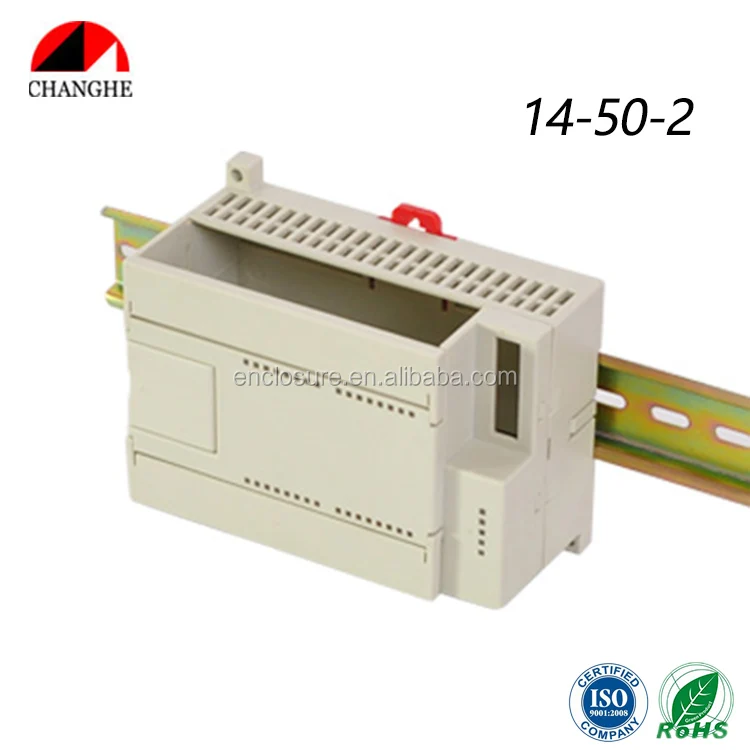

DIN Rail PLC Enclosures 14-50
CHANGHE DIN Rail PLC Enclosures provide users with more than 100 options. They are widely applied in modular PLC, controller unit, and modular distributor. To request a free sample, please contact our sales team>>
Technical Features:
- External size (LxWxH): 120x80x63mm
- Wall-mounting size: 113x88mm
- Widely applied in modular PLC, controller unit, modular distributor
- Easy and fast locking on din rail
- Pre-installed mounting clip (POM)
- Electrically insulation
- Good heat dissipation
- Custom color and material
Technical Data
Ingress protection | IP20～IP40 IEC60529 : 2001 |
Temperature range (short term) | -40℃ ~ 80℃ IEC60068:1997 |
Temperature range (long term) | -20℃ ~ 60℃ IEC60068:1997 |
Electrical insulation | Total insulation |
Flammability rating | PC:UL94_5VA ABS:UL94HB UL94 |
Non-toxicity | Halogen Free |
Terminal blocks | 250V/10A |
Mounting method | 35mm DIN rail |
Dimension Chart
DIN Rail PLC Enclosures
CHANGHE DIN Rail PLC Enclosures provide users with more than 100 options. For more detail, please visit our website: www.changhe-enclosures.com >>
DIN Rail Terminal Enclosures
CHANGHE DIN Rail Terminal Enclosures provide users with more than 70 options. They are widely applied in modular PLC, controller unit, and modular distributor. We can provide customized molding based upon standard enclosures to meet your specific requirements.
