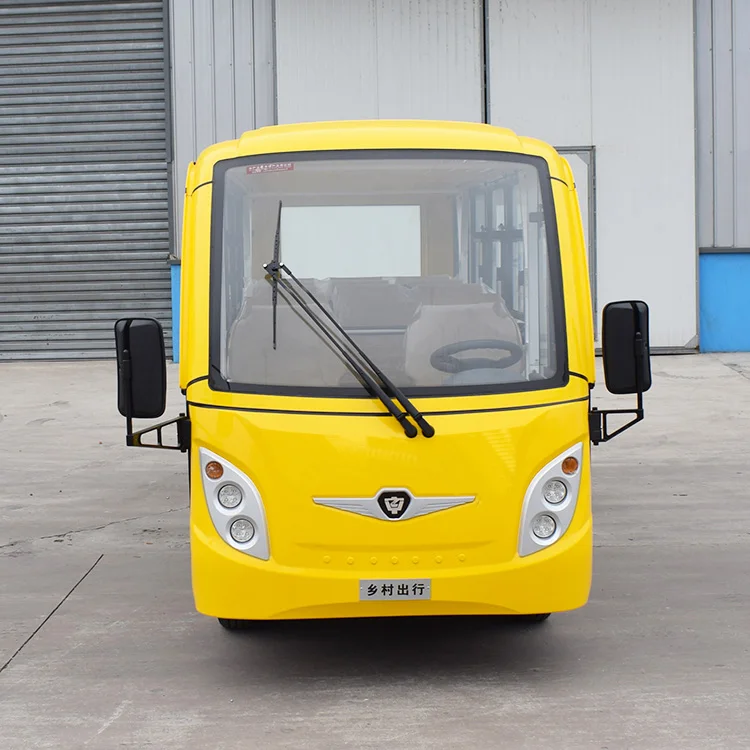

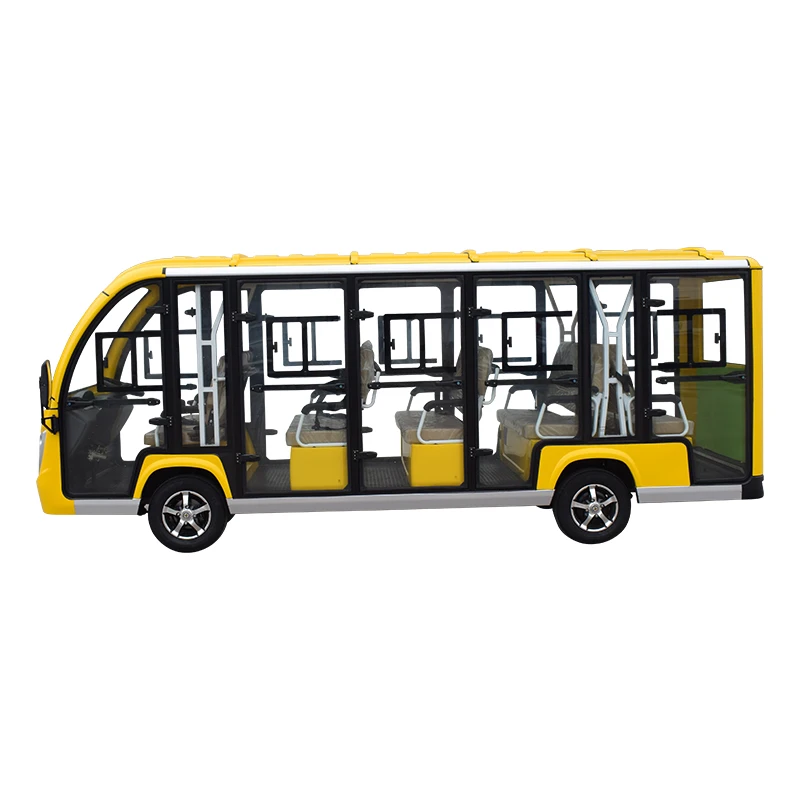

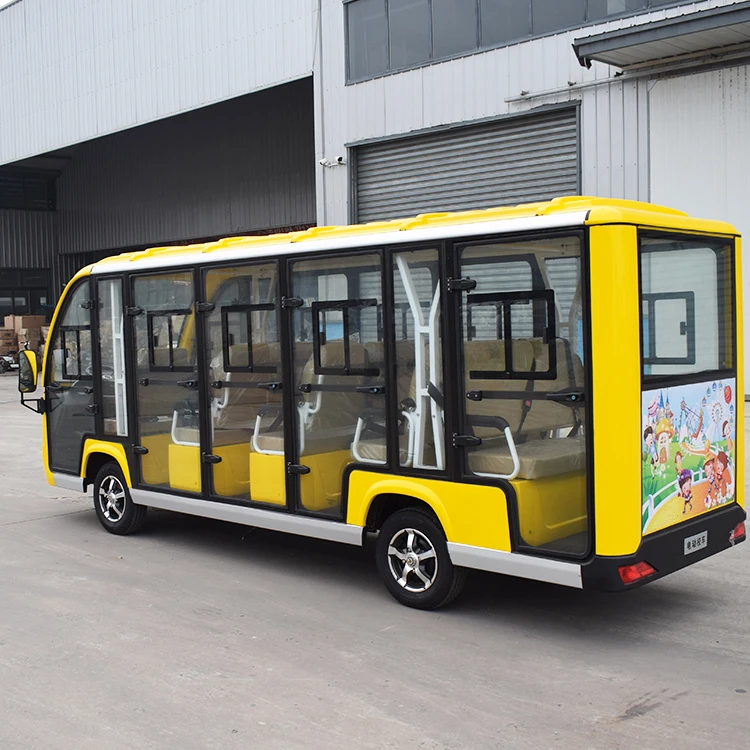

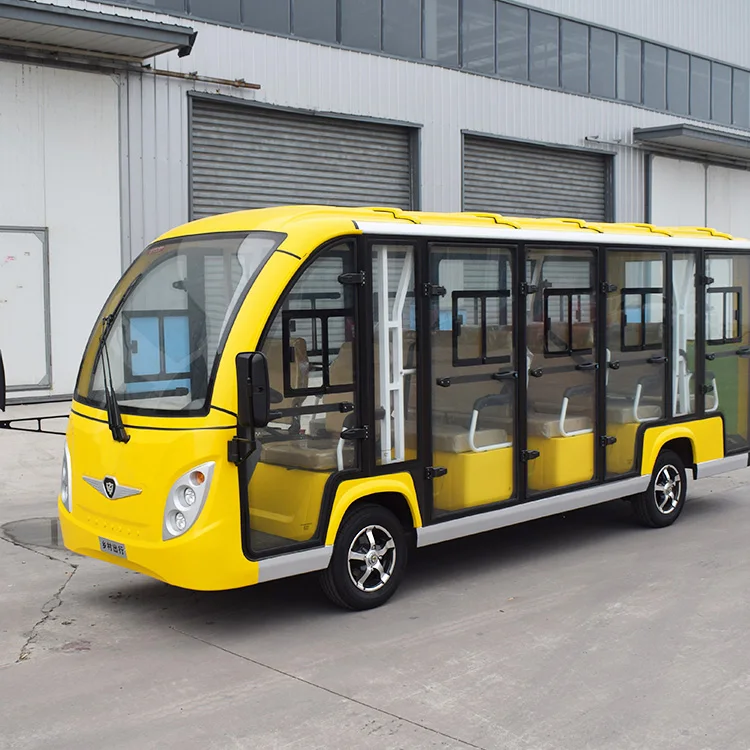

Electric Sightseeing Bus 17 Seater Electric Sightseeing Car 72V 9kw Motor

Model

GD17-A17+F

Qty/40′(assembled)

1Units

Performance

Passenger Capacity

17 Seats

Max.Speed

28-30km/h(adjustable)

Range

110-120km

Climbing Ability

<20%

Braking Distance

<5m

Mini Turning Radius

8.2m

Min.Ground Clearance

130mm

Recharge Time

8-10hours

Dimension

L*W*H

6050*1500*2080mm

F/R Tread

1240/1220mm

Axle Distance

3665mm

Net Weight

1160kgs

Standard Configuration

Motor

72V/5.5 KW DC motor

Controller

USA Crutis Controller

Battery

Huge capacity deep cycle lead-acid battery  6V/piece  12 pieces  230Ah

Body & Roof

Injection molding modeling design separable replacement with all aluminum frame

Windshield

Laminated Glass with wiper

Seats

Sponge& artificial Leather,the seaters of driver and co-driver are adjustable

Rear View Mirror

2 pcs

Tire

Aluminum alloy hub ,155R12C

Chassis

High strength structural steel

Steering

Gear steering& auto backlash compensation&electronic power steering

Braking System

Front disk &rear drum ,double circuit hydraulic brake& hand brake

Front Axle

Mcpherson independent suspension  Spiral spring & cylinder hydraulic shock absorption

Rear Axle

Integral rear axle, Non independent suspension, leaf spring &cylinder hydraulic shock absorption

Lighting System

Combination LED front light (turning light, high beam, dipped light) rear light (turning light, brake light) driving & reverse buzzer.

Charger

On board charger

Dashboard

Plastic molding instrument board with volt meter, ammeter, electricity indicator, speedometer,key switch, radio, USB plug, storage box, cup holder

Removable door

12 tempered glass doors and 1 rear glass
