WAN YO Orange Hardigg Skid Mates Air Dampened Cushions For Pallet
- Category: Other Electrical Equipment >>>
- Supplier: WAN-YO ENTERPRISE CO. LTD.
Share on (60780003880):
Product Overview
Description
PALLET CUSHION Prevent costly shock damage
About us
Company Profile :
WAN-YO ENTERPRISE CO., LTD was established in 2009 and specializes in design, low cost production, high quality and excellent product. In 2004, we manufactured Impact Label Leaning Label and other brands. Involved in items of Designing, Research and Development, Manufacturing and Export, we are aiming at supply high-quality to customers all over the world.
Product Description
Product Description :

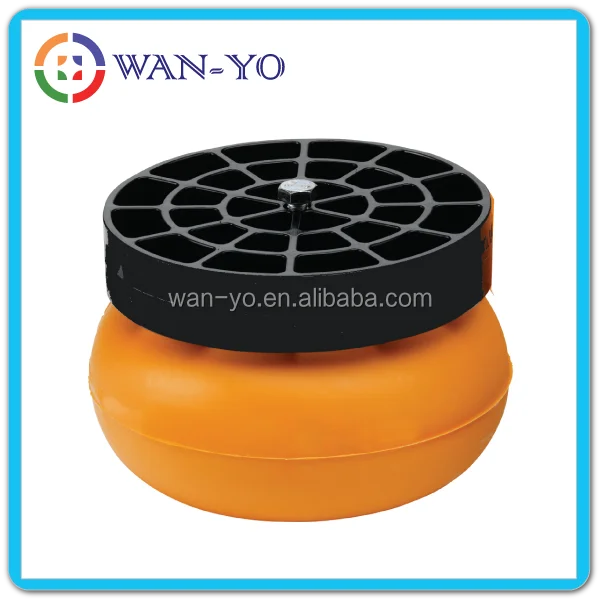

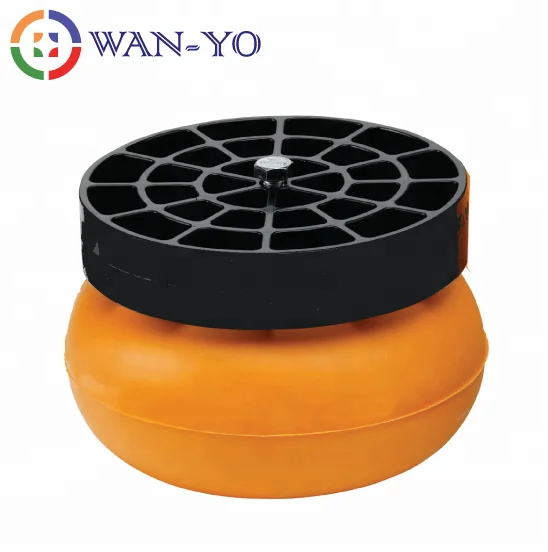

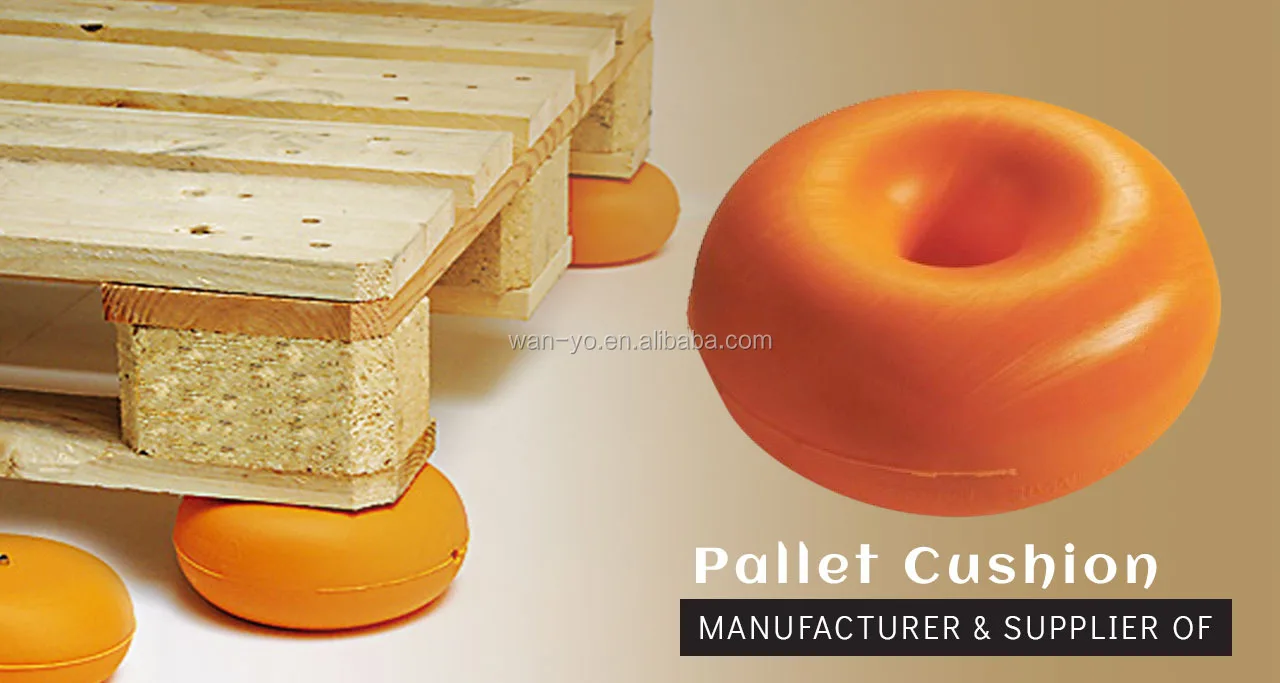

Pallet Cushion is an air dampened cushioning device that provides a fast, cost effective and durable customized solution to protect sensitive products from shock and vibration. The PALLET CUSHION can be easily mounted on a crate or pallet base creating an air-ride cushion in place of hardwood skid runners eliminating the need for expensive air-ride trucks.

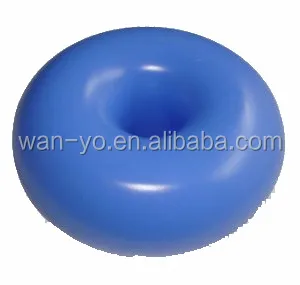

PALLET CUSHION have Orange/ BLUE/Yellow/Green /Brown 5 different colors, shockproof balls of different colors represent different bearing.
Parts No. | Color | Load Capacity | Fixing | Unit Weight | |
|
WY-60035 |
Tan |
9.6-15.9kg/21.16-35.05Lb |
M8 T-NUT |
0.12kg±5g |
|

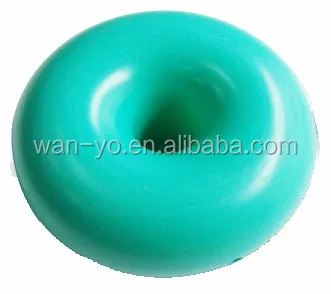

WY-60050 |
Green |
13.6-22.7kg/29.98-50.04Lb |
M8 T-NUT |
0.13kg±5g |
|
WY-60080 |
Yellow |
20.4-36.3kg/44.97-80.03Lb |
M8 T-NUT |
0.15kg±5g |
|
WY-600125 |
Blue
|
31.8-56.7kg/70.11-125Lb |
M8 T-NUT |
0.16kg±5g |
|

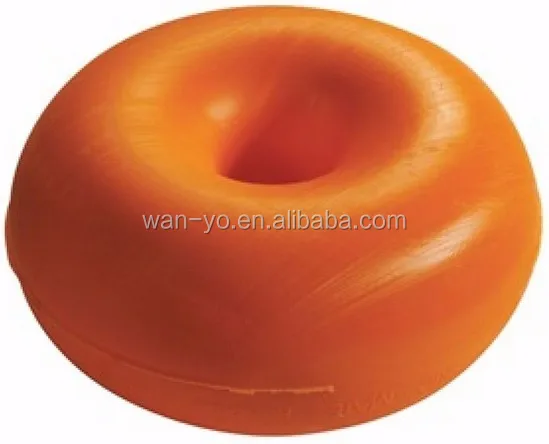

WY-600225 |
Orange |
56.7-102kg/125-224.87Lb |
M8 T-NUT |
0.17kg±5g |
PALLET CUSHION PACK: 60/BOX | |||||
|

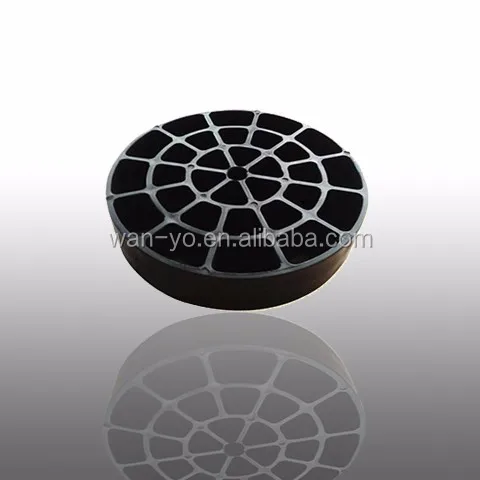

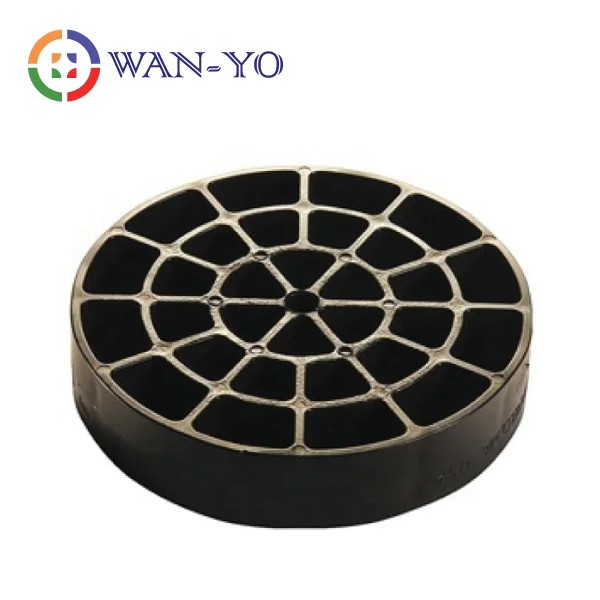

WY-20509 |
Black |
Spacer |
Pack : 100/box |

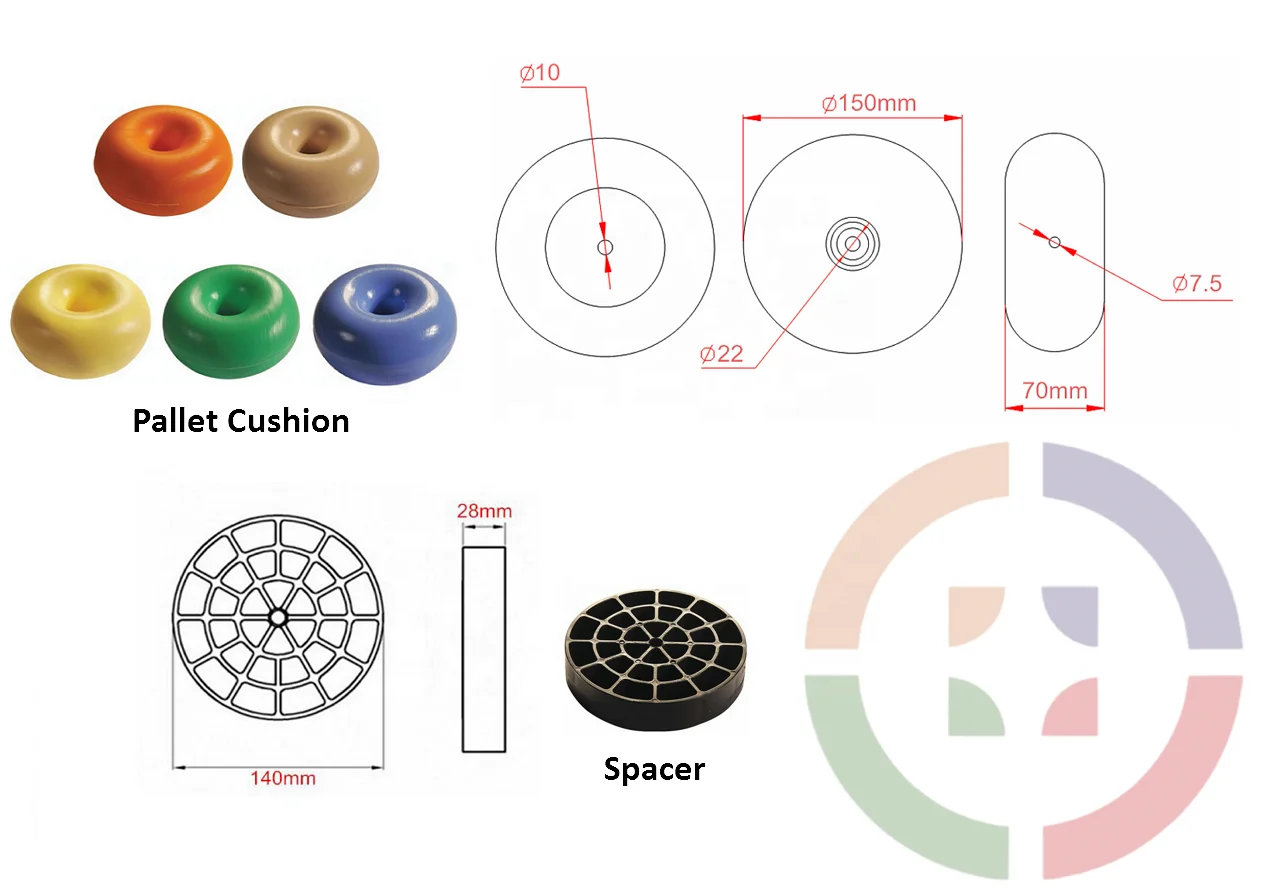

Specification
MATERIAL : | LDPE |
WITH METRIC M8 OPTION | |
SIZE : | 150*70mm |
TEMPERATURE : | CHSHIONS are suitable for use between -40℃~+54℃ |
CHEMICAL RESISTANT : | Cushions are made of polyethylene a chemically inert material |
DURABLE & TOUGH | Under the maximum load, cushions can endure 3000 feet (914meters) of dragging over concrete and floor joints |
REVYCLABLE: | Every cushion is environmentally friendly and reusable |
Advantages
- Reduce packaging design & assembly time and cost
- Eliminate costly damage from handling hazards during shipment
- Reduce costs associated with shock and vibration damage
- Provide protection during loading/unloading
- Eliminate the need for expensive air-ride vans
- Permit 4-way pallet entry design
- Easily add shock protection to crates/pallets
- PALLET CUSHION + SPACER fits most pallet jacks worldwide.
Packaging & Shipping
Shipping&Payment
It will be very appreciated if we can help you sincerely.
WAN-YO ENTERPRISE CO., LTD.
Tel: + 886-2-2698-8900
Skype :wanyo_sales
Lesley Peng
