Product Overview
Description

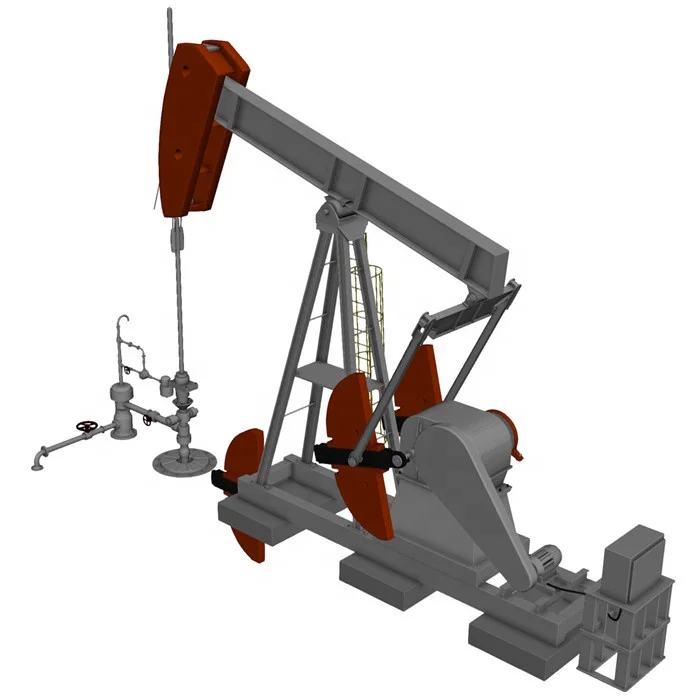

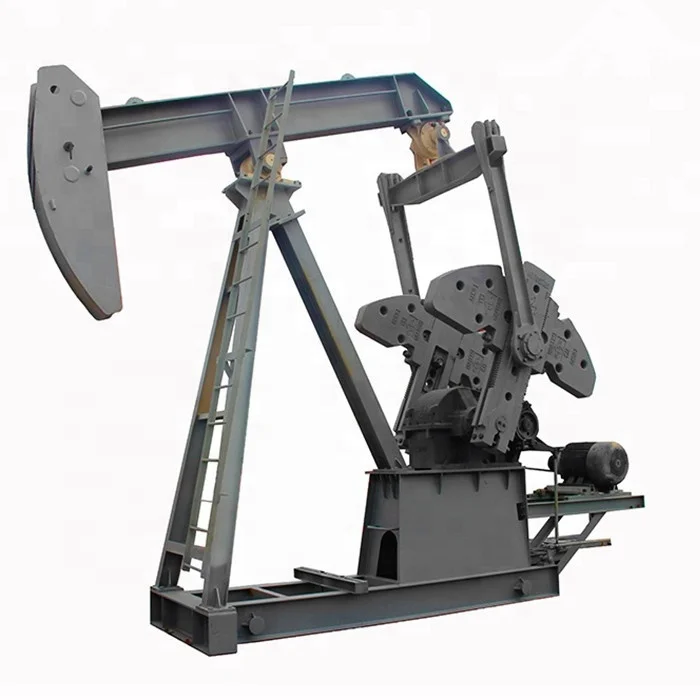

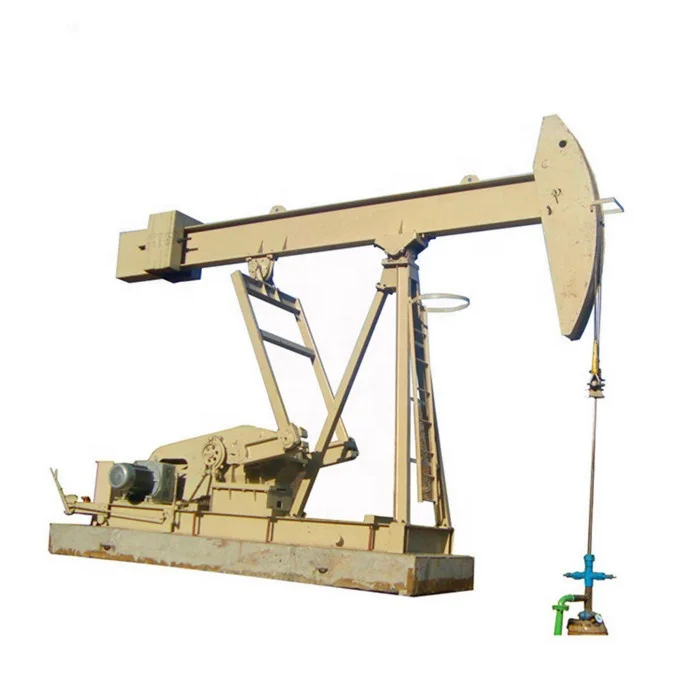

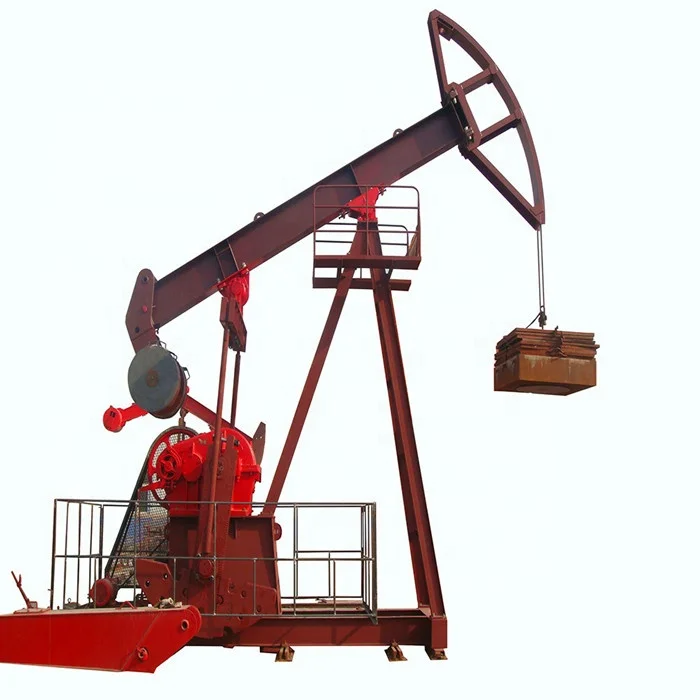

API certification API C-160D-143-74 oil well beam pumping units for oilfield
Product Description
Brief Introduction

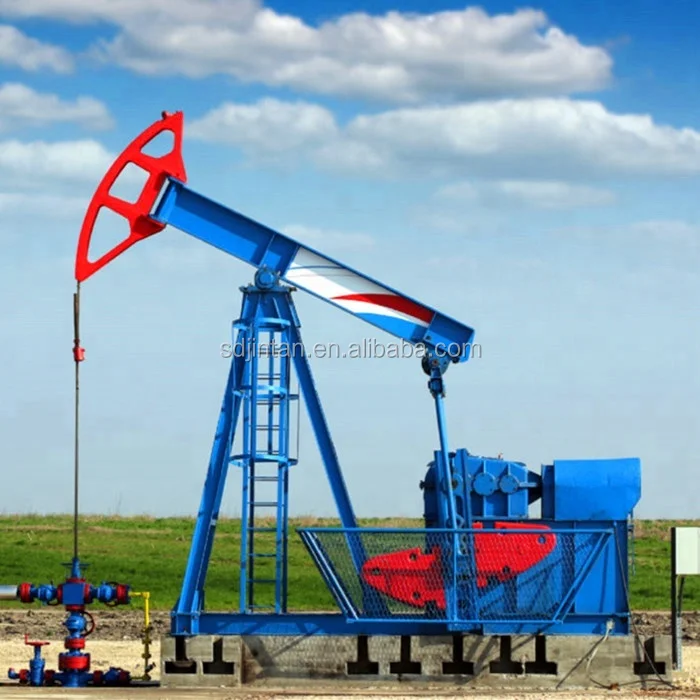

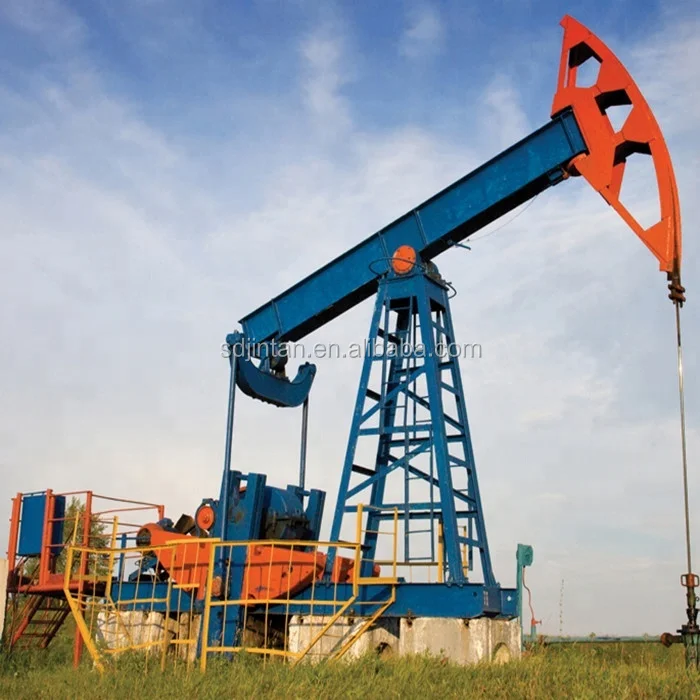

Conventional API C pumping units with walking beams, balanced by cranks, are among the most common and most widely used power units in rod production on oil fields.Products comply with Specifications of Pumping Units (API Spec 11E) and other related standards, and have acquired the authorization to use Official API Monogram.
Technical Performance & Characteristics
1. Modular and virtual manufacturing technologies are adopted in design, so that the structure of products is optimized and components are highly standardized, generalized and seriated.
2. Key structural elements are subject to finite element analysis to ensure stable performance and high reliability.
3. Reducers are driven by double-arc symmetrical split or involute herringbone wheels that are properly sealed and distinguished with low noise, smooth operation, reliable and durable service.
4. The entire machine features simple operation and maintenance and extended service life.
No | Type | Polished Rod Capacity | Stroke Length | Rated Torque |
1 | C-912D-470-240 | 47,000 | 240, 211, 181 | 912,000 |
2 | C-912D-427-216 | 42,700 | 216, 185, 155 | 912,000 |
3 | C-912D-427-192 | 42,700 | 192, 165, 138 | 912,000 |
4 | C-912D-305-192 | 30,500 | 192, 165, 138 | 912,000 |
5 | C-912D-365-168 | 36,500 | 168, 144, 121 | 912,000 |
6 | C-912D-305-168 | 30,500 | 168, 144, 121 | 912,000 |
7 | C-912D-427-144 | 42,700 | 144, 123, 102 | 912,000 |
8 | C-640D-305-192 | 30,500 | 192, 165, 138 | 640,000 |
9 | C-640D-305-168 | 30,500 | 168, 144, 121 | 640,000 |
10 | C-640D-365-144 | 36,500 | 144, 123, 102 | 640,000 |
11 | C-640D-305-144 | 30,500 | 144, 123, 102 | 640,000 |
12 | C-640D-256-144 | 25,600 | 144, 123, 102 | 640,000 |
13 | C-640D-305-120 | 30,500 | 120, 102, 84 | 640,000 |
14 | C-456D-305-168 | 30,500 | 168, 144, 121 | 456,000 |
15 | C-456D-305-144 | 30,500 | 144, 123, 102 | 456,000 |
16 | C-456D-256-144 | 25,600 | 144, 123, 102 | 456,000 |
17 | C-456D-365-120 | 36,500 | 120, 102, 84 | 456,000 |
18 | C-456D-305-120 | 30,500 | 120, 102, 84 | 456,000 |
19 | C-456D-256-120 | 25,600 | 120, 102, 84 | 456,000 |
20 | C-320D-256-144 | 25,600 | 144, 123, 102 | 320,000 |
21 | C-320D-256-120 | 25,600 | 120, 102, 84 | 320,000 |
22 | C-320D-213-120 | 21,300 | 120, 102, 84 | 320,000 |
23 | C-320D-305-100 | 30,500 | 100, 85, 70 | 320,000 |
24 | C-320D-256-100 | 25,600 | 100, 85, 70 | 320,000 |
25 | C-320D-213-86 | 21,300 | 86, 71, 56 | 320,000 |
26 | C-228D-213-120 | 21,300 | 120, 102, 84 | 228,000 |
27 | C-228D-173-100 | 17,300 | 100, 86, 72 | 228,000 |
28 | C-228D-246-86 | 24,600 | 86, 71, 56 | 228,000 |
29 | C-228D-213-86 | 21,300 | 86, 71, 56 | 228,000 |
30 | C-228D-200-74 | 20,000 | 74, 64, 54 | 228,000 |
31 | C-228D-173-74 | 17,300 | 74, 64, 54 | 228,000 |
32 | C-160D-173-86 | 17,300 | 86, 74, 62 | 160,000 |
33 | C-160D-200-74 | 20,000 | 74, 64, 54 | 160,000 |
34 | C-160D-173-74 | 17,300 | 74, 64, 54 | 160,000 |
35 | C-160D-143-74 | 14,300 | 74, 64, 54 | 160,000 |
36 | C-160D-173-64 | 17,300 | 64, 54, 44 | 160,000 |
37 | C-114D-119-86 | 11,900 | 86, 72, 59 | 114,000 |
38 | C-114D-143-74 | 14,300 | 74, 62, 51 | 114,000 |
39 | C-114D-173-64 | 17,300 | 64, 54, 44 | 114,000 |
40 | C-114D-143-64 | 14,300 | 64, 52, 40 | 114,000 |
41 | C-114D-133-54 | 13,300 | 54, 45, 36 | 114,000 |
42 | C-80D-119-64 | 11,900 | 64, 53, 42 | 80,000 |
43 | C-80D-133-54 | 13,300 | 54, 45, 36 | 80,000 |
44 | C-80D-119-54 | 11,900 | 54, 45, 36 | 80,000 |
45 | C-80D-133-48 | 13,300 | 48, 40, 32 | 80,000 |
46 | C-80D-109-48 | 10,900 | 48, 37, 25 | 80,000 |
47 | C-57D-76-54 | 7,600 | 54, 41, 28 | 57,000 |
48 | C-57D-109-48 | 10,900 | 48, 37, 25 | 57,000 |
49 | C-57D-95-48 | 9,500 | 48, 37, 25 | 57,000 |
50 | C-57D-89-42 | 8,900 | 42, 33, 23 | 57,000 |
51 | C-57D-76-42 | 7,600 | 42, 33, 23 | 57,000 |
52 | C-40D-76-48 | 7,600 | 48, 37, 27 | 40,000 |
53 | C-40D-89-42 | 8,900 | 42, 33, 23 | 40,000 |
54 | C-40D-76-42 | 7,600 | 42, 33, 23 | 40,000 |
55 | C-40D-89-36 | 8,900 | 36, 28, 20 | 40,000 |
56 | C-25D-67-36 | 6,700 | 36, 28, 20 | 25,000 |
57 | C-25D-56-36 | 5,600 | 36, 28, 20 | 25,000 |
58 | C-25D-53-30 | 5,300 | 30, 20 | 25,000 |

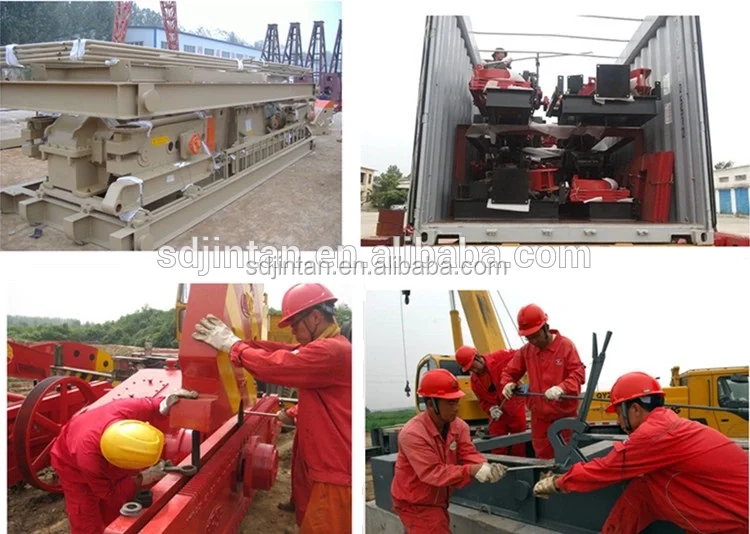

Packaging & Shipping
Packaging and shipping detail
1.The spare parts in iron box,
2.The big part will naked packing in the container
3.According the order.
Our Services
We are committed to build the company into an international first-class petroleum equipment supplier and warmly welcome business partners at home and abroad for joint operation in various fields to realize mutual benefits and common development.
It would be our pleasure to begin a business relationship with you and supply u with our quality products, as a professional manufacturer, i would like to introduce our products to you and offer you a quote.
Company Information
Dongying Jintan Petroleum Technology & Equipment Co., Ltd. is the first-grade network unit of Sinopec. Through years of efforts, it has gradually developed into a comprehensive company integrating the R&D, manufacturing of oil drilling and workover equipment, oilfield special equipment, oil extraction equipment and well head and downhole tools, and the providing of petroleum engineering design and technical services.
In recent years, company vigorously explores its international markets and expands external partnerships. Relying on high product quality, competitive price as well as efficient services, its products have been exported to America, Canada, Columbia, Venezuela, Mexico, UAE, Oman, Iran, India, Kazakhstan, Russia, Indonesia, etc.
For years, Company always sticks to the “Customer-oriented" business philosophy and scientific management concept, and takes the providing of advanced products and quality services as its mission. By strictly following the international trade rules and adhering to the tenet of “Abiding by contracts & Keeping Promises” and the “win-win” purpose, it has established partnerships with internationally renowned enterprises, which provides a solid underpinning for company’s future development.
We are committed to build the company into an international first-class petroleum equipment supplier and warmly welcome business partners at home and abroad for joint operation in various fields to realize mutual benefits and common development.
FAQ
For further information plz contact me as follows:
Tel: +86 188 6667 1701
Whatsapp: +86 188 6667 1701
Skype: sd.jintan2
It would be our pleasure to begin a business relationship with you and supply u with our quality products, as a professional manufacturer, i would like to introduce our products to you and offer you a quote.
Any questions, do not hesitate contact me.
