1t 50t Pneumatic Chain Hoist Lifting Cargo Air Hoist Used for Mining

Product Overview

Description

Air Hoist

Product Introduction:

Pneumatic hoist adopts compressed air as its power. It converts pressure energy into

rotary mechanical energy by air motor, and its output torque drive planetary reduction mechanism to

run. Pneumatic control part make rotation mechanismto forward and reverse to hoist goods.This

pneumatic hoist is widely used for Chemical Industry, Manufacturing Industry, Pharmaceutical Industry etc.

Features:

1. Applicable to complex and dangerous occasions.

2. Stepless speed, positioning precision, small impact force.

3. Less parts,. Low mainetance, long service life.

4. Fast working speed, high efficiency, easy to operate.

Technical Parameters:

Items			Parameters	Messurement Unit
Model			DL-2TCQ/3	--
Rated Hoisting Capacity			2	T
Standard Hoisting Height			3	m
Chains’ Number			2	--
Working Medium			Compressed Air	--
Working Pressure			0.6	MPa
Output Power Of Air Motor			1	KW
Air Consumption			1.5	m3 /min
Inlet Air Pipe Joint			Rc1/2	inch
Hose Size (Inner Diameter/Outer Diameter)			12/16	mm
Hoisting Noise At Full Load			77	db
Working Speed Range	Speed At Rated Load	Rise	2	m/min
		Descend	4.5	m/min
	Speed At No Load	Rise	5	m/min
		Descend	2.5	m/min
Weight			41	KG

We hereby confirm that Pneumatic Hoists can be tailor-made to meet customers'special

needs and request, with the highest quality, prompt delivery and first-rate

after-sale-service.

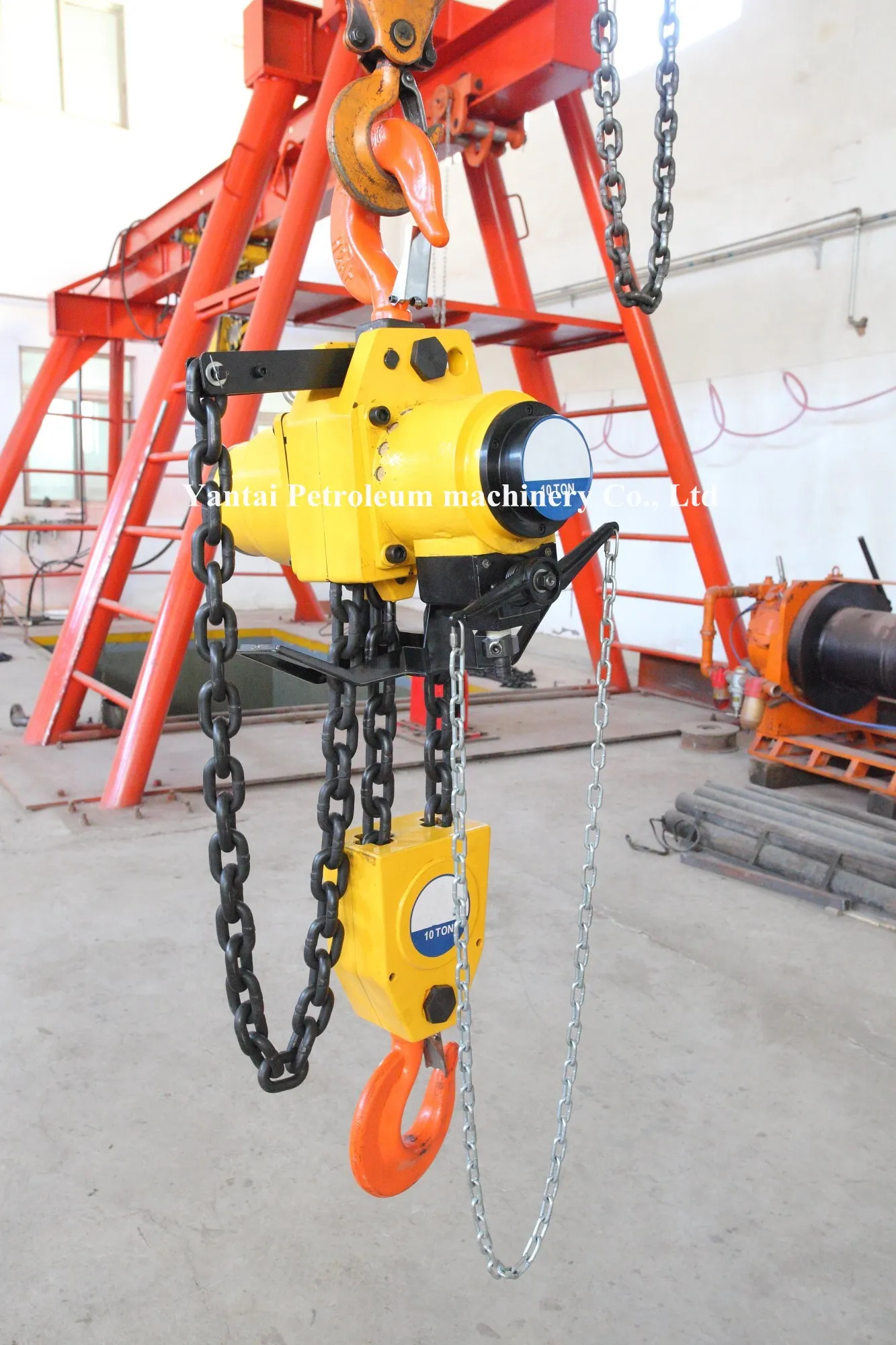

Product Photos:



Customers' Visit:



Yantai Petroleum Machinery Co.,Ltd is a factory to produce air motors and air winches for over 45 years, and our products can be customized as clients' requirements.
