High precision feeding: Aiming at the arrival of hi-tech industry, it is controlled by computer closed-circuit feedback system. So that the precision can maintain within +/-0.03mm.
Phase-style feeding function: It can input 20 groups of different feeding length, each group provides punching for 999 times to satisfy the processing and production of special products (option)
Manual model: It can input 3 phases manual speed, which can let user operate more easily and feed materials more accuracy.
Feeding length setting: Input feed length on the controller panel directly.
Feeding unit: The roll adopts middle-hollow style. Being light and with low inertia for electroplate. The surface hardness HRC is 60 and hard chrome plated.
Specifications:
Model
NC-100
NC-200
NC-300
NC-400
NC-500
NC-600
NC-700
NC-800
strip width(mm)
100
200
300
400
500
600
700
800
strip thickness(mm)
0.1~6.0
Feeding Roller(mm)
φ85
Feeding Length(mm)
0.1~9999.99
Speed(m/min)
18
Power Supply
380V/415V/660V 3Phase
Servo Motor
Panasonic
PLC
Mitsubishi

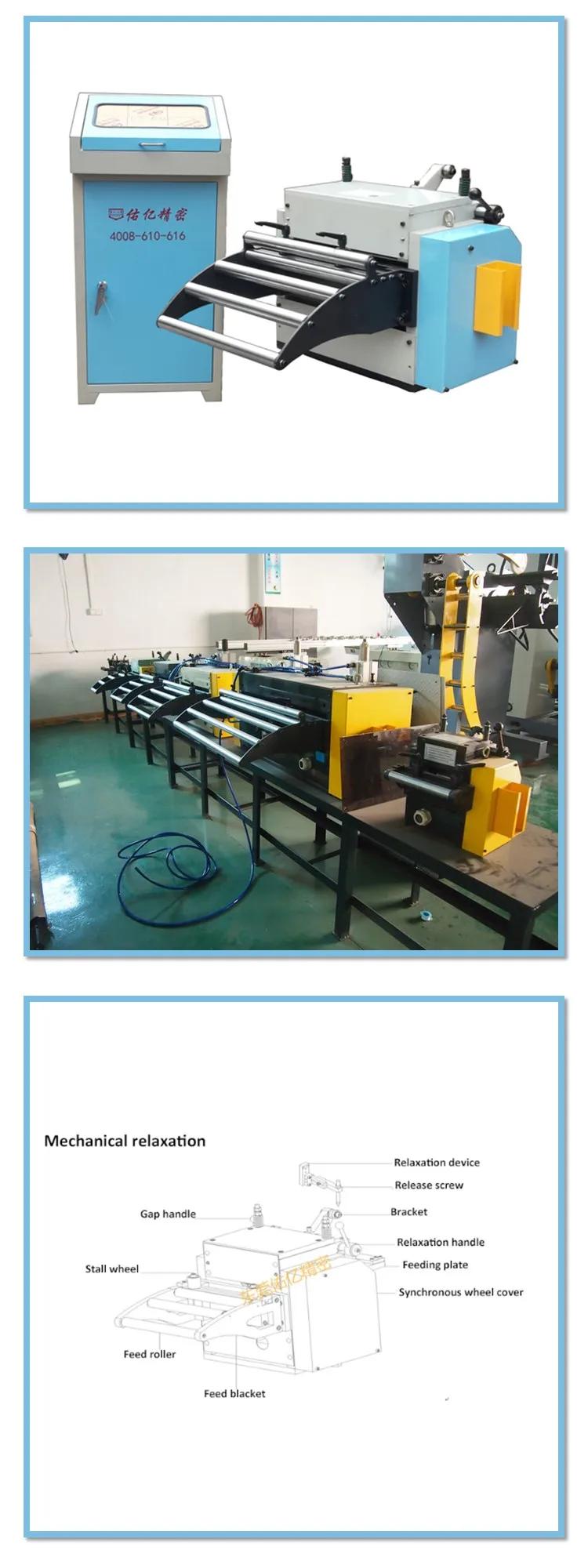

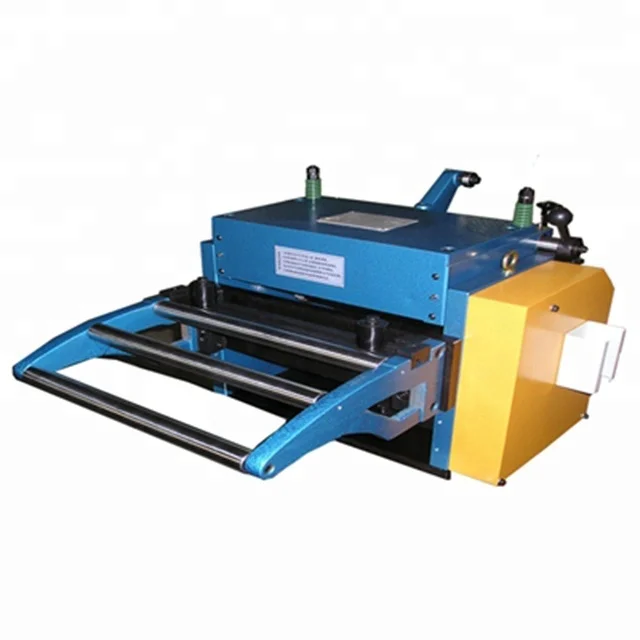

Machine Details:
Related Products
Servo Pneumatic Feeder machine
Servo zigzag roll feeder

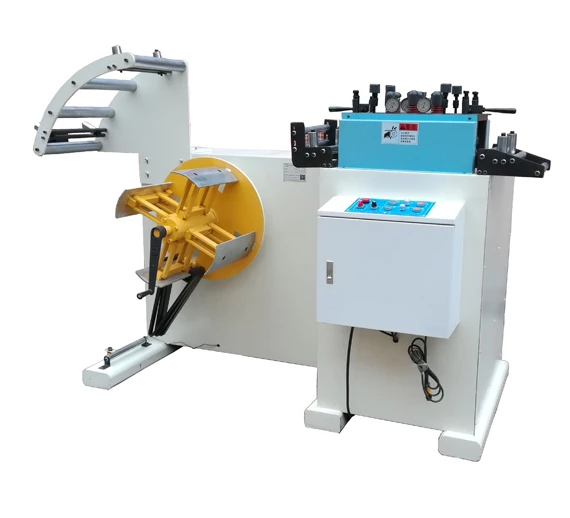

2 in 1 decoiler and leveller

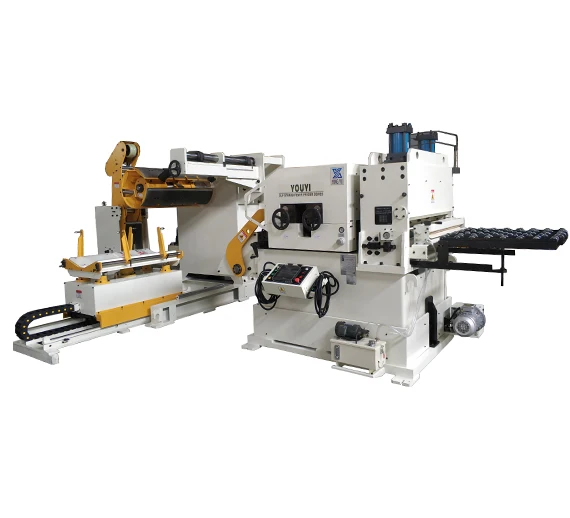

3 in 1 Servo feeder
fineblanking thick straightener machine

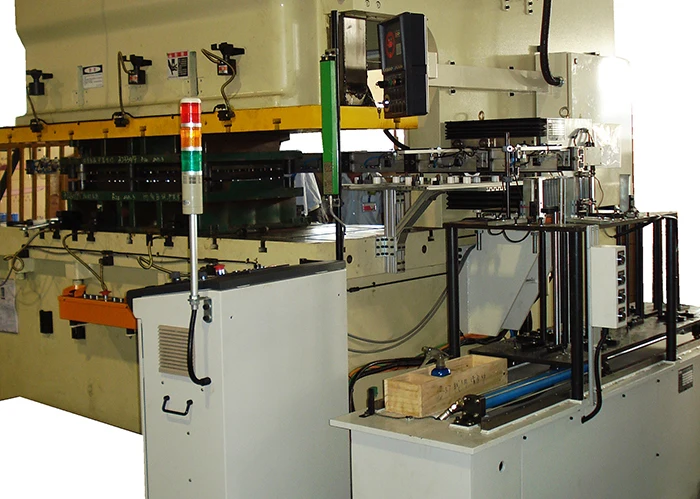

NC 2D transfer unit
Company Information
Our Services
Cooperated Partner
FAQ
Q: What we need to select the machines?
A: Please provide the information below:
1. the strip width of your material
2. the strip thickness of your material
3. the weight of your material
4. the Press information of your shop
Q: Are you a trading company or manufacturer?
A: We are a manufacturer located in China, with 2 factories in Dongguan. We provide high quality and factory price machines, ODM & OEM accepted.
Q: How long is your delivery time?
A: Generally 3~7 days if standard machines are in stock, or it's 15~20 days if not in stock for small machines.
Q: How long is the warranty time?
A: 1 YEAR warranty. If any quality problems occured on our side in this period, we will take on the shipping cost and replacement.
Q: How does your shop do regarding quality control?
A: Quality is priority. YouYi people always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipping.
Q: Do you sell ONLY standard machines?
A: NO. Most of our machines are made according to customer's specifications, using international brand components.
Q: What is your terms of payment?
A: Payment ≤ 1000USD, 100% TT in advance, payment ≥ 1000USD, 50% TT in advance, balance before shipping.
If you have another questions, please feel free to contact us?
