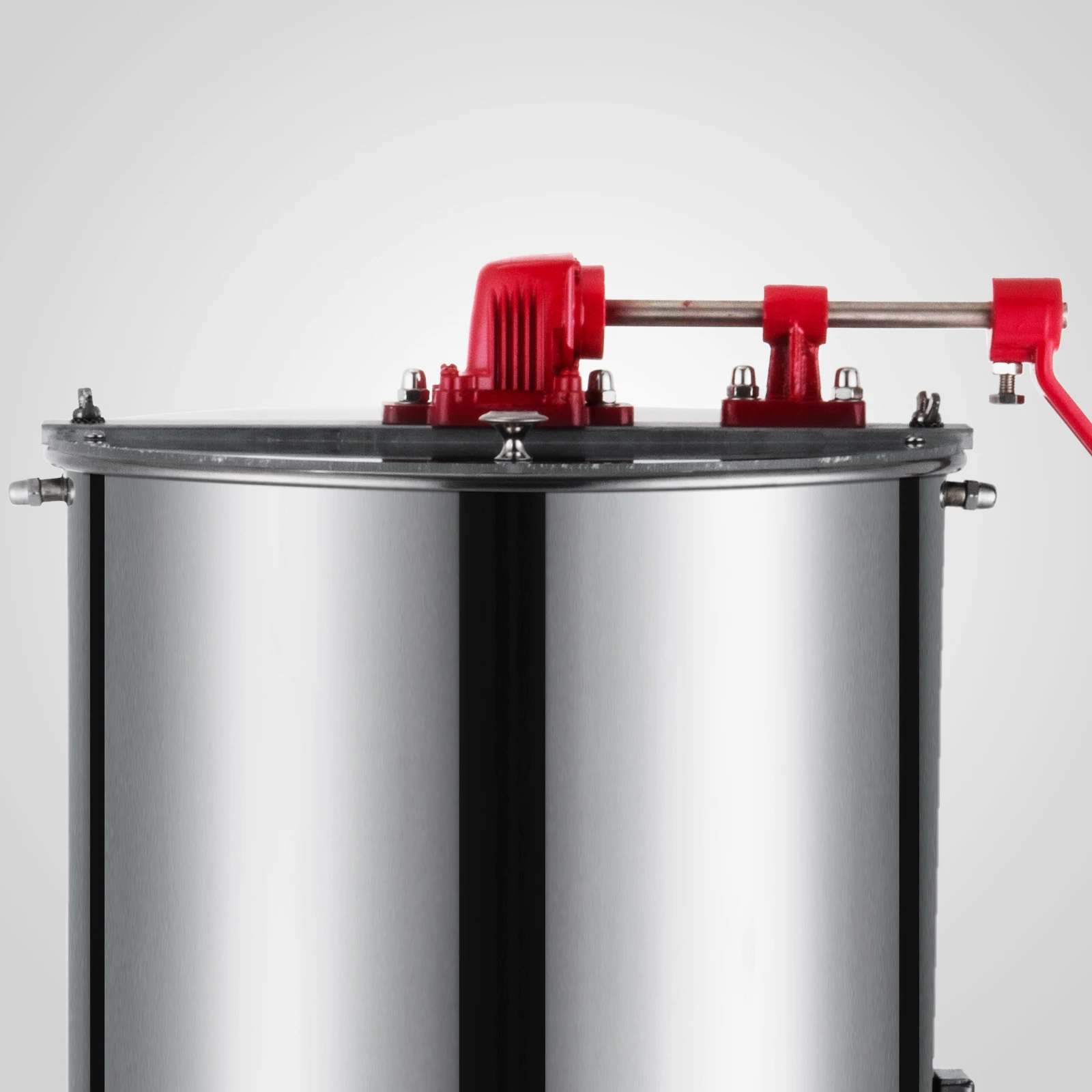

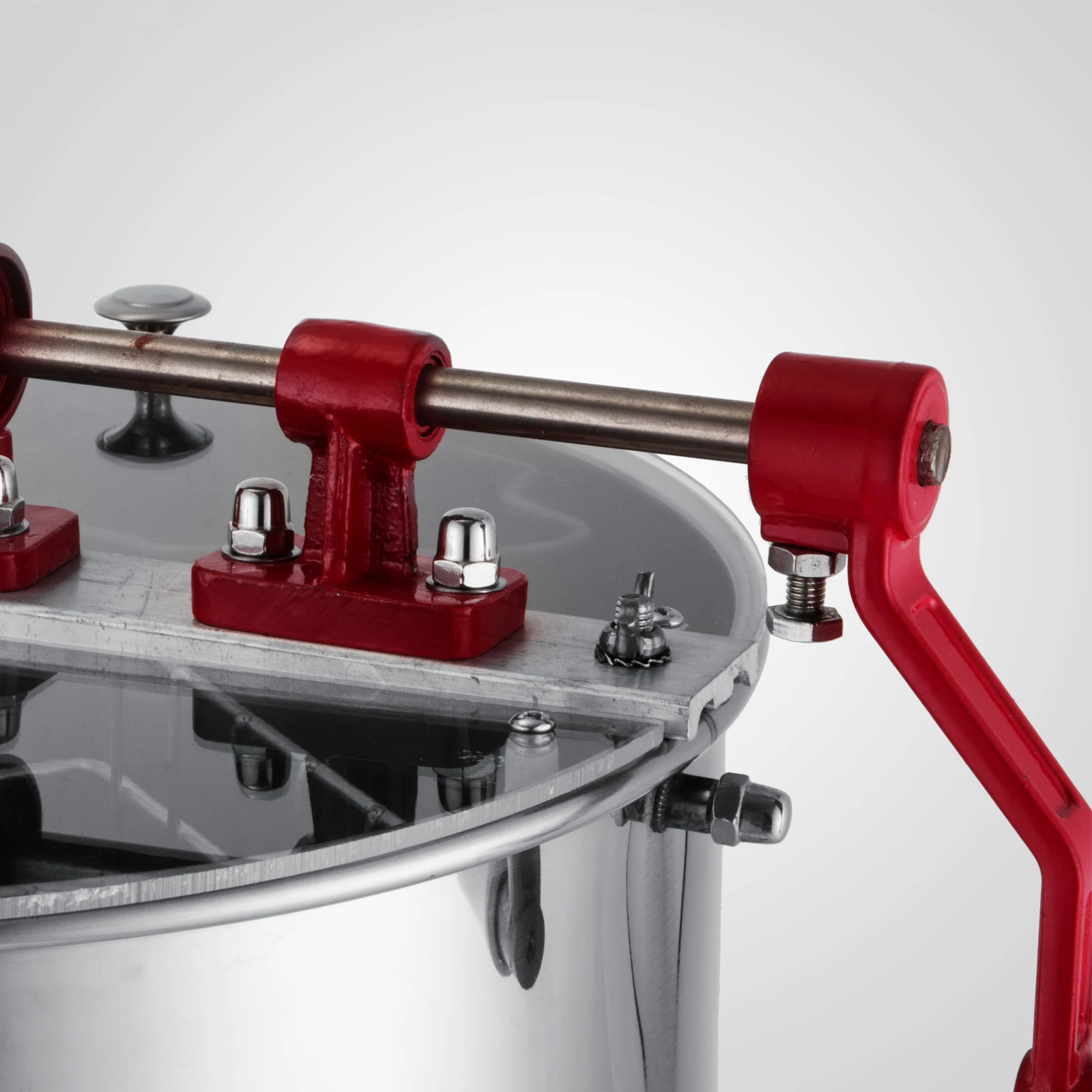

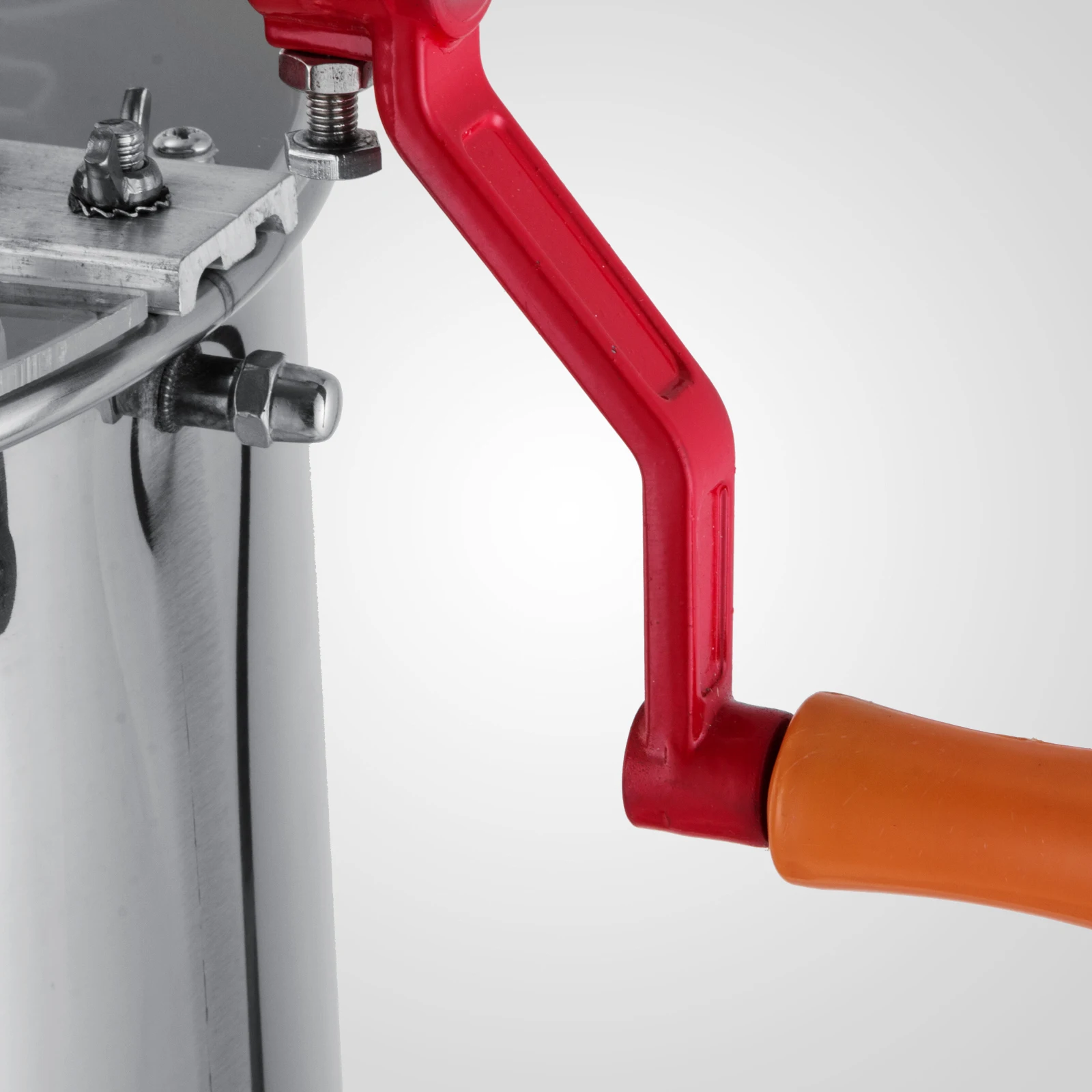

Our 3 Frame Honey Extractor is made from stainless steel and is machine rolled with seamless welding. this is a very durable extractor. The drum is 24 inches tall with a 15 inch diameter,With 3 stainless steel legs and a plastic honey gate. It also comes with 2 clear perspex lids to allow observation during the extraction process.Measuring 38cm in diameter and 85cm high it is suitable for the hobbyist bee keeper, this is a tangential extractor. Legs & crank handle assembly required. This food grade stainless steel 3 Frame Honey Extractor is easy and simple to use. Being a three frame extractor, it is ideal for the hobbyist or small apiarist. Unlike other cheaper ones, the extractor has three stainless steel legs. The extractor consists of a food grade stainless steel drum that is machine rolled (which means no sharp edges, unlike some of the other honey extractors on the market) It also comes with two clear perspex lids to allow inspection of the extraction process while harvesting the honey. The honey gate at the bottom of the tank allows the honey to flow at your will, into a container or settling tank ready for filtering and bottling.
Product Features:
3-frame stainless manual honey extractor tank with legs/stand.
Made from High Grade Stainless Steel.
This is a very durable and all around well built extractor.
Total height including the stand is 34 inches.
The drum is 24 inches tall with an 15 inch diameter.

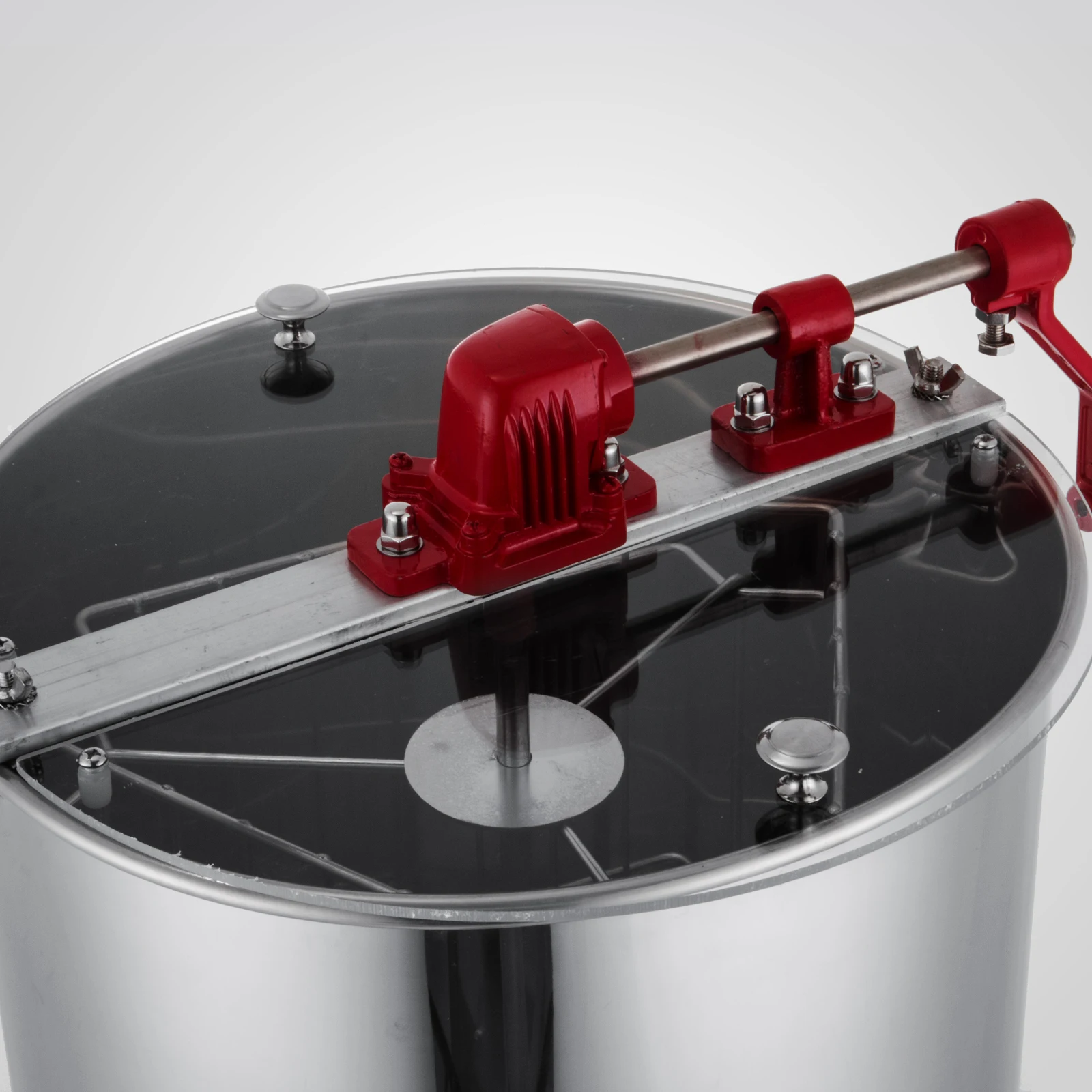

The honey extractor has 2 clear Plexiglas top lids to keep debris out while the honey is draining.

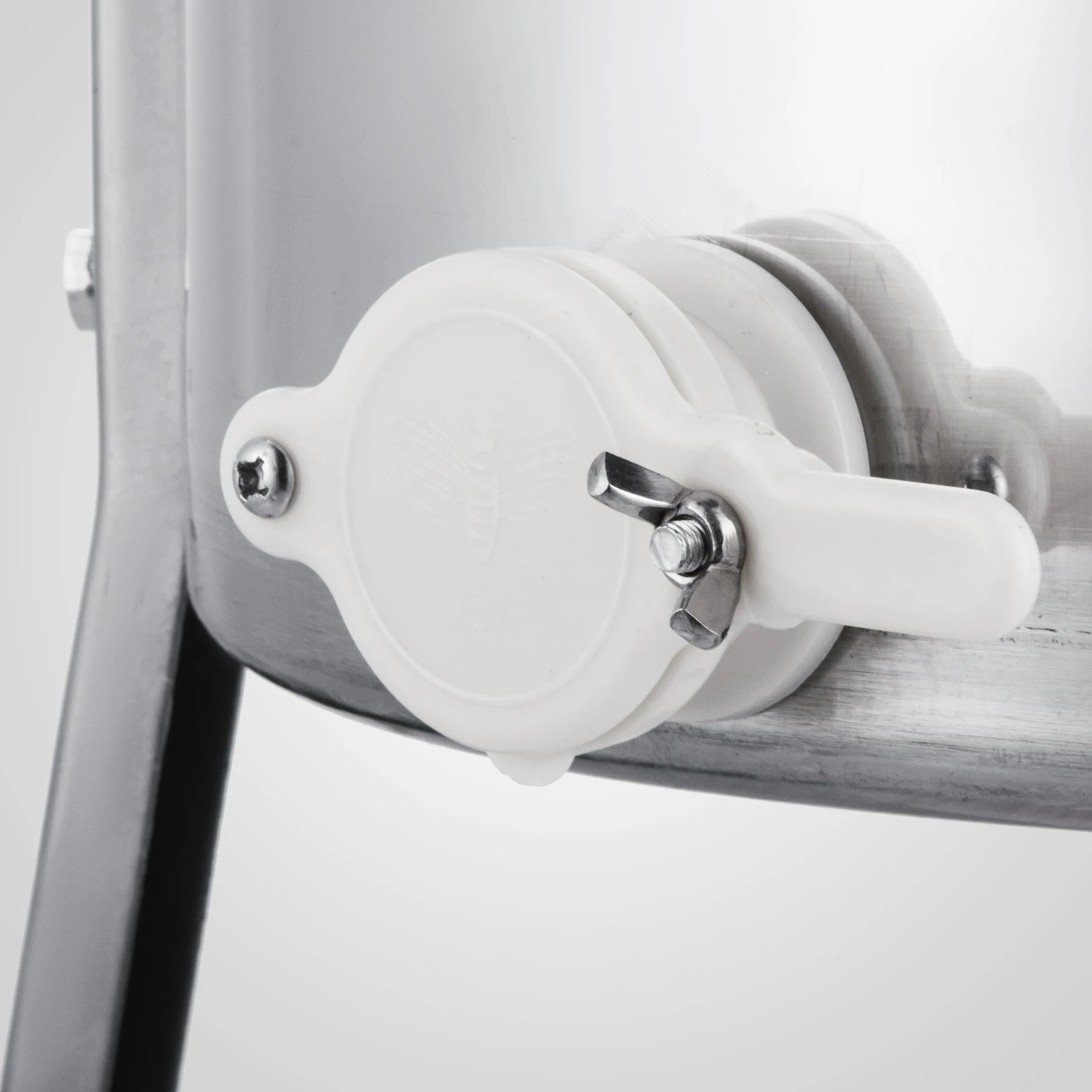

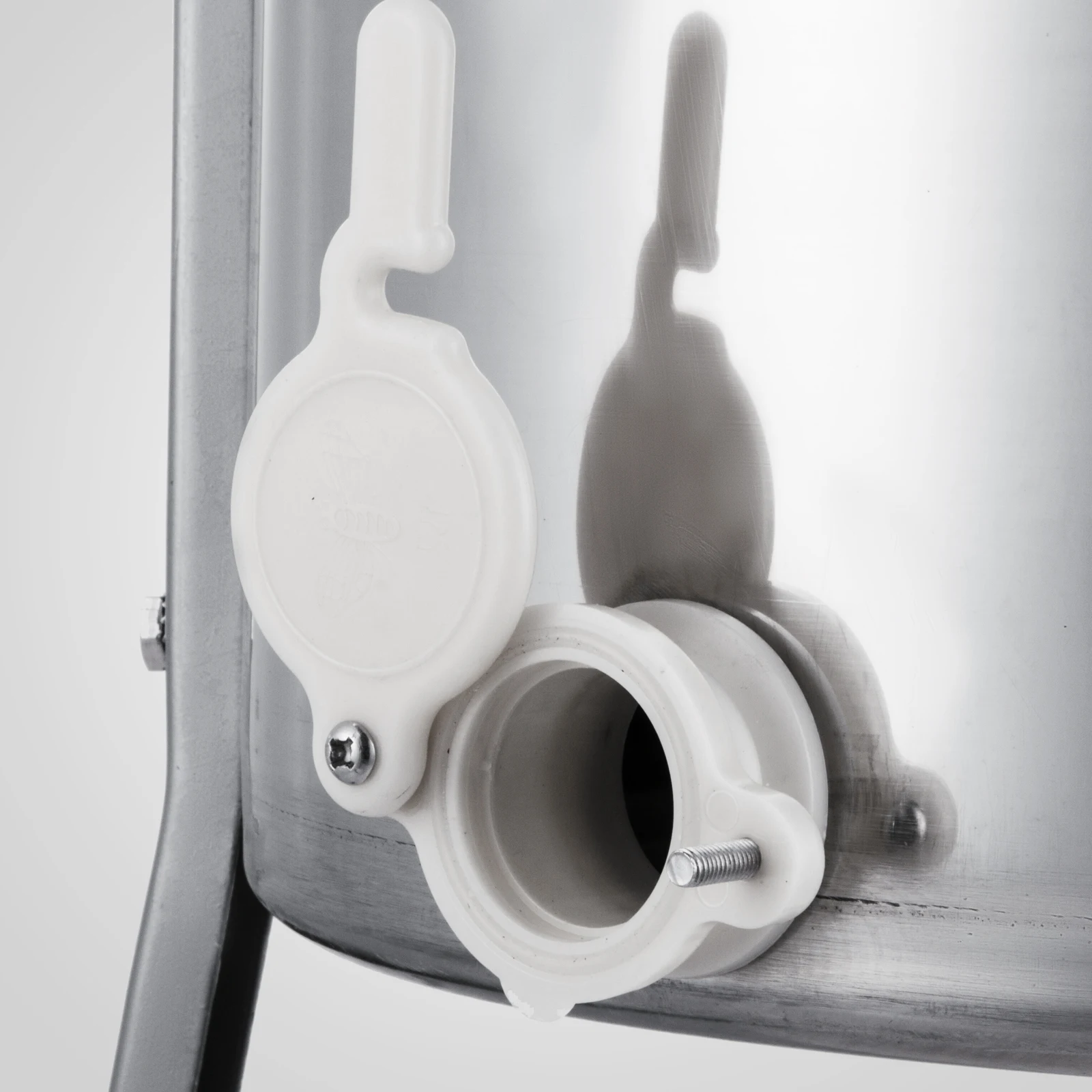

The bottom inside of the drum is conical shaped and drains honey to the 2-inch outlet with stopper/honey gate.
The mesh of the honeycomb basket is slightly rounded to the inner side in order to avoid a break of honeybombs
Deep Frame size Fit Aprox 17" x 11"
Material: Food grade stainless steel
Drum Height: 24"
Drum Diameter: 15"
Frame No.: 3 Frame
Honey Gate Valve Tap Outlet: 2"
size: 15" x 15" x 34" / 38 cm x 38 cm x 85 cm
Weight: 28.6lb / 13kg
Product Images for Details:
