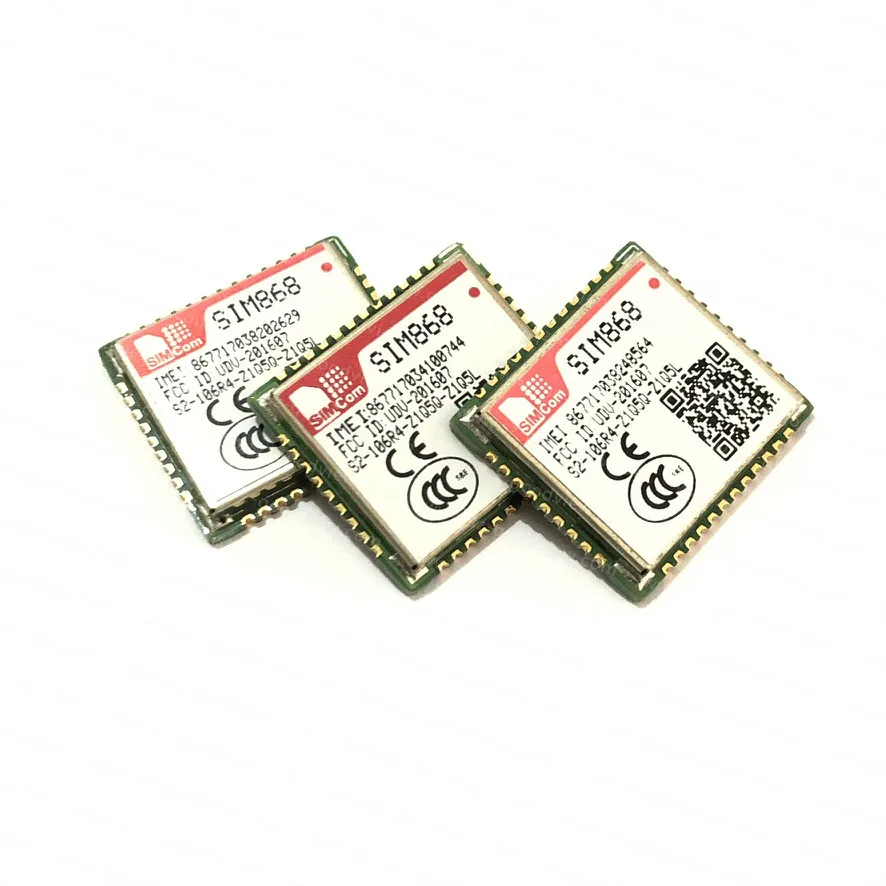

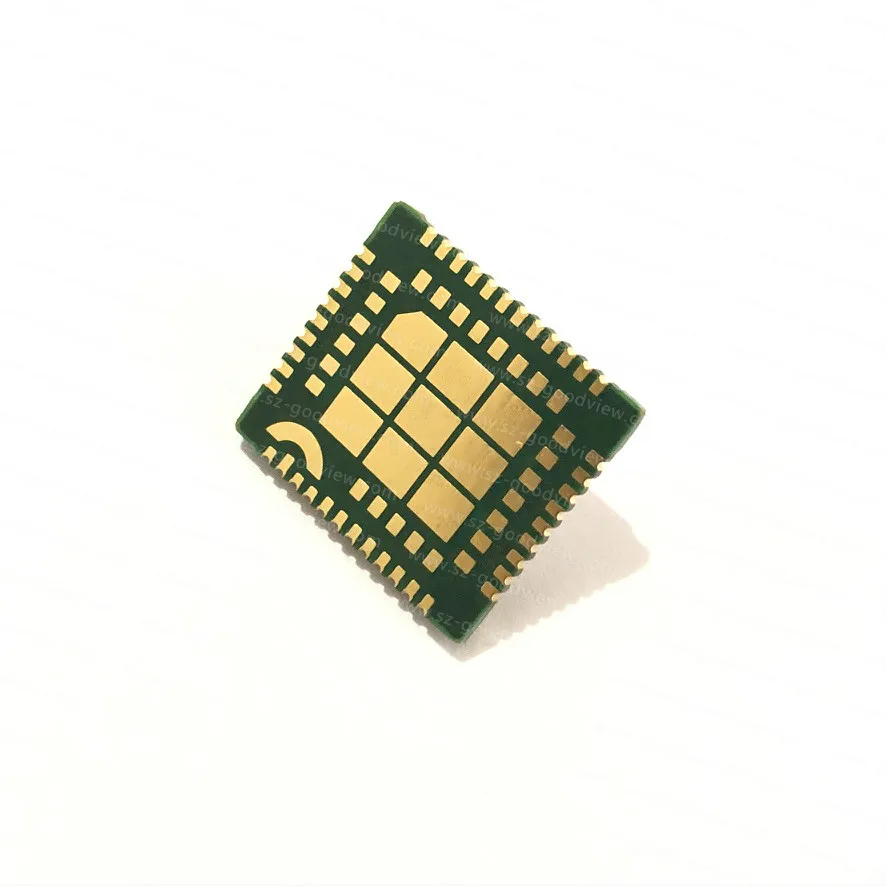

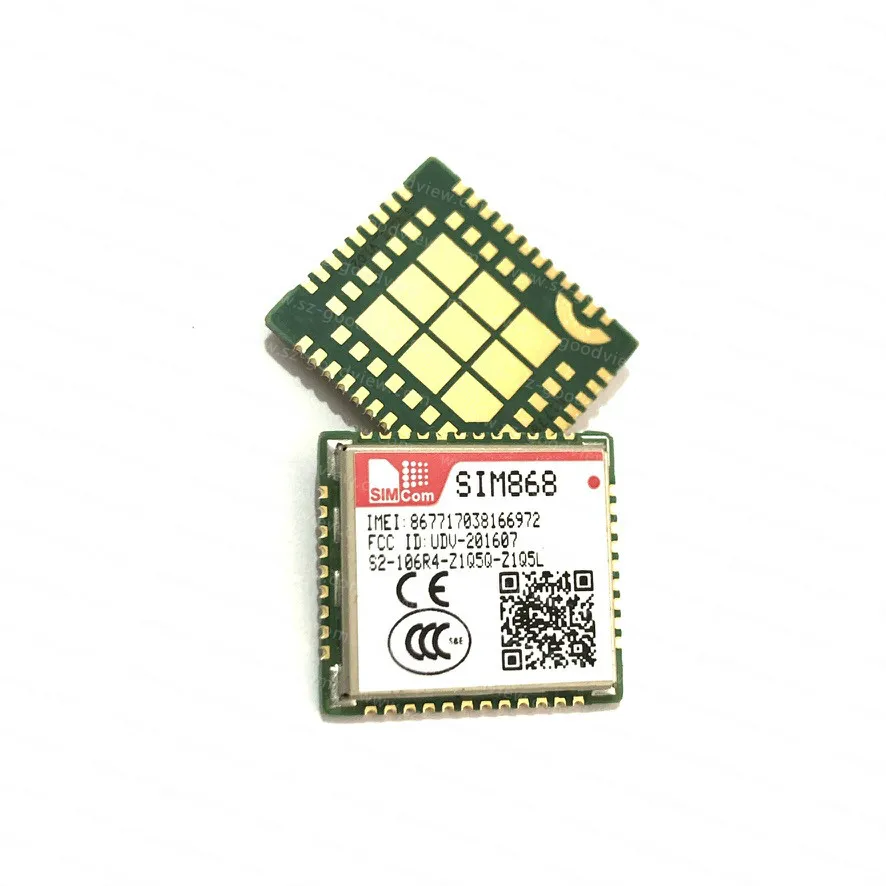

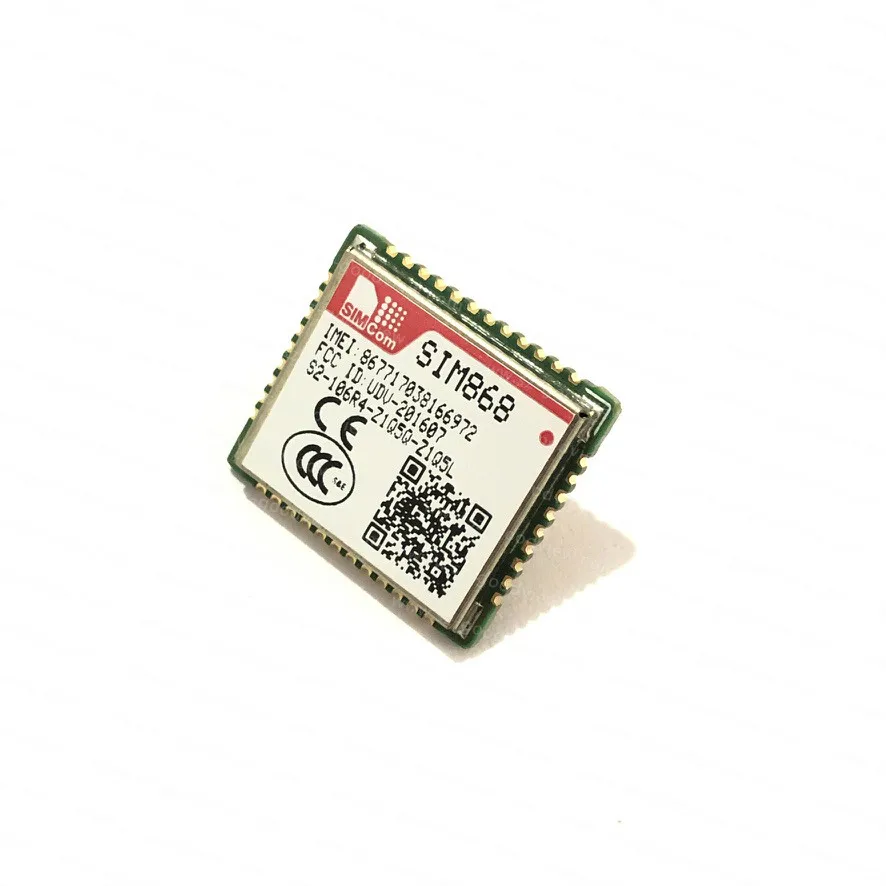

Small Size 3G SIM 868 sim868 gsm/gprs gnss module
SIM868 is a complete Quad-band GSM/GPRS solution in a SMT type, which can be embedded in the customer applications.
General features
• Quad-band 850/900/1800/1900MHz
• GPRS multi-slot class 12/10
• GPRS mobile station class B
• Compliant to GSM phase 2/2+
–Class 4 (2 W @ 850/900MHz)
–Class 1 (1 W @ 1800/1900MHz)
• Dimensions: 17.6*15.7*2.3mm
• Weight: 4.5g
• Control via AT commands
(3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands)
• Supply voltage range 3.4 ~ 4.4V
• Low power consumption
• Operation temperature:-40℃ ~85℃
Specifications for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD
Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
Compatibility
• AT cellular command interface
Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• POP3/SMTP
• DTMF
• Jamming Detection
• Audio Record
• SSL
Specifications for voice
• Tricodec
–Half rate (HR)
–Full rate (FR)
–Enhanced Full rate (EFR)
• AMR
–Half rate (HR)
–Full rate (FR)
• Hands-free operation (Echo suppression)
Interfaces
• 68 SMT pins including
• Analog audio interface
• RTC backup
• USB interface
• Serial interface
• Interface to external SIM 3V/1.8V
• GPIO
• ADC
• GSM Antenna pad
Compatibility
• AT cellular command interface
Certifications
• CE
• FCC
• GCF
• TA
• ROHS
• REACH
• CTA
• CCC
