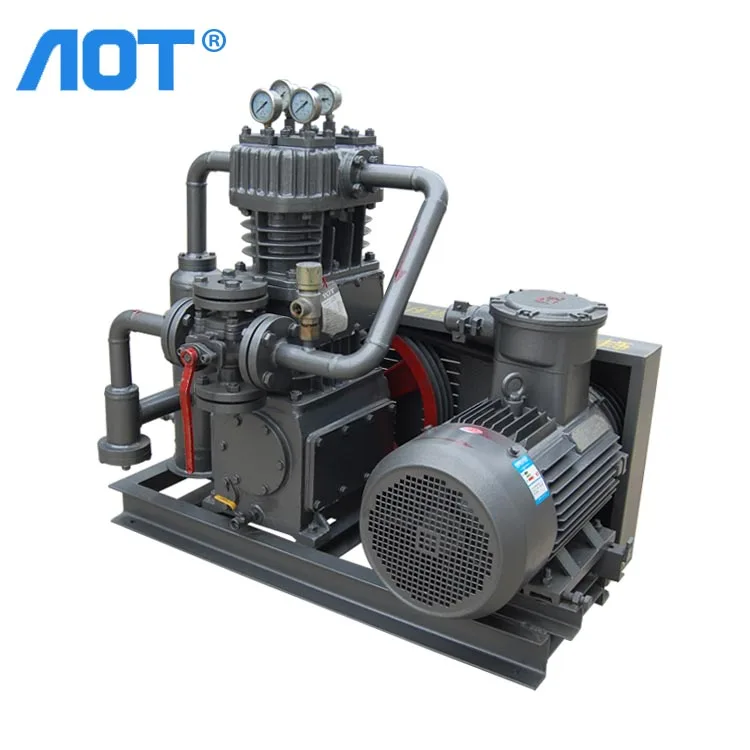

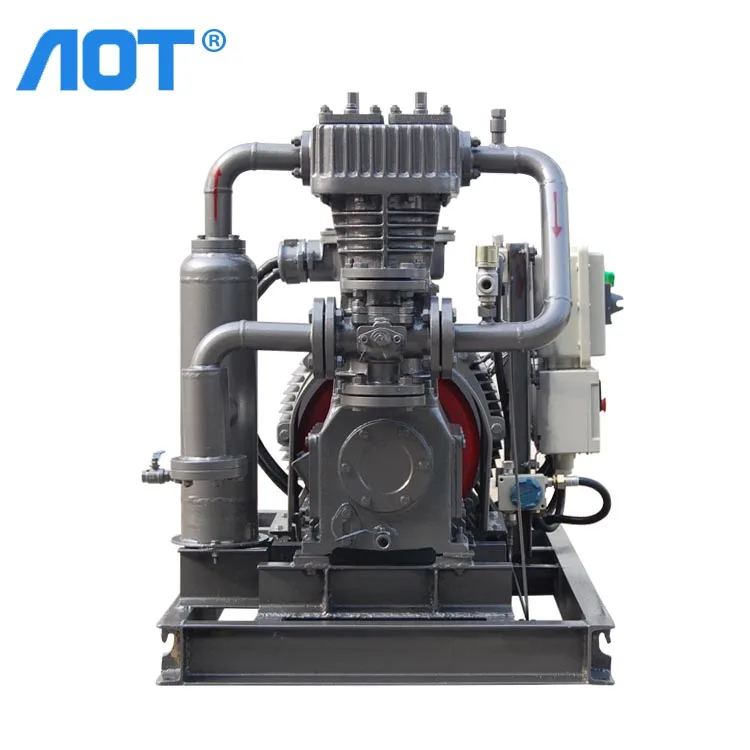

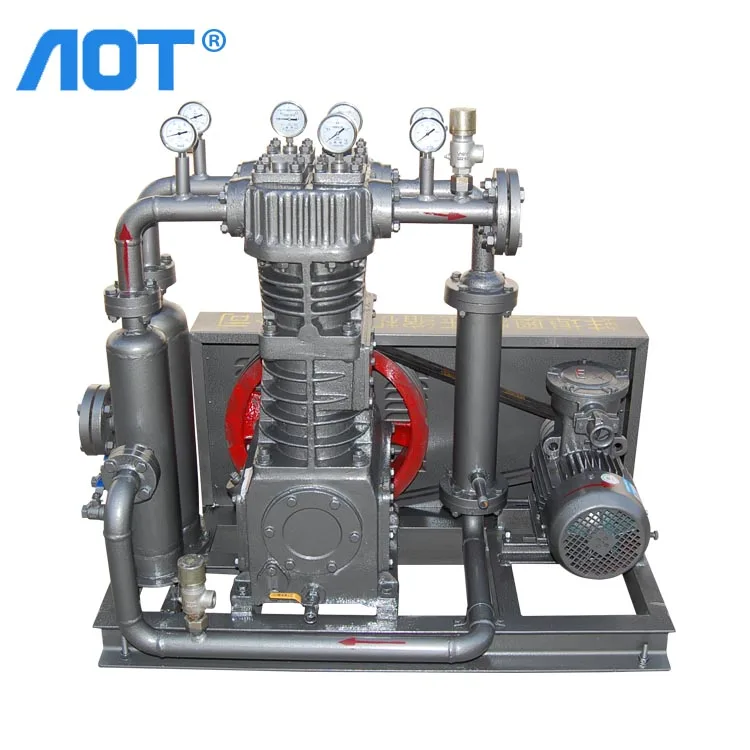

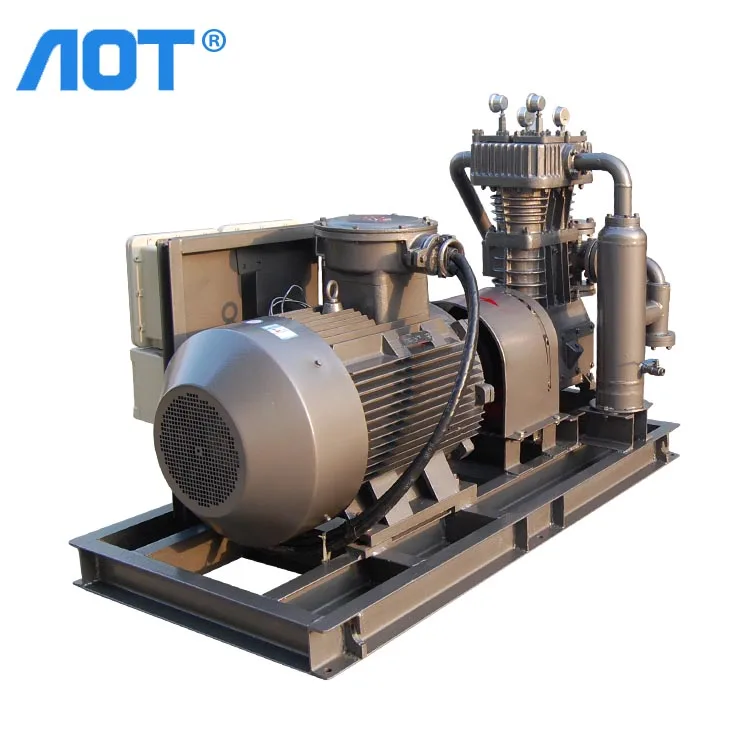

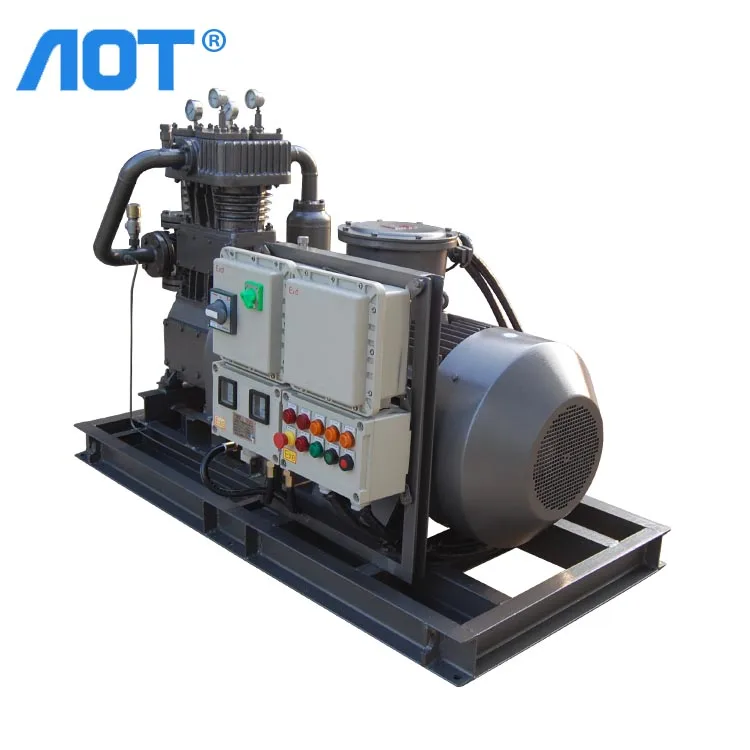

Suncenter gas air compressor with max 50 Mpa pressure
US $2000-$15000
ZW 0.89/1,5 компрессор для извлечения дыма, поршневой компрессор, Промышленный газовый компрессор
- Category: General Industrial Equipment >>>
- Supplier: Bengbu AOT Compressor Co. Ltd.
Share on (60782706164):
Product Overview
Description
ZW-0.95/3-8 smoke compressor,Diaphragm type compressor,Associated Gas Compressor
Compressor
| Product Model | ZW-0.89/1.5 | |
Type | Z Type | ||
Compressed medium | smoke gas | ||
Nominal volume flow(m³/mim) | 0.89 | ||
Compression stage | 1 | ||
Cylinder number | 2 | ||
driving mode | belt
| ||
Noise (sound pressure level) dB(A) | ≤85 | ||
Cooling mode |
water cooling | ||
Rotational speed (r/min) | 550 | ||
Suction pressure (MPa G) | 0 | ||
Discharge Pressure (MPa G) | 0.15 | ||
Suction temperature (℃) | ≤30 | ||
Discharge temperature (℃) | ≤160 | ||
Lubrication type |
Crankshaft, connecting rod, cross head | Oil lubrication | |
Cylinder, Packing | Oil-free lubrication | ||
Motor
| Model | Y3-132S-4 | |
Explosion-proof grade
| DIIBT4 | ||
Rotational speed (r/min) | 1450 | ||
Rated voltage (V) | 380 | ||
Rated frequency(Hz) | 50 | ||
Rated current (A) | 11.6 | ||
Rated power (Kw) | 5.5 | ||
Compressor size (L×W×H) mm | ≈1100×900×1000 | ||
Weight(kg) | ≈400 | ||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
No. | Name | number | note |
1 | Compressor host | 1 |
|
2 | motor | 1 |
|
3 | Gas-liquid separator | 1 |
|
4 | water cooler | 1 |
|
5 | Shared chassis | 1 |
|
6 | belt | 1 set |
|
7 | Piping components | 1 set |
|
8 | Random spare parts | 1 set |
|
9 | The technical documentation | 1 set |
|
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a suitable gas compressor.
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. Natural gas compressor application:
If you are interested in it,please contact me freely
