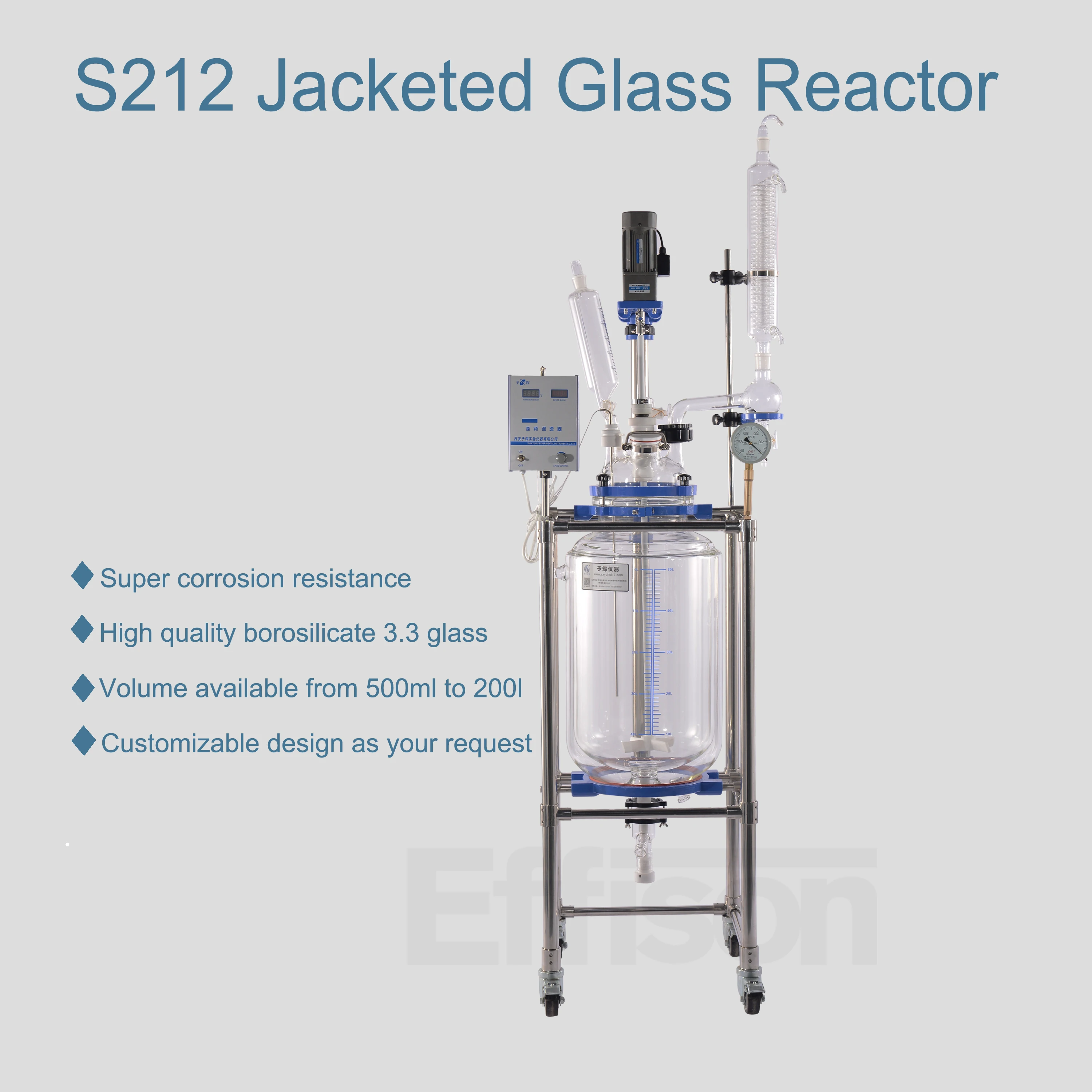

Best Price Lab Double Layer Glass Reactor For Distillation

Product Overview

Description

Effison S212-series Double Layer Glassware is designed for synthetic reaction of different types of materials in a controlled temperature and vacuum environment. Each reactor features adjustable stirring speeds and a constant pressure feeding funnel that allows you to add material to the vessel at a uniform and controlled speed. The built-in condenser makes it possible to recover some materials, also at a controlled rate of speed.



Features of Double Layer Glassware:

1. Solvent-resistant PTFE on all sealing components ensures long time durability and operation.
2. All glassware is hand-made from food grade high borosilicate glass that is heat/cold/corrosion-resistant.
3. Adjustable stirring rate provides great torque or high speed.
4. Patented PTFE stirring rod bearing for reliable and quiet operation.
5. Wide range of temperature operations, from -110°F to 400°F.
6. Large condenser cooling surface for exceptional condensation performance.
7. Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.
8. Easily visual operation with digital speed and temperature displays.

Specifications of Double Layer Glassware:

Model	S212-10L	S212-20L	S212-30L	S212-50L	S212-100L	S212-150L	S212-200L
Vessel Capacity	10L	20L	30L	50L	100L	150L	200L
Jacketed Volume	3L	6L	10L	16L	30L	35L	40L
Glass Material	GG-17 High borosilicate glass 3.3
Port nos. on Cap	6
Motor Power	90W	90W	90W	120W	180W	400W	750W
Rotation Speed	0~680rpm
Sealing	PTFE+quick-release connection
Discharge	PTFE botoom discharge valve
Voltage	Single phase,220V 50Hz, Single phase, 110V, 60Hz
Optional	Ex-proof motor, collection flask, vacuum gauge
Other	Customized reactor is available
