NY D02 100A 40A Double Pulse Encoder Spot welder Welding Machine Time Current Controller Control Panel Board

Product Overview

Description

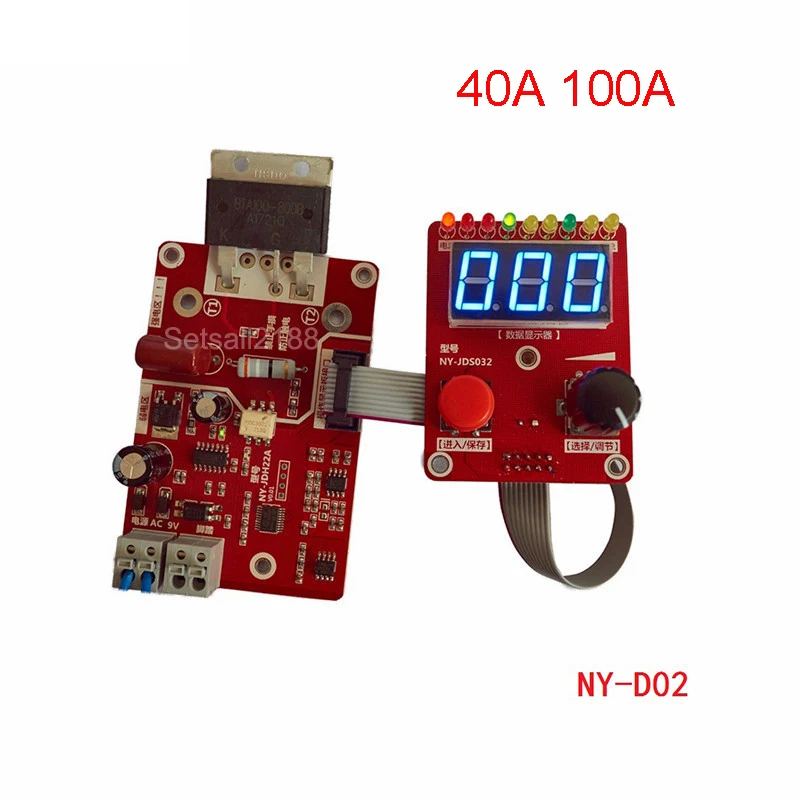

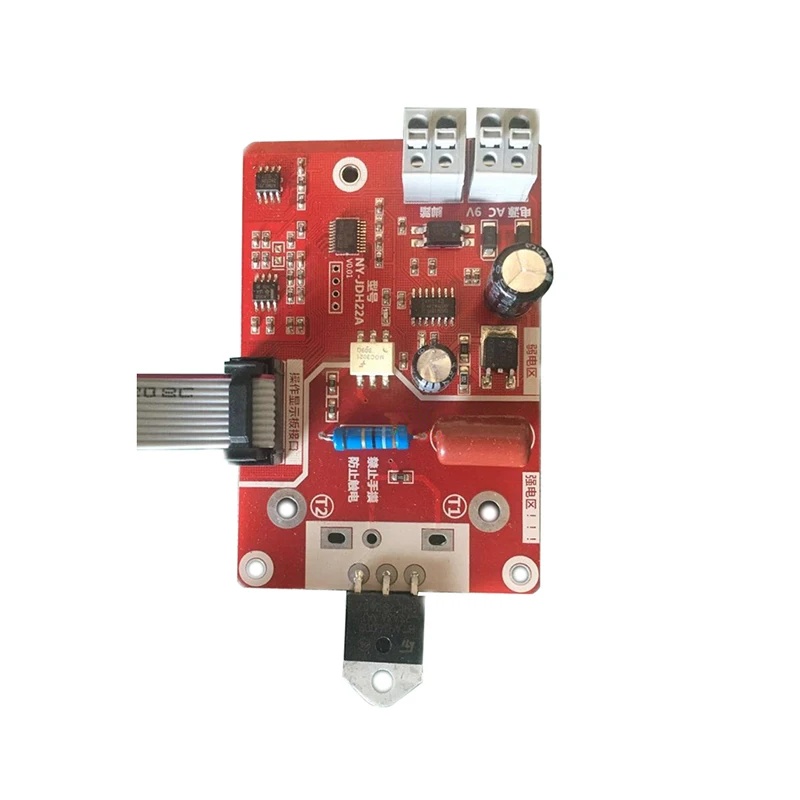

NY-D02 100A 40A Double Pulse Encoder Spot Welding Machine Time Current Controller Control Panel Board Adjustable Digital Display



Note:this controller has 40A 100A version



The control panel of the spot welding machine is a controller which is independently developed for the DIY or the simple resistance welding.

The principle of silicon controlled phase shifting triggering is adopted to adjust the time and the current to achieve the purpose of welding.

Features:



1: welding pulse for single and double pulse can be switched to use, any one welding time is set to 0, can become a single pulse welding

2: with network voltage compensation, according to the changes in electricity, automatically adjust the output to ensure that the same parameters in the welding with the same heat to maintain the same, the solder joint

3: parameter adjustment for the encoder input mode, more accurate and convenient

4: with the welding count function, counting range 0-999, so you do the welding "heart", and can be saved.

5: time input 0-100 cycles, unit cycle (1 cycle is 20ms) current input (300-999). The current adjustment step is 0.1% and the regulation is more subdivided. If there are other ranges required, you can customize it.

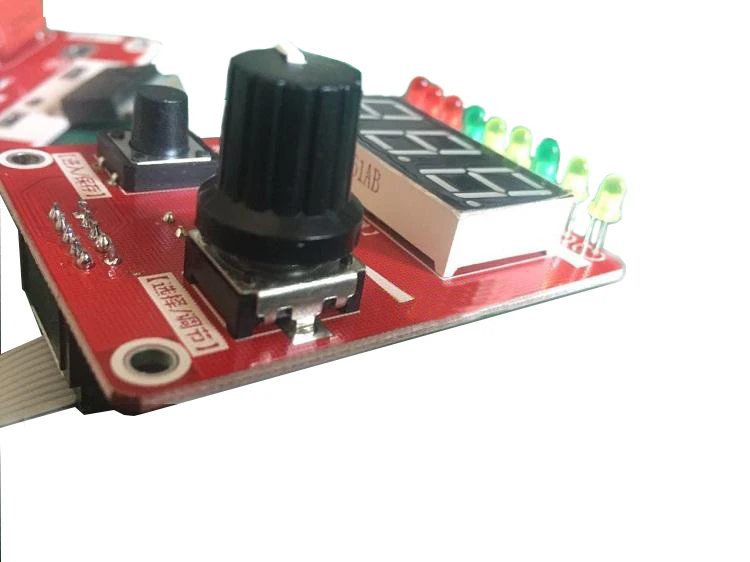

6: 3 blue 0.56 inch digital tube, the size of the browser than the knob control version of the large, our knob knob digital tube is 0.36 inches.

7: Onboard power, pedal, trigger, run, time, current, interval, time, current indicator, so that each state has a clear indication

8: the whole board using STM8 industrial microcontroller to do the main control core
9: strong and weak through the optocoupler isolation, operation more secure.
10: power cord and foot switch line with screw-free terminal, more convenient and reliable
11: design a reliable zero-crossing detection circuit to ensure that the SCR phase shift accurate
12: The controller is compatible with 100A-40A thyristor



   time input 1-99, unit cycle (1 cycles is 20ms)

    Welding output: double pulse
    Regulator function: yes
    Counting function: yes
    Power-off save function: Yes



		NY-D01	NY-D02
1	power supply	AC 9-12V 50/60HZ	AC 9-12V 50/60HZ
2	Display	0.36	0.56
3	time range	1-50	1-99
4	current range	30-99	300-999
5	Welding output	single pulse	double pulse
6	Regulator function	no	yes
7	Counting function	no	yes
8	Power-off save function	yes	yes
9	Canonical groups	1	1
