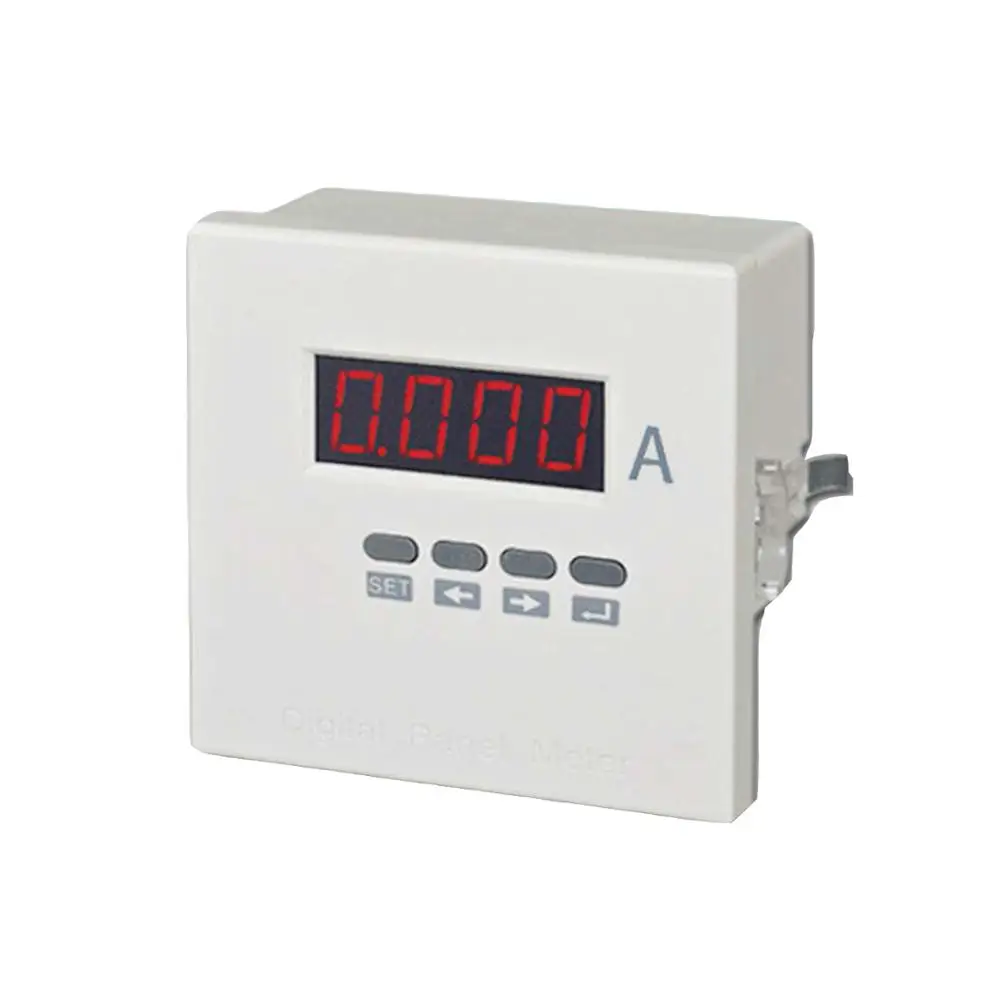

PM1000 digital single phase panel meter
- Category: Panel Meters >>>
- Supplier: Zhejiang Eastron Electronic Co. Ltd.
Share on (60782953558):
Product Overview
Description
Introduction
The Eastron PM1000 series digital single phase panel meters adopt alternating current sampling techniques, which enables it to measure voltage,
current, Frequency, Power, Power Factor in the grid. It is convenient to install, easy to wire, and simple to maintain, and it is an upgrade product of
various tyes of the pointer header.

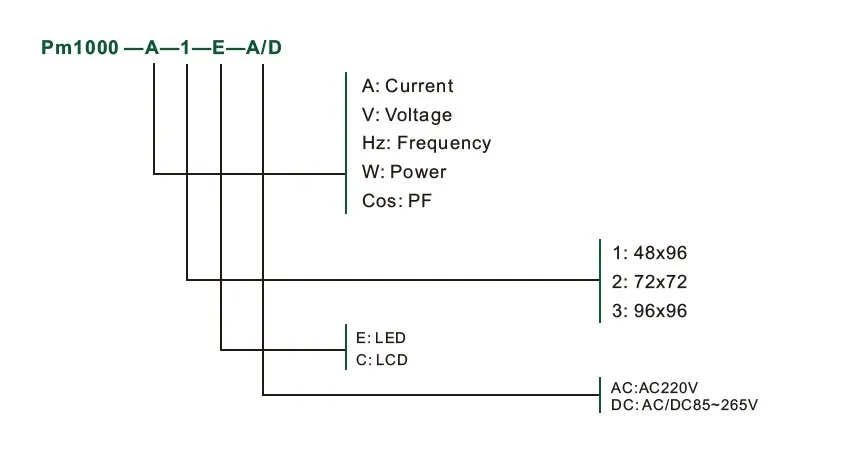

Model options
Specifications
| Specification | |
| Rated voltage | AC 0-600V, DC 0-1000V |
| Rated current | AC1A / 5A, DC 0-10A |
| Power consunption | 1.2 times ( Continued), 2 times/ second ( instantaneous) |
| Impedance | voltage: < 1VA / phase current:< 0.4VA / phase |
| Frequency | current : <20m |
| Auxiliary Power Supplly | 45~65 Hz or DC |
| Working Range AC 220V | |
| Power Consumption : <4VA | |
| Specification | |
| Operating humidity | ≤90% |
| Storage humidity | ≤95% |
| Operating temperature | -25°C~+55°C |
| Storage temperature | -40°C~+70°C |
| Reference temperature | 23°C~±2°C |
| Electromagnetic environment | E2 |
| Degree of pollution | 2 |
| Protection against penetration of dust and water | IP51 |
| ESD ( Electro- Static discharge) level | Class 4 |
| Electrical fast transient burst lever | Class 4 |
Wiring diagram
Energy management software EEMS
Certificates
