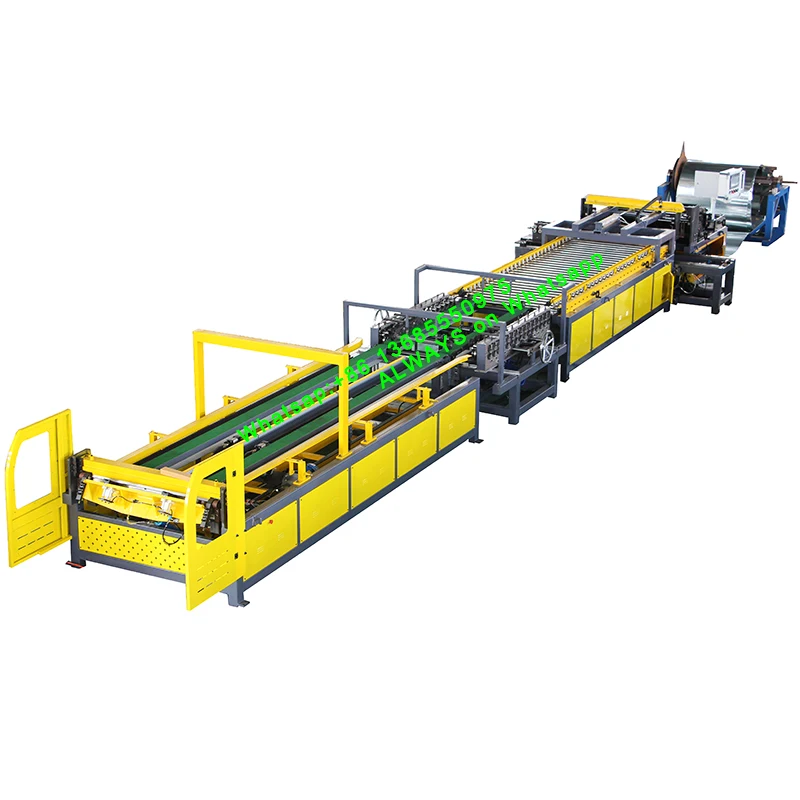

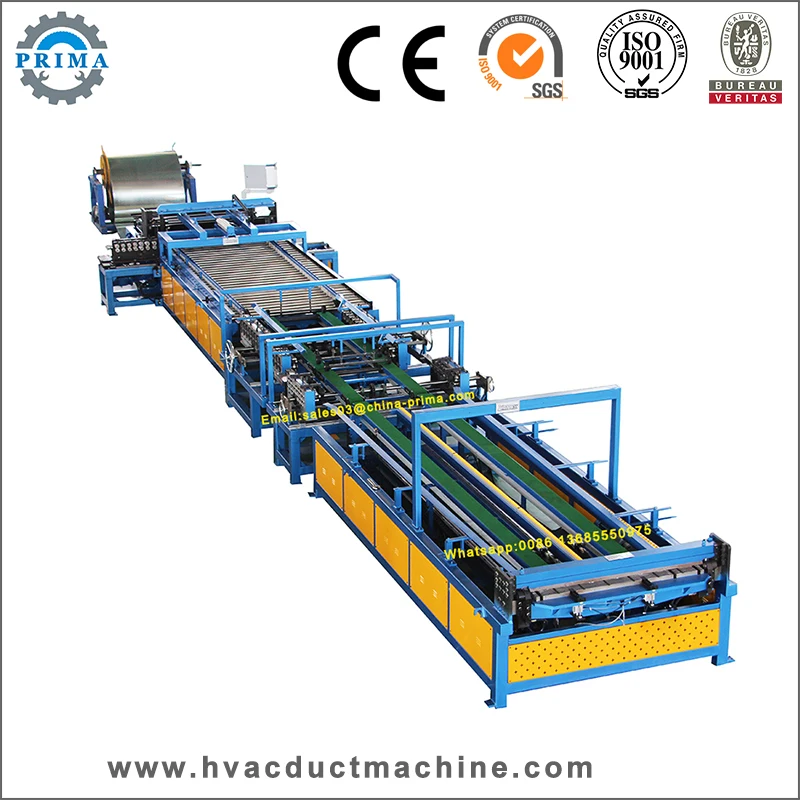

1.2mm Auto hvac duct line 5 air pipe making machine

Duct or Tube Fabricating Auto Line V can make TDF flange / angle steel flange / C-cleat flange forming. Daily capacity is 1000-2500 square meters.

Users just need to input different sizes that you need.It will automatically proceed decoiling, leveling, notching, shearing, Pittsburgh lock forming,

TDF/Angle steel flange forming and C-cleat flange and folding into rectangular ducts.

Main imported Parts:

MITSUBISHI HMI Display And PLC

MITSUBISHI Frequency Converter

Japan NEMICON Inverter

Taiwan Hydromax Pump

Taiwan High Temperature Resistant Tubing

Basic equipments:

2 pcs electric feeding coil candles (2900*1900*950 mm x 2), totally 4 material trays ( 5-8 tons each rolls)

1 pc material supporting frame

1 pc main machine auto line II, including leveling, beading, punching and cutting.

1 pc movable high-speed Pittsburgh lock forming machine

1 pc duplex angle steel flange forming machine

1 pc duplex TDF flange forming machine

1 pc servo motor power material feeder

1 pc hydraulic folding machine

1 pc CNC System and a set of production software

Automatic feeding table

 24 hours on-line services are provided,and engineers can be sent abroad if needed.

 1)5 years warranty,100% QC inspection Before Shipment.
 2)Reply within 2 hours and solution provided within 1 day.
 3)Payment: T/T,Western Union,MoneyGram,LC
 4)Delivery Time: within 7 days after receiving deposit
 5)MOQ: 1 pcs.
