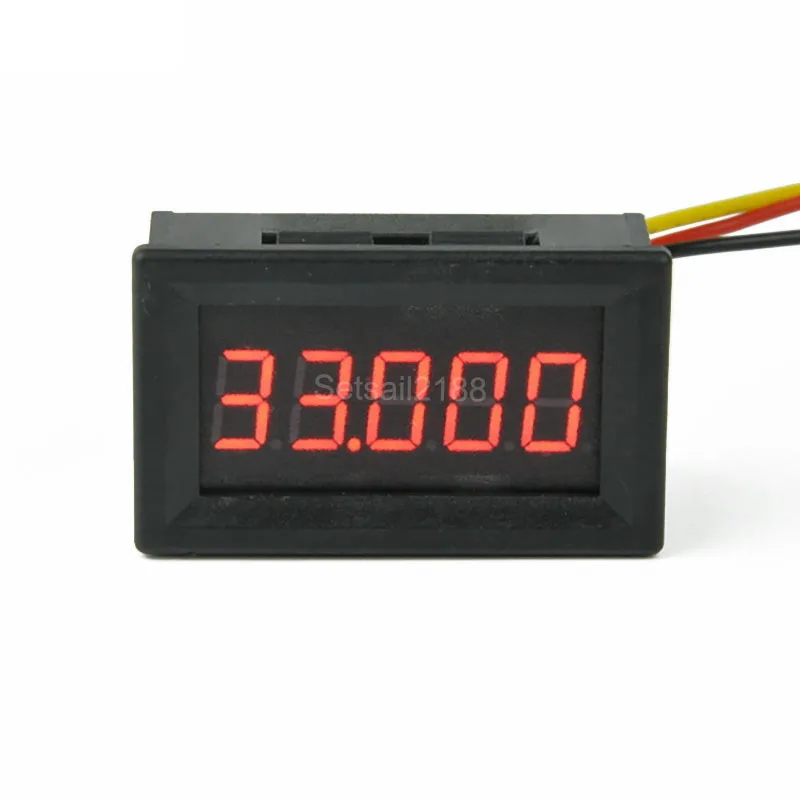

Digital DC 5 digit Voltmeter BY536V DC 0 9.9999V 33.000V 33V LED Voltage Volt Panel Meter Tester
- Category: Voltage Meters >>>
- Supplier: Shenzhen Setsail Business Co. Ltd.
Share on (60783290253):
Product Overview
Description

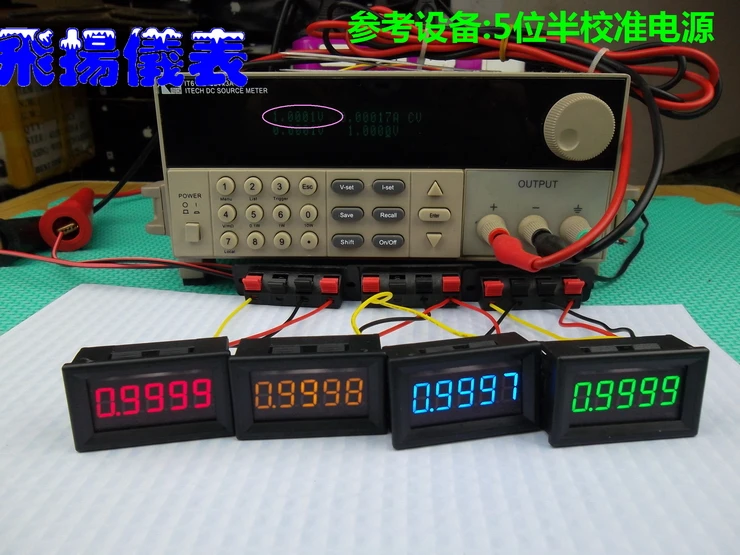

Digital DC 5 digit Voltmeter BY536V DC 0-9.9999V-33.000V 33V LED Voltage Volt Panel Meter Tester
Features :

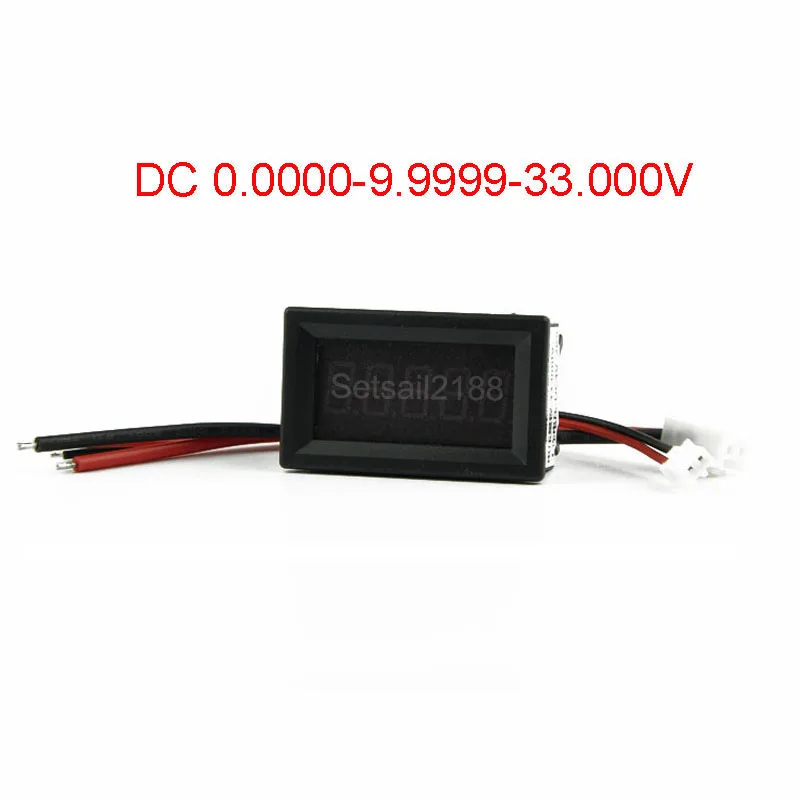

Measuring range: 0.0000-9.9999-33.000V
Operating temperatur e : -10℃~60℃
Working voltage: DC5-12V *2
Working current: <20mA

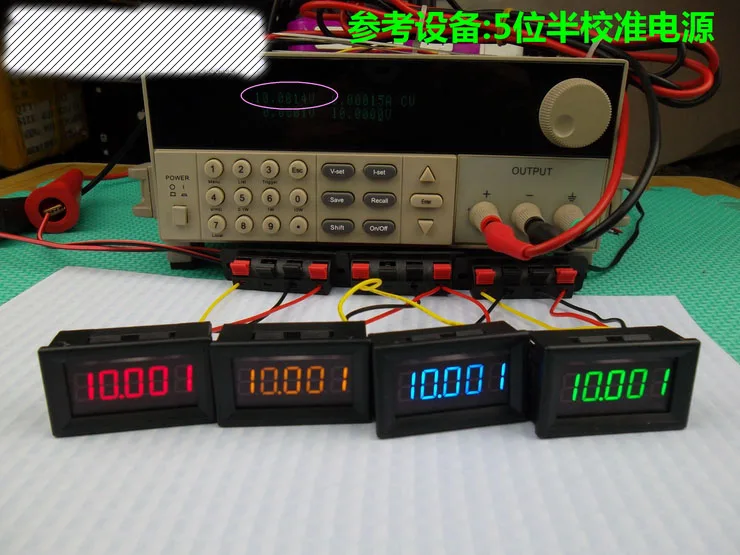

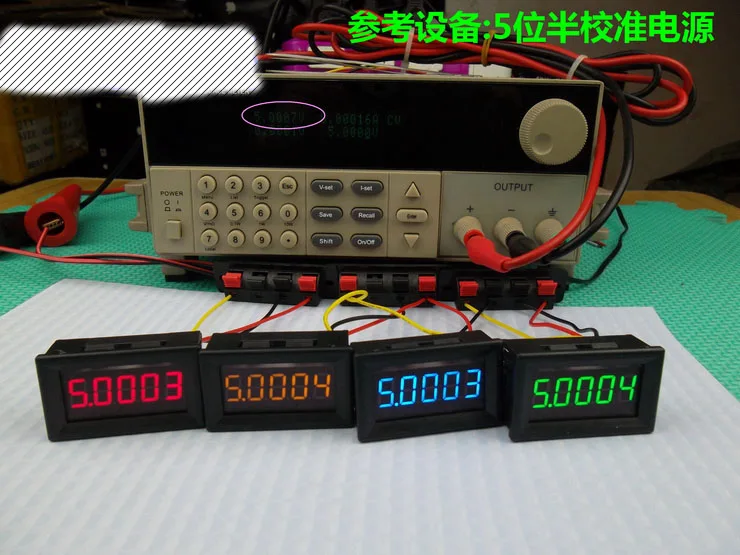

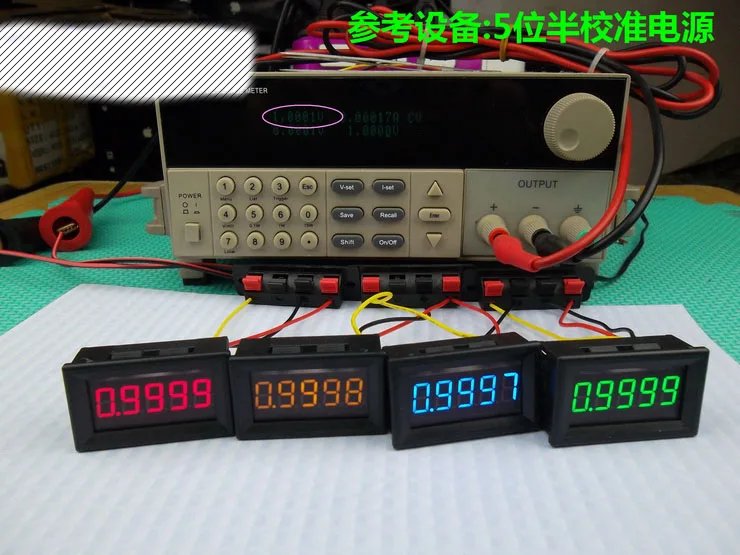

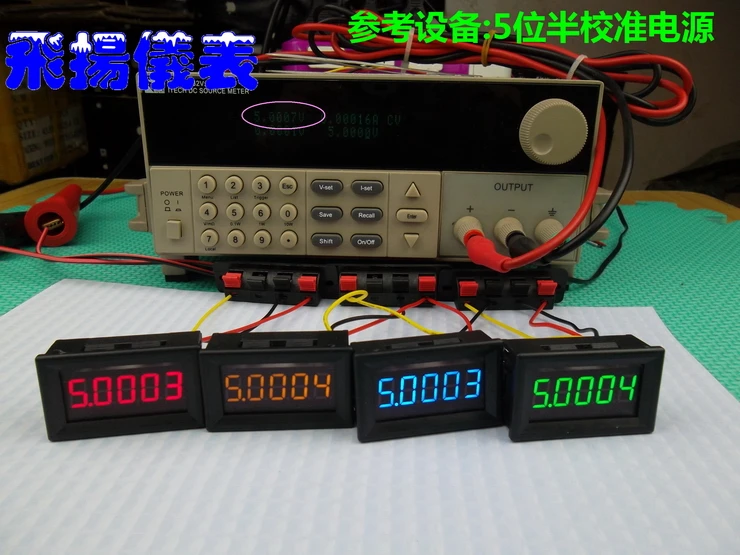

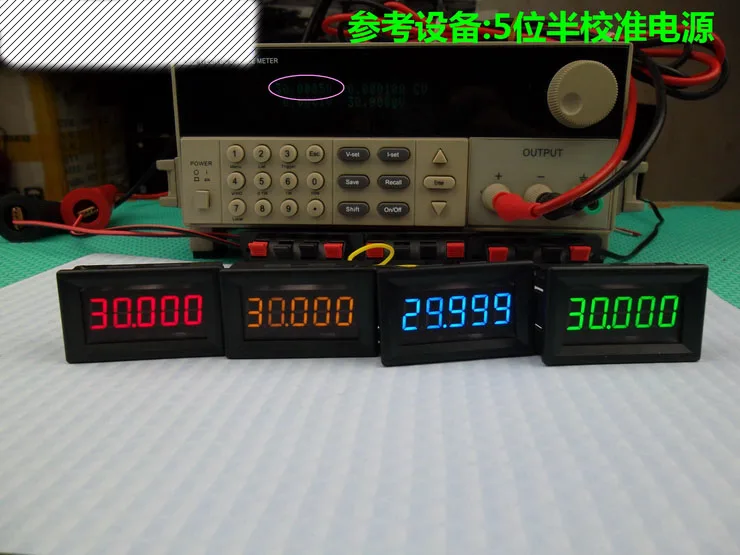

Measurement accuracy: 0.01%(+/-2)*3
Measure the impedance: 1MΩ
Refresh rate: 3 times/second
The net weight: 19g
Display mode:5 bit 0.56 inch LED
Display color: Red, blue green yellow

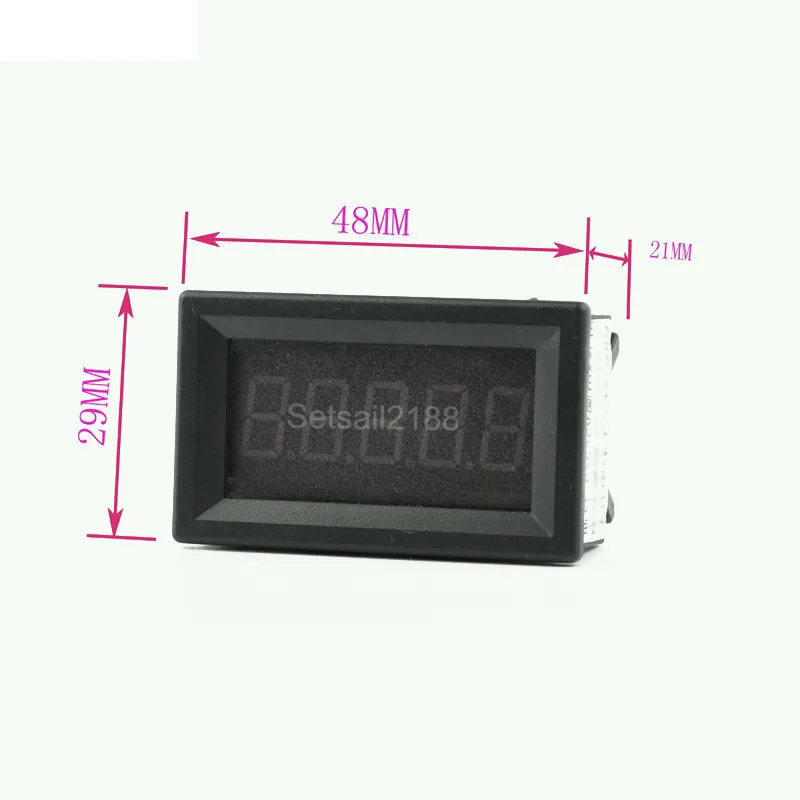

Overall dimensions:48MM*29MM*21MM(L*W*H)
Opening size: 45.5mm*26.5mm
Lead wire length: 13CM
Wiring method: black public negative pole, red instrument power supply, yellow measurement port
Advantage
*1:Automatically move the decimal point
*2:The instrument can work in dc4-28v, but it will be hot when it is above 12V and reduce the accuracy and life. Please use 5-12V power supply
*3:In the worst case, the error is no more than 10mV. In general, the error is about 2mV.
Package
1*Digital DC Voltmeter Voltage Volt meter
