Product Overview
Description
Product Overviews

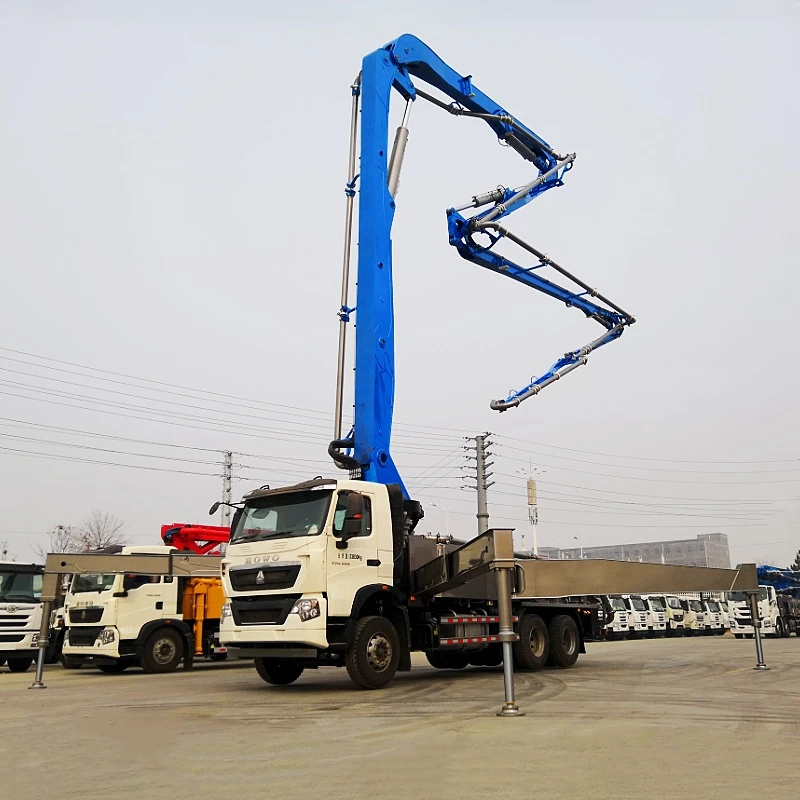

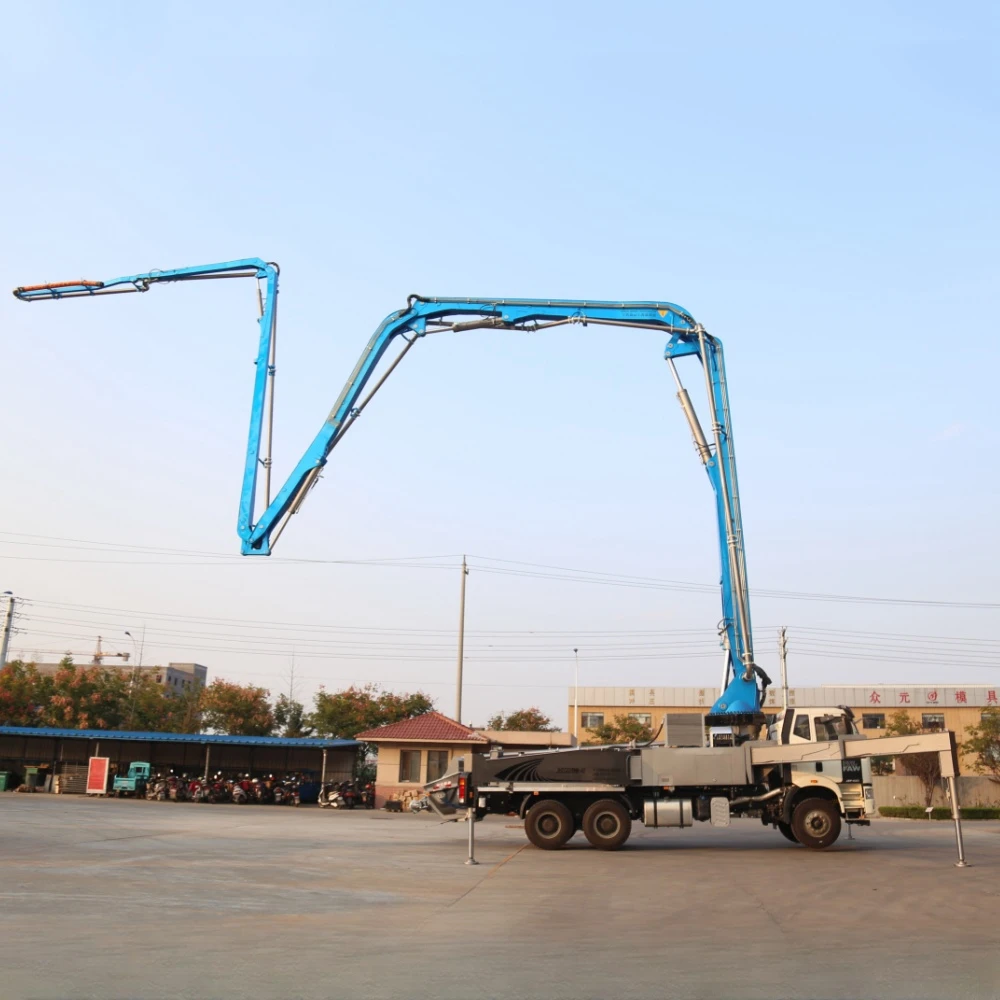

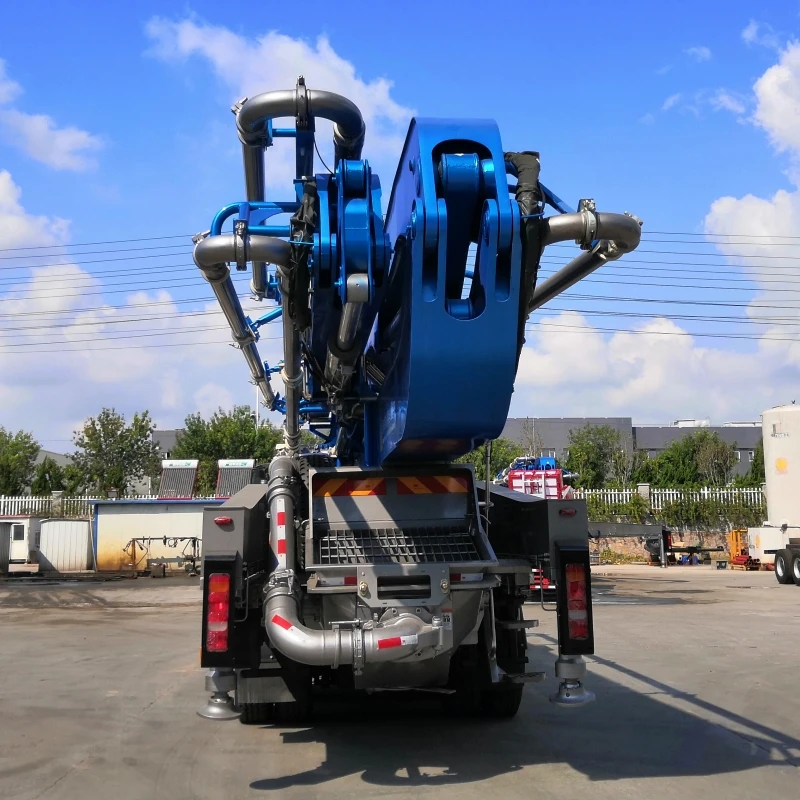

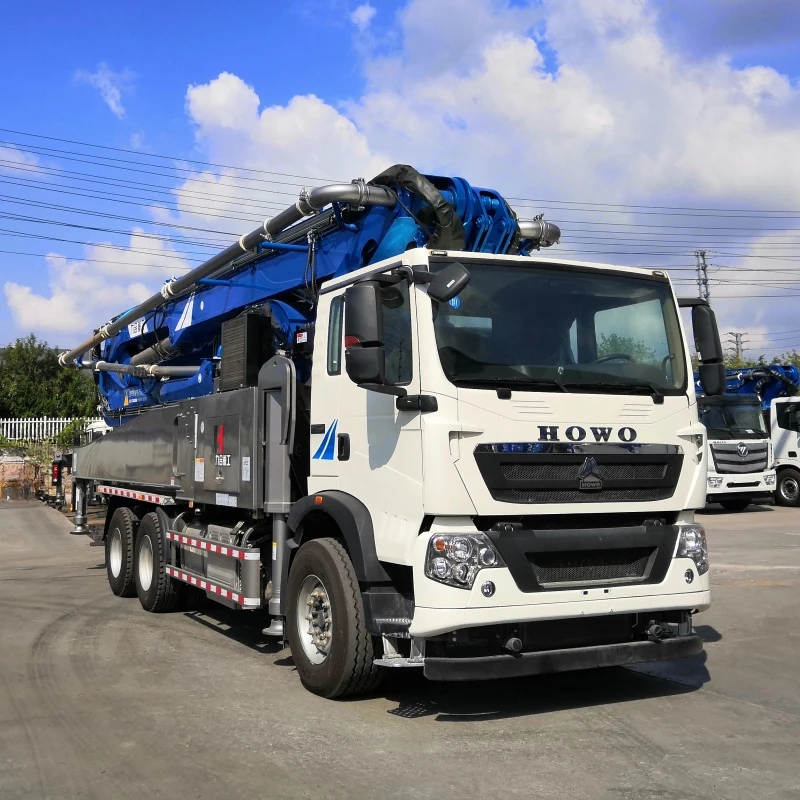

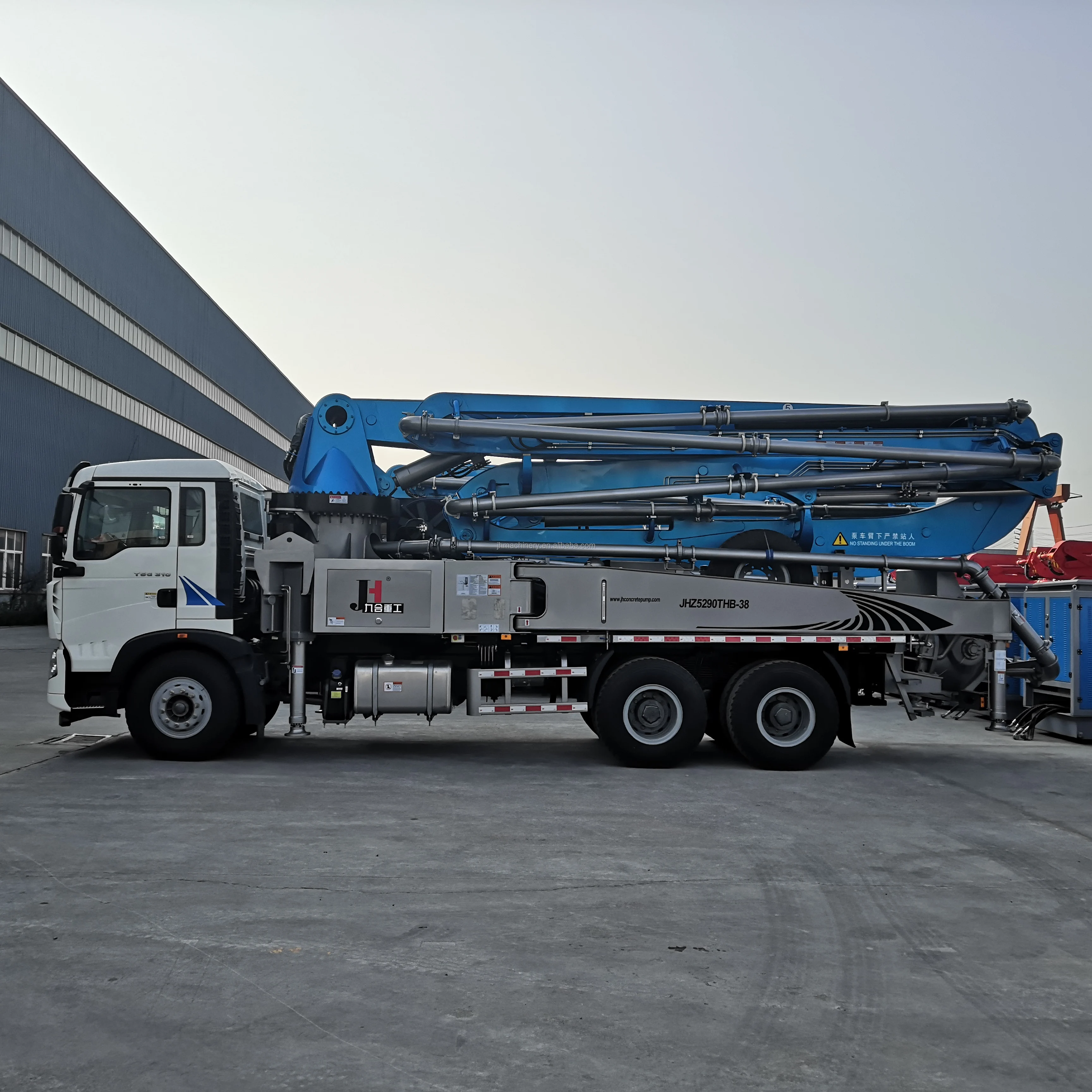

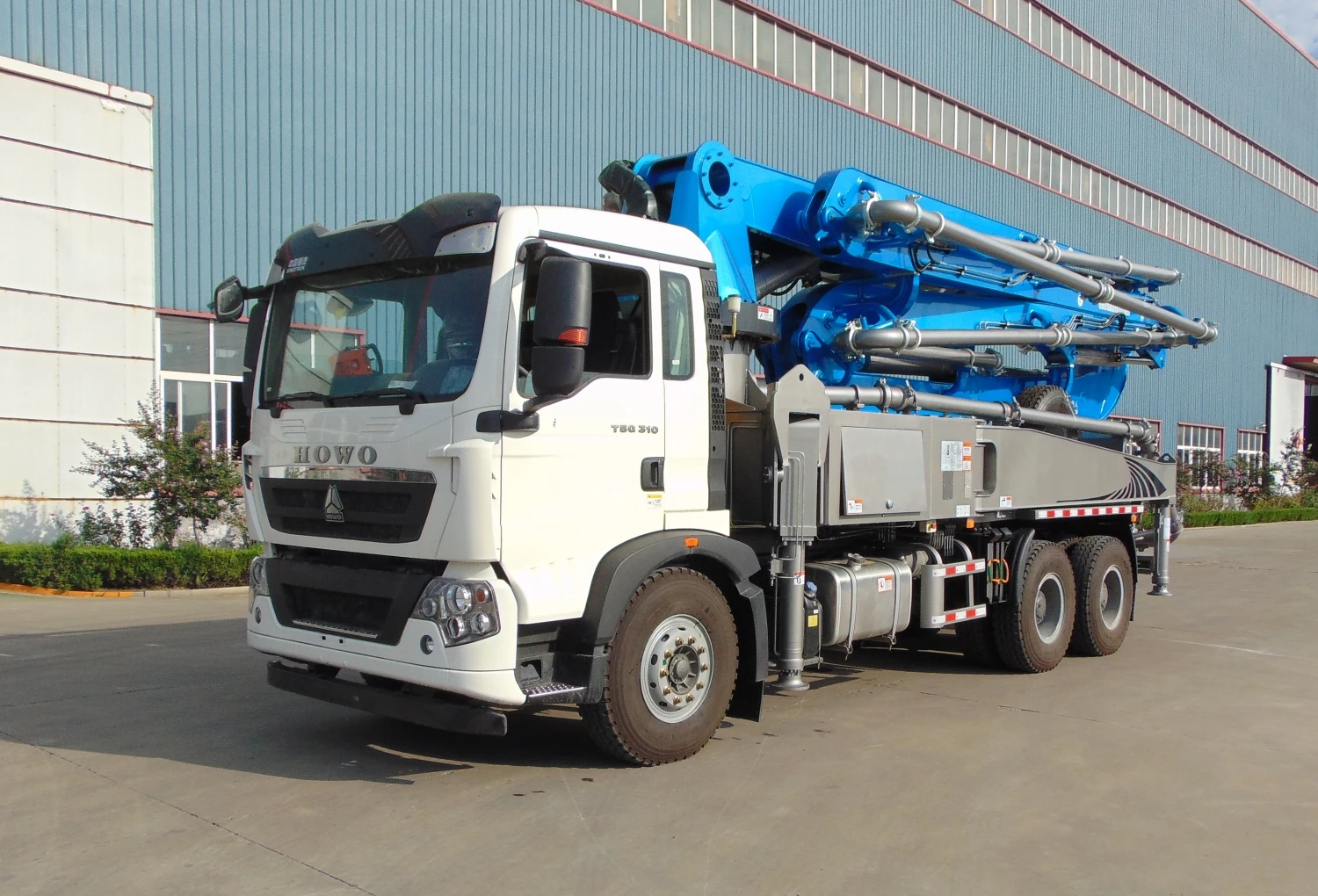

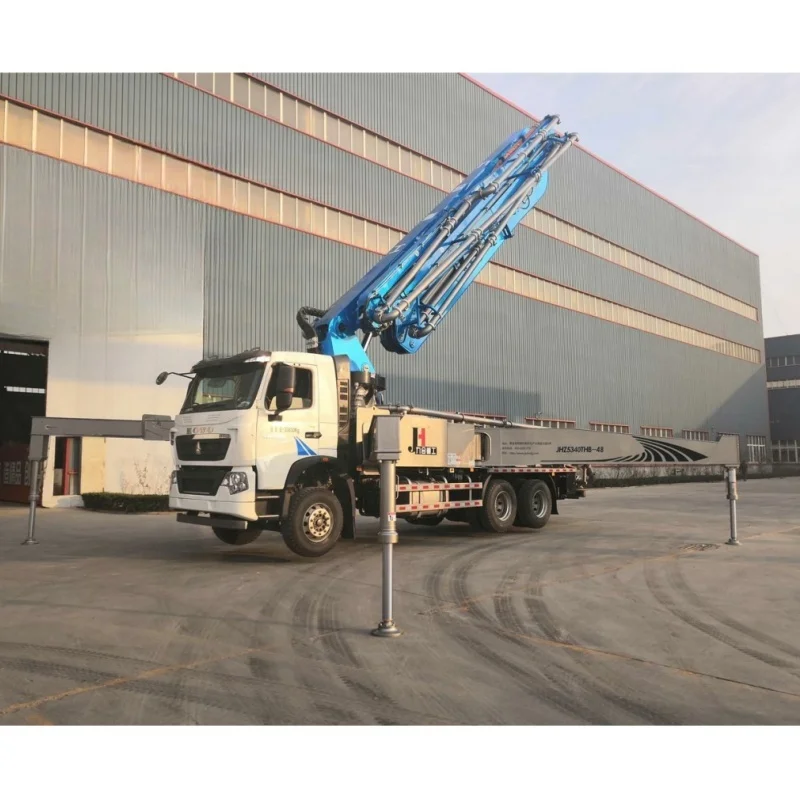

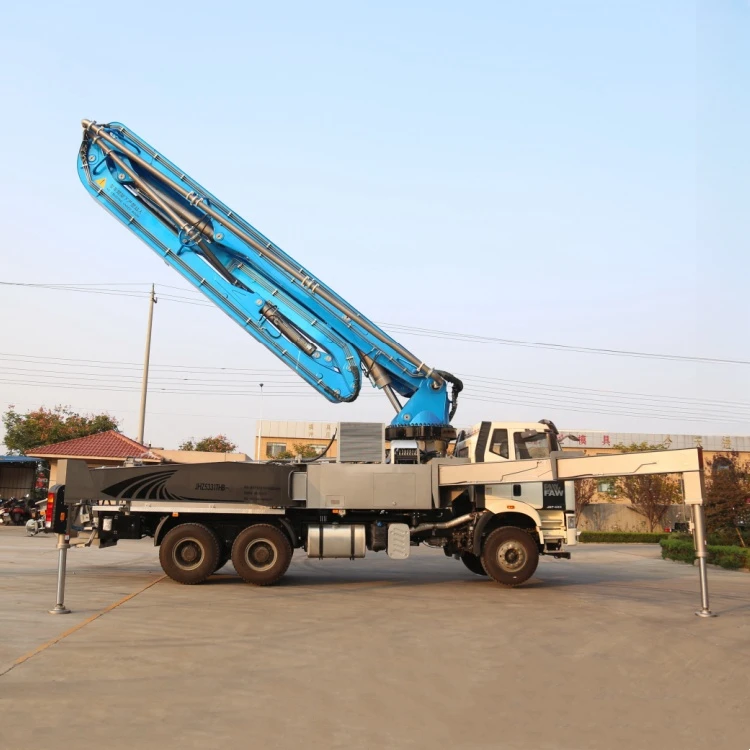

JIUHE 38 meter remote control concrete pump truck
JIUHE concrete pump truck is combined with high reliability, economy, safety and durability. It has reasonable collocations for the chassis system, power system, control system, hydraulic system and pumping system. With the characteristics of flexible fold able arms, little space occupying support legs, easily movable chassis, equipped with H/L pressure switch, high outlet pressure, the whole concrete pump truck. 38 meter remote control concrete pump truck is more flexible, reliable, stable and safe. It is the
top-choice concrete equipment widely used in tunnel, airport, seaport, high-speed rail site, beam field, bridge construction projects and so on.
Product Description

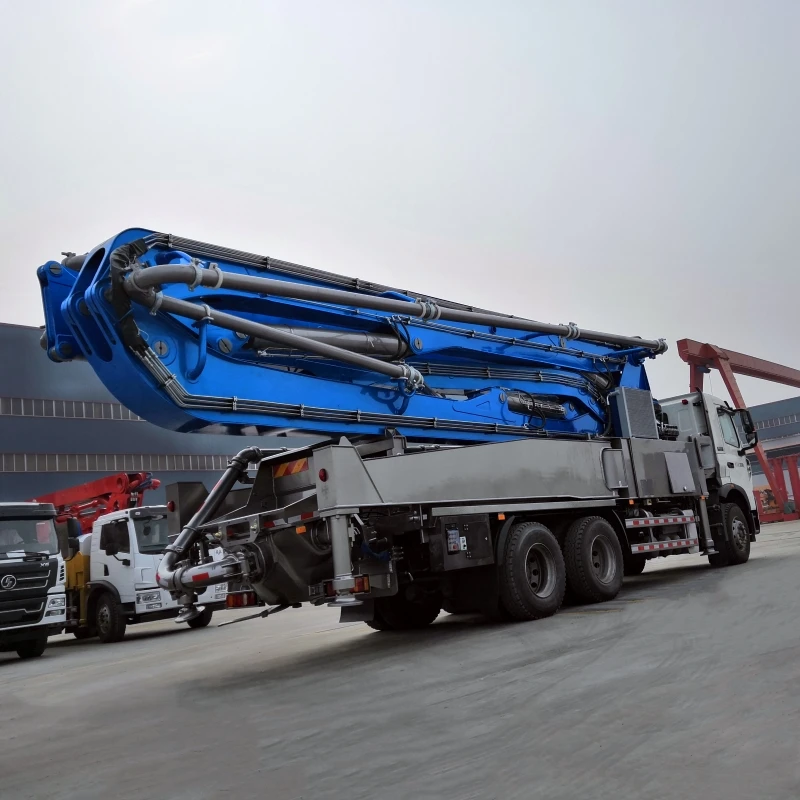

China JUHE brand cement pump truck 30m 38m 42m 48m 56m 63m Concrete Pump Truck
Chassis | ||
Chassis | SINOTRUK HOWO 6x4 | |
Engine model | MC07H.35-60 | |
Engine power | 350HP | |
Wheelbase | 4400+1400 | |
Tire | 315/80R22.5 | |
Emission standards | Euro-II | |
Cab | Left/Right cab | |
Boom system | ||
Maximum vertical height of boom (M) | 38 | |
Horizontal distribution radius of boom (M) | 34 | |
Boom arm number | 5 sections | |
Depth of distribution (M) | 25.7 | |
Rotating angle of each arm | 90°/180°/180°/235°/235° | |
First arm length(MM) | 7800 | |
Second arm length(MM) | 6500 | |
Third arm length(MM) | 6250 | |
Forth arm length(MM) | 6700 | |
Fifth arm length(MM) | 6700 | |
Electric Control System | ||
Working voltage: | 24 | |
Power Supply | 24 | |
Hydraulic transmission system | ||
Type of hydraulic system | Open type | |
System working pressure (Mpa) | 31.5 | |
Hydraulic fuel tank capacity (l) | 420 | |
Cooling mode of hydraulic oil | Forced-air Cooling | |
DIMENSIONS&WEIGHT | ||
Total length (MM) | 10695 | |
Total width (MM) | 2550 | |
Total height (MM) | 3990 | |
Total weight (T) | 27.7 | |
Pumping system | ||
Max.Theoretical Output | 100 | |
Form of concrete distribution valve | S valve | |
Dimension of allowable maximum aggregate (MM) | 40 | |
Lubricating method | Centralized lubrication | |
38 meter remote control concrete pump truck Main Features
1) Full hydraulic control technology.Fast fault location,saving time more than 50% in fault detection.
2) Hydraulic oil level auto-detection and radiating technology.
3)Full hydraulic commutation technology.Commutation time 10% lower,pumping efficiency 20% higher.
4) Double-engine system.Only 40% of oil consumption in same industry.
5) Unilateral operation technology.It is convenient working in small construction site,effectively avoid overturned accidents.
Projects
Recommend Products

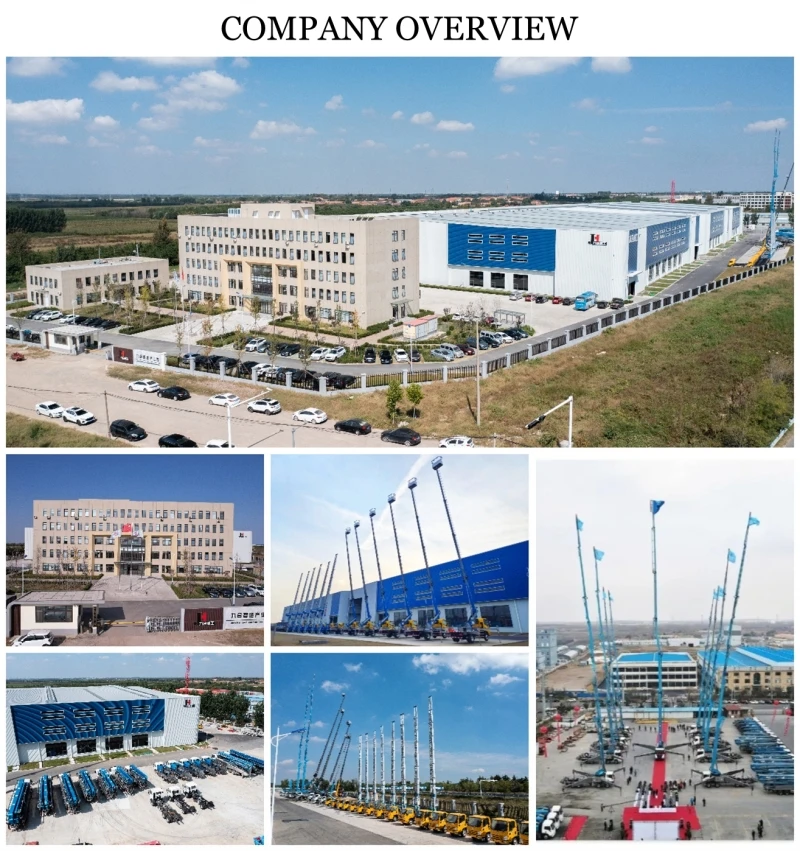

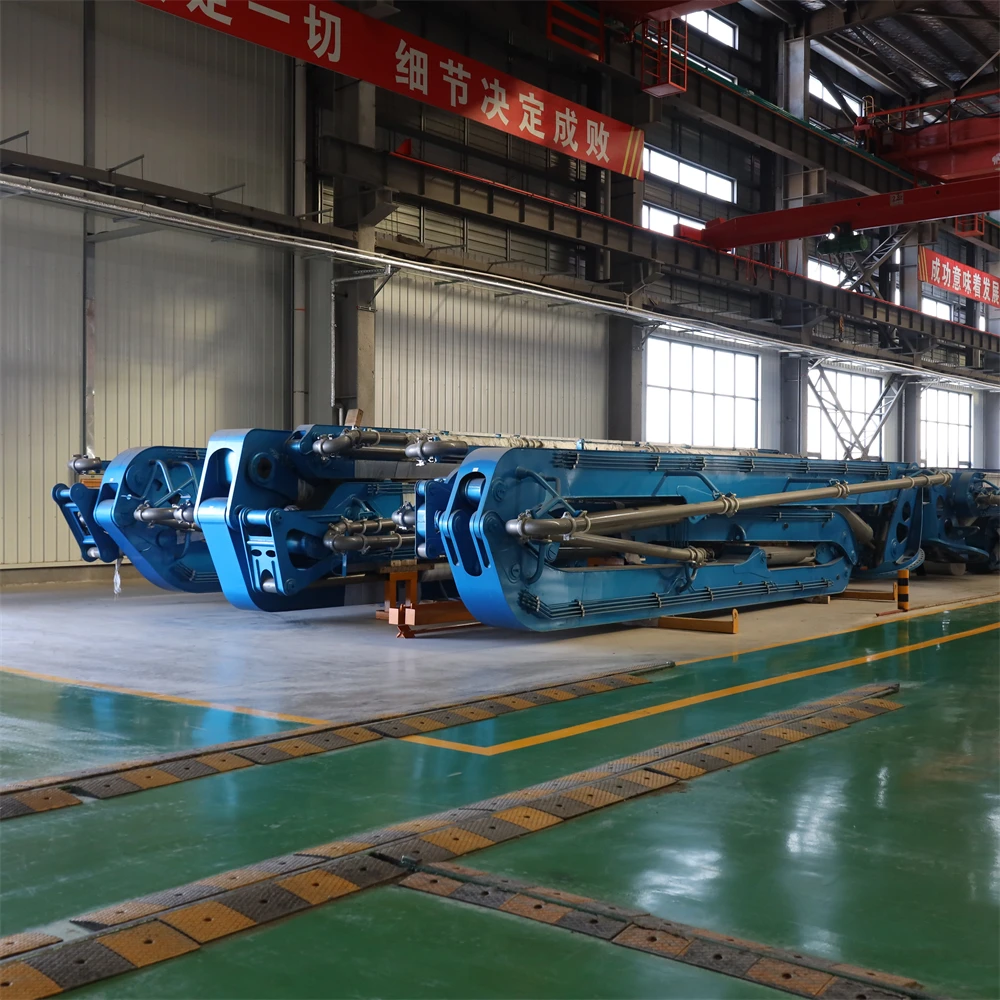

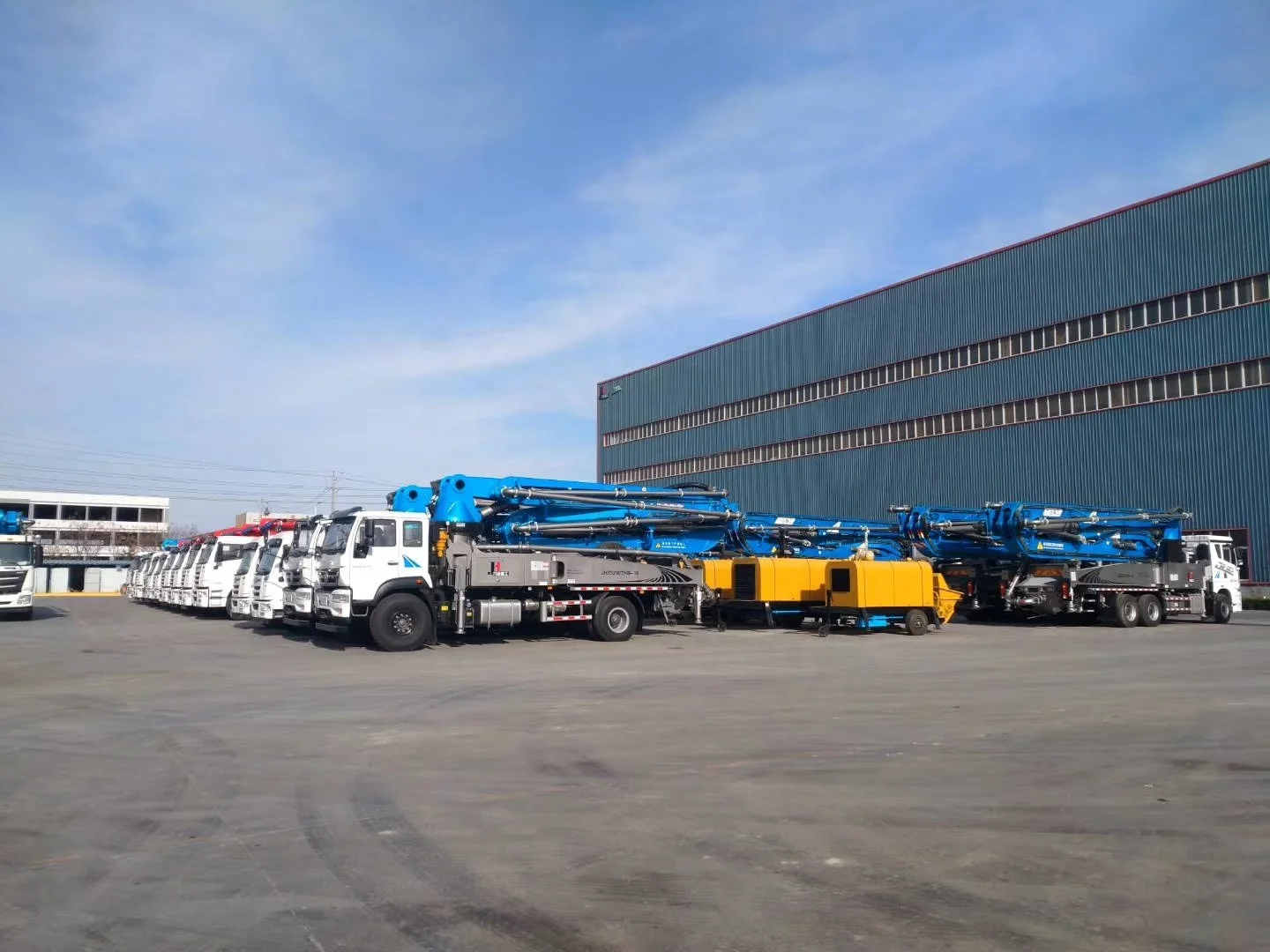

Our Company
Qingdao Jiuhe Heavy Industry Machinery Co., Ltd
JIUHE is specialized in researching, manufacturing, and selling concrete machines such as concrete mixing machine, concrete pumping machine, concrete placing machine and other Heavy Industry machinery. We are New High-Tech Enterprise with more than 20 Patents. Choose us, you can absolutely feel free on after-sale service. Customer Satisfaction is our pursuit, Long-term cooperation is our goal, Mutual benefit and win-win result is our principle. Any products interest you, Kindly contact us, Quality
machine together with Warm and attentive service are waiting for you!
JIUHE is specialized in researching, manufacturing, and selling concrete machines such as concrete mixing machine, concrete pumping machine, concrete placing machine and other Heavy Industry machinery. We are New High-Tech Enterprise with more than 20 Patents. Choose us, you can absolutely feel free on after-sale service. Customer Satisfaction is our pursuit, Long-term cooperation is our goal, Mutual benefit and win-win result is our principle. Any products interest you, Kindly contact us, Quality
machine together with Warm and attentive service are waiting for you!
Our Service

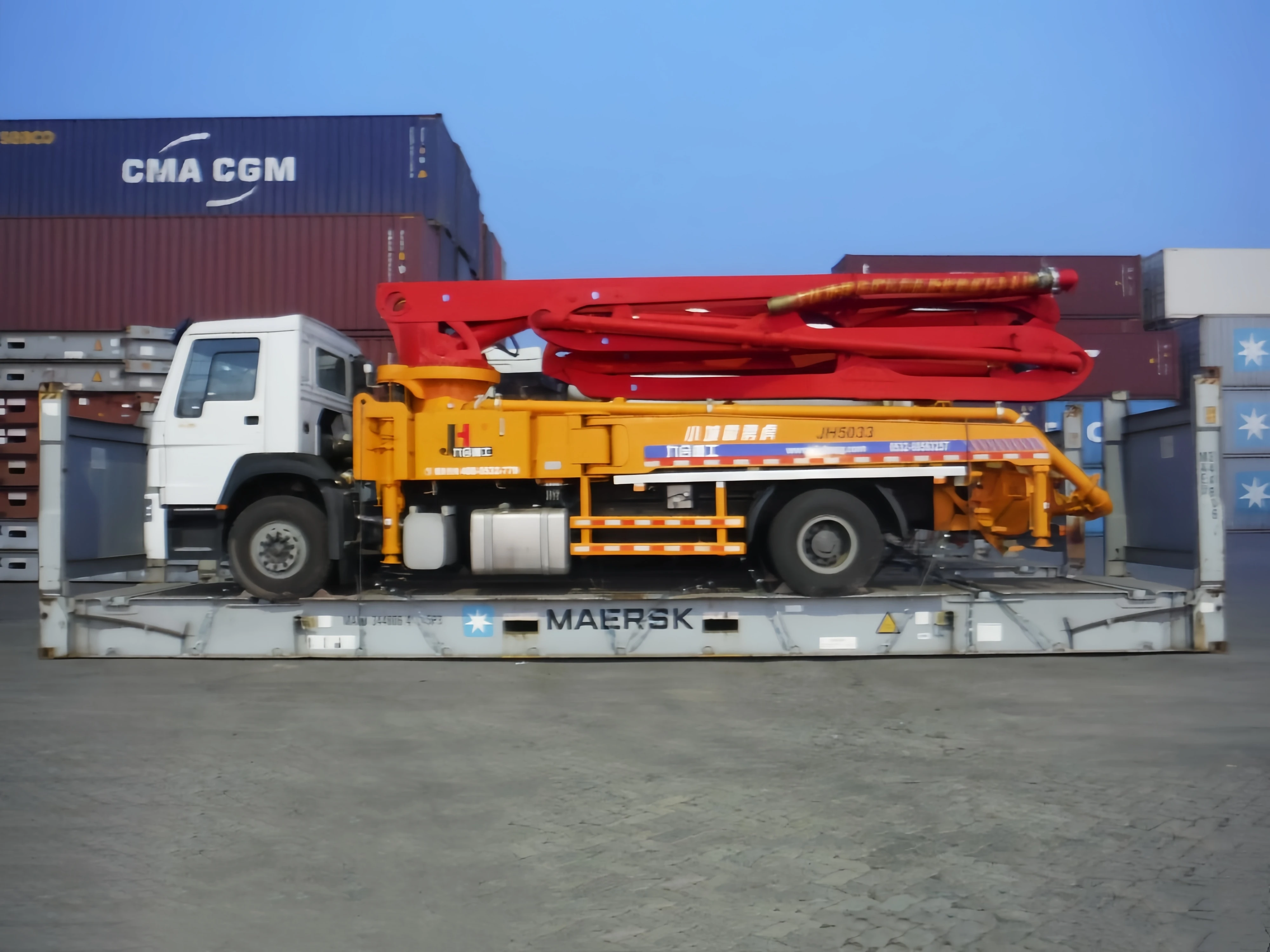

Packing & Delivery
