5 axsis brush making machine
US $1.00
4 оси двойной Хоккей туалетная щетка делая машину MX305
- Category: Brush Making Machines >>>
- Supplier: Jiangmen Meixin Comb Brush Machinery Co. Ltd.
Share on (60784178026):
Product Overview
Description
Company Information
Our factory is specialized in producing 2 to 5 axis single(double) colour brush machine,CNC tufting machine,CNC tufting and drilling machine,CNC drilling and tufting combination machine,filament trimming machine,filament cutting machine.Our products mainly are widely used in all kinds of brushes,for example:broom(plastic and wood)cleaning brush,electric toothbrush,travel toothbrush,cosmetic brush,nail polish brsh,industry roller brush,strip brush,round disc brush,dish washing brush,comb,massage brush,wooden brush,barbecue brush and so on.
Product Description
Machine paremeter
| Item | Model | MX305 |
1 | axis | 4 axis |
| 2 | Journey of Y axis | 300mm |
| Journey of X axis | 300mm | |
| The swing angle of Z axis | 120° | |
| The height of A axis | 300mm | |
| 3 | Hole diameter | 4-6mm |
| 4 | fiber box | double or three colour |
| 5 | Application | to make double hockey toilet brush |
| 6 | The length of filament | 30-120mm |
| 7 | Maximum Tufting Speed | 4-6 holes/second |
| 8 | head motor | China WANXIN servo motor |
| 9 | Orbit | TBI original linear guide |
| 10 | main power input | 380VAC/220VAC |
| 11 | MAIN SPEED CONTROL | Frequency control |
| 12 | drive motor | sevo motor |
| 13 | wire | flat wire |
| 14 | net weight | about 600kg |

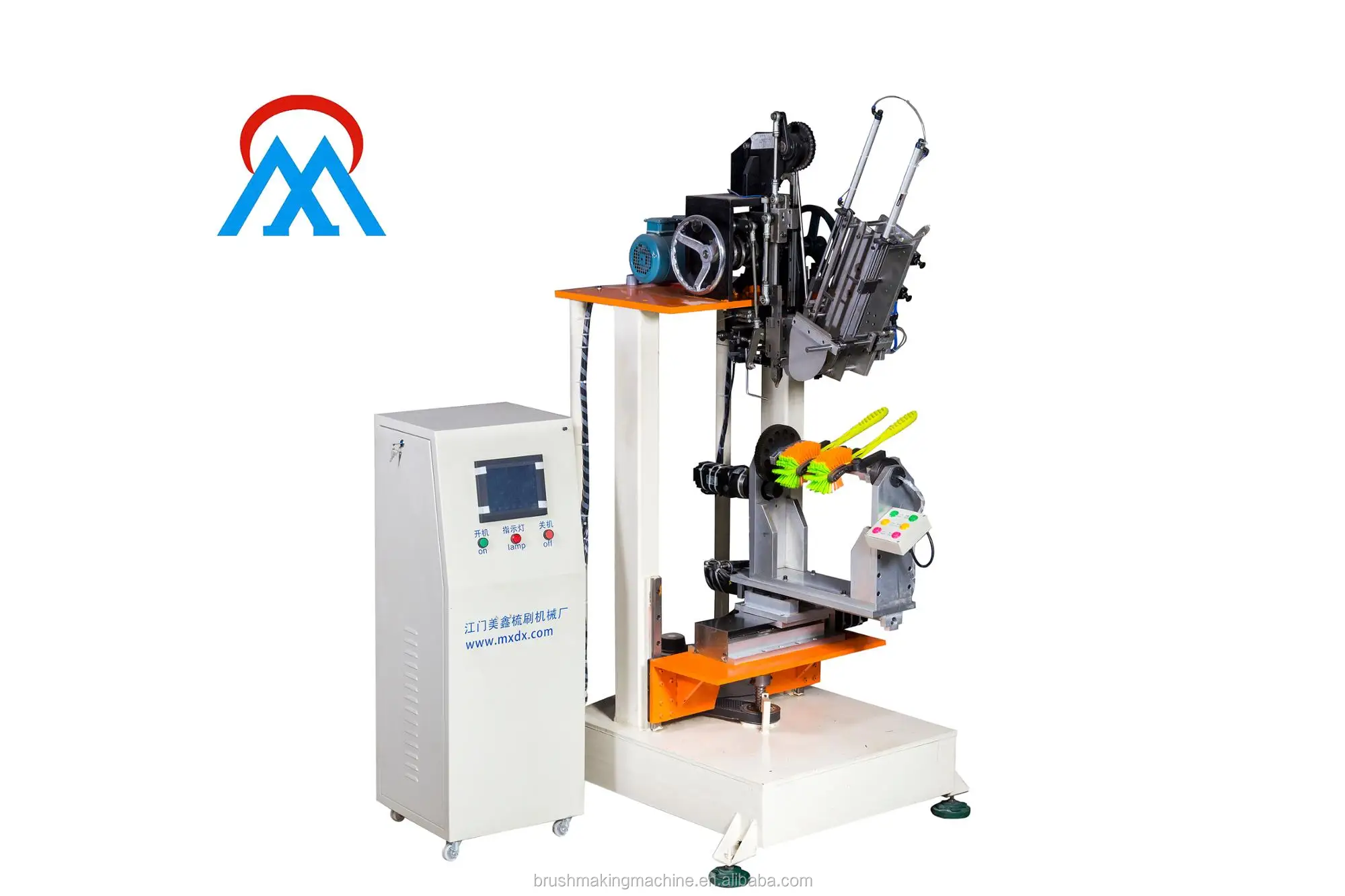

4 axis double hockey toilet brush making machine MX305
Our brush making machines:
Packaging & Shipping
Certificate Patent and CE
Looking forward to our coopertation in the furture!
