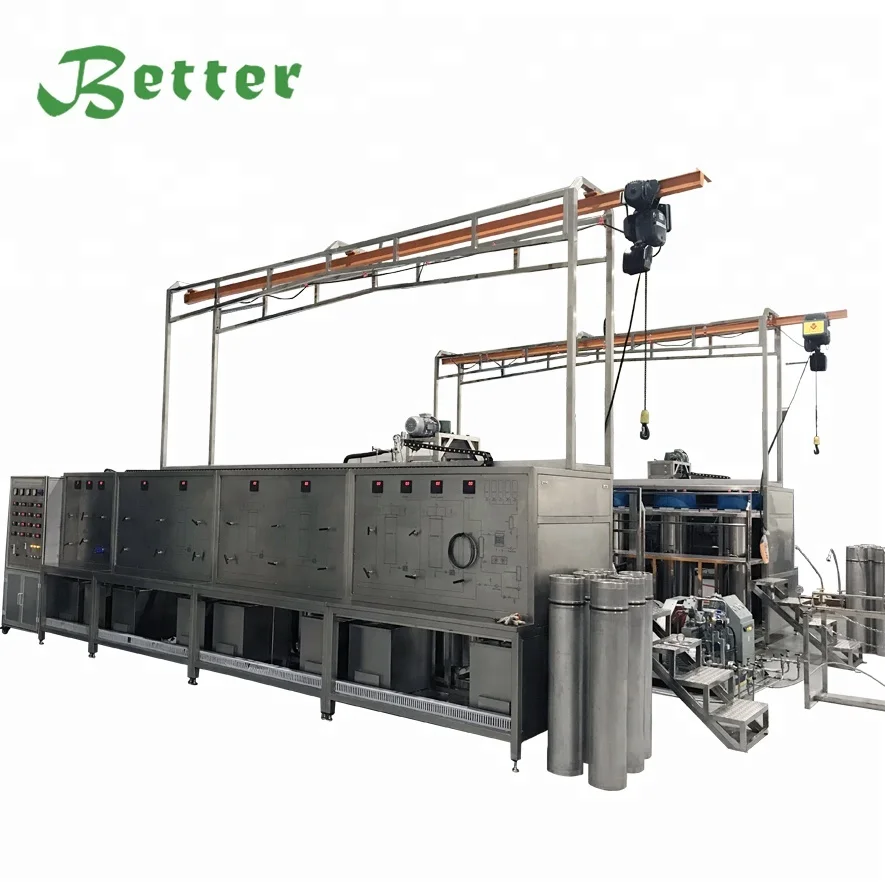

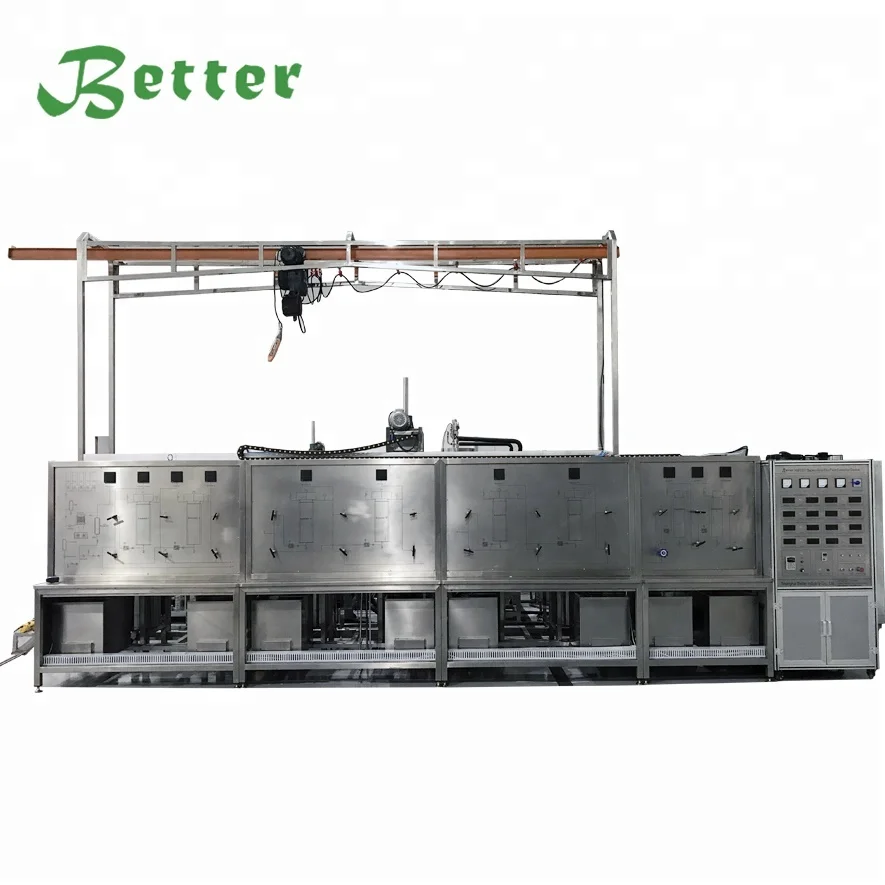

Supercritical CO2 Curcumin Extraction Machine
Supercritical CO2 Curcumin Extraction Machine
Supercritical CO2 Curcumin Extraction Machine
Supercritical CO2 Curcumin Extraction Machine
Supercritical CO2 Curcumin Extraction Machine
Supercritical CO2 Curcumin Extraction Machine
Supercritical CO2 Curcumin Extraction Machine

Supercritical CO2 Curcumin Extraction Machine

Share on (60784394596):


Price:

Quantity:


Product Overview

Description


Product Description

Working Principle of Supercritical CO2 Curcumin Extraction Machine

The Supercritical CO2 Curcumin Extraction Machine is suitable for producing pharmaceutical CBD and various essential oil and hemp oil extraction , herbal and plant oil extraction. It is widely used to produce the garlic oil, essential oil, rose oil, caffeine, fructus hippophae etc.

1. What is supercritical Co2 fluid:
Supercritical Co2 is a fluid state, which occurs at or above its critical temperature 31.1 C and critical pressure 7.38 0 bar.
2. Characteristics' of Supercritical Co2 Fluid:
a. Density under gas and liquid phase, close to liquid, or namely as dense gas, dissolve ability close to liquid.
b. Viscosity between gas and liquid phase, close to gas.
c. Diffusion coefficient between gas and liquid, much bigger than liquid phase, strong penetrability.

3.Supercritical CO2 Curcumin Extraction Machine Application
a. Food industries
b. Medical care food industries
c. The effective components in Chinese herbal medicine extraction
d. Extraction of natural flavors and fragrances
e. Natural pigment extraction

Main Features for Supercritical CO2 Curcumin Extraction Machine

1) Intermittent or continuous work,co-solvent can be added if request.

2) CO2 can be recovered and reused;

3) Pressure and temperature can be designed according to demand.

4) Can custom made into PLC or computer control

5) Electric has CE and UL approved

Detail Information
\t
Configuration list of Supercritical CO2 Curcumin Extraction Machine
\t
Item
\t
Specification
\t
QTY
\t
Note
\t
Extractor
\t
50L (quick-open type)
\t
6
\t
Made by Better
\t
Separator
\t
20L/25MPa
\t
2
\t
Purifying filter
\t
5L/16MPa
\t
1
\t
Pre-heater
\t
75℃
\t
8
\t
CO2 storage tank
\t
40L/16MPa
\t
2
\t

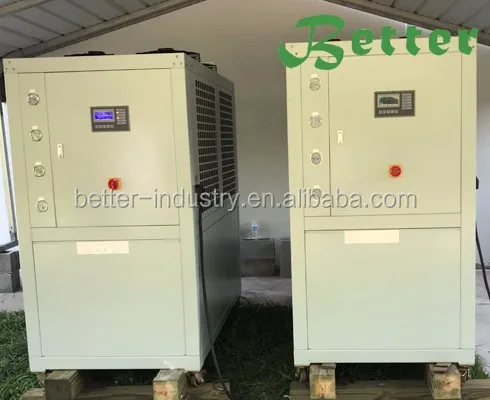

Refrigerator/chiller
\t
25,000 Kcal
\t
1
\t
Made in China
\t

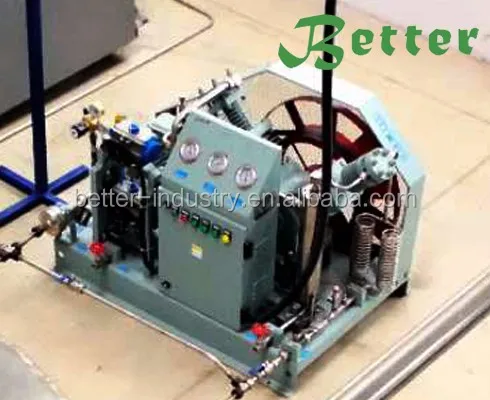

CO2 high pressure pump
\t
0-1000L/h, 40MPa
\t
1
\t
Co-solvent pump
\t
0-20L/h,/40Mpa
\t
1
\t
CO2 recovery pump
\t
Optional; to save CO2
\t
/
\t
Electric lifting system
\t
Electric driven type, low noise
\t
1
\t
Flow meter
\t
 Instantaneous flow
& cumulative flow
\t
\t
Co-solvent pump flow meter
\t
\t
Temp. and pressure controller
\t
Digital
\t
/
\t
Electric current meter
\t
Detect instant current
\t
/
\t
Safety valve
\t
To keep system in safe
\t
9
\t
Electrical elements
\t
Schneider, UL, CE, etc
\t
/
\t
Back pressure valve
\t
TESCOM
\t
1
\t
Made in USA
\t
High pressure pipe and fitting
\t
Stainless steel 304
\t
/
\t
Made by Better
\t
Frequency converter
\t
For CO2 pressure pump and Co-solvent pump
\t
2
\t
Made in Taiwan
\t
Operation platform
\t
Stainless steel 304
\t
1
\t
Made in China
\t
CO2 cylinder frame/CO2
\t
Stainless steel
\t
1
Application
\t
APPLICATION
\t
Supercritical CO2 Curcumin Extraction Machine
\t
Agriculture Food
\t
Extraction of pesticides and soil contaminants. Separation of fats and contaminats, flavors.
\t
Pharmaceutical
\t
Extraction of active components, preparation of natual products, viamins.
\t
Cosmetic
\t
Extraction of fragrances and oils.
\t
Laundry
\t
Dry cleaning of garments.
\t
Mechanical
\t
Degreasing parts, precision cleaning of high-value componets.
\t
A wide range of industries for the extraction of natural products for the food additives(such as ginger, large bolt, cinnamon, anise, hops, pepper, cumin,etc.), drugs(such as artemisia annua vegerarian, magnolia, angelia, etc.), health care(such as sea buckthorn, samara, pomegranate, lycopene, etc.)

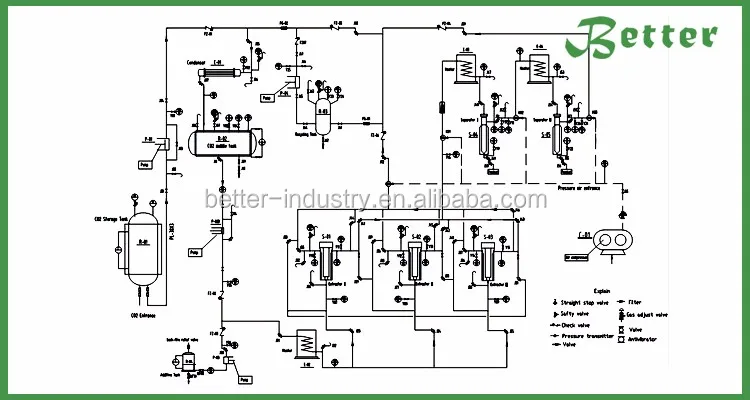

Flow Chart

Supercritical CO2 Curcumin Extraction Machine Design:
Liquid Co2 from pressured bottle or storage tank, through pipeline into purifying part, cooling part, mixer part, after heated and transferred into extractor, where solid raw material loading into barrel feeding into extractor, with dissolve ability to extracting, through temperature and pressure condition change, separated target material in separator. Separated material without chemical solution remained, Co2 would be gasifying after few seconds.
CO2------Extraction kettle------Separation I------Separation II------Return circuit

Packing & Delivery
\t
Packaging for Supercritical CO2 Curcumin Extraction Machine
\t
 Size
\t
1*40HQ
\t
Weight
\t
13T
\t



Packaging Details
\t
The normal Supercritical CO2 Fluid Oil Extraction Plant package  is export standard wooden box(Size: L*W*H).
Or according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

1) Overseas customer after-service: it can be door-to-door maintenance in each year

2)Safety of funds: trade assurance in alibaba or our local agency transaction directly

3)Export experience: if you have no import experience, we can do door to door help you to solve import, equivalent to domestic procurement, and the price is only half or even
lower other company.

4) Efficient and affordable: two hours in each bunch(classes) to 1/5 time shorter than the other some
companys, and the price is only 1/3.

5)Quality of Supercritical CO2 Oil Extraction Machine/Equipment: CE approved,
under way for UL certification, or you can contact with our customer.

Related Products

Supercritical CO2 Oil Extraction Machine/Equipment

96.8% Response Rate

Essential Oil Extraction Machine

93.6% Response Rate

Solvent Extraction Machine

94.9% Response Rate

FAQ

1.What does BETTER need from me to quote a price?

a).Raw material
b).Production capacity per batch,we supply 0.5L~200L machine for you,big capacity of machine can be customized according to your request for your request.

2.What material can you process with this machine?
Our CO2 extract machine is widely used in extracting hemp oil, wheat embryo oil,fish oil,tobacco essential oil,Arteannuin,Sundrops oil,Gingerol,Pepper haematochrome,Hops extract etc.

3.What is the machine material you use?
Stainless steel.

4.What is the highest pressure does your machine can suffer?
50Mpa.Our standard design is 40Mpa..

5.Does the CO2 can be reused?
YES. CO2 can be used in circulation.

6.Does you machine can work under the conditions of supercritical and subcritical?
No,it can only work at supercritical state.

7.Can we do extraction test before purchasing?
Of course,we can do extraction test with your raw material and send you videos and pictures
for your reference.

8.Do you have machine in stock?
No,every machine is customized according to your order.

9.How long does it take to produce the machine once I place my order ?
The Supercritical CO2 extract machine' process flow is complex.Generally it takes about 60 workdays to Produce.We are responsible for the quality of machine our customers.Every procedure and details has to be inspected strictly.

10.How will my order be packed, can you provide the installation service?
Plywood case. And we will assemble and test the machine before packing.
Installation:We will send English manual after your purchase. If customer need, we will send one engineer for assembling and training for workers
