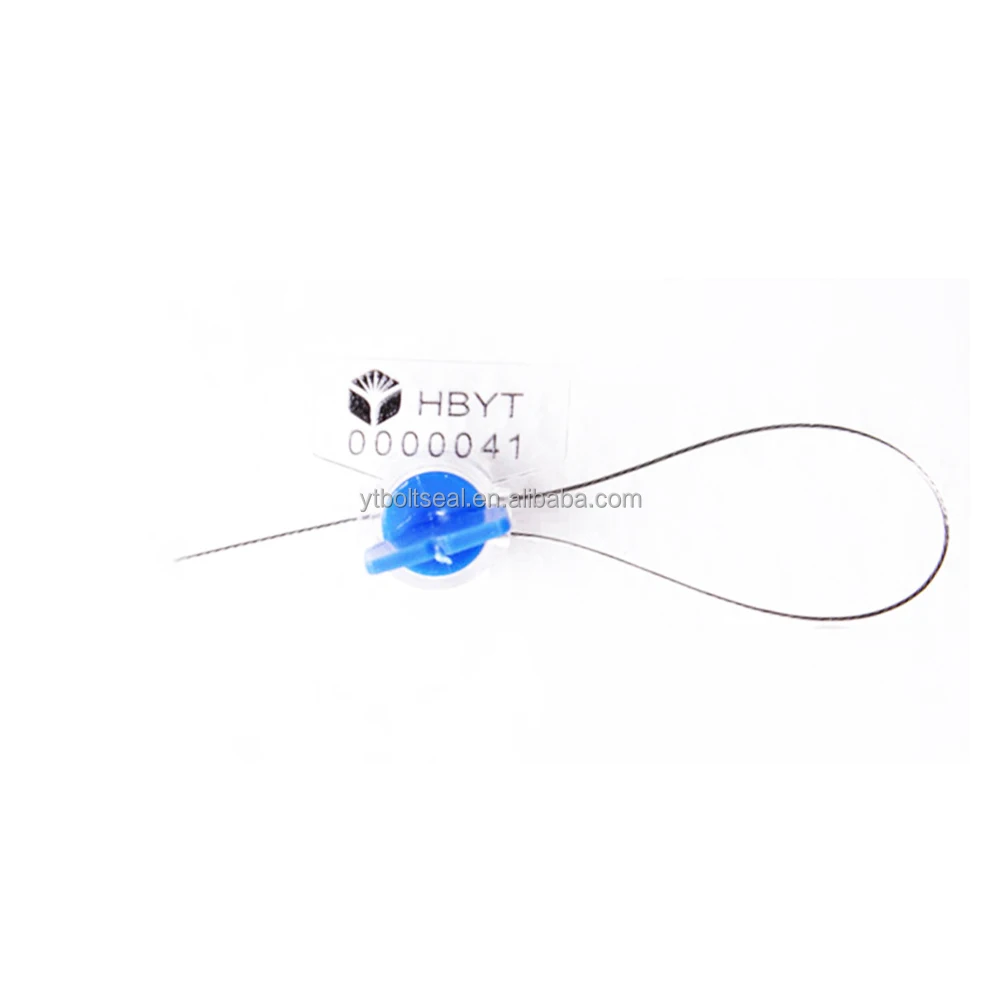

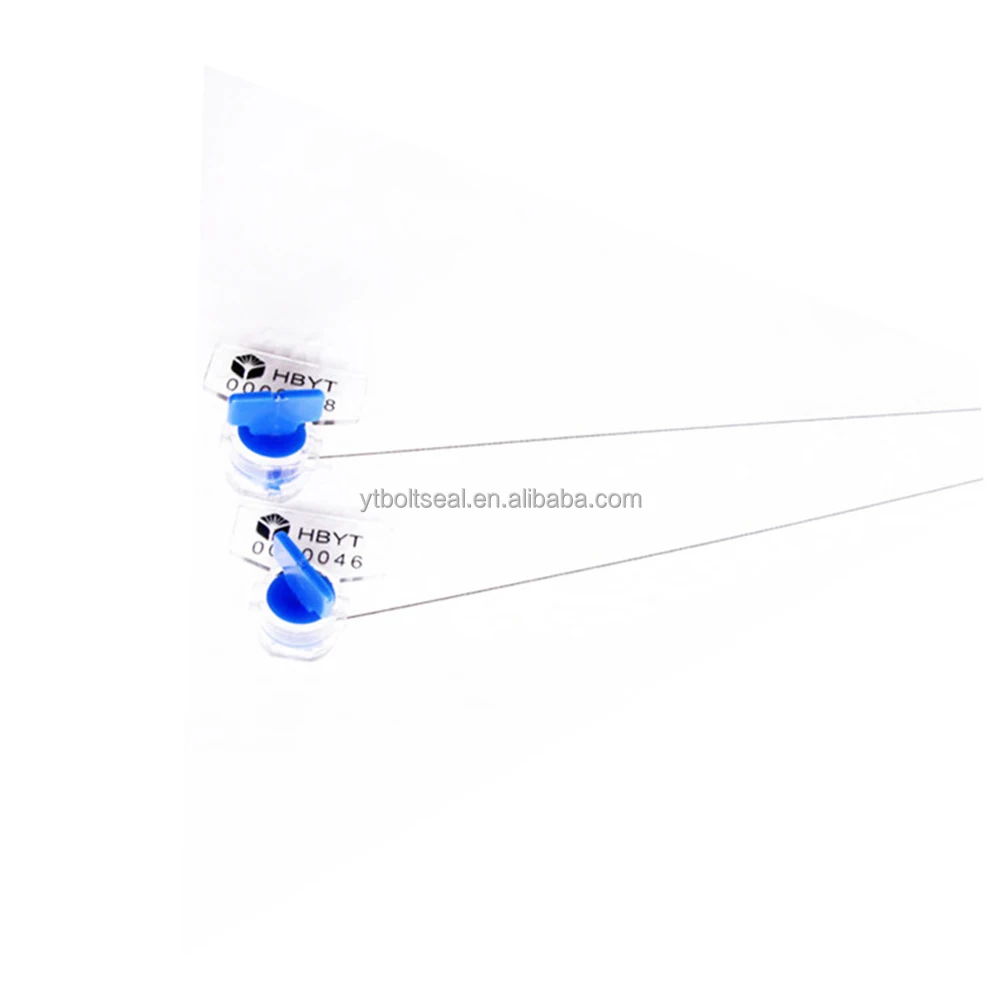

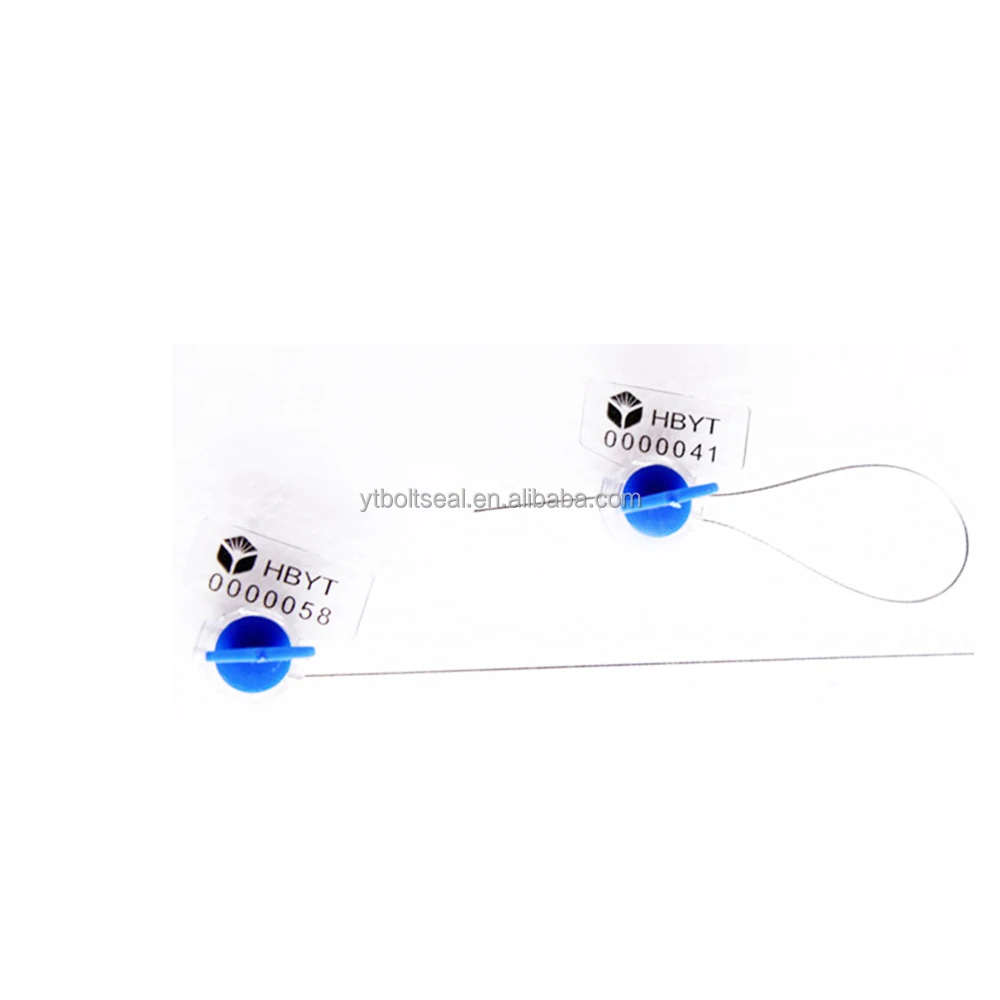

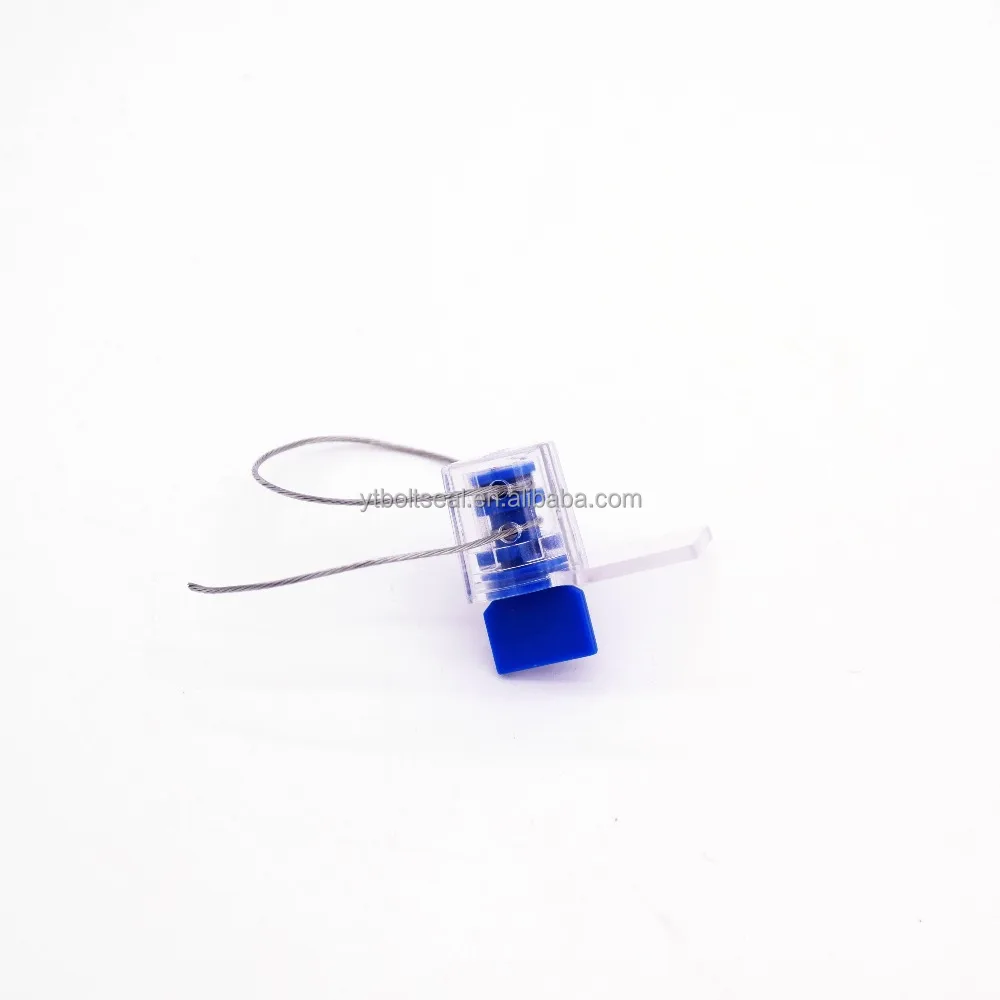

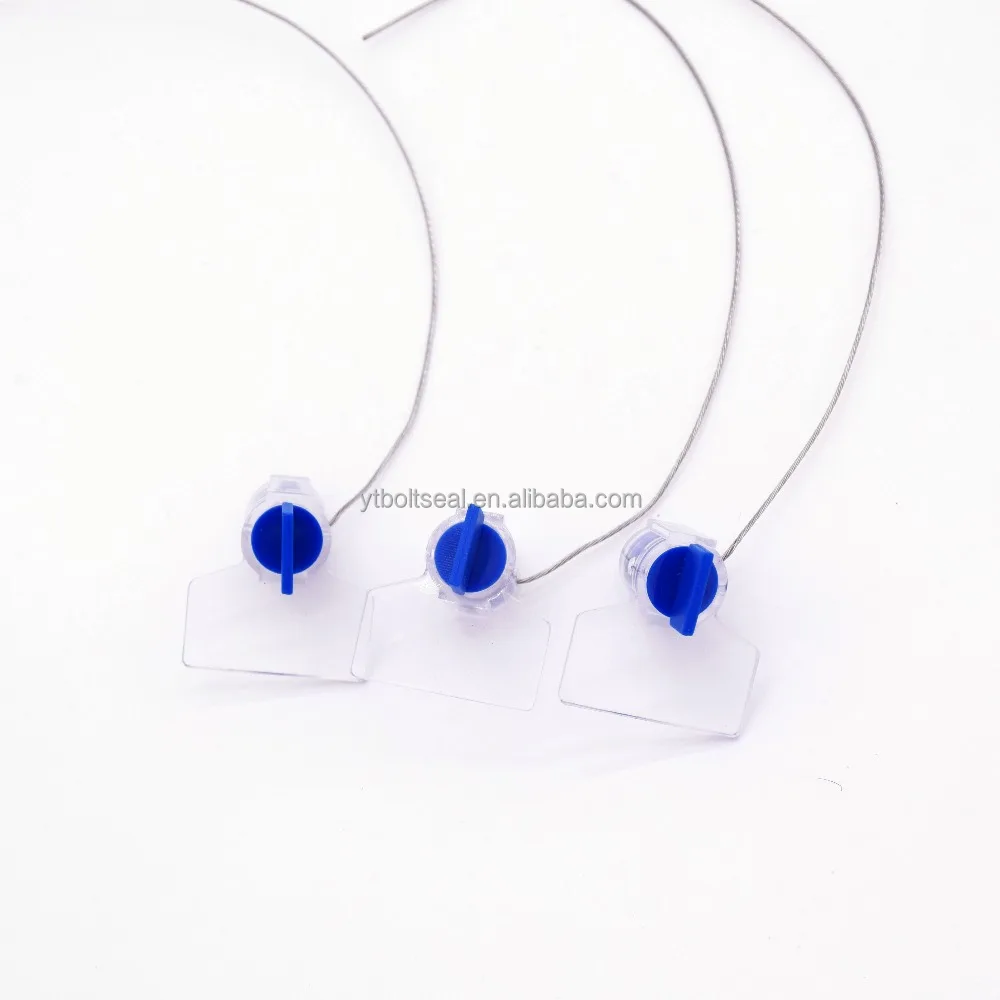

ISO Certified electric meter seal crono seal

Ⅰ

Material

1

Cover

 PC Casing

2

Insert

ABS core

3

Wire

galvanized or stainless steel wire

4

Surface treatment

Galvanized

Ⅱ

Dimensions

1

Main

27mm *14.5mm*20mm

2

Numbering Tag

11mm*27mm

3

Strength

F> 14KG

4

Operating Temperature

-40°c to 110°c / -40°F to 230°F

5

design features

1, supersonic welding technology to secure the twist part insert to the body, which provides clear evidence of tampering if forced open or cut.

2, twisting easily by hand

Ⅲ

                                                                                 Printing

1

Printing specifications

Customer name or acronym on top ,sequential numbers on the bottom.

2

Logo

Per request

3

Serial

numbers

Laser printing with black color ,up to 7 characters of more than 2mm height. Or

customized.

Ⅲ

Packing

1

Volume

100pieces/plastic bag 500bags /carton

2

Size

50cm * 40cm *30 cm

3

Weight

14.5kg per carton
