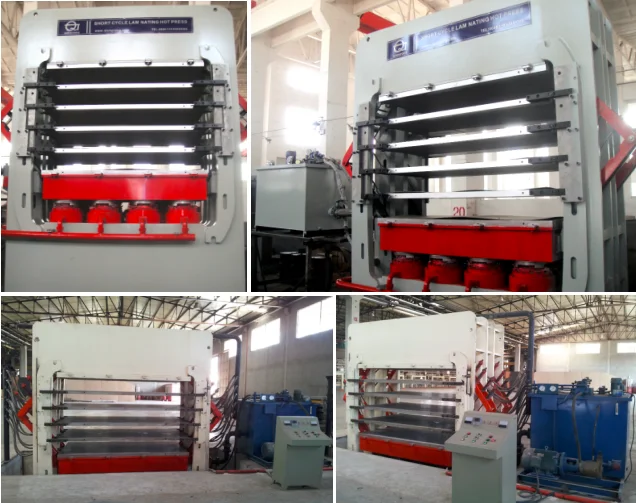

MDF and Particle Board Short Cycle Melamine Lamination Hot Press Machine

Product Overview

Description

Specialized in wood based panel lamination

(1) Company Profile:

Wuxi Qiangtong Machinery Co.,Ltd. is established in 2003, located in Wuxi City, Jiangsu Province, China. We are specialized in wood-bansed panel surface lamination technology, such as melamine laminated on Chipboard, Particle board, MDF, HDF and Plywood etc. Our machine is mainly used for producing furniture board, flooring, door skin etc. embossed or molded laminates products. Until 2018, we have sold more than 2000 sets of press machine, which is included around 600 sets exported foreign countries.



(2) Certificates of our company:



(3) Customers worldwide:

These are the countries where we have sold our machines to, if you are interested in any od our old customers as our reputations reference, we would like to share with you.

Every year, we are attending the international exhibitions in under list countries, if you are interested in visiting us, you are warmly invited to meet us there.

Ø January, Indiawood in Bangolore, India

Ø January, Delhiwood in New Delhi, India

Ø February, Medex in Tehran, Iran

Ø March, Domotex in Shanghai, China

Ø March, Interzum in Guangzhou, China

Ø April, Mebel Expo in Tashkent, Uzbekistan

Ø May, Ligna in Hannover, Germany,

Ø May, XYLEXPO in Milano, Itlay

Ø September, IFMAC & Woodmac in Jakarta, Indonesia

Ø October, Intermob in Istanbul, Turkey

Ø October, Viet Wood in Hochiminh, Vietnam

Ø October, Lesdrevmash in Moscow, Russia



(4) Application:

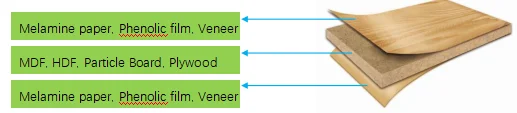

QIANGTONG Short Cycle Hot Press Machine is mainly for producing melamine faced chipboard/MDF/HDF etc. laminated decorative furniture board:



The surface texture is depended by the stainless-steel chrome plate which is installed inside hot press machine. The press machine is pressing the board touching by chrome plate. That is how the surface design came out.

The laminated boards have many artificial surface such as MIRROR, MATT, SUEDE, WOODGRAIN, EMBOSSED, 3D etc.





(5) Press machine specifications:

For the semi-auto press machine, we have following 4 models:

Model D1                                          Model D2





Model D2 Plus





(6) Parameters table:



(7) Advantages of QIANGTONG press machine:

Frame design:

Our company's press machine frame is the most reasonable structure which designed through rigorous mechanical analysis, by finite element analysis can be drawn the maximum stress exists in the track open file's corner of rack plate.

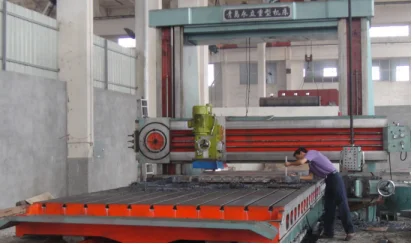

Hot platens:

The hot platen workbench is the grinding machine, which process through the drilling, milling, planning, grinding, the product smoothness is extremely high, the error is less than 0.1mm / m2, closure error is less than 0.15mm / m2, pressure error is less than 0.1 Mm / m2. Hot platen made with the entire thick steel plate, the middle heating channel distribution is reasonable, to ensure the surface temperature uniformity. Hot platen surface under grinding with high-quality and good flatness. Hot platen with double sides heating to meet the faster veneer lamination.

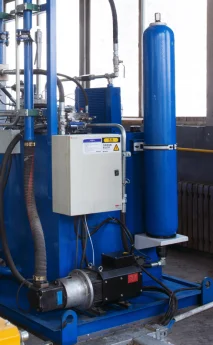

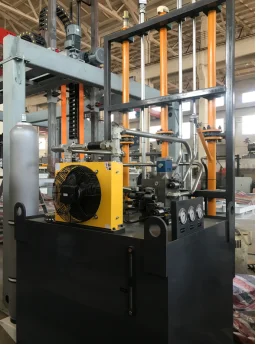

Hydraulic system
