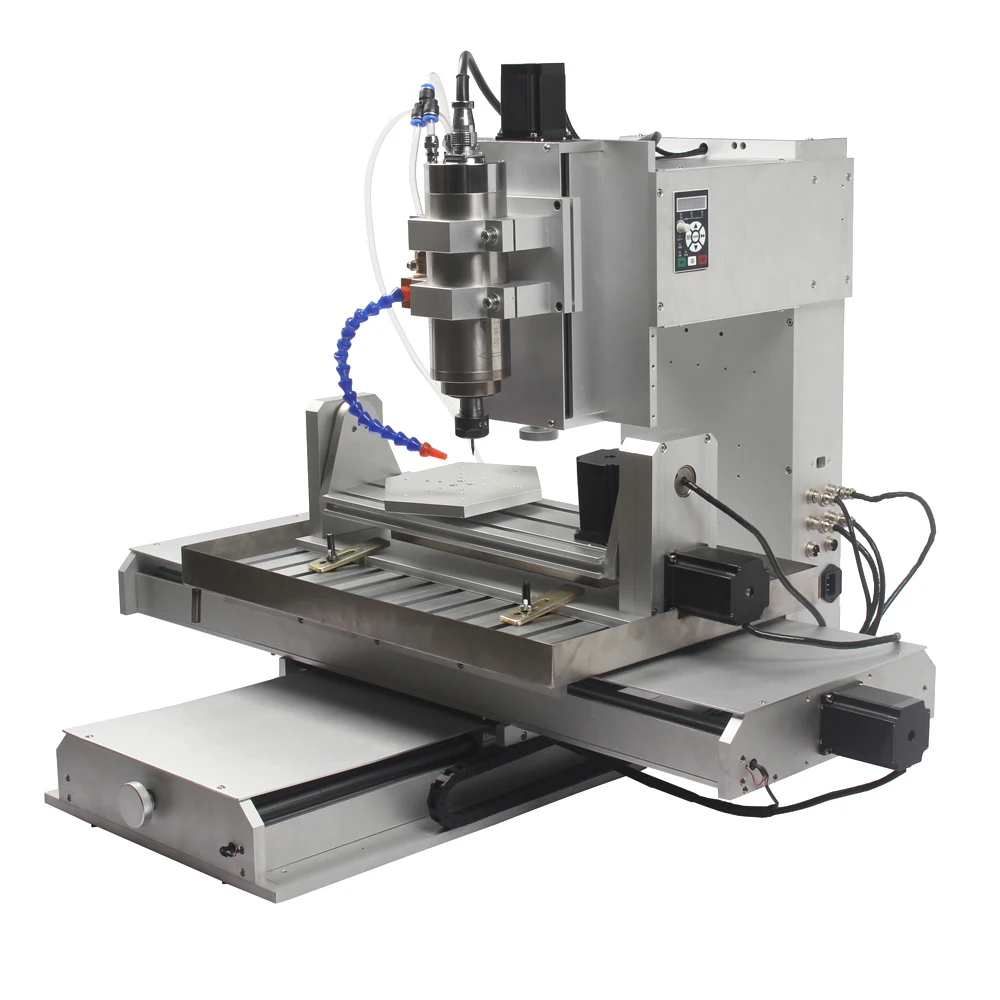

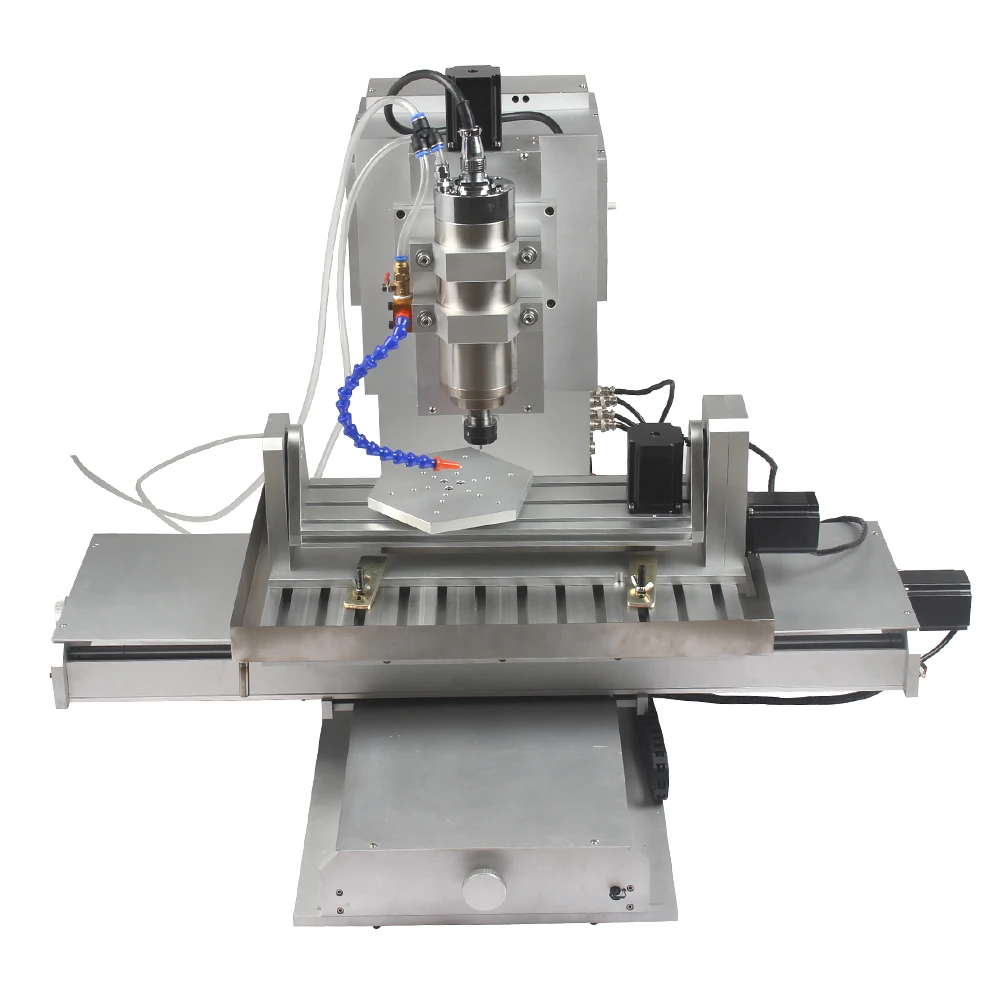

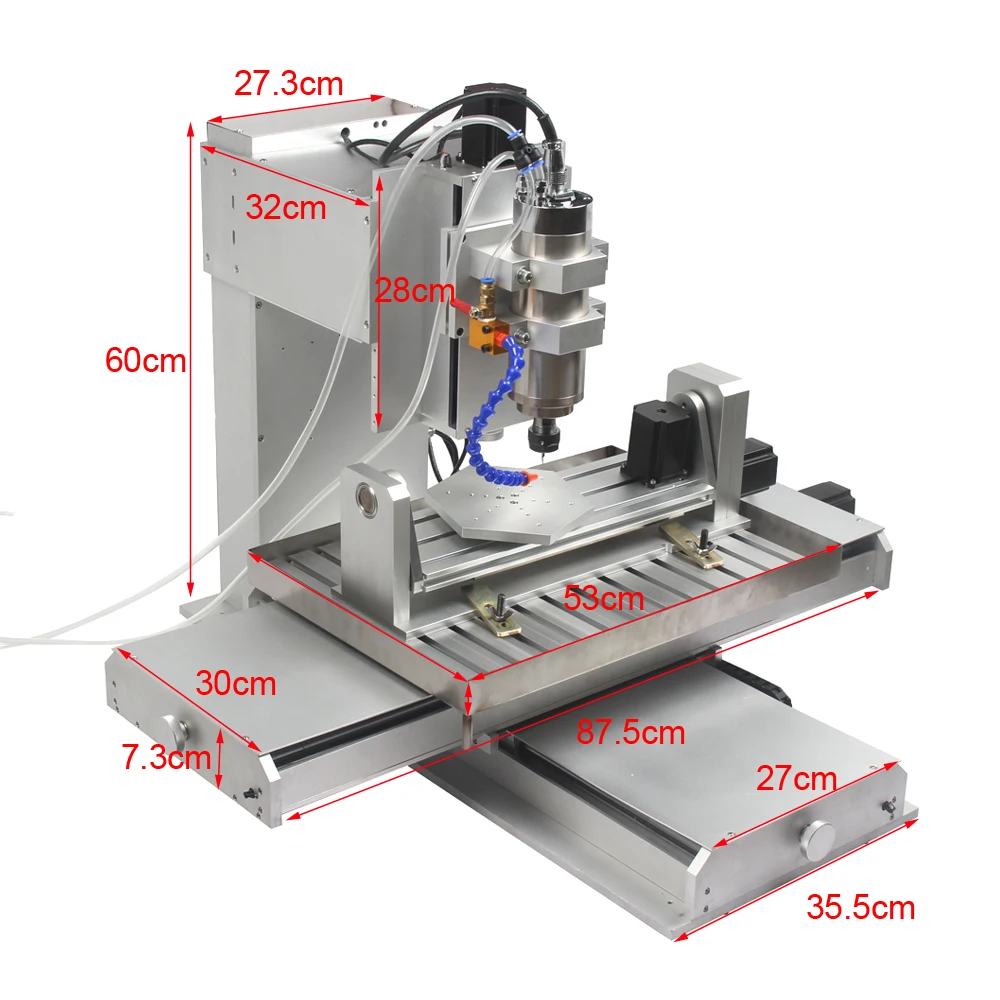

Mini desktop 3d 5 axis CNC 6040 stone carving machine
- Category: >>>
- Supplier: Shenzhen Scotle Technology Ltd.Shenzhen Ltd.
Share on (60786268548):
Product Overview
Description
Mini desktop 3d 5 axis CNC 6040 stone carving machine
Product Description
Highlight for this HY6040 cnc milling machine 5 axis high accuracy
Company Information
Easy operating because:
- It can work with 3 axis / 4 axis / 5 axis, just as you like !
- Independent high-speed micro computer intelligent controller.
- Independent drivers for each axis.

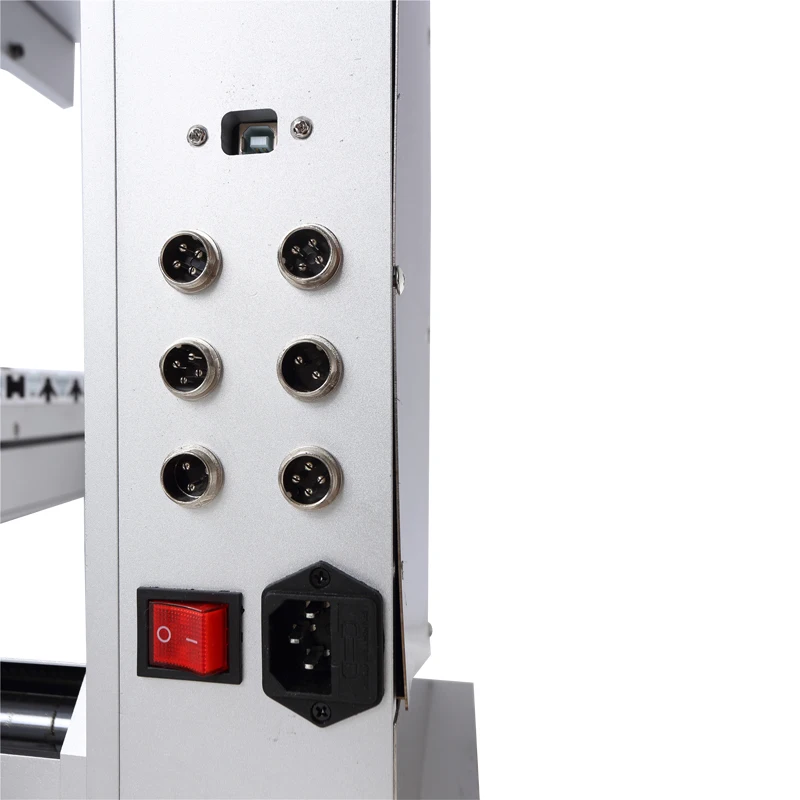

- Mach 3 software USB connection
- Upgraded with more stable structure than old type

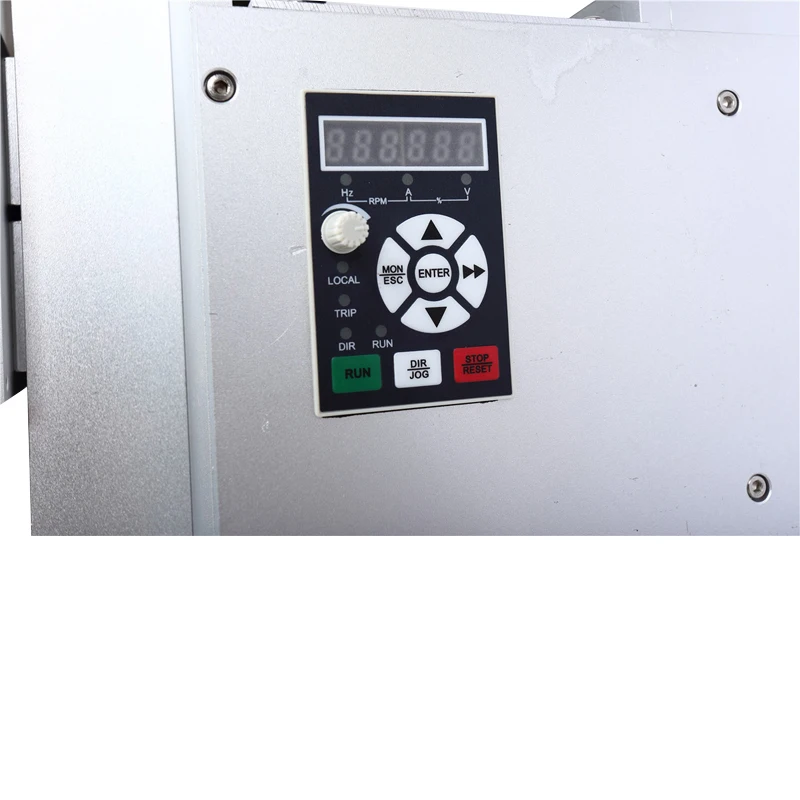

- Built in frequencey converter and without controller box.
Higher precision because:
- Cross slippery platform design rather than gantry design.
- Aluminum base sheet is heavy which can make sure less vibration when work.
- With auto-checking function.
- 1500/2200w water-cooled spindle.
- Ball screw
- Stainless Steel sink for bits cooling
You can buy this machine from us without any worry because:
- CE approved.
- Video support.
- English manual available.
- Mach 3 software send with the machine as a CD.
- Can engrave material which hardness below 45.
- From reliable & trustable profesional China CNC Router manufacturer
This HY6040 cnc milling machine 5 axis high accuracy Can be widely used as below:
Technical detailes for this HY6040 cnc milling machine 5 axis high accuracy
| Model | 5 Axis CNC Machine |
| Product demention | 970*810*790mm mm |

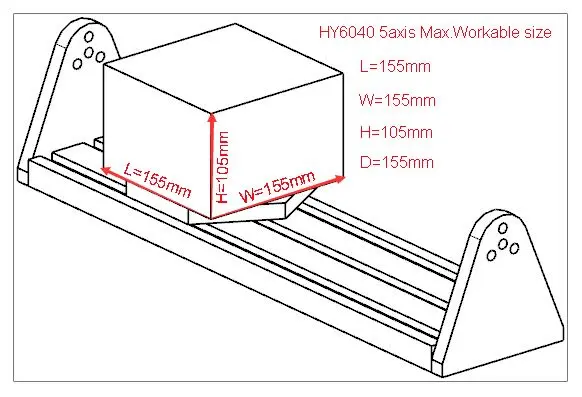

| Effective work area | 600x400x(150)mm |
| Precision ballscrew | 1605 |
| XYZ rail material | Hard chrome shaft |
| XY rail diameter | 20mm |
| Z rail diameter | 16mm |
| XYZ axis torque | 57*78 250 OZ/IN (2.2N/CM) |

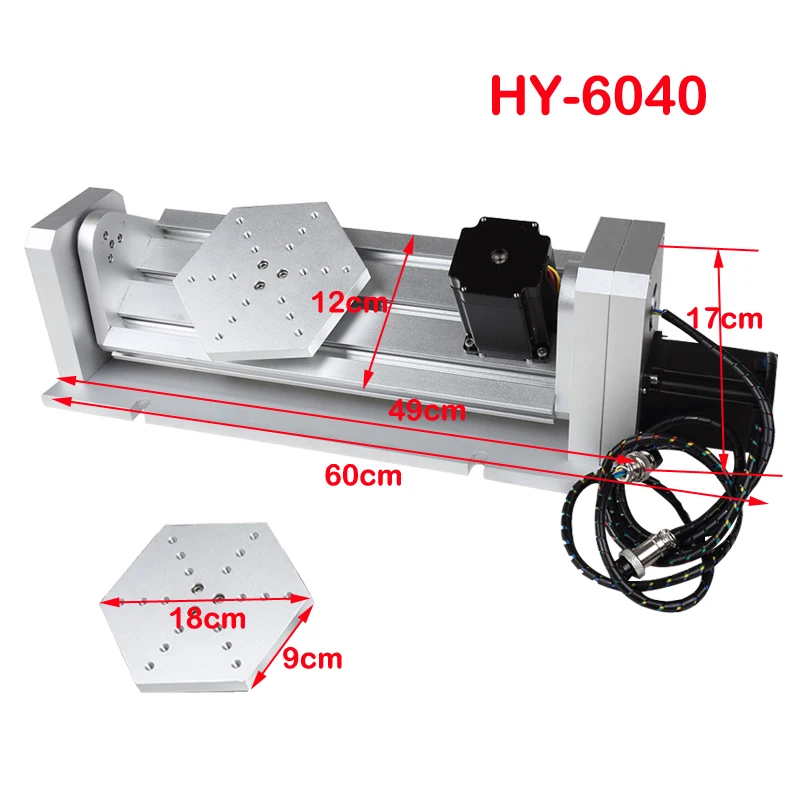

| 4th and 5th | 57*56 |
| 4th and 5th transmission ratio | 1:6 |
| Repeat positioning accuracy | 0.01mm |
| Working precision | 0.02mm |
| Processing speed | 0-4000 mm/Min |
| A-axis B-axis rotation speed | 0-180 rpm/min |
| XY table maximum load | 50kg |
| XY+A+B axis table maximum load | 15kg |
| Tailgate material | Stainless steel |
| Switching Power Supply | Integrated 24V 350W |
| Spindle power | 2200 W water-cooled frequency spindle |
| Spindle converter | 2200w |
| Input Power | 220V / 110V power supply |
| Output Current | Drive 4.5A (peak 5A) |
| Drive motor | 57*78 stepper motors (two-phase 4 wire) |
| Controller Software | Mach3 nMotion |
| Computer Connection | USB port win 10 and under |

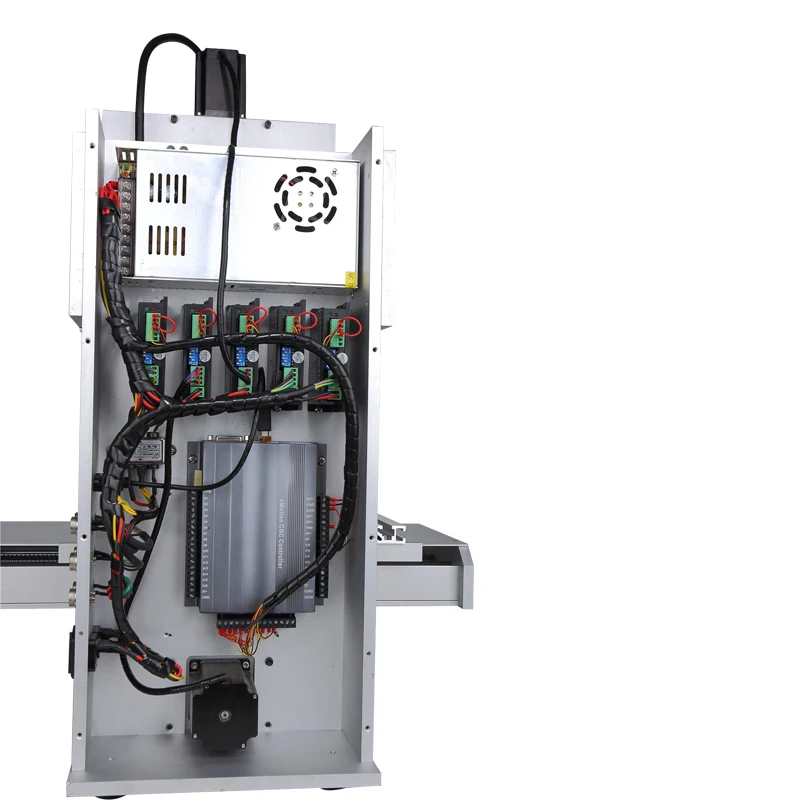

| Drivers | Independent driver for each axis |
| Net Weight | 75kg |
| Gross Weight | 120kg |
| Outside packing | 117*96*56 (cm) |
More pictures for this HY6040 cnc milling machine 5 axis high accuracy

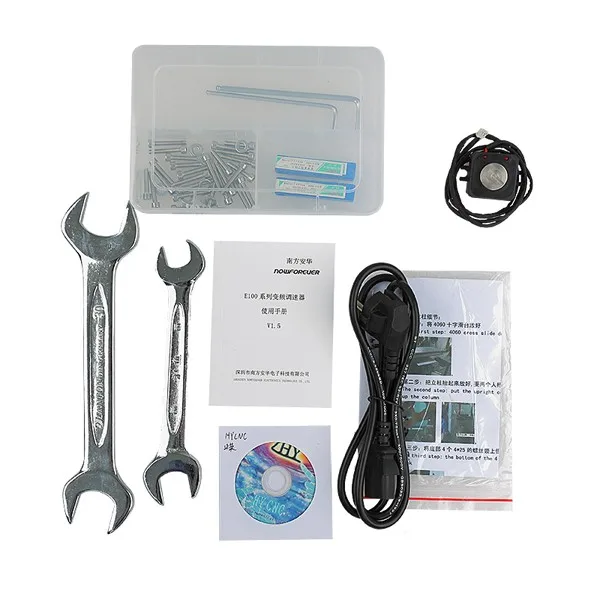

HY6040 cnc milling machine 5 axis high accuracy Packing list
FAQ
Packing : Standard carton box with protective foam for safe
MOQ : 1 Sample welcomed, it will be a nice try.
Shipping : By express DHL, TNT, UPS, Fedex , Air and Sea.
Software : Send with the machine
User Manual : English user manual will send with the machie
Vedio : Vedio Supported in Pre-sales and After-sales service.
Don't hesitate to contact us !
