Solar Water Pump System Residential 1HP 2HP 3HP 5HP 10HP 2KW 3KW 5KW 10KW Solar Water Pumping Well System
- Category: Solar Water Pump >>>
- Supplier: Sunpal Power Co. Ltd.
Share on (60786556594):
Product Overview
Description
You May Like
Product Description
What's Included:
Model | SP1HP-DC | SP2HP-DC | SP3HP-DC | ||
280W Mono Solar Panel (Pcs) | 3 | 8 | 10 | ||
DC Disconnect Switch (Pcs) | 1 | 2 | 2 | ||
Solar Pumping Inverter (#/Kw) | 1/0.6 | 1/1.2 | 1/1.8 | ||
Solar Pump (#/Kw) | 1/0.6 | 1/1.1 | 1/1.5 | ||
DC Cable (m) | 100 | 200 | 300 | ||
MC4 Connector (Pair) | 4 | 8 | 8 | ||
Water Level Switch (Pcs) | 1 | ||||
Mounting System | Ground Mounting System For STD | ||||
PV Tools | Wire Cable Cutter & Stripper,MC3 MC4 CrimperMC4 Connectors Assembly | ||||
Note: Product dimensions and physical appearance in this data sheet are nominal.Sunpal Power reserves the right to make the product changes from time to time,without prior notification, which may change the dimensions and/or physical appearance shown.

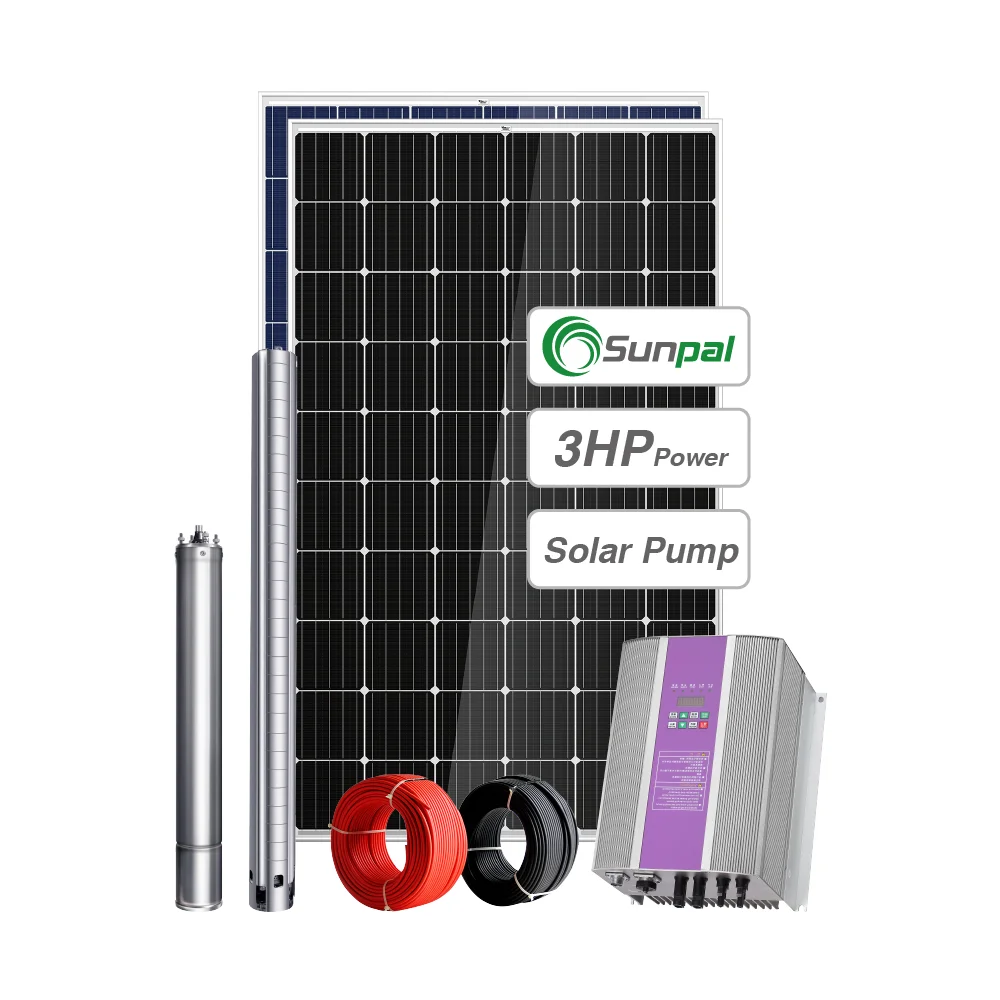

Solar Water Pumping System Configuration

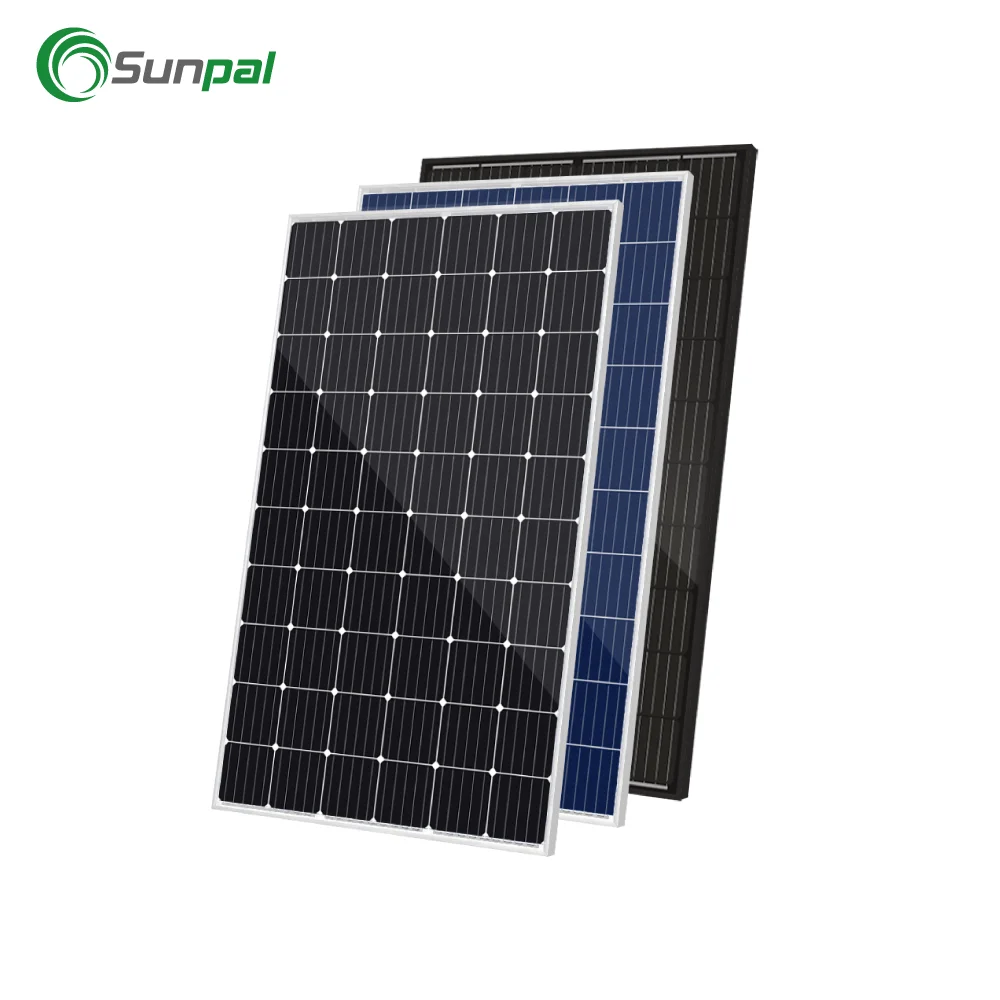

Mono Solar Panels
Peak Power Watts: 280W (SP280M-60), Poly Optional.
Maximum Power Voltage: 31.8V
Maximum Power Current: 8.81A
Open Circuit Voltage: 38.8V
Short Circuit Current: 9.33A
Dimensions:1650×992×35 mm (65.0×39.1×1.38 inches)
Weight:18.6 kg (41.0 lb)
Solar Pump Inverter
Inverter Power: 600/1200/1800W
Max. DC Input Voltage: 150/200/200V
MPP Voltage: 60-120VDC/120-160VDC/120-160VDC
Warranty: 3 Years (STD)
Wifi Stick For STD, Lan & GPRS Optional.
Water Level Switch
Water level switch is a reliable and user-friendly water level control device, it can be used for dry run protection in a well or overflow protection in a tank. The water level switch has the advantages of small size, fast response, high resistance to load impulse, and long lifetime.
Permanent Magnet Solar Pump (DC)
Water Head: 80 - 18 m / 43 - 22 m / 34 - 16 m
Daily Water Flow: 2 - 18 m³ / 18 - 33 m3 / 34 - 76 m³
Pump Outlet Dia.: 25 mm 40 mm 50 mm
Pump Outlet Dia.: 1" 1"1/2 2"
Adapting Well Dia.: 125 mm
Pump Body Material: AISI 304
Pump Enclosure Class: IP68
PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional
DC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years
PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool
Packing & Delivery
Model | Single Set | 20' Container Load | 40' Container Load |
BSM1HP-DC | 0.765 CBM | 30 Sets | 70 Sets |
BSM2HP-DC | 0.935 CBM | 24 Set | 56 Set |
BSM3HP-DC | 1.19 CBM | 18 Set | 42 Set |
Note: The Above packing information contained in this web is subject to change without notice.
Applications
SP3HP-DC Install in Iran Use Poly Solar Panels For irrigation.
SP5HP-AC
Install in Afghanistan Use Mono Solar Panels .
SP20HP-AC
Install in Yemen Use Poly Solar Panels.
