Product Overview

Description


Product Description
\t

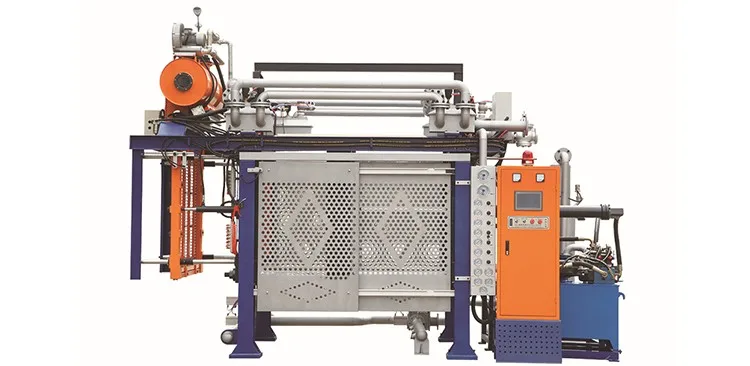

EPS AUTO SHAPE MOULDING MACHINE AB TYPE
\t
Item
\t
Unit
\t
FAV1200
\t
FAV1400
\t
FAV1750
\t
Mould Dimension
\t
mm
\t
1200*1050
\t
1400*1250
\t
1750*1450
\t
Max Product Dimension
\t
mm
\t
1050*900*420
\t
1600*1300*420
\t
1600*1300*420
\t
Stroke
\t
mm
\t
150~1500
\t
150~1500
\t
150~1500
\t
Steam
\t
Main Entry
\t
inch
\t
4
\t
4
\t
4
\t
Consumption
\t
kg/cycle
\t
5~7
\t
6~9
\t
6~11
\t
Pressure
\t
Mpa
\t
0.5~0.7
\t
0.5~0.7
\t
0.5~0.7
\t
Cooling Water
\t
Entry
\t
inch
\t
4
\t
4
\t
4
\t
Consumption
\t
kg/cycle
\t
25~80
\t
30~90
\t
35~100
\t
Pressure
\t
Mpa
\t
0.4~0.6
\t
0.4~0.6
\t
0.4~0.6
\t
Compressed Air
\t
Entry
\t
inch
\t
2.5
\t
2.5
\t
2.5
\t
Consumption
\t
m3/cycle
\t
1.5
\t
1.8
\t
2
\t
Pressure
\t
Mpa
\t
0.5~0.7
\t
0.5~0.7
\t
0.5~0.7
\t
Vaccum Pump Capacity
\t
m3/h
\t
165
\t
230
\t
290
\t
Cycle Time
\t
s
\t
60-110
\t
60-120
\t
60-120
\t
Connected Load/Power
\t
kw
\t
12.5
\t
12.5
\t
16.5
\t
Overall Dimension
\t
mm
\t
4200*1400*3010
\t
4700*1920*3250
\t
4700*2030*3450
\t
Machine Weight
\t
kg
\t
6000
\t
6500
\t
7000
\t
All the Specification could be customized.

The Features of EPS Shape Moulding Machine

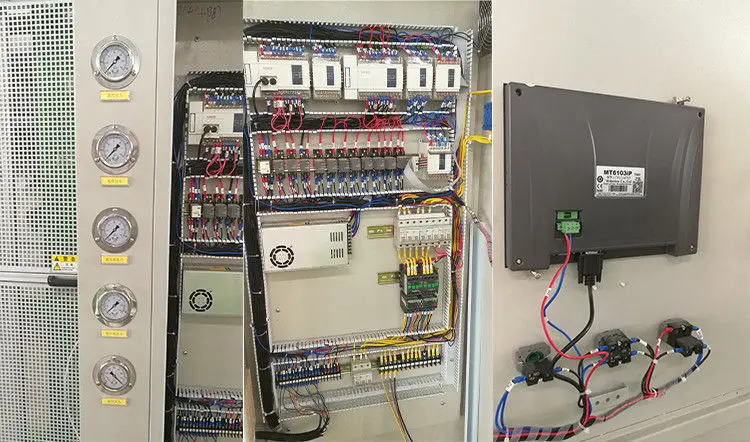

1. This machine applies PLC program control and touch screen human-machine control, low voltage and high efficiency special forming process control software that can produce a variety of products.

3. There are four kinds of operating mode (Automatic, Semi-automatic, Middle-startup and Manual operation)with safe-guard protective device to ensure safe operation.

4. This machine can choose vacuum condensation spray system which can significantly improve the efficiency of the vacuum function to achieve saving energy, guaranteed to work properly pressurized water tank under low pressure condition. This machine has microcomputer control and touch screen display. Simplicity of operation and easy to maintain, it can reduce the labor intensity.

5. This machine applies advanced electrical and hydraulic integration system, which improves the moulding speed, lowers the energy consumption remarkably and reduces the environmental pollution.

6. The vacuum system can accelerate moulding speed,reduce cooling time and reduce moisture content of the product.

7. Perfect failure-self-diagnosing and overloading protection system. Auxiliary relay to ensure the safety of PLC and touch screen.

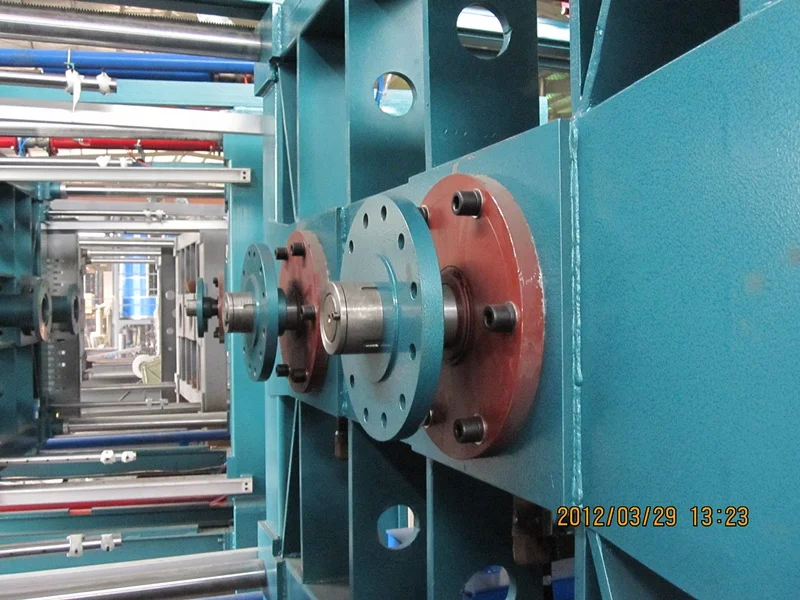

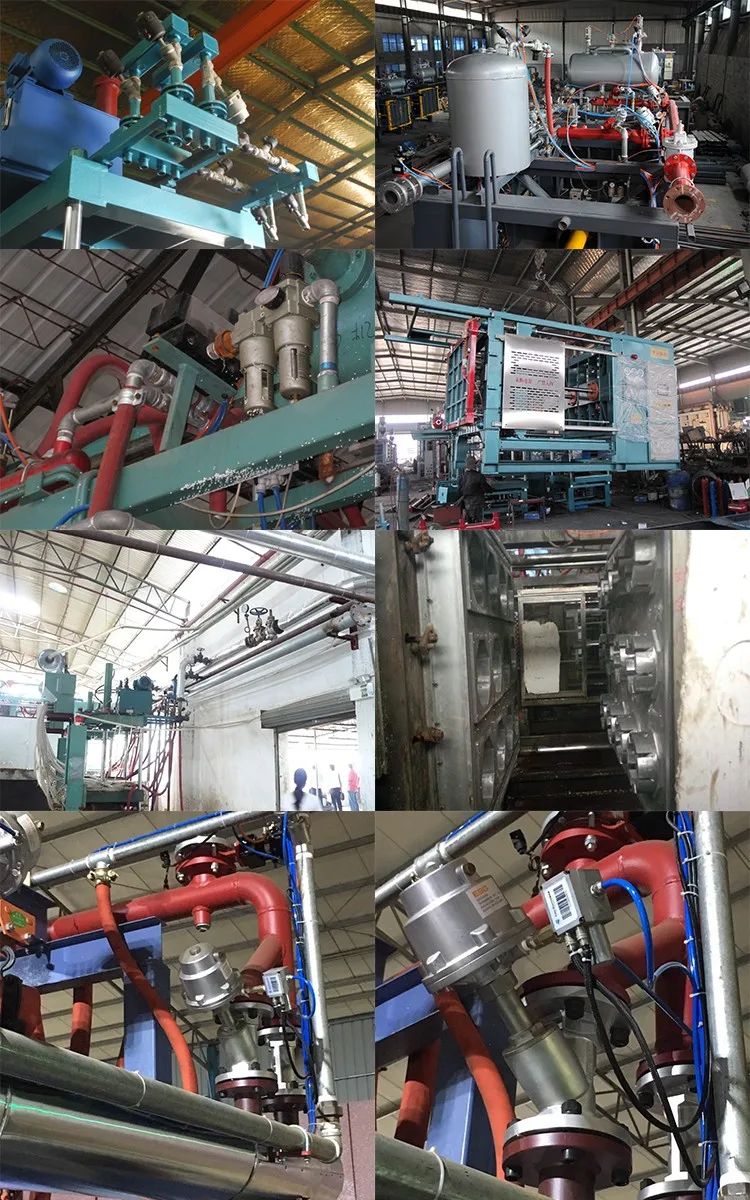

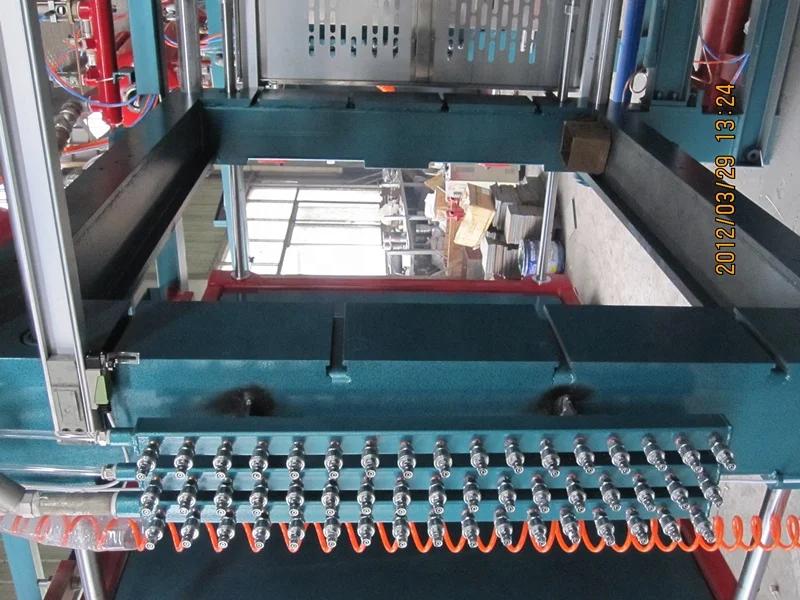

Detailed Images
\t
The Advantages of EPS Shape Moulding Machine

Advantages:

1.with Schneider electronics.
2.with Japan reduce valve and Germany control valves and gauges.
3.with compressed water tank.
4.With all machine extra legs with 1.2/1.5m height and foundation structure.
5.with bigger pipe system and valves control system .
6.with condenser cooling system.
7.with vertical double feeding system.
8.working speed is faster 30% than the old type.
9.it can save 20% to 30% energy to make the same products capacity.
10.With complete safe door and alarm control system.

\t

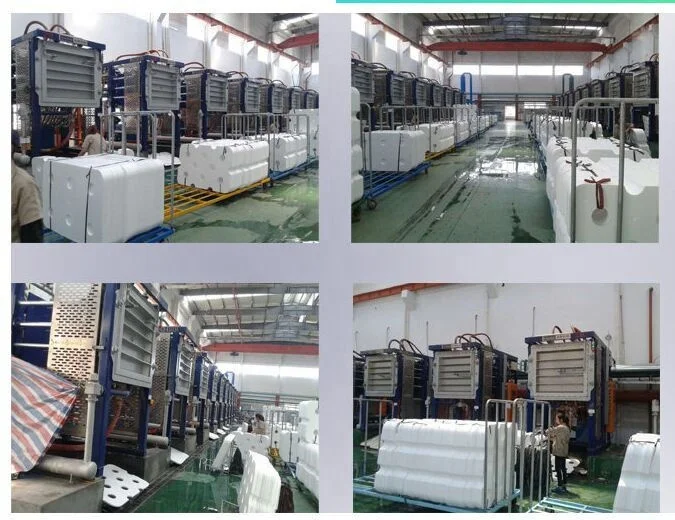

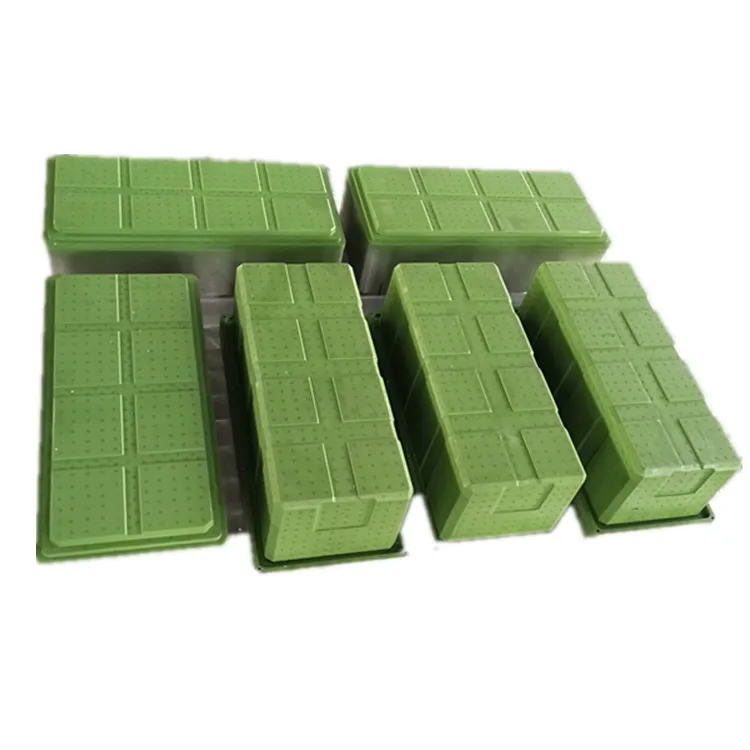

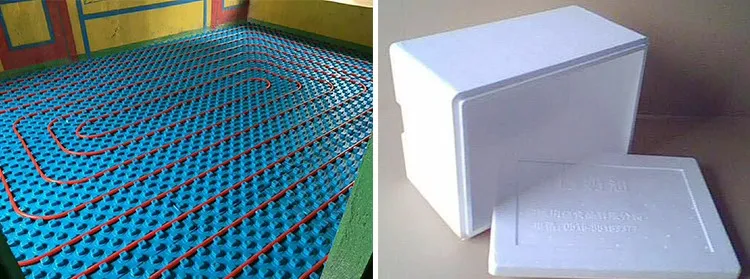

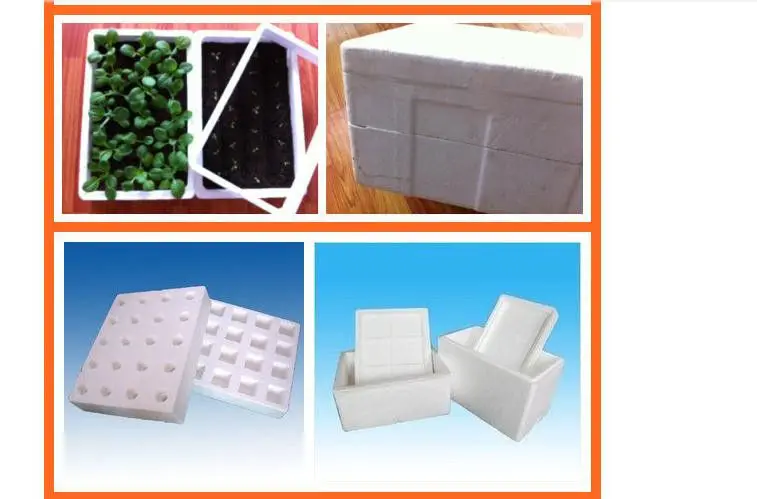

The Application of EPS Shape Moulding Machine
\t

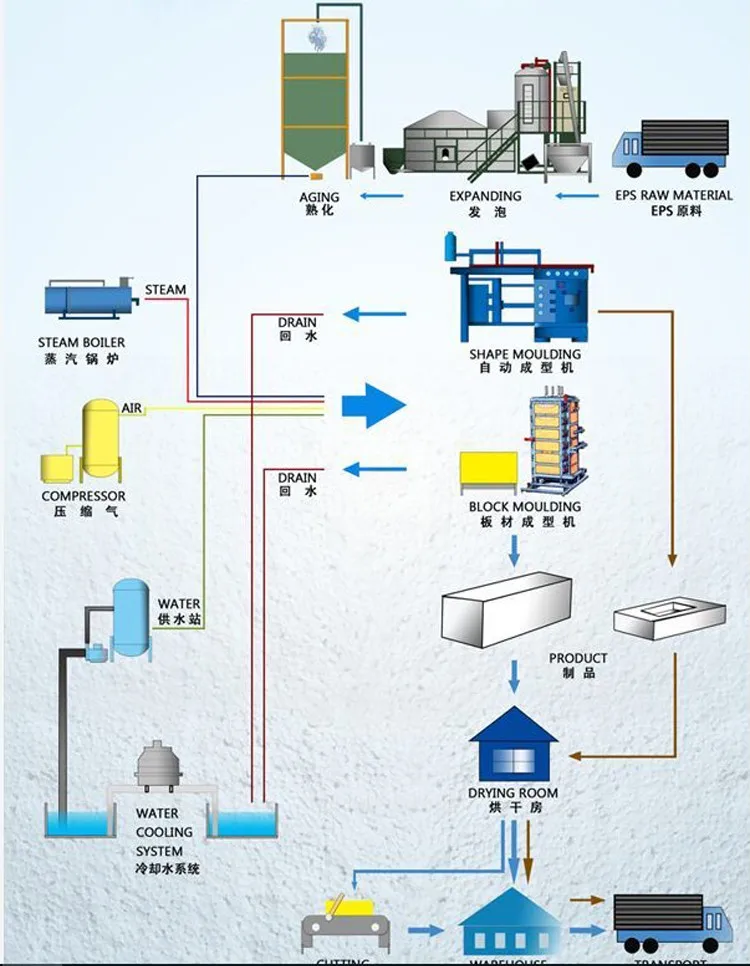

Production Flow of EPS Foam Machine
Related Products

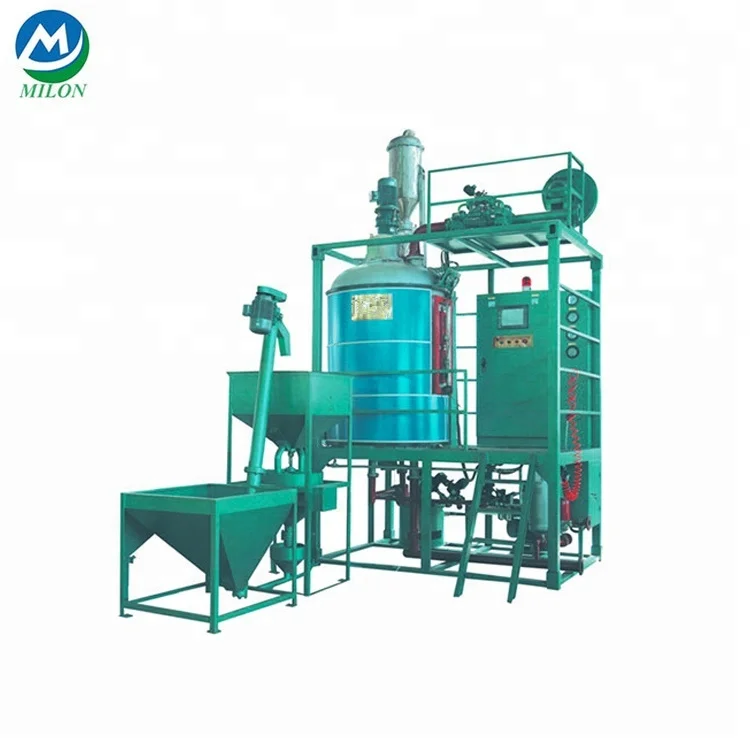

EPS Pre-expander


EPS Mould

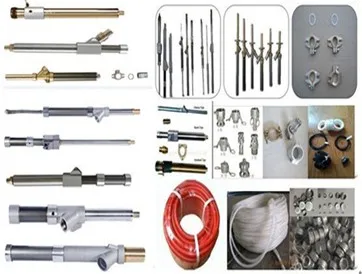

Hardware

Company Information
\t
Welcome to learn us more, please to click: Hangzhou Milon Machinery Co., Ltd.
Our Workshop

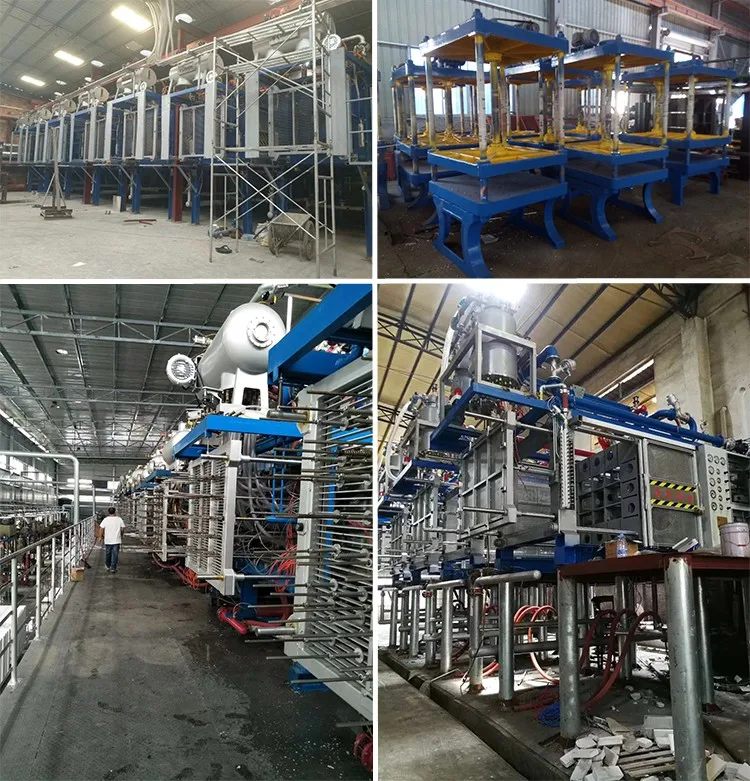

Successful Projects

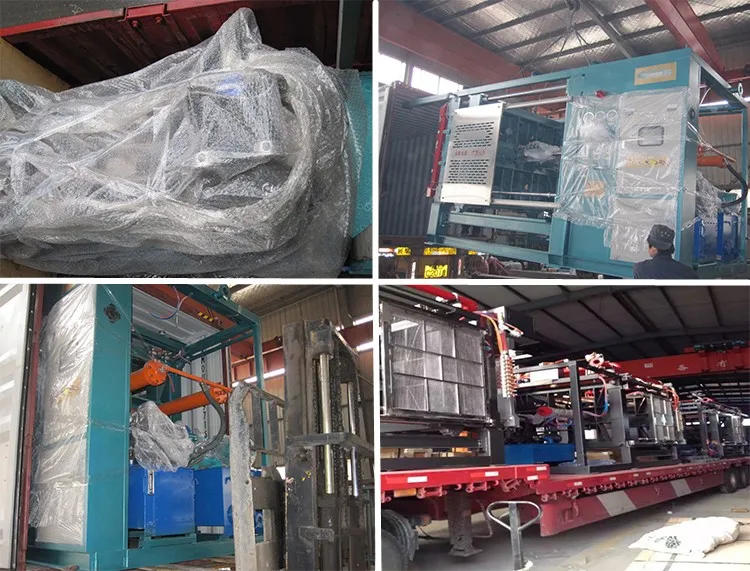

Packing & Delivery
