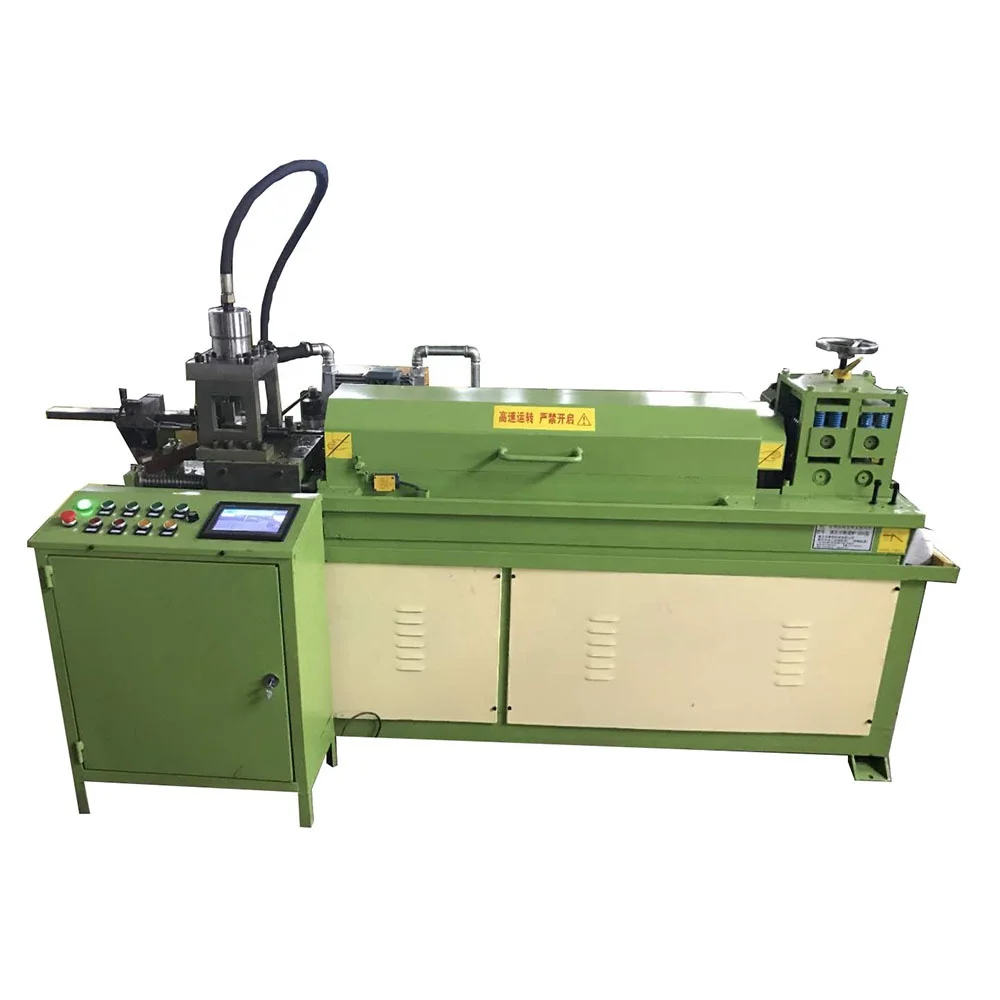

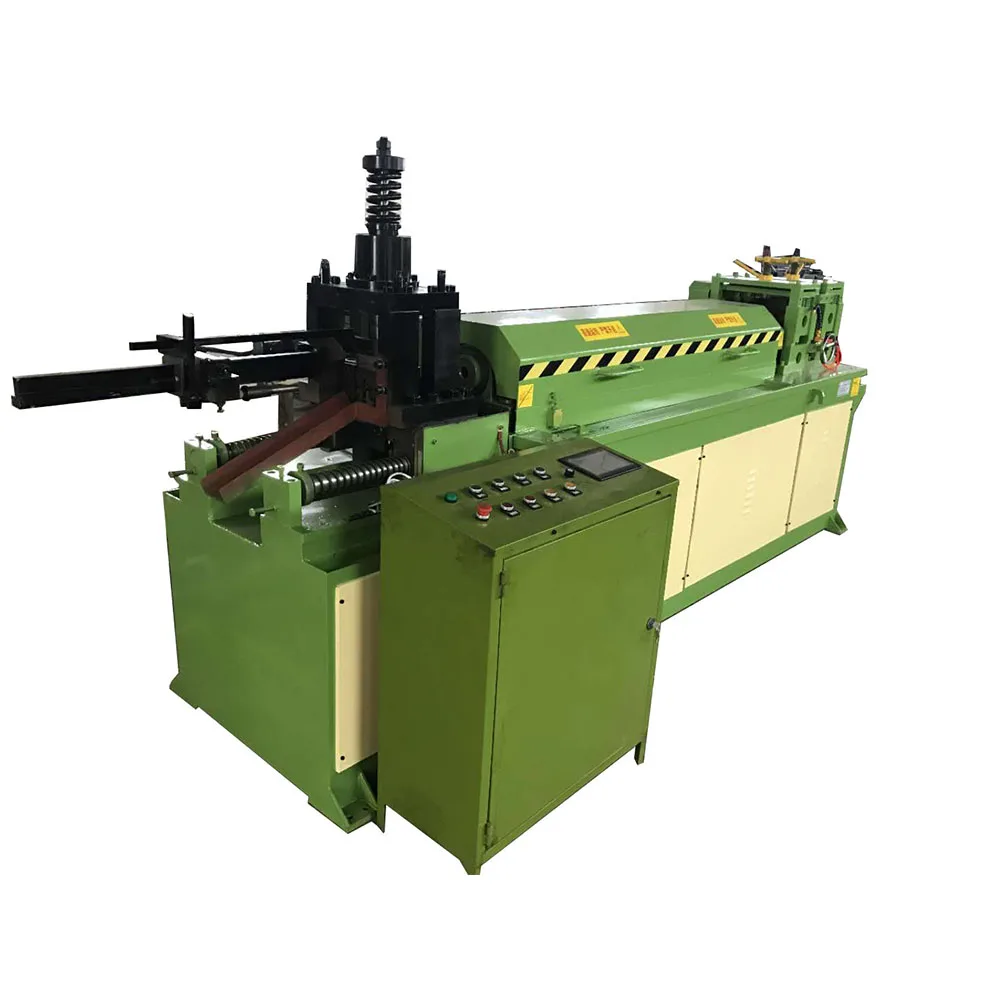

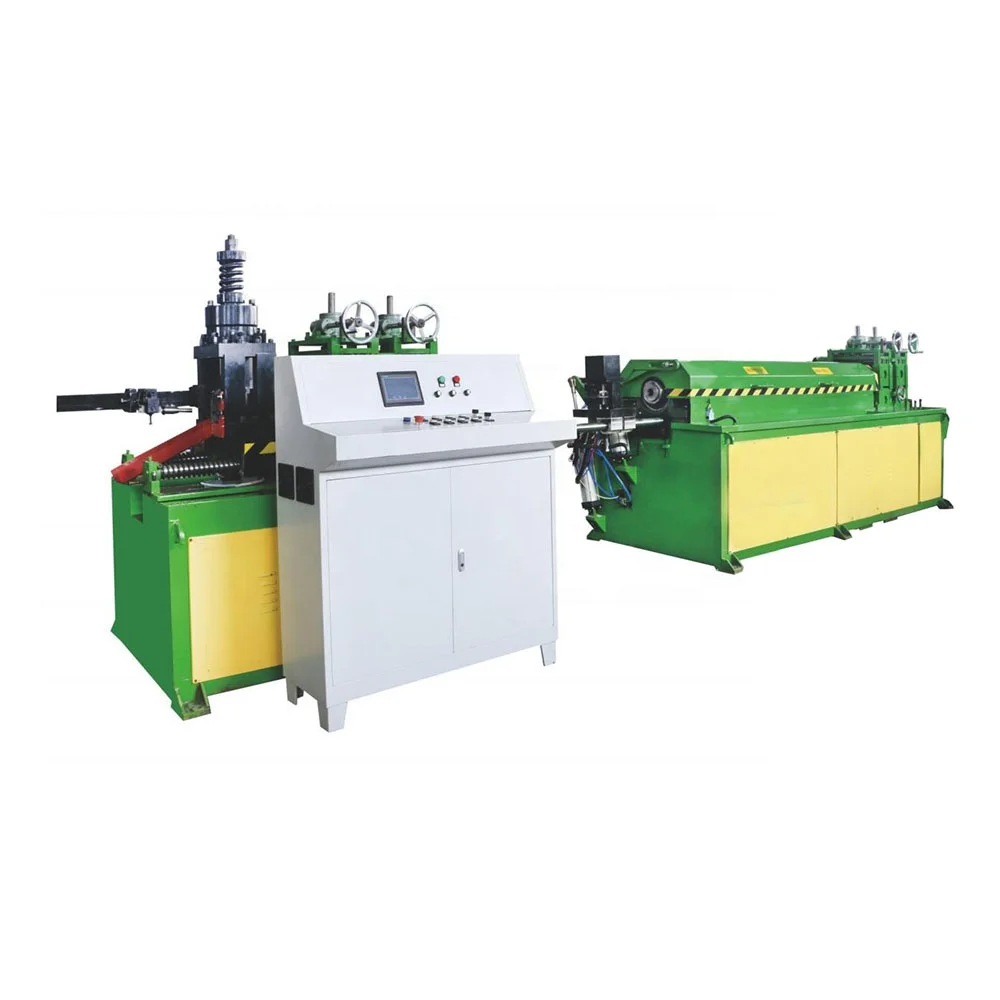

automatic wire straightening and cutting machine

Product Overview

Description

1. High precision with cutting tolerance 0.05-0.2mm

2. High speed with automatic feeder

3. Machine has safety protection cover

4. Low power consumption

5. Stable performance and simple operation



Model	W-200	WY-400	WY-600	WY-800
Diameter of bar	0.8-2.0mm	2.0-3.5mm	3.5-6.5mm	6.0-10mm
Cutting range	3-200mm	6-1500mm	15-4000mm	30-4000mm
Speed of straightening	15m/min	15m/min	15-18m/min	15-18m/min
Error of cutting length	±0.05mm/m	±0.05mm/m	±0.08mm/m	±0.1mm/m
Straightness	≤0.02	≤0.02	≤0.02	≤0.02
Main motor	0.75kw	3.0kw	5.5kw	7.5kw
Total motor	1.1kw	4.0kw	9.0kw	13kw





Model	WY-1200	WY-1500	WY-2000	WY-2500
Diameter of bar	9.0-14mm	10-16mm	14-20mm	16-25mm
Cutting range	30-6000mm	35-6000mm	35-6000mm	40-6000mm
Speed of straightening	16-20m/min	16-20m/min	16-20m/min	16-20m/min
Error of cutting length	±0.15mm/m	±0.15mm/m	±0.2mm/m	±0.2mm/m
Straightness	≤0.02	≤0.02	≤0.02	≤0.02
Main motor	22kw	30kw	45kw	55kw
Total motor	27kw	37kw	52kw	64kw

Q1. Are you factory or trading company ?

A1. We are factory of manufacturing  .Welcome to visit our factory.



Q2. What is the delivery time ?

A2. Usually 5-15 days for machine



Q3. What is the warranty time for machine?

A3. Usually 12 months from Shipping date.



Q4. What is the payment term?

A4. T/T, Western Union, Moneygram, Alipay, PayPal.

      30% as deposit, and 70% before shipping.



Q5. Is it possible to design and produce automatic loading & unloading devices?

A5. Yes, Engineer can design special auto feeding device according to your products.

      But please provide the drawing of your products before that.



Q6. How will you solve problems that we face during using your machine?

A6. Please provide necessary videos and pictures that can show the problems, our engineers will check and give corresponding solutions.
