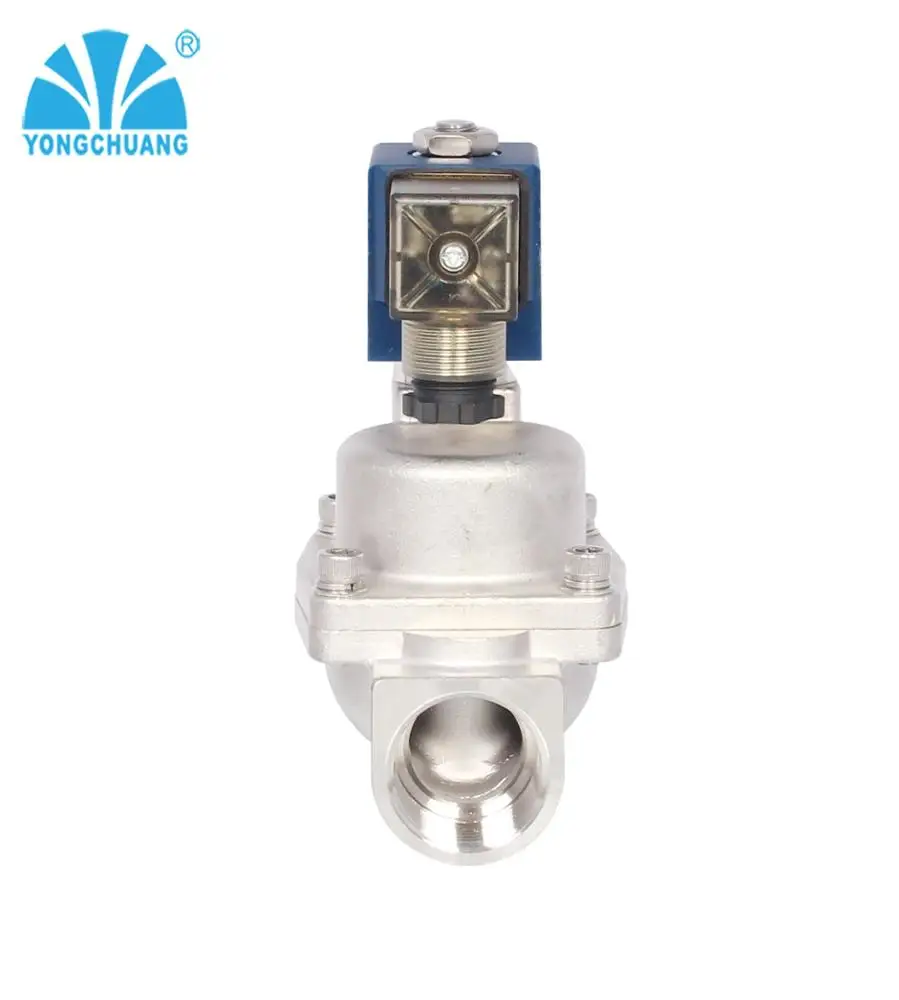

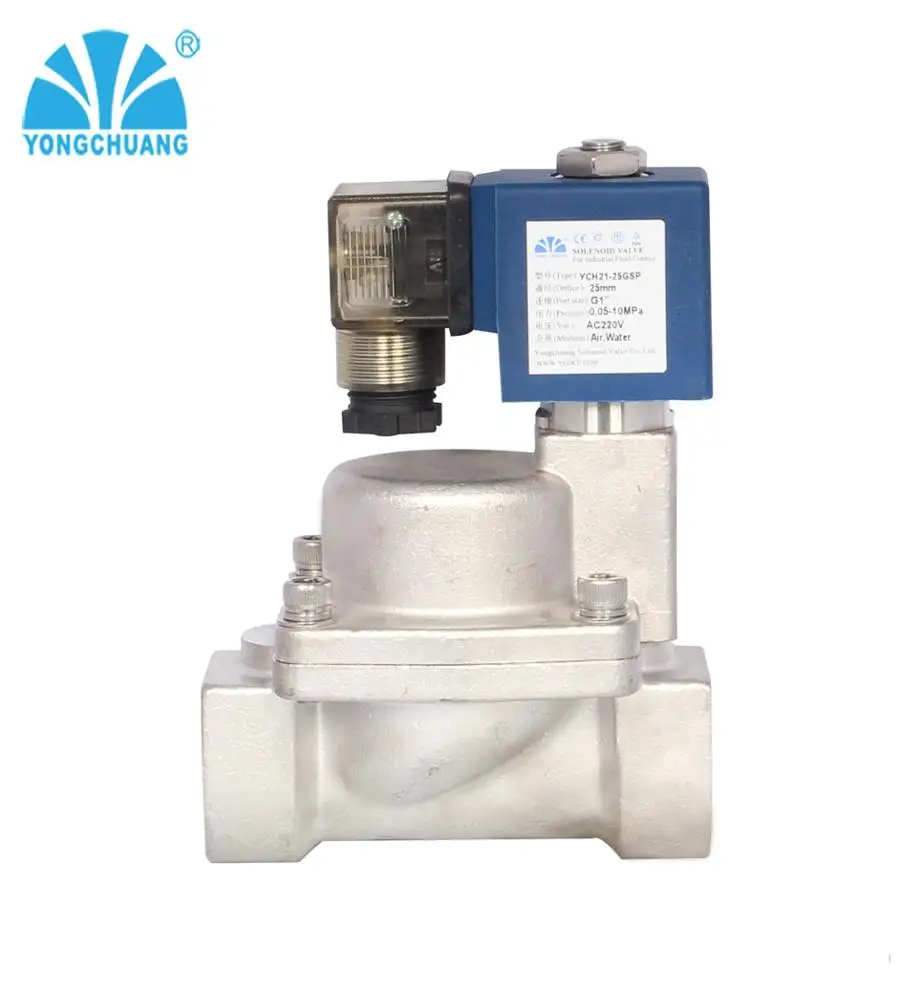

Yongchuang high pressure stainless steel 100 bar CO2 solenoid valve
- Category: >>>
- Supplier: Yuyao Yongchuang Solenoid Valve Co. Ltd.
Share on (60787890293):
Product Overview
Description
| Ctic | High pressure solenoid valve,piston type. |
| Medium | Air,water,CO2. |
| Temperature | PTFE-60°C to 200 °C FKM:-10°C to 150 °C |
| Pressure | 0.5-1.0Mpa |
| Port size | 3/8'-1' |
| Port thread | G,NPT |
| Orifice | 12-25mm |
| Voltage | DC-12V,24V AC-24V,120V,110V,220V/50HZ |
| Tolerance | ±10% |
| Coil | GE21B,Start 145w,Maintain 5.5W,IP65,100%ED |
| | |
| Material | Body-Stainless steel Seal- NBR,EPDM,FKM Amature tube-stainless steel 304 Plunger-stainless steel430F Stop-stainless steel 430F Springs-SS304 Shading rings- stainless steel 304 |
|
