Share on (60788109323):


Price:RUB 222,981.30 - RUB 1,486,542.00

Quantity:


Product Overview

Description

Product Description

Brief Introduction:

11AX Sucker Rod Pumping Unit is one kind of convention beam pumping unit,which selects the crank balanced method.It is the most common, an application scope broadest surface power equipment in field production oil.

The products conform to API Spec 11E "Specification for Pumping Units" and other related standards,and have obtained the certificate of authority to use the official API monogram.

Product Detail

API B Series Pump Jack
Effect Diagram

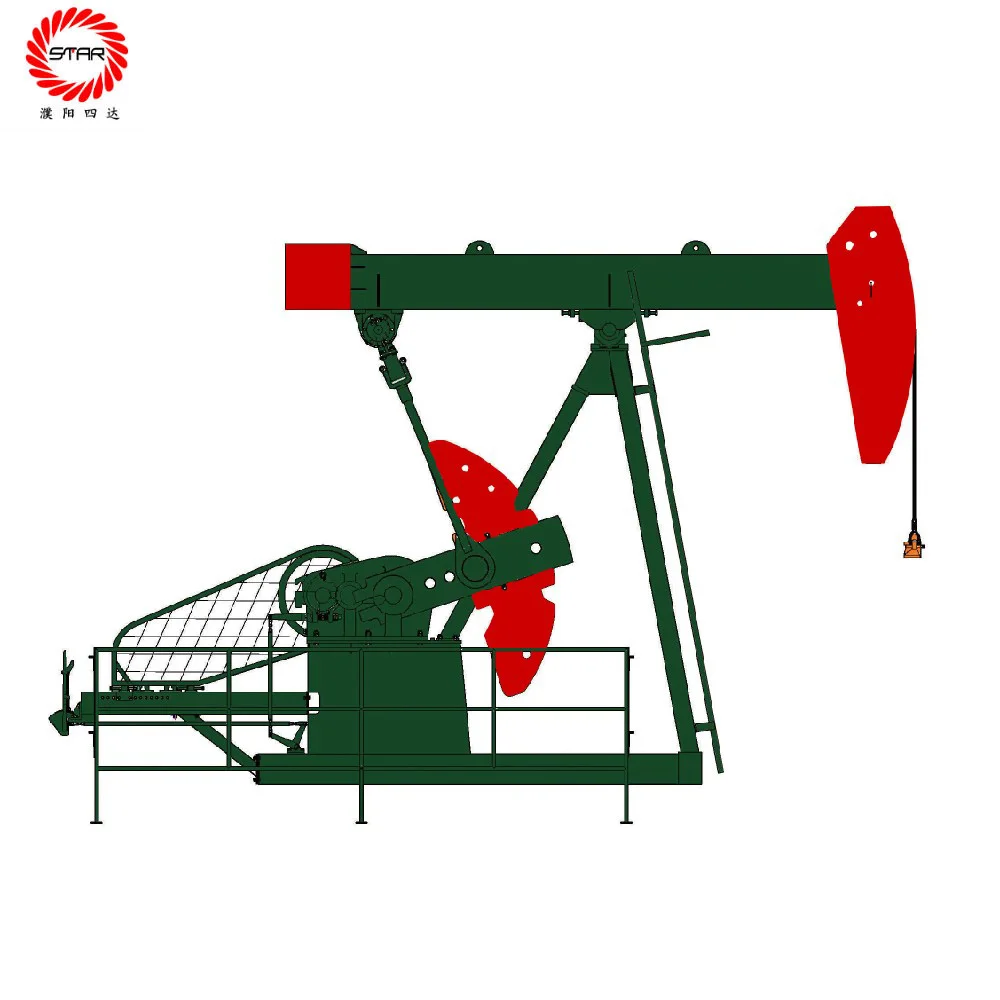

API B Series Pump Jack Drawing

Drawing

API C Series Pump Jack
Effect Diagram

API C Series Pump Jack Drawing

1.Wireline
2.Polished Rod Hanger
3.Polished Rod Clamp
4.Mulehead
5.Walking Beam
6.Sampon post support leg
7.Saddle Bearing Assembly
8.Equalizer Bearing Assembly
9.Equalizer Beam
10.Pitman Arm
11.Crank Assembly
12.Crank
13.Reducer
14.Brake Assembly
15.,Motor Base
16.Main Frame
17.Cross Bars Assembly
Crank Guard,Belt Cover


B Series and C Series Pump Jack Effect Diagram Comparison

Beam Balance

B Series Pumping Unit

Crank Balance

C Series Pumping Unit

B Series and C Series Pump Jack Drawing Comparison

Technical Parameters

API B Series Pump Jack

Technical Parameters

API C Series Pump Jack Technical Parameters


Want to know more, please contact Lillian .

Please  supply following information, that I can make the quotation list soon:
1.Gear Reducer:Peak Torque Rating,Reductioin ratio,Type of bearings.
2.Frame structure:Unit structure rating,Range of stroke,Wrist Pin Bearing,Color.
3.Quantity.
4.Trading method:EXW, FOB, CIF(CIF need the destination port) ...
If  have model is better, such as C-25D-53-30
Certifications
Packing & Delivery
Packaging
Name
Parts/Tools/Files
Method
Iron BOx



Packaging Details
Pumping Unit small parts ,tools  and files(Operation Manual,Parts Catalog) in to the Iron box,then with the Main Machine in to the container
Packaging
Name
Main Machine
Method
Naked


Packaging Details
After fixed, pumping unit main machine naked into the container.
Iron Box

Parts,Tools, Files

Fixed

Fixed and ready to delivery

Loading

Crane to assist in loading

Loading Finished

All the part into the container

Domestic Transport

Container is transported to the port.

Sea Shippinig

Container loaded on board, travel across the sea to the port of destination.


Remarks:

The number of containers required fot the pumping Machine shipment depends on the model.

Our Company

Workshop Show

Factory Show

Team Show

The China Import and Export Fair


Foreign Exhibition


International Trade Service Team

Welcome friends from all over the world come to visit our factory and guidance our work.
