Product Overview

Description


Product Description

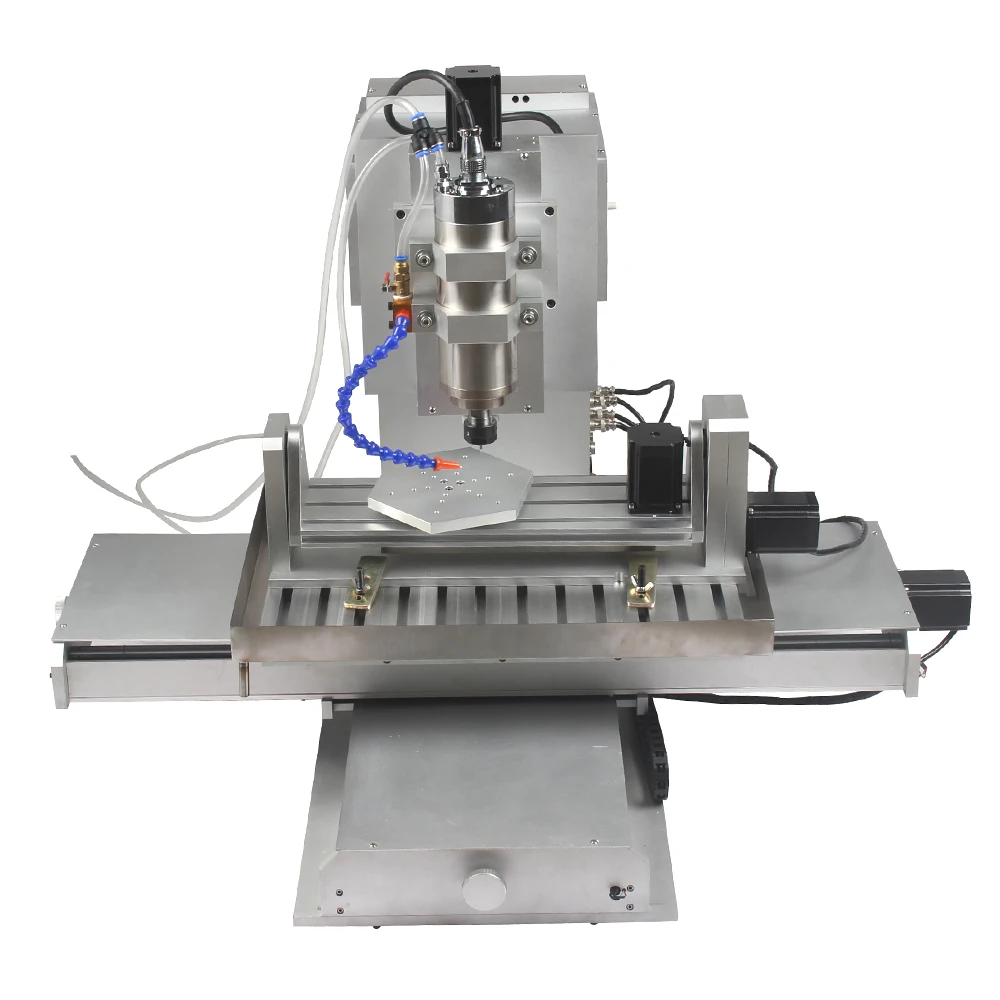

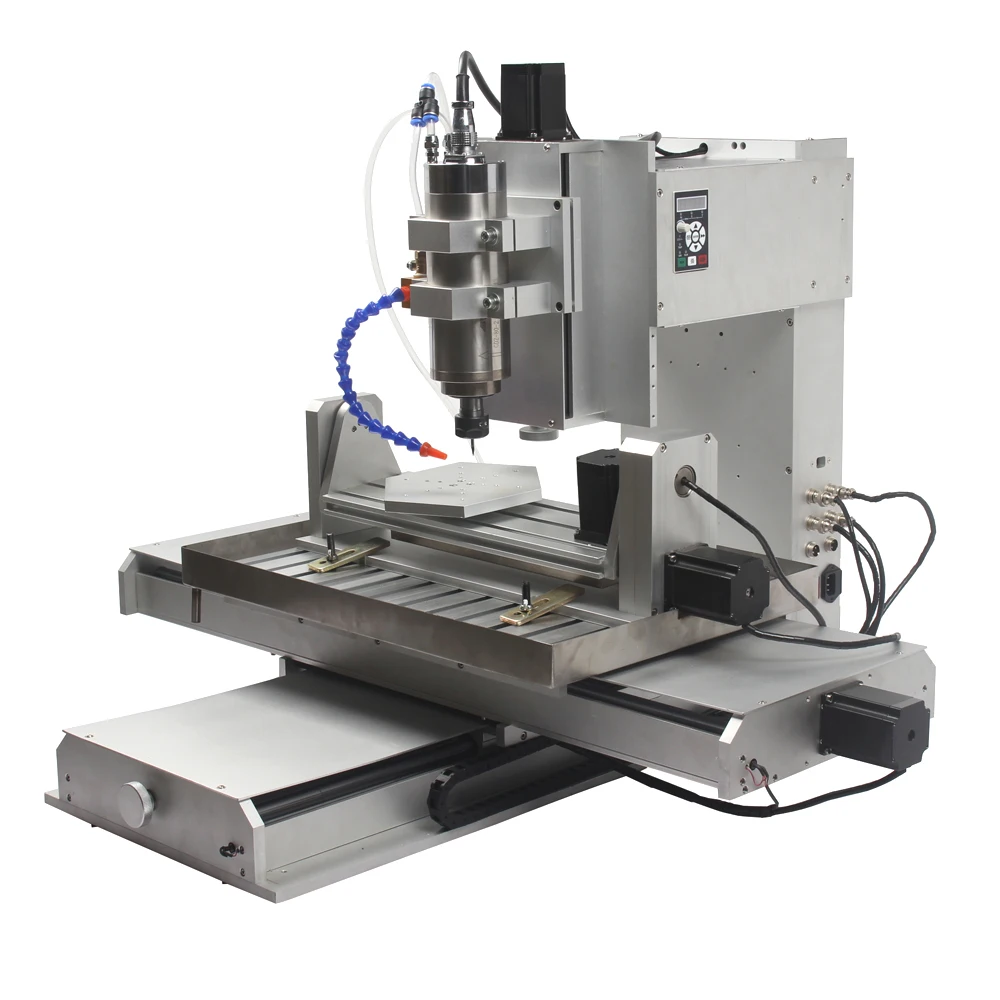

HY6040 CNC  router 5axis wood working machine for aluminum
1.It can work with 3 axis / 4 axis / 5 axis, just as you like !
2.Cross slippery paltform and havier base made it a higher precision.
3.Built in frequencey converter and without controller box.
4.Can engrave material which hardness below 45.
5.1500w/2200w water-cooled spindle
6.Vedio supported
7.CE approval
* Stable stock, CE certified factory, fast delivery for max production. Offer one-stop solution for engraving business.
Specification sheet
Effective working travel
583X)mm*420(Y)mm*150(Z)mm

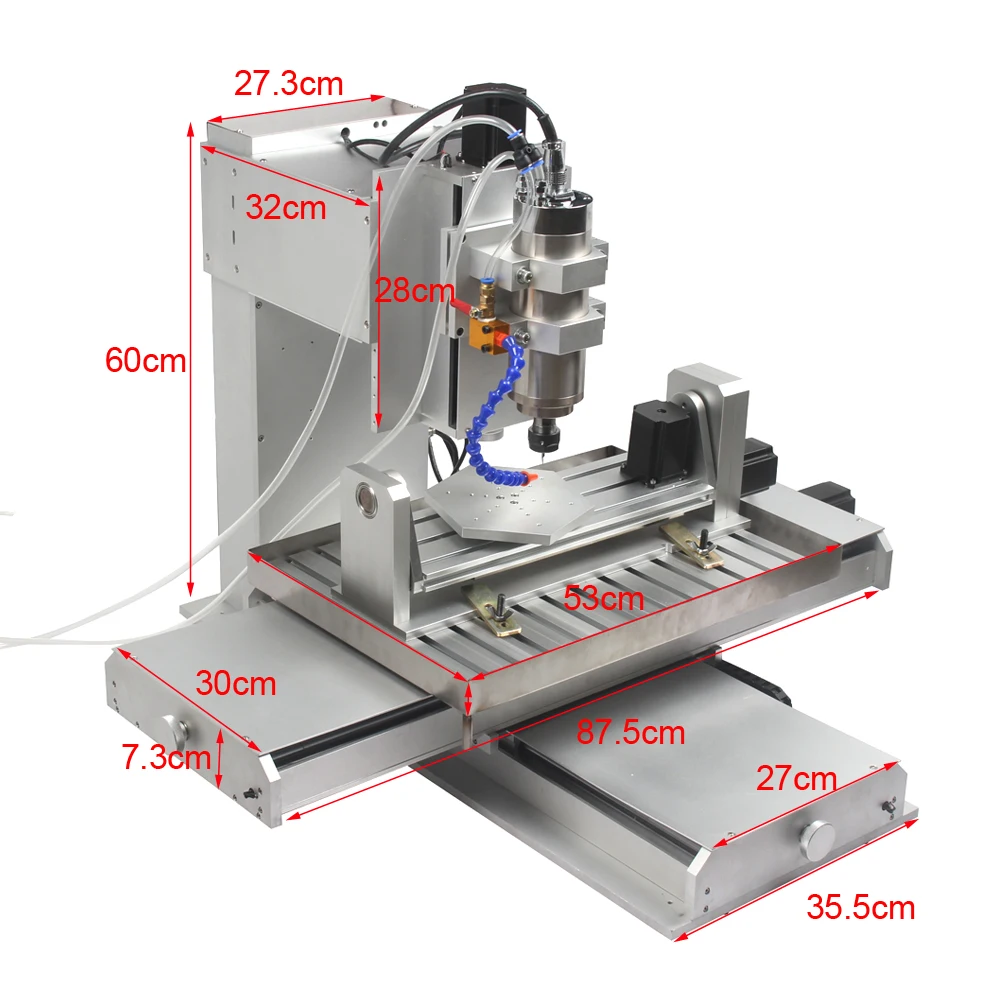

Shape dimension
855(L)mm*875(W)mm*600(H)mm
Frame materials
Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs
acceptable material thickness
≤145mm
Driving units
X/Y/Z axis
SFUR1605-DFC7-P0 ball screw
Sliding units
X axis
Dia.20mm chrome plate shafts
Y axis
Dia.16mm chrome plate shafts
Z axis
Dia.13mm chrome plate shafts
X,Y,Z Axis Stepping motor type
57 two-phase 3A 180N.cm 76mm length
A,B Axis Stepping motor type
57 two-phase 4A 180N.cm 112mm length
Support 4th Axis(rotary) maximum clamping diameter
Center height 65mm, 3 Jaw 80mm Chuck, Maximum clamping 125mm,Tailstock maximum expansion length 50mm , Maximum clamping weight 30kg

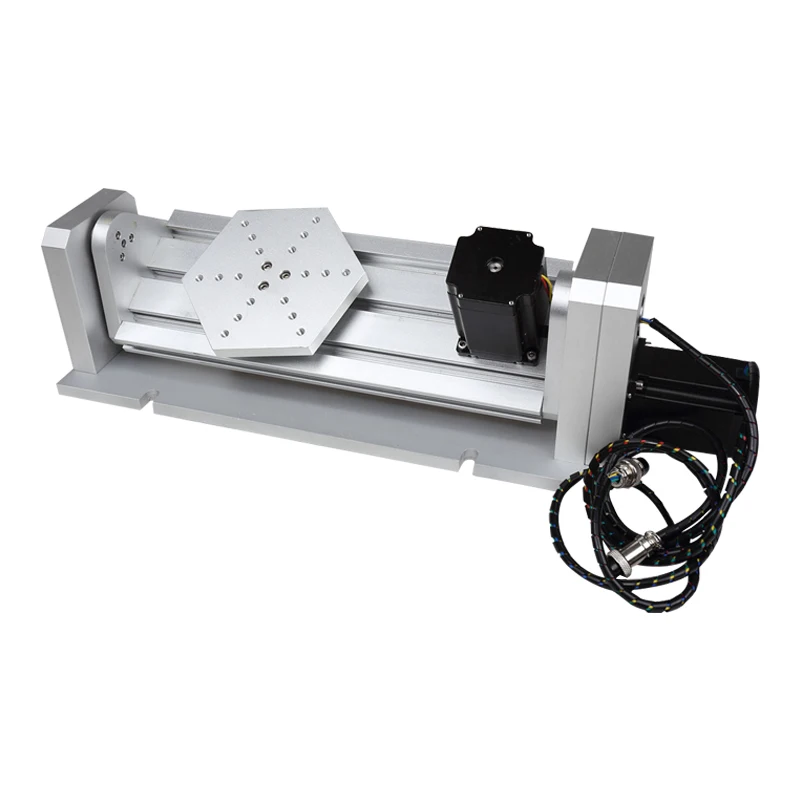

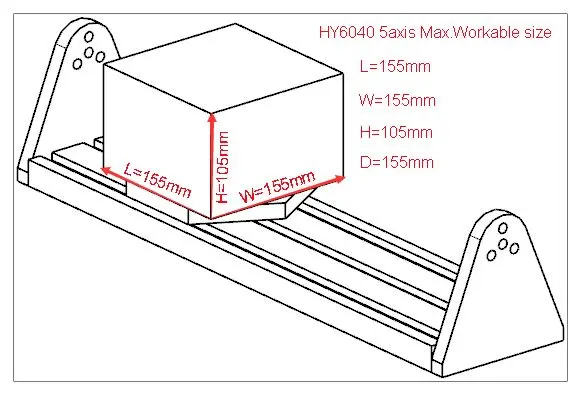

5th axis working travel
120(X)mm*120(Y)mm*80(Z) 360 degree 30-90 degree suggested Plate dia, 180mm
Spindle motor
Brand new 1500W/2200W water cooling spindle, 24000RPM
Principal axis collet
ER11 1-7mm; ER-20 1-13mm
Repeat accuracy
0.05mm
Spindle precision
radial beat accuracy 0.03 mm
Operating system
Win10 and below
Maximum speed
0-4000mm/min
Control unit
nMotion USB motion card, higher accuracy, better quality
Computer connection
USB port
Command code
G code, nc, ncc, txt, tap
Operating Voltage
AC220V/110V
Accessories
bits, tool kits etc.
Warranty
1 Year, 3months for the spindle
Package size
One wooden box, 114*97*58cm
Gross weight
114KG
Our Advantages
Overseas warehouse in the United States
Overseas warehouses in Russia
Overseas warehouse in Germany
Overseas warehouse in Poland
 Easy operating because:
1.It can work with 3 axis / 4 axis / 5 axis, just as you like !
2.Independent high-speed micro computer intelligent controller.
3.Independent drivers for each axis.
4.Mach 3 software USB connection
5.Upgraded with more stable structure than old type
6.Built in frequencey converter and without controller box.
7.Higher precision because:
8.Cross slippery platform design rather than gantry design.
9.Aluminum base sheet is heavy which can make sure less vibration when work.
10.With auto-checking
function.
11.1500/2200w water-cooled spindle.
12.Ball screw
13.Stainless Steel sink for bits cooling
14.You can buy this machine from us without any worry because:
15.CE approved.
16.Video support.
17.English manual available.
18.Mach 3 software send with the machine as a CD.
19.Can engrave material which hardness below 45.
If you need any of USB 6 axis handwheel, Dial Gauge, Detector Edge Firder, Micrometer, CNC manual pliers, please contact sales for purchase.
Product packaging
Recommend Products
Hot Sale Mini CNC Router 3040 4 Axis CNC Milling Machine with Factory Price
The above machine is too expensive? Please look at this, the same working area can also engrave the material of the cylinder, the price is cheaper
3D 5 Axis Drilling Router Center Foam Hobby Sheet Metal Cutting Woodworking Tools Lathe Milling Cnc Machine
Do you want a smaller and cheaper machine? Then choose this HY3040 5axis cnc router with a working area of 300*400mm.
Desktop Wood Spindle Motor Tools Price Small Kit Spare Parts Bits Stone Metal Cutting 5 Axis Cnc Router Machine
Better precision and more stability，3D 5 axis small mini cnc milling machine for metal aluminum cooper steel high accuracy 0.02mm
Company Profile
Certifications
FAQ
After service Q and A
Question 1
I want to buy this machine but i don't know how to program G code ?
Answer: We can provide fee charge service Or you can go to study .

Question 2
I don't know how to setting parameters when need to use it .
Answer: We have instructions for our machine .All the parameters is very clearly on it. We also can provide online support
service.

Question 3
I am interested in this CNC machine but i don't know how to use it.
Answer: We have video to show how to operate our machine ,If you still don't know after check the video and we can provide remote
assistance .

Question 4
How can i do if the machine damage on the shipping way ?
Answer: No matter any problem with the machine please contact us by eBay message with photos or videos . We will give you a
satisfied solution after check it.

Question 5
How long is the warranty of the machine?
Answer : This item comes with 12 months Manufacturer's Warranty from the date of customers purchased it.

Question 6
How can i do when the machine have quality problem ?
Answer : Please take a video to show your problem to us .We have professional engineer to help you solve the problem.A free replacement can send when needed
