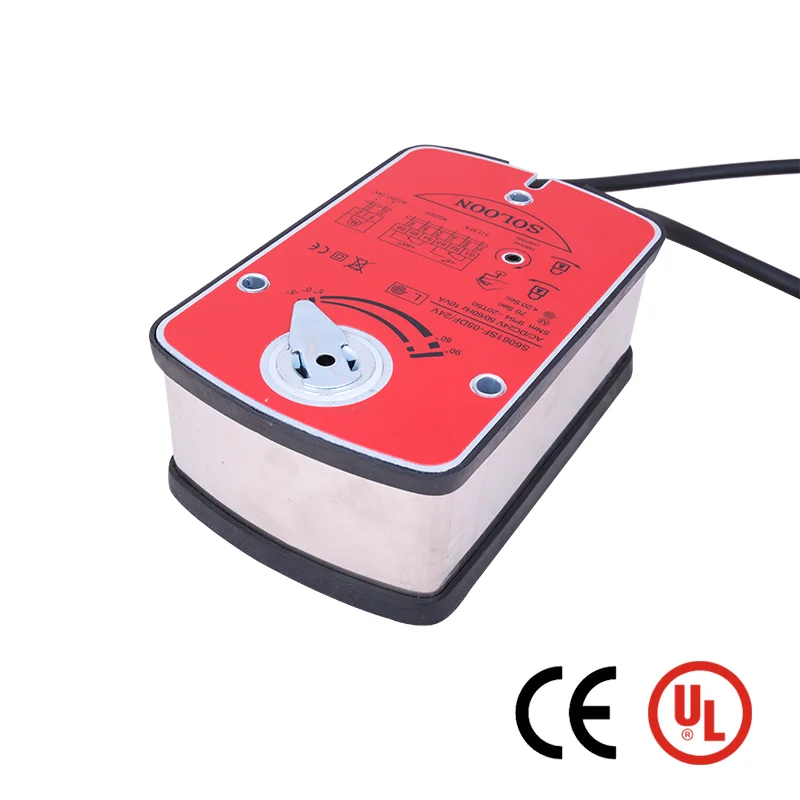

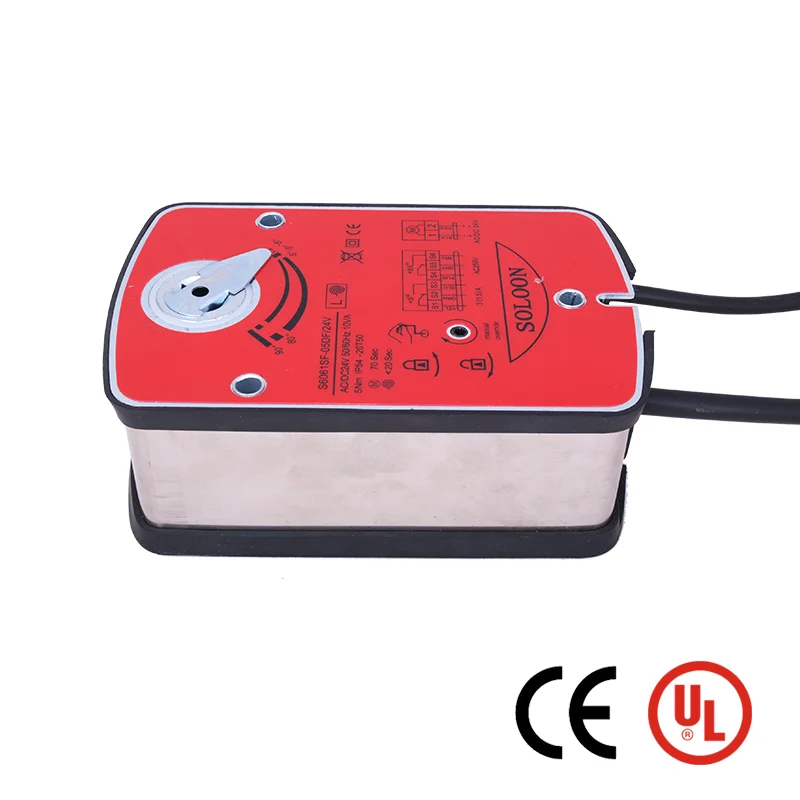

5NM Fire and Smoke proportional damper actuator
5NM Fire and Smoke proportional damper actuator
5NM Fire and Smoke proportional damper actuator
5NM Fire and Smoke proportional damper actuator

5NM Fire and Smoke proportional damper actuator

Share on (60788802423):


Price:$48.00 - $60.00

Quantity:


Product Overview

Description


Product Description
















Technical Specification
























































































ItemS6061SF-05AF/24V


Torque


  5NM


Damper Area




1m2



Running Time




Motor 120S, Spring Return 20S





Power Supply



24VAC/DC



Operating Power Consumption


  5W
 Wire Size 7VA
Weight1.4Kg
 Control Signal  0~10V


Angle of Rotation


  5~85º(Per step 5º)


Rotate Direction


  0~90°(Max 93º)

Connection cable




1m cable  4*0.5


Auxiliary switch (F):1m cable 6*0.5 m2 or 3*0.5 m2



Life Cycle


  >70000

Noise Level


  50dB(A) and 62dB(A)

Electric level



Ⅲ



IP Protection


  IP54

Temperature


  -20~+50℃

Humidity


  5~95%RH

Storage Temperature


  -40~+70℃


Certificate


  CE & UL




           Wiring diagram:                                                               Auxiliary switch:


            HVAC System 5 NM Modulating Spring Return Damper Actuator                              HVAC System 5 NM Modulating Spring Return Damper Actuator





         Outline Size:
