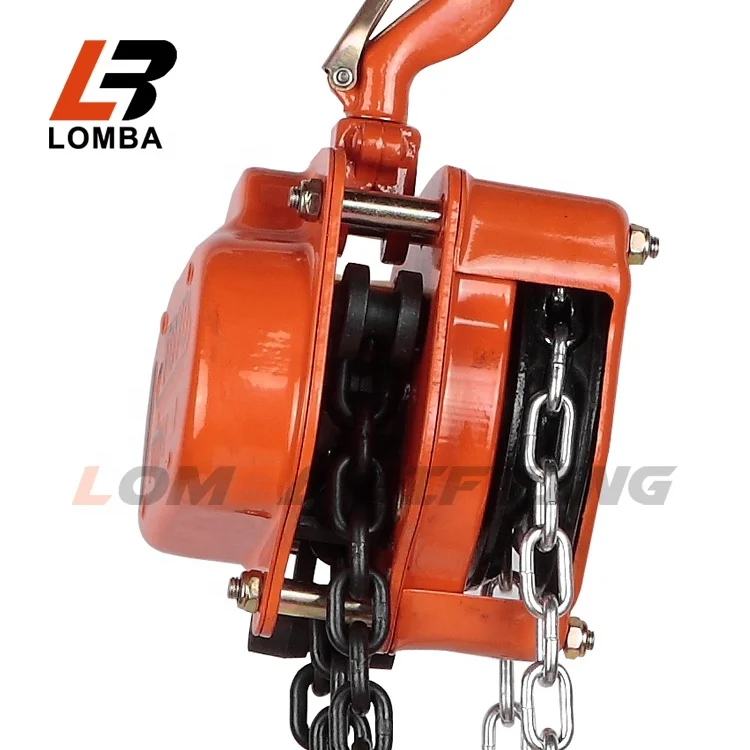

Factory Price Lifting Hand Hoist 1 Ton 2 Ton 3 Ton 5 Ton Manual Chain Pulley Block
- Category: >>>
- Supplier: Foshan Lomba Lifting Machinery Co. Ltd.Foshan Ltd.
Share on (60788932464):
Product Overview
Description
Product Description

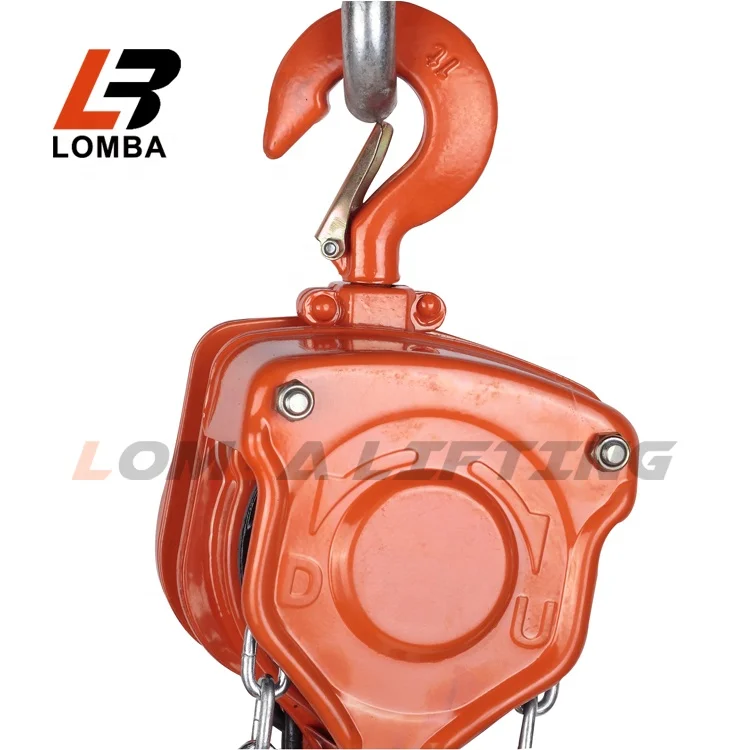

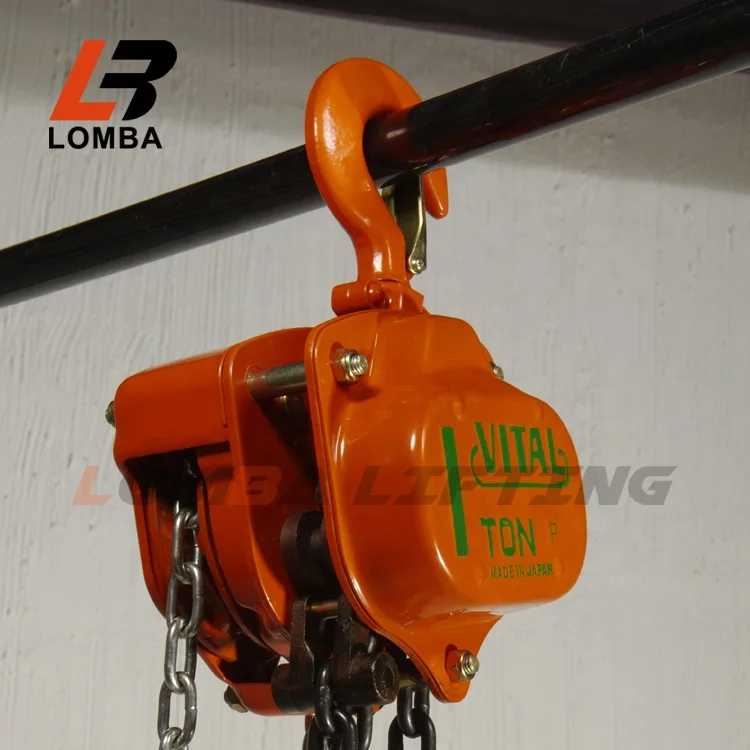

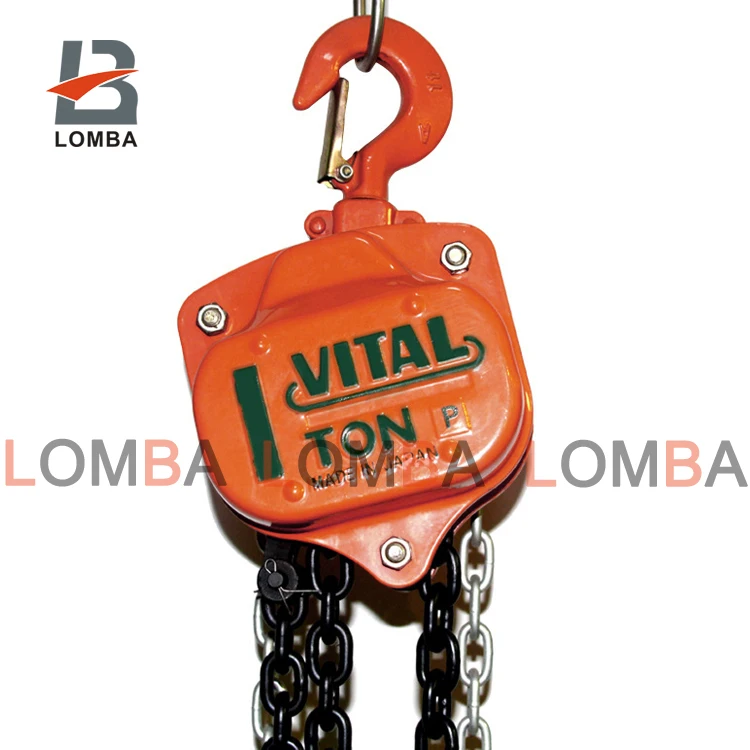

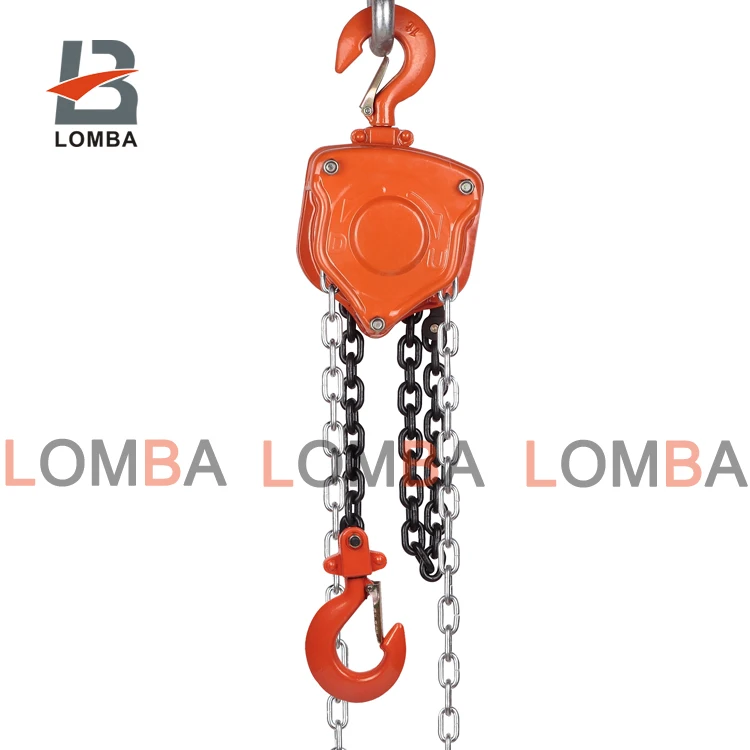

HSZ-A Manual Operated Chain Fall Engine Hoist Block And Tackle Lift
Technical Benefits
1. High-tech load chains are approved by DIN5684, one of the world’s most rigid standards. This is the special heat treated load chain of ISO Grade T (900N/mm2) whose tensile strength far surpasses ISO T class.
2. Double pawls supporting fail-safe brake mechanism
Even if by any chance one of the two pawls becomes unserviceable, the other will still remain operative, and the brake system remains secure.

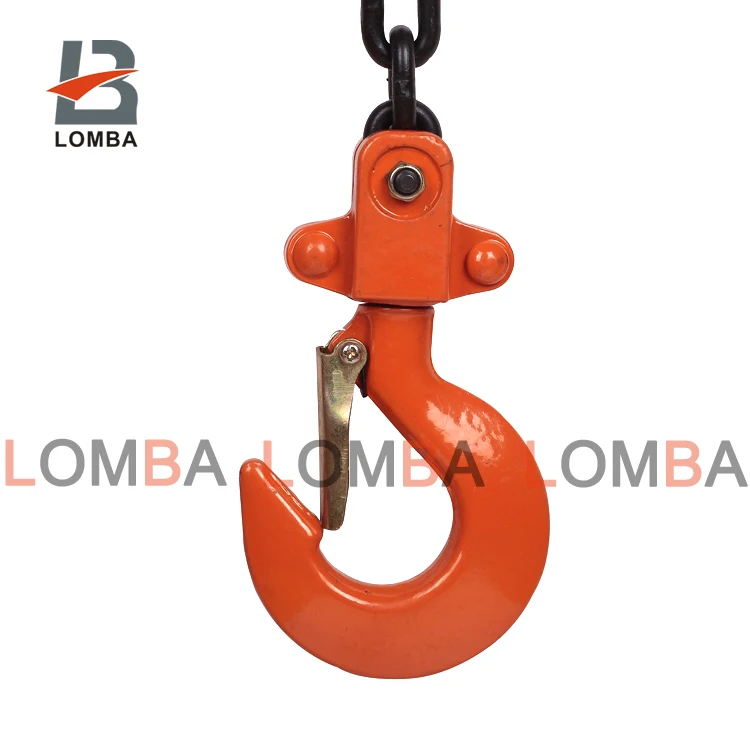

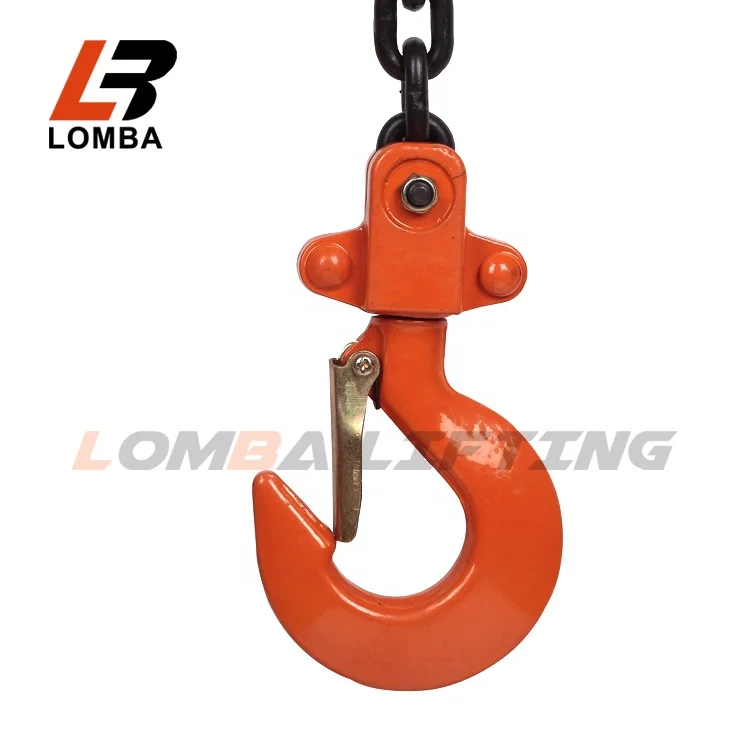

3. Bottom hook with thrust bearing
The thrust bearing enables the lifted load to be moved in any direction without subjecting it to stress.
4. Hooks of easier handling shape.
The opening of the hooks has been made wider for easier handling and working. However if by any chance the hook is overload there is no fear of it breaking, it will simply gradually start straightening out, avoiding any load drop or personal injury.
5. Tough framing
The tough gear case, reinforced with four ribs and four knock pins, provides accurate gear centering and high mechanical efficiency.
6. Rolled-edge hand wheel cover
This provides smooth operation of the hand chain when pulled sideways. Strong and least corrosive electrostatic powder painting.
7. Wet friction discs with longer life
8. Meets requirement of EN13157
9. Load sheave with sealed roller bearing
10. Anchor plate avoiding overlowering
11. Sealed roller bearing inside
Tested according to EN13157-2004
Product code | Capacity (t) | Standard lift (m) | Test load (t) | Pulling Efforts (kg) | Chain fall No. | Load chain Dia (mm) | Dimensions(mm) | Net Weight (kg) | |||
A | B | C | D | ||||||||
HSZ-A005 | 0.5 | 3.0 | 0.75 | 16 | 1 | 5.0 | 127 | 144 | 285 | 27 | 9.1 |
HSZ-A010 | 1.0 | 3.0 | 1.50 | 24 | 1 | 6.3 | 147 | 157 | 315 | 30 | 12.0 |
HSZ-A015 | 1.5 | 3.0 | 2.25 | 28 | 1 | 7.1 | 179 | 174 | 340 | 34 | 13.8 |
HSZ-A020 | 2.0 | 3.0 | 3.00 | 32 | 1 | 8.0 | 179 | 204 | 380 | 37 | 21.6 |
HSZ-A020A | 2.0 | 3.0 | 3.00 | 30 | 2 | 6.3 | 147 | 174 | 380 | 37 | 20.4 |
HSZ-A030 | 3.0 | 3.0 | 4.50 | 32 | 2 | 7.1 | 179 | 206 | 475 | 43 | 21.0 |
HSZ-A050 | 5.0 | 3.0 | 6.30 | 36 | 2 | 9.0 | 179 | 263 | 635 | 46 | 37.5 |
HSZ-A100 | 10.0 | 3.0 | 12.50 | 38 | 4 | 9.0 | 179 | 367 | 760 | 67 | 59.5 |
HSZ-A150 | 15.0 | 5.0 | 18.80 | 38x2 | 6 | 9.0 | 207 | 754 | 850 | 84 | 125.0 |
HSZ-A200 | 20.0 | 5.0 | 25.00 | 38x2 | 8 | 9.0 | 207 | 873 | 870 | 96 | 145.6 |
Individually proof load tested with individual serial number
