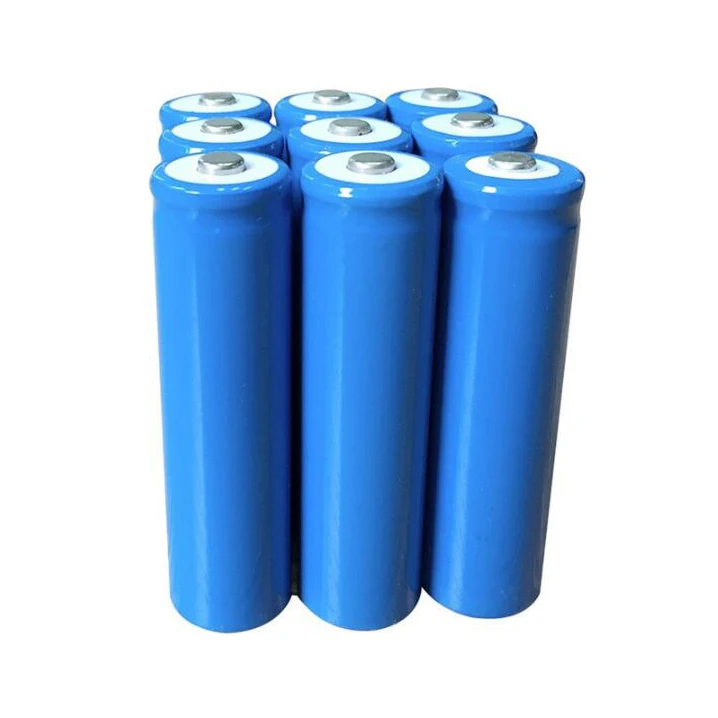

Rechargeable 18650 Lithium ion battery 3.7v 1200mAh li ion battery cell

Share on (60789528153):


Price:RUB 28.63

Quantity:


Product Overview

Description

Product Description



1. Rechargeable 18650 Lithium ion battery 3.7v 1200mAh li ion battery cell Specification:



SPECIFICATIONS
No. Item Specifications
1 Model 18650-1200
2 Minimum Capacity 1200mAh
3 Nominal Voltage 3.7V
4 Size 18mm*65mm
5 Charge Current Standard Charging::0.5C
Rapid charge:1.0C
6 Standard Charging Method 0.2C(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to≤0.05C
7 Charging Time Standard Charging:3.0hours(Ref.)
Rapid charge:2hours(Ref.)
8 Max.charge current 1C A
9 Max.discharge current 3C A
10 End-of-Charge Voltage 4.20V±0.05V
11 End-of-Charge Current 0.01C5A  (At CV mode)
12 End-of-Discharge Voltage 3.00V or 2.75V
13 Initial Impedance ≤60mΩ
14 Operating Temperature Charging: 0℃~45℃
Discharging:-20℃~60℃
15 Storage Temperature –5℃~35℃
16 Storage Humidity ≤75% RH
17 Appearance Without scratch,distortion,contamination and leakage
18 Standard environmental condition Temperature:23±5℃
Humidity:45-75%RH
Atmospheric Pressure:86-106KPA





18650 Lithium Ion battery:





1. Product Feature and Advance:



(1). Large capacity. 18650 lithium battery capacity is generally between 1200mAh - 2600mAh. 18650 lithium battery pack is casually can break through 5000mAh.



(2). Long life. Cycle life can reach more than 500 times.



(3). High safety performance. No explosion, no combustion, no poison, no pollution.



(4). High voltage. Nominal voltage is 3.7v.



(5). No memory effect. Before charging Do not have to discharge the remaining electricity, easy to use.



(6). Small internal resistance. Greatly reduces the battery self power consumption.



2.Product application:



Solar power system, Notebook, walkie-talkie, instrumentation, audio equipment, aeromodelling, toys, cameras, digital cameras, LED light, electric tools , robot, GPS, radio, portable source, loudspaker box, unmanned aerial vehicle, torch, aeromodelling and other electronic equipment.



3. Product storage.





Battery storage environment should be clean, dry, ventilated room, should avoid contact with corrosive substances, should be far away from fire and heat source.

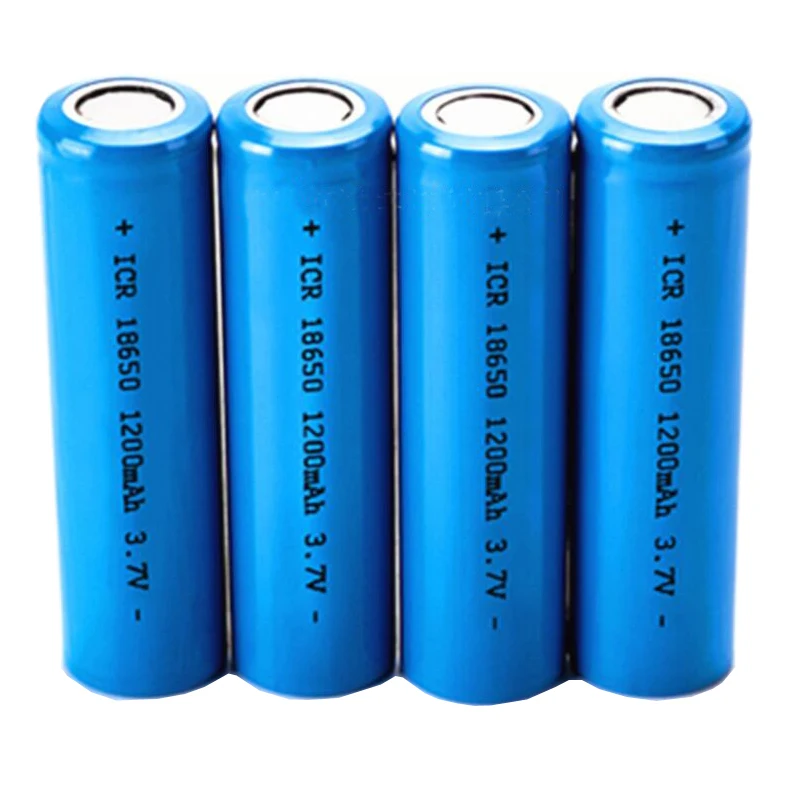

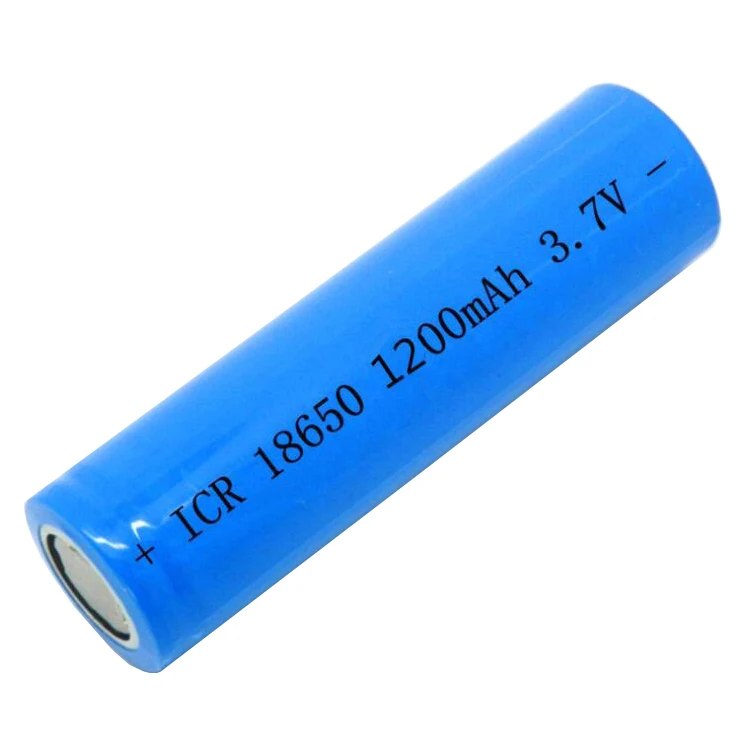

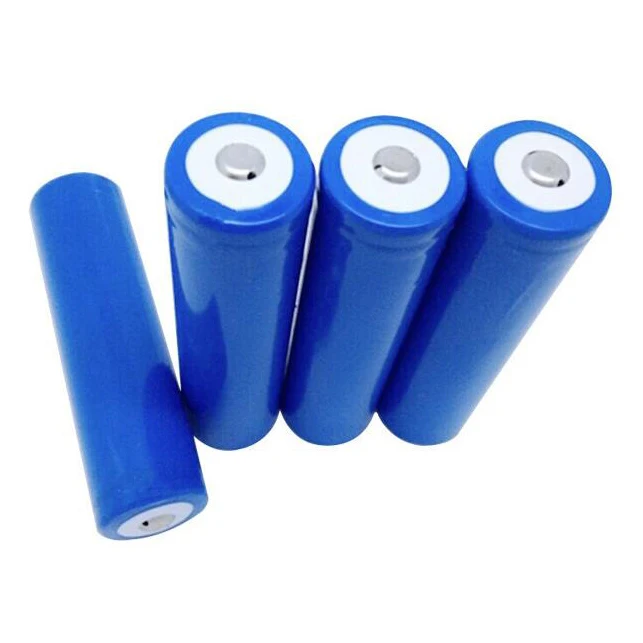

2. Rechargeable 18650 Lithium ion battery 3.7v 1200mAh li ion battery cell pictures:

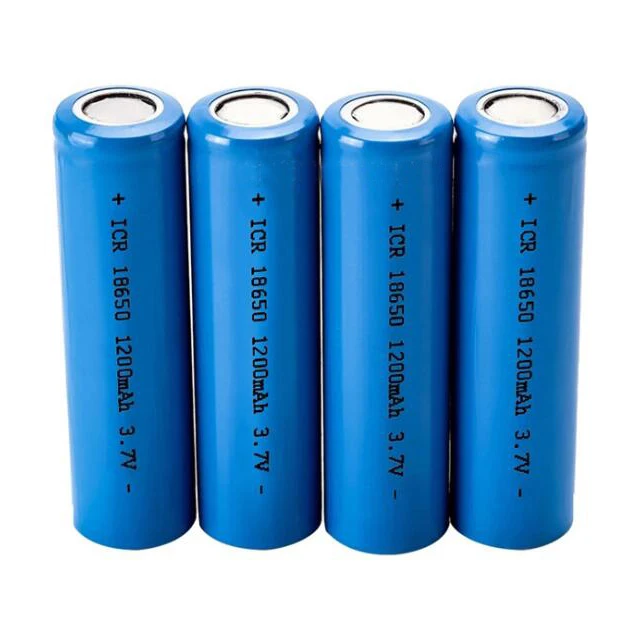

3.7v 1200mAh li ion.jpg

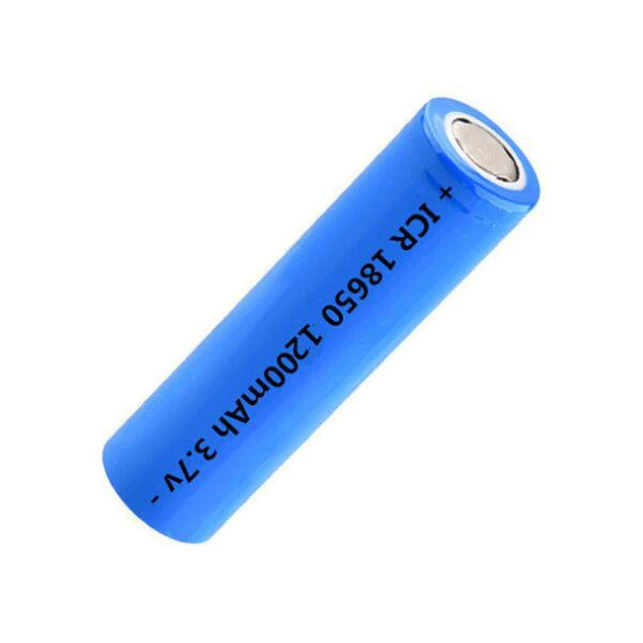

1200mAh li-ion battery.jpg





.jpg





.jpg





18650 li-ion battery.jpg





Company Information







3, Factory and Facility:







battery production line 1.jpg

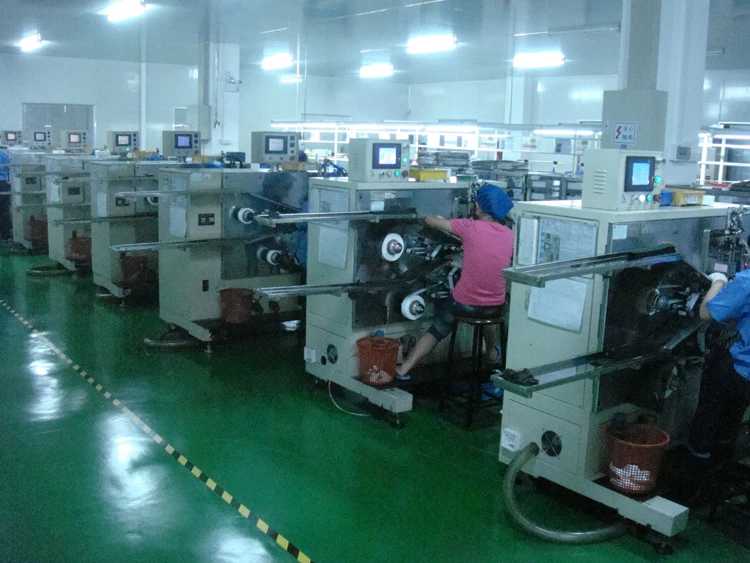

battery production line 2.jpg



battery production line 3.jpg



Applications





Battery Application.jpg



Note for battery use:



1. Read the battery instructions carefully, use the recommended battery, and operate in accordance with the operating procedures;



2. Check that electrical and battery contacts are clean, wipe with wet cloth when necessary, dry and pack in the correct polarity direction;



3. Do not let children replace batteries without adult custody. Small batteries such as AAA should be kept out of reach of children;



4. Do not mix new, old or different types of batteries, especially dry batteries and rechargeable batteries;



5. Do not attempt to regenerate a battery by heating, charging, or other means to avoid danger;



6. Do not short-circuit the rechargeable battery. Otherwise, it will damage the battery and cause the battery to burn. Do not heat the battery or throw it into water or fire. Putting the battery into the water will invalidate the battery. Putting the battery into the fire will cause the battery to break down, or burst into a violent chemical reaction, or produce some harmful gases and smoke.



8. Do not remove the battery or try to penetrate the battery with sharp objects because the electrolyte inside the battery can harm skin and clothing;



9. After the use of electrical appliances should be disconnected power switch, so as to avoid heating and fire;



10. The battery should be removed from long term unused appliances, stored after emptying, and charged and discharged every 3 months or so;



11. Battery should be kept in a cool, dry place, avoid direct sunlight;



12. Nickel charger and lithium charger can not be mixed;



13. Cannot use the battery, the high temperature produced during welding will damage the internal structure of the battery, may make the battery unusable, or even dangerous;



 14. Can not reverse charge, reverse charge is equivalent to overdischarge, overdischarge will cause adverse reactions in the battery and lead to serious damage to the battery, producing a large number of gases, which may cause chemical leakage of the rechargeable battery;



15. Do not put the battery under Rain Water, Rain Water can conduct electricity, when the battery under the Rain Water, it is likely to occur short circuit, so that the battery instant large current discharge and hot, will damage the battery or risk;

Certifications





.jpg
